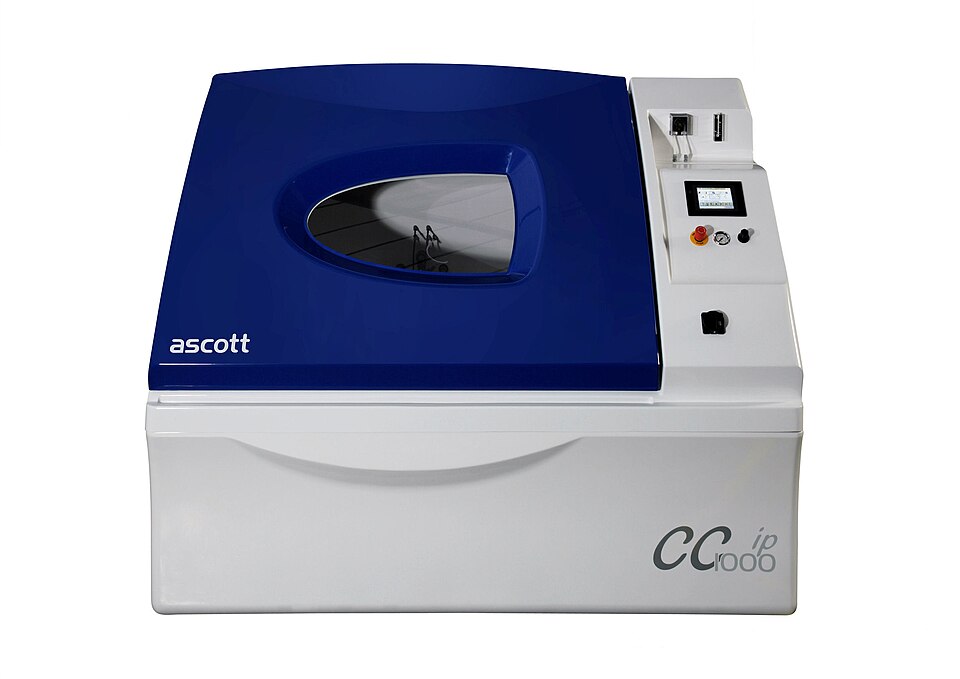

Salt Spray Chamber
ProductOverview
A salt-spray chamber (also called a salt-fog chamber) is a standardized accelerated corrosion test apparatus that exposes metal specimens or coated parts to a fine mist of 5% sodium-chloride solution in a heated (35°C) environment, simulating long-term coastal marine salt-spray corrosion. The chamber comprises an insulated stainless-steel cabinet holding specimen racks, a fog-generation system (air-shear atomizer nozzle fed with salt solution), an air-saturation system ensuring controlled humidity, a heating loop maintaining constant temperature, and a microcontroller orchestrating the test cycle and logging exposure time.
Salt-spray testing (ASTM B117, ISO 9227) is the accelerated corrosion test of choice for evaluating paint, plating, anodize, and galvanize protection on steel and aluminum automotive parts, fasteners, and structural components. A 500-hour salt-spray exposure typically correlates to 5–10 years of coastal real-world weathering, making it invaluable for product development and supplier qualification.
How it works
The Salt Solution Reservoir holds 10–20 L of 5% NaCl solution (sodium chloride in deionized water). A Solution Pump (peristaltic or gear type) draws solution at 1–2 L/hour and delivers it to the Fog Atomizer Nozzle nozzle mounted at the chamber top center.
Simultaneously, the Air Saturator draws compressed plant air through a bubbler submerged in deionized water, raising the air''s relative humidity to 95%+. The saturated air then supplies the atomizer at 80–100 kPa pressure.
At the nozzle, the air-shear (ASA) atomizer breaks the salt solution into a fine fog (5–15 µm median droplet diameter) and directs it downward into the Chamber Cabinet. Specimens mounted on non-contact Specimen Rack ceramic or glass rods are continuously exposed to the fog.
The fog settles on specimen surfaces, where chloride ions initiate corrosion pitting on unprotected steel and stress-corrosion cracking on susceptible alloys. Paint, plating, or anodize layers protect the underlying metal; the test monitors time-to-failure (rust-through, creepage under paint edge, or loss of adhesion).
The Heating System maintains chamber air temperature at 35°C ±2°C by cycling a 2–3 kW immersion heater via a Thermostat Switch. Lower temperature would slow the test; higher temperature would accelerate corrosion unrealistically and violate ASTM B117.
Condensed solution and overspray drain via gravity through a Sump Pan sloped toward a Drain Valve (manual ball valve) to an external waste container. The Test Controller microcontroller logs elapsed test time, temperature, and low-level alarms to an SD card or local display.
Test procedure and specimen preparation
Specimens are cleaned with degreasing solvent (acetone or chloroform) to remove oils and fingerprints, which can mask corrosion or create false localized attack. Coated or plated samples typically receive a deliberate scratch or cross-hatch to expose the base metal and evaluate edge protection (creepage resistance).
Specimens are arranged on the racks ensuring no contact between samples (to prevent galvanic couples that would corrupt results) and consistent exposure geometry (e.g., facing down if flat, oriented at 15° if required by customer specification). The operator notes specimen IDs, placement, and initial visual state (coating thickness, gloss, color).
The test runs continuously or on a cyclic schedule (e.g., 8 hours spray, 16 hours drying) depending on the product specification. Operators inspect specimens at intervals (100, 250, 500, 1000 hours) documenting red rust appearance, paint creepage from scribed lines, loss of adhesion, and pitting depth (scribed area analysis per ASTM D1141). Post-test, corrosion products are chemically cleaned per ISO 8407 and the sample is weighed to quantify mass loss on bare steel samples.
Standards and correlation
ASTM B117 (salt-spray testing of paints and related coatings) and ISO 9227 (corrosion tests in artificial environments, salt spray test) define acceptable fog density, temperature, humidity, and test cycles. Class A (continuous) and Class B (cyclic with drying phases) are the most common; some industries (e.g., aerospace) mandate Class C or D (wet/dry alternation) to simulate real-world wetting and drying.
Typical requirements: automotive fasteners must pass 500 hours with <10% creepage; marine structural steel requires 2000+ hours without red rust. A 500-hour salt-spray result is often cross-referenced to equivalent field exposure via accelerated-aging correlation curves developed during product introduction or material qualification. However, salt-spray does not perfectly correlate to all weathering scenarios, automotive suppliers often supplement with ASTM G48 or G52 (ferrous metals corrosion testing) and Q-panel outdoor racks to validate real-world durability.
Maintenance and solution management
Solution must be changed every 3–6 months (or per ASTM B117 guidance) to maintain consistent chloride concentration and pH. Old solution accumulates corrosion products (iron oxides, copper compounds) that can contaminate new test articles. The Nozzle Filter (100 µm stainless mesh) is cleaned weekly to prevent salt crystallization blockage. The Saturator Tank is drained and refilled with fresh deionized water monthly to prevent biological growth and mineral scaling.
Modern chambers integrate automated solution makeup systems that automatically dilute concentrated NaCl stock and adjust pH via acid/base addition, reducing operator error and improving test repeatability across multiple chambers in high-volume labs.
Salt Spray Chamber parts and their functions
7 top-level parts · 27 parts in total · full bill of materials below| # | Part | Qty | What it does |
|---|---|---|---|
| 1 | Chamber Cabinet 4 parts | 1× | Insulated stainless-steel chamber with specimen rack |
| 2 | Fog Atomizer Nozzle 4 parts | 1× | Nozzle assembly atomizing salt solution into fine aerosol |
| 3 | Salt Solution Reservoir 3 parts | 1× | Tank holding 10–20 L of 5% NaCl solution |
| 4 | Air Saturator 3 parts | 1× | Water-saturated air supply system |
| 5 | Heating System 3 parts | 1× | Temperature control maintaining 35°C ±2°C chamber air |
| 6 | Test Controller 4 parts | 1× | Microcontroller running test cycles and logging time |
| 7 | Drain System 3 parts | 1× | Gravity drain collecting condensate and solution runoff |
3D model
No 3D model yet. Have a CAD file of this? Add a 3D model. STL renders right on this page; STEP, FreeCAD, and OpenSCAD sources are welcome too (openly licensed, like all 3D models on BOMwiki).
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials for Salt Spray Chamber
7 top-level lines · 31 rows shown · 27 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Chamber Cabinet 4 parts | salt-spray-chamber-cabinet | 1× | 1 | 7 | assembly |
| 1.1 | Cabinet Frame | salt-spray-chamber-cabinet-frame | 1× | 1 | · | part |
| 1.2 | Chamber Door | salt-spray-chamber-cabinet-door | 1× | 1 | · | part |
| 1.3 | Specimen Rack | salt-spray-chamber-specimen-rack | 4× | 4 | · | part |
| 1.4 | Observation Window | salt-spray-chamber-observation-window | 1× | 1 | · | part |
| 2 | Fog Atomizer Nozzle 4 parts | salt-spray-chamber-fog-atomizer | 1× | 1 | 4 | assembly |
| 2.1 | Atomizer Nozzle Tip | salt-spray-chamber-nozzle-tip | 1× | 1 | · | part |
| 2.2 | Nozzle Filter | salt-spray-chamber-nozzle-filter | 1× | 1 | · | part |
| 2.3 | Solution Pump | salt-spray-chamber-fluid-pump | 1× | 1 | · | part |
| 2.4 | Air Pressure Regulator | salt-spray-chamber-air-regulator | 1× | 1 | · | part |
| 3 | Salt Solution Reservoir 3 parts | salt-spray-chamber-salt-reservoir | 1× | 1 | 3 | assembly |
| 3.1 | Reservoir Tank | salt-spray-chamber-reservoir-tank | 1× | 1 | · | part |
| 3.2 | Reservoir Inlet Assembly | salt-spray-chamber-reservoir-inlet | 1× | 1 | · | part |
| 3.3 | Float Level Switch | salt-spray-chamber-float-switch | 1× | 1 | · | part |
| 4 | Air Saturator 3 parts | salt-spray-chamber-air-saturator | 1× | 1 | 3 | assembly |
| 4.1 | Saturator Tank | salt-spray-chamber-saturator-tank | 1× | 1 | · | part |
| 4.2 | Air Inlet Sparger | salt-spray-chamber-air-inlet | 1× | 1 | · | part |
| 4.3 | Overflow Drain | salt-spray-chamber-overflow-drain | 1× | 1 | · | part |
| 5 | Heating System 3 parts | salt-spray-chamber-heater | 1× | 1 | 3 | assembly |
| 5.1 | Heating Element | heating-element | 1× | 1 | · | part |
| 5.2 | Thermostat Switch | salt-spray-chamber-thermostatic-switch | 1× | 1 | · | part |
| 5.3 | Temperature Probe | salt-spray-chamber-temperature-probe | 1× | 1 | · | part |
| 6 | Test Controller 4 parts | salt-spray-chamber-controller | 1× | 1 | 4 | assembly |
| 6.1 | Microcontroller | mcu | 1× | 1 | · | part |
| 6.2 | ADC Module | salt-spray-chamber-adc | 1× | 1 | · | part |
| 6.3 | Relay Bank | salt-spray-chamber-relay-bank | 1× | 1 | · | part |
| 6.4 | LCD Panel | lcd-panel | 1× | 1 | · | part |
| 7 | Drain System 3 parts | salt-spray-chamber-drain-system | 1× | 1 | 3 | assembly |
| 7.1 | Sump Pan | salt-spray-chamber-sump-pan | 1× | 1 | · | part |
| 7.2 | Drain Valve | salt-spray-chamber-drain-valve | 1× | 1 | · | part |
| 7.3 | Overflow P-Trap | salt-spray-chamber-overflow-trap | 1× | 1 | · | part |
