Overview

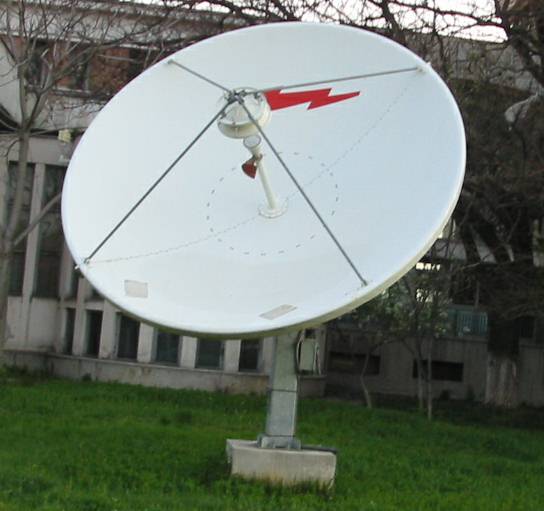

A satellite antenna reflector is a large parabolic dish used for high-gain communication between a spacecraft and ground stations, or between two satellites in orbit. The parabolic shape focuses incoming radio waves to a single point (the feed), where a small antenna (the Feed Assembly) collects or transmits the signal. The antenna gain (the ability to focus power onto a distant receiver) is proportional to the dish surface area and inversely proportional to the RF wavelength. A 10-meter parabolic dish operating at Ka-band (35 GHz) provides gain exceeding 50 dBi, concentrating transmitted power into a pencil beam only 0.3° wide.

The fundamental challenge in space is size: a 10-meter dish cannot fit inside a launch vehicle fairing. The solution is to design the dish for deployment: the reflector dish is stowed in a compact configuration (often folded accordion-style or rolled into a cylinder), then deployed in orbit via motorized Deployment Ribs ribs. Once deployed, the Support Truss truss locks the ribs in place, holding the parabolic shape stable throughout the mission.

Reflector construction and surface tolerance

The Reflector Dish is typically a sandwich of three layers:

Substrate. The core is a lightweight foam or honeycomb structure, providing stiffness with minimal mass. Honeycomb (aluminum or phenolic) offers better surface smoothness and is preferred for higher frequencies (Ka-band), where surface tolerances are tighter. Foam (polymethacrylimide or polyurethane) is heavier but simpler to manufacture.

Facing. A thin aluminum or gold-coated reflective sheet is bonded to the top surface. This facing must be highly conductive (to reflect RF energy) and must maintain the parabolic contour to high precision. Surface finish is critical: rough surfaces scatter RF energy, reducing antenna gain. Typical surface roughness targets are 0.5 mm RMS for Ku-band and 0.2 mm RMS for Ka-band.

Support structure. The Edge Ring stiffens the outer perimeter, and internal ribs (part of the core structure) provide radial bracing. The sandwich is designed to sustain launch loads (10+ g vibration) without warping.

The complete dish is then attached to a central hub, which serves as the mounting point for the Deployment Ribs and Support Truss.

Deployment mechanism

The Deployment Ribs are the key innovation enabling large deployable antennas. Each rib is a lightweight beam (typically carbon-fiber composite or titanium) that extends radially from the central hub outward to the edge ring. In the stowed configuration, the ribs are collapsed or folded, and the entire dish is compressed into a cylinder or accordion bundle. The ribs are connected by Rib Joint hinges at discrete points along their length.

When deployment begins, the Deployment Actuator energizes, pulling a Deployment Cable via a motorized Cable Spool. The cable is routed through pulleys attached to each rib; as the cable winds, it pulls the ribs outward, extension them to their full length. The ribs are guided by the dish facing and the edge ring, which constrain their motion to the parabolic trajectory.

Each rib is equipped with a Rib Latch, a mechanical lock that engages once the rib is fully extended. The latches prevent the ribs from collapsing if the cable breaks or the motor loses power. Redundant latches (or dual cables) ensure that even single-point failures do not cause retraction.

Feed assembly and RF performance

The Feed Assembly is positioned at the parabolic focus, where parallel rays (incoming from a distant transmitter or converging from the dish) reflect or focus. For a Cassegrain antenna, a secondary subreflector is positioned in front of the feed, allowing the feed to be positioned off-axis and reducing aperture blockage.

The feed element itself is a Feed Horn, a waveguide antenna designed to illuminate the entire parabolic aperture with uniform amplitude and phase. The feed horn's radiation pattern is carefully designed to match the gain distribution of the reflector, maximizing overall antenna efficiency (typically 65–75% after accounting for spillage and blockage losses).

For receive applications, weak signals from a distant transmitter are collected by the reflector and focused into the feed horn, where they are coupled into a waveguide. A Low-Noise Amplifier low-noise amplifier (LNA) is positioned immediately at the feed to amplify the signal and minimize noise figure. Modern receive systems achieve system noise figure < 0.5 dB.

For transmit applications, RF power is sent from the spacecraft power amplifier through a Feed Diplexer, which separates transmit and receive frequencies. The transmit signal is routed to the feed horn, where it is radiated and reflected by the dish into a focused beam directed toward the ground station.

Pointing and tracking

Most deployable antennas are not fixed to the spacecraft; instead, they are mounted on a gimbaled Pointing Gimbal that allows azimuth and elevation tracking. The gimbal contains two orthogonal rotation axes, each driven by a Azimuth Motor and Elevation Motor.

The spacecraft's flight computer knows the position of the ground station (or target satellite) in inertial coordinates and calculates the antenna pointing angles required. The flight computer drives the gimbal motors to slew the antenna, and Encoder feedback on both axes confirms the actual antenna orientation. Closed-loop servo control maintains pointing accuracy to ±0.1 degrees, well within the beamwidth of the antenna.

For deep-space missions, where ground stations are very distant, the antenna must track the slow rotation of the spacecraft's attitude. The gimbal must be capable of continuous 360° rotation on the azimuth axis and at least ±90° on elevation.

Thermal environment and stability

The Thermal Control Subsystem subsystem manages temperature to maintain RF performance. Antenna gain is sensitive to surface shape, which changes slightly with temperature. The Radiator Panel dissipates heat generated by electronics (LNA, switching circuits) to space. The MLI Blanket multi-layer insulation reduces radiative coupling to the hot spacecraft bus or to direct sunlight.

In some designs, a Heater Element electric heater maintains the antenna at a stable bias temperature, eliminating thermal drift of gain. This is particularly important for high-frequency antennas (Ka-band), where surface expansion of even 0.5 mm can degrade gain by several tenths of a dB.

Materials and reliability

The Support Truss boom is typically aluminum alloy (for low mass) or carbon-fiber composite (for higher stiffness and lower thermal expansion). The Facing Material is usually aluminum (mass-producible, good RF properties) or gold-coated (superior RF properties and lower oxidation, but higher cost).

The Deployment Ribs are commonly carbon-fiber composites, selected for low thermal expansion coefficient (critical for maintaining parabolic shape across the large thermal range in space) and high strength-to-weight ratio. Titanium is used in high-reliability designs where cost is not a primary constraint.

Redundancy is typically incorporated in the deployment mechanism: dual cable paths or dual motors ensure that the antenna deploys even if one motor fails. The Rib Latch mechanisms are over-designed to retain the ribs under all plausible failure scenarios.

Typical mission profiles

Earth-observation satellites use moderate-sized dishes (2–3 meters) operating at Ku-band, providing download data rates of 500 Mbps to 1 Gbps. Communication satellites may have larger antennas (5–10 meters) with multiple feeds serving different ground stations simultaneously.

Deep-space missions (Mars rovers, lunar orbiters) use smaller antennas (1–2 meters) operating at Ka-band, where the extreme gain (45+ dBi) compensates for the very long distances (400 million km to Mars) and extreme path loss. Pointing must be precise to sub-degree accuracy to maintain the beam on the receiving ground station.
