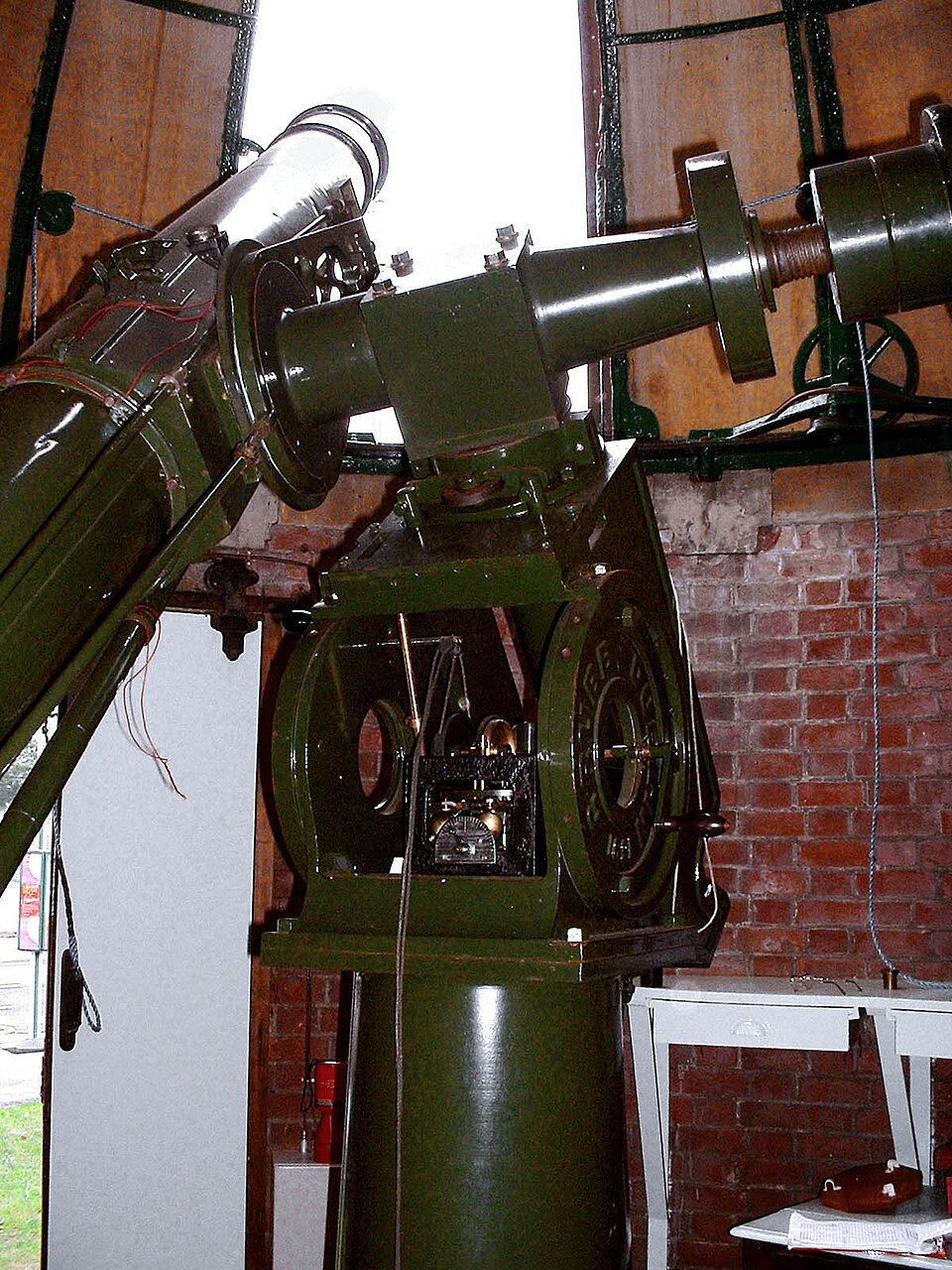

A sidereal clock drive is the mechanical heart of equatorial telescope mounts. It rotates the scope's RA (hour) axis at exactly the rate Earth rotates, allowing an observer to fix a star in the eyepiece for hours without manual adjustment. Early designs used synchronous AC motors running at 60 Hz (50 Hz in Europe), which naturally rotate at 3600 rpm; modern designs use stepper motors and crystal-oscillator timing to achieve the same precision without depending on AC line frequency.

The [[sidereal-clock-drive-motor|motor]] spins continuously at high speed, and the [[sidereal-clock-drive-gear-train|gear train]] reduces this speed by a factor of 100–500. The output is then passed through a [[sidereal-clock-drive-worm-gear|worm and worm wheel]], which provides another stage of reduction while inherently locking the mechanism—the worm cannot be back-driven by the wheel, so the mount holds position when power is off.

The [[sidereal-clock-drive-frequency-standard|crystal oscillator]] sets the rate precisely. For AC synchronous drives, the line frequency itself (60 Hz) is the reference; for DC and stepper designs, a quartz crystal oscillator replaces it, often with temperature-compensation circuitry to maintain rate across a wide range of ambient conditions. A single-degree change in temperature can shift the oscillator frequency by 0.01–0.1%, which translates to tracking errors that accumulate over an observing session.

How it works

In a traditional AC synchronous design, the [[sidereal-clock-drive-motor|motor]] is a small induction motor designed to lock to the line frequency. At 60 Hz in North America, the motor naturally rotates at 3600 rpm (120 × 60 Hz / 2 poles). This is deterministic and never drifts—as long as the power company maintains 60 Hz, the motor rotates at 3600 rpm.

The [[sidereal-clock-drive-gear-train|gear train]] then reduces this high speed through a series of meshed gears. If the first stage is a 10:1 pair, the output is 360 rpm. The second stage at 10:1 gives 36 rpm, and a third 10:1 stage gives 3.6 rpm. The final [[sidereal-clock-drive-worm-gear|worm gear]] with a 60:1 ratio yields 0.06 rpm, or 3.6 degrees per minute, very close to sidereal rate.

Sidereal rate, strictly speaking, is 360 degrees per sidereal day, where a sidereal day is 23 hours 56 minutes 4 seconds—about 0.27% shorter than a solar day. This works out to exactly 15.041067 degrees per hour, or 0.004178 revolutions per minute. Achieving this from a 60 Hz line frequency requires gear ratios chosen carefully to approximate this value. A classic design uses a 12:1 ratio somewhere in the train to account for the solar-to-sidereal offset, and the remaining ratios are integer multiples of 10 for simplicity.

Modern DC and stepper designs replace the AC line frequency with a [[sidereal-clock-drive-crystal-resonator|quartz crystal oscillator]]. Quartz crystals are highly stable, drifting less than ±20 parts per million per year. A 10 MHz crystal divided by appropriate digital counters in the [[sidereal-clock-drive-frequency-multiplier|frequency control circuit]] can generate a reference signal that the stepper motor's [[sidereal-clock-drive-control-module|control board]] uses to step the motor at exactly sidereal rate. This approach is more complex than AC synchronous, but offers superior stability and doesn't depend on AC mains availability or frequency regulation.

The [[sidereal-clock-drive-worm-gear|worm gear]] is the final critical stage. A worm is a screw-like gear with one or more threads; the worm wheel is a gear that meshes with it. As the worm rotates, its thread engages successive teeth on the wheel, producing high mechanical advantage. If the worm has one thread and the wheel has 60 teeth, a single rotation of the worm advances the wheel by 1/60 rotation, a 60:1 reduction. The critical property of worm gears is self-locking: the wheel cannot drive the worm backward because the thread angle is too shallow. This means the [[sidereal-clock-drive-worm-wheel|wheel]] (and thus the telescope) holds its position without slip even when the motor is stopped.

[[sidereal-clock-drive-temperature-compensation|Temperature compensation]] is necessary for long-term accuracy. As the [[sidereal-clock-drive-crystal-resonator|crystal oscillator]] warms or cools, its frequency shifts slightly. A [[sidereal-clock-drive-thermal-sensor|temperature sensor]] in the [[sidereal-clock-drive-control-module|control board]] measures the ambient condition and applies a correction factor to the output frequency. The correction might reduce the clock signal by 0.1% for every degree above nominal temperature, offsetting the crystal's positive temperature coefficient and keeping the output frequency nearly constant.

Over an eight-hour observing session, a well-tuned sidereal drive should track within ±5 arcseconds, meaning a star drifts less than a few pixels across the eyepiece. This performance, combined with occasional manual corrections (a hand paddle letting the observer nudge RA and Dec), is good enough for comfortable visual observing and basic astrophotography. More demanding work—long-exposure astrophotography of faint objects—relies on an [[telescope-autoguider|autoguider]] that monitors a reference star and sends corrective pulses, compensating for any residual tracking error or atmospheric drift.
