Surface Tow Lift Product

Overview

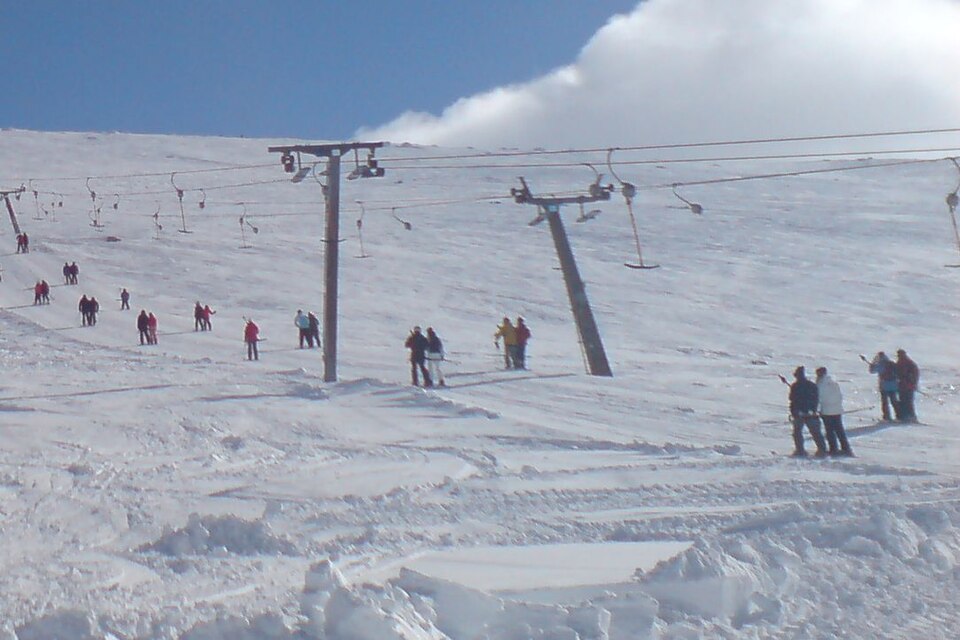

A surface tow lift (or rope tow) is the simplest form of vertical lift, using a continuous moving Tow Rope driven over Drive Terminal and Return Wheel and Tension pulleys. Skiers grab handle grips attached to the rope and are towed upslope at 0.5–2 m/s. Unlike chairlifts or gondolas, the skier remains on the slope; they do not sit down or become elevated more than arm's length above the snow. This makes rope tows cheap, low-maintenance, and ideal for small ski hills, teaching slopes, or beginner terrain.

Rope and mechanical system

The Tow Rope is a continuous loop of 16–22 mm diameter Main Rope (6×19 or 8×19S steel wire rope, 1960 MPa) spliced at both ends via Rope Splice. The rope is 200–1000 m long depending on slope length and vertical rise (30–200 m typical).

Grip Handles (foam or rubber grips, ~30–40 mm diameter) are spaced 2–3 m apart along the rope. Each handle is simply bolted or carabiner-clipped to the rope via Grip Attachment eyes, and fitted with a Quick Release mechanism so a skier falling can immediately let go without being dragged.

The Drive Terminal at the top of the slope houses a 5–15 kW Tow Motor coupled to a Tow Gearbox (8:1–15:1) driving a Drive Wheel (300–500 mm diameter grooved pulley). At the bottom, the Return Wheel and Tension is a large idler (400–600 mm diameter) supported on Return Bearing. A Tension Weight (500–1000 kg cast iron) hanging from a Tension Cable automatically maintains constant rope tension as the rope stretches slightly over time.

Intermediate Intermediate Support Wheels (250–350 mm pulleys) spaced upslope support and redirect the rope, limiting sag and maintaining proper rope geometry.

Controls and safety

The Motor Control System include a Motor Contactor (three-phase motor starter) and Speed Control (resistor or VFD) allowing an operator to adjust rope speed from idle to ~2 m/s. A Control Panel (NEMA 4 weatherproof enclosure) houses the electrical components. Limit Switch sensors at top and bottom terminals stop the motor if the rope reaches travel limits.

Safety Gate barriers at the loading zone prevent unskilled or falling skiers from being pulled into the rope while standing. An Emergency Stop System hardwired e-stop button and Friction Brake friction clamp allow rapid rope halt in emergencies or mechanical failure.

Operational characteristics

Rope tows are popular on beginner slopes and small ski hills because:

• Low cost: No cabins, simple rope and pulley design.
• High availability: Can operate for 8–10 hours per day, seasonal.
• Easy maintenance: Annual rope inspection, bearing lubrication, no complex grip mechanisms.
• Moderate capacity: 200–400 skiers per hour, sufficient for teaching and smaller terrain.
• Skier control: Skiers remain in control; falling and letting go is simple.

A skier typically rides for 2–5 minutes per tow to reach the summit, then unloads and skis down, repeating as desired. The system is intermittent (not a continuous enclosed loop like chairlifts) and ideal for dedicated small ski areas or beginner zones at larger resorts.
