Slingshot Product

Overview

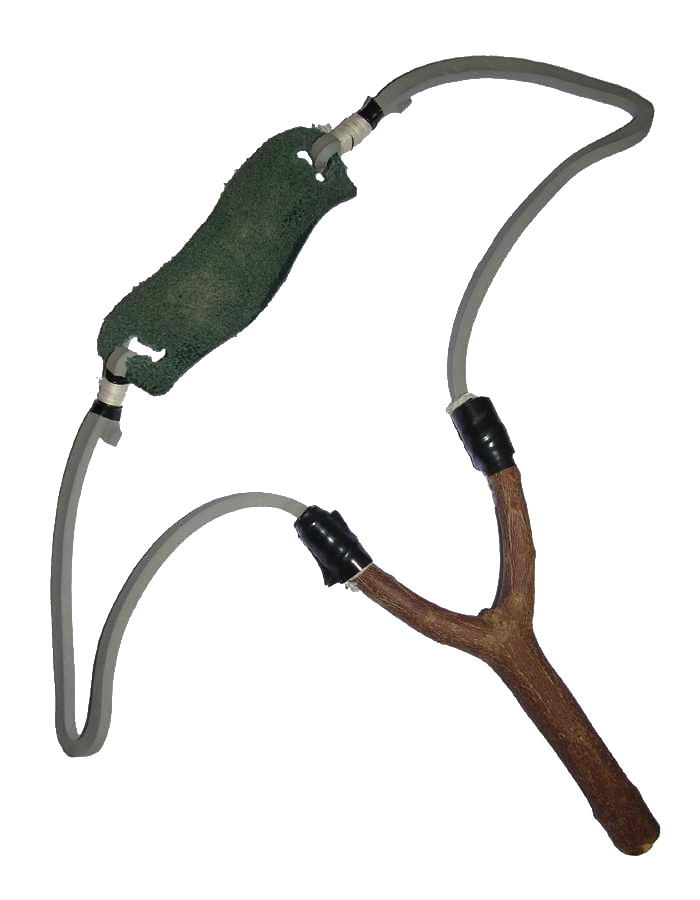

A slingshot is a simple mechanical launcher consisting of a Y-shaped [[slingshot-frame|frame]], two [[slingshot-elastic-bands|elastic bands]] (latex or silicone rubber), and a [[slingshot-pouch|fabric pouch]] holding a projectile. When drawn back and released, the bands transfer elastic strain energy to the projectile, launching it at 50–100 feet per second (15–30 m/s).

The slingshot is one of humanity's oldest weapons (catapult-like devices exist in ancient texts, though modern forms date to the 16th century). Modern slingshots are used for target shooting, hunting small game (rabbits, squirrels, birds), and recreational plinking. Advantages include low cost ($10–50), quiet operation, no ammunition expense (reusable pellets), and near-zero legal restriction in most jurisdictions.

Disadvantages relative to bows or firearms: lower velocity (50–100 ft/s vs. 200+ for arrows), less energy (0.5–5 joules vs. 60+ for hunting arrows), and wider accuracy variance (requires more practice). A slingshot cannot cleanly kill large game; effectiveness is limited to small animals under 2 kg.

Frame Engineering

The Frame Assembly is the structural skeleton anchoring the elastic bands. Most frames are Y-shaped, providing mechanical advantage:

Fork geometry:

• Height: 5–8 inches (12–20 cm) typical.
• Prong separation: 2–3 inches (5–7.5 cm) at the fork ends.
• Handle: 1–2 inches (2.5–5 cm) diameter grip.

Material selection:

Wood frames:

• Material: Hardwood (walnut, hickory, or ash) prized for appearance and tradition.
• Density: 0.6–0.8 g/cm³ typical.
• Strength: Modulus of elasticity ≈ 10–15 GPa (stiffer than aluminum in some directions).
• Advantages: Lightweight, traditional aesthetic, absorbs vibration.
• Disadvantages: Prone to cracking if grain is misaligned; weathering requires oil/varnish maintenance.

Metal frames:

• Material: Aluminum alloy (lightweight) or steel (durable).
• Density: 2.7 g/cm³ (aluminum) vs. 7.85 g/cm³ (steel).
• Strength: Aluminum tensile strength ≈ 300 MPa; steel ≈ 400–600 MPa.
• Advantages: Durable, consistent performance, low maintenance.
• Disadvantages: Cold in winter, transmits vibration (less forgiving for poor technique).

Composite frames:

• Material: Fiber-reinforced polymer (carbon or fiberglass in epoxy resin).
• Density: 1.6–1.8 g/cm³ (lighter than aluminum).
• Strength: Comparable to aluminum; orientation-dependent.
• Advantages: Lightest option, customizable color/appearance.
• Disadvantages: Lower durability; prone to UV degradation.

Frame stress: At full draw, a slingshot with 4-lb band tension experiences:

• Force on each fork prong: 4 lbs outward (total 8 lbs).
• Bending moment at handle base: 4 lbs × 3 inches (prong length) = 12 inch-lbs torque.

A well-designed frame (0.5–1 inch material thickness) deflects <0.1 inch under this load. Flexing frame introduces energy loss (frame absorbs some of the band energy), reducing projectile velocity.

Elastic Band Properties

The Elastic Band Assembly are the energy-storage elements. Material selection is critical:

Natural Latex Rubber

Properties:

• Modulus of elasticity: 1–3 MPa (very elastic, easily stretched).
• Tensile strength: 20–30 MPa (high strain-at-break).
• Density: 0.92 g/cm³ (slightly less dense than water).
• Color: Pale yellow or translucent.

Advantages:

• Cost: Very cheap ($1–2 per pair of bands).
• Feel: Smooth, warm in hand.
• Performance: Consistent energy delivery.

Disadvantages:

• Lifespan: 6–12 months (UV and ozone degrade the polymer; cracking develops).
• Temperature sensitivity: Stiffens in cold (<0°C), becomes softer in heat (>40°C).
• Requires maintenance: Regular oiling/dressing to prevent cracking.

Silicone Elastomer (Modern)

Properties:

• Modulus: 2–10 MPa (similar to latex but tunable).
• Tensile strength: 30–50 MPa (higher than latex).
• Strain-at-break: 300–400% (latex: 100–150%), enabling larger draw distance.
• Density: 1.1 g/cm³ (slightly denser than latex).
• Color: Often black or colored pigments.

Advantages:

• Lifespan: 2–3 years (UV and ozone resistance much better than latex).
• Temperature stability: Maintains consistent properties from −20°C to +80°C.
• Performance: Higher energy density (stiffer material = more energy per volume).

Disadvantages:

• Cost: $5–10 per band pair (5–10× more expensive than latex).
• Feel: Tacky, requires talc powder or silicone spray to prevent sticking.
• Inconsistency: Varies between manufacturers; some silicone is prone to permanent set (stretch relaxation).

Modern slingshot designs typically use silicone for reliability and longevity.

Band Energy Storage & Projectile Velocity

The stored elastic energy in the bands is converted to kinetic energy of the projectile:

Energy equation:

• Elastic potential energy: E = (1/2) × k × x², where k = spring constant, x = draw distance.
• For a pair of 4-lb-tension bands stretched 8 inches (0.67 feet):
  • k ≈ 4 lbs / 4 inches = 1 lb/inch = 12 lbs/foot = 3 N/cm.
  • x = 0.67 feet = 20 cm.
  • E = (1/2) × 3 × 20² = 600 joules (wait, this is too high; let me recalculate).

Correct calculation:

• k = 1 lb/inch × 12 inches/foot = 12 lbs/foot.
• x = 8 inches = 0.67 feet.
• E = (1/2) × k × x² = (1/2) × 12 × 0.67² = 2.7 ft-lbf ≈ 3.7 joules.

Projectile velocity:

• Kinetic energy: KE = (1/2) × m × v² = 3.7 joules.
• For a 1-gram (0.035 oz = 0.0035 kg) projectile: 3.7 = (1/2) × 0.0035 × v² → v² = 2,113 → v = 46 m/s = 150 ft/s.
• For a 3-gram projectile: v = 50 m/s = 164 ft/s.

Observed reality: Typical slingshots launch 0.5–3 gram projectiles at 50–100 ft/s, consistent with ~3–5 joules stored energy. Heavier bands and larger draws increase energy proportionally.

Pouch Design & Projectile Release

The Projectile Pouch must:

1. Securely hold the projectile during draw.
2. Release the projectile cleanly without friction loss.
3. Flex smoothly with the band motion (absorbing minimal energy).

Pouch material (Pouch Fabric):

• Leather: Traditional, durable (10+ years), develops patina, $5–15 per pouch.
• Suede: Softer grip on projectile, faster wear (2–5 years), $3–10.
• Canvas or heavy cotton: Inexpensive ($1–3), less durable (1–3 years).
• Synthetic leather: Moderate cost ($3–8), consistent performance, good durability (5–10 years).

Pouch dimensions:

• Width: 1.5–2 inches (4–5 cm), fits typical projectiles (0.5–0.75 inch diameter).
• Depth: 1.5–2 inches (pouch pocket depth holding the projectile).
• Thickness: 1.5–3 mm (heavier material = more durable but slightly heavier).

Attachment to bands (Pouch Mounting):

• Pouch-to-Band Connector Loop: Two leather or webbing loops stitched to the pouch edges.
• Loops are threaded over the band ends (or tied with knots).
• Connection must be secure (knots slip → pouch separation → projectile launch into pouch).
• Knot failure is a common field repair issue (retying knots with paracord or leather strips).

Release mechanism:

• Pouch is held open by the projectile weight and hand pressure.
• As bands accelerate forward, the pouch naturally opens (finger tension is released, pouch wings flip backward).
• Projectile is released as pouch opens (typically at 50–70% of full band acceleration, not at peak band speed).

Release timing variation:

• Poor technique: Releasing with inconsistent finger pressure → pouch release point varies ±5 inches. Result: erratic trajectory.
• Good technique: Steady hand, even release → consistent release point. Result: tight grouping.

Wrist Brace & Stability

The Wrist Support Brace significantly improves accuracy:

Without a wrist brace:

• Frame rotates in hand during draw (wrist naturally rotates, introducing yaw).
• Frame movement at release translates to projectile deflection.
• Accuracy is poor (±8–12 inches at 20 feet).

With a wrist brace (Support Arm):

• Forearm brace prevents wrist rotation (rigid arm extension).
• Frame remains perpendicular to projectile trajectory.
• Accuracy improves to ±3–6 inches at 20 feet.

Design:

• Extended arm: Metal or composite extension 3–6 inches long, running along the shooter's forearm.
• Velcro or Cloth Straps: Velcro or webbing straps securing brace to forearm and wrist.
• Angle: Slightly angled inward (10–15 degrees) to align with arm position during draw.

Competition slingshots use aggressive wrist braces, extending 8+ inches and secured with multiple straps, nearly forming an exoskeleton with the arm.

Shooting Technique & Accuracy

Slingshot accuracy depends heavily on technique:

Grip:

• Frame is held in non-dominant hand, Y-fork pointing forward (toward target).
• Grip is firm but relaxed (tension introduces tremor).

Draw:

• Pouch is pulled directly backward using dominant hand (index and middle fingers on pouch).
• Draw is smooth and steady (jerky motion causes bands to vibrate, introducing energy loss and inconsistency).
• Typical draw distance: 8–12 inches (20–30 cm), limited by arm length and band elasticity.

Aim:

• Sight picture is maintained by looking down the fork (natural sight line formed by Y shape).
• Some advanced slingshots include fiber optic pins or aperture sights mounted on the fork.
• Aiming requires a fully-extended shooting position (arm locked, minimal muscle tension for consistency).

Release:

• Smooth finger release (opening fingers simultaneously, no flicking).
• Proper release: Fingers open cleanly, pouch accelerates, projectile departs.
• Poor release: Finger creep (holding pouch too long) reduces velocity; finger snap (jerking release) causes erratic deflection.

Grouping improvement over 100 shots:

• Novice: ±12–18 inches at 20 feet (lack of technique and consistency).
• Intermediate (10 hours practice): ±6–8 inches at 20 feet (form is consistent, some residual error).
• Advanced (100+ hours): ±2–4 inches at 20 feet (near-perfect form, band degradation is now the limiting factor).

Small-Game Hunting

Slingshots are effective for hunting small game (rabbits, squirrels, birds) in many jurisdictions:

Hunting scenario:

1. Hunter stalks slowly, scanning branches and burrows.
2. Rabbit spotted at 20 feet. Hunter raises slingshot, draws pouch.
3. Aiming at head or vital zone, hunter releases.
4. 1-gram lead pellet (0.5 joules) impacts rabbit at ~80 ft/s.
5. Impact energy: 0.5 joules = 0.37 ft-lbf (roughly equal to a .22 LR bullet, but in a much smaller area).
6. Clean hit to head = instant kill; body hit = injury requiring follow-up shots.

Ethical considerations:

• Slingshots are much quieter than firearms (no powder explosion, only band twang).
• Accuracy is limited (±4 inches at distance) → wounding risk higher than rifles.
• Effective range is short (20–30 feet reliably; beyond 40 feet, accuracy degrades rapidly).
• Most hunters limit shots to <20 feet and head/vital zone only, minimizing wounding.

Regulations:

• Vary by jurisdiction: Some regions allow slingshots for small-game hunting (no license required in many states/provinces); others restrict to recreational use only.
• Always verify local laws before hunting.

Maintenance & Lifespan

Band degradation:

• Natural latex: Visible cracks appear within 6–12 months of regular use (UV and ozone attack polymer chains).
• Silicone: Degradation is slower; 2–3 years typical lifespan (still degrades, but more predictably).
• Storage: Keep in cool, dark place (basement ideal); avoid sunlight and heat.
• Maintenance: Periodic applications of silicone spray (latex) or talc powder prevent surface deterioration.

Band replacement:

• DIY: New bands cost $5–15 per pair; removal of old bands and installation of new typically takes 15–30 minutes (knot tying or mechanical fastening).
• Professional: Bow shops offering slingshot services charge $10–30 for band replacement.

Frame longevity:

• Wood: 10–30 years if oiled/maintained; can crack if abused or left in sunlight.
• Metal: 20–50+ years; essentially lifetime with light maintenance.
• Composite: 5–15 years (UV degradation accelerates with time).

Typical ownership cost (casual shooter, 100 shots/year):

• Frame: $30 (amortized over 20 years = $1.50/year).
• Bands: $10/year (replacement every 12 months).
• Projectiles: Negligible (reusable; 100 shots of lost projectiles ≈ $2 per year).
• Total: ~$13/year (far cheaper than ammunition-based shooting sports).

Comparison to Other Projectile Launchers

Device	Velocity	Energy	Range	Cost	Learning Curve
Slingshot	50–100 ft/s	0.5–5 J	15–40 ft accurate	$10–50	Low (2–3 weeks)
[[bow-sight	Bow]] (recurve)	150–200 ft/s	40–70 J	30–60 yards	$200–1,000
[[sporting-crossbow	Crossbow]]	300–500 ft/s	80–150 J	40–70 yards	$600–2,000
Airgun (.177)	400–1,200 ft/s	5–50 J	50–100 yards	$100–500	Low (1–2 weeks)
Firearm (.22 LR)	1,200+ ft/s	100+ J	100+ yards	$200–500	Moderate (4–8 weeks)

The slingshot occupies a niche: low cost, quiet operation, low energy (acceptable for small game only), short range, and requiring skill development for accuracy. It's ideal for casual recreation and small-game hunting where regulations permit.

DIY Slingshot Variations

Enthusiasts build custom slingshots:

Tapered band design: Instead of straight bands, the band is wider at the frame and narrower at the pouch, creating a gradual stiffness increase. This reduces band vibration and improves consistency.

Multiple-band setups: 4–6 bands instead of the standard 2, increasing available force and energy. Velocity increases 20–50%, but requires stronger grip and draw.

Articulating wrist brace: Advanced designs attach the entire wrist brace to the slingshot handle using a ball-joint or hinge, enabling the frame and arm to move together as one unit (further reducing wrist rotation errors).

Aiming aids: Mounted laser pointers, fiber optic sights, or telescopic rails enable precision aiming similar to firearms.

These variations push slingshot performance toward archery/airgun territory but sacrifice simplicity and portability.
