Snow Groomer (Piste Machine) Product

Overview

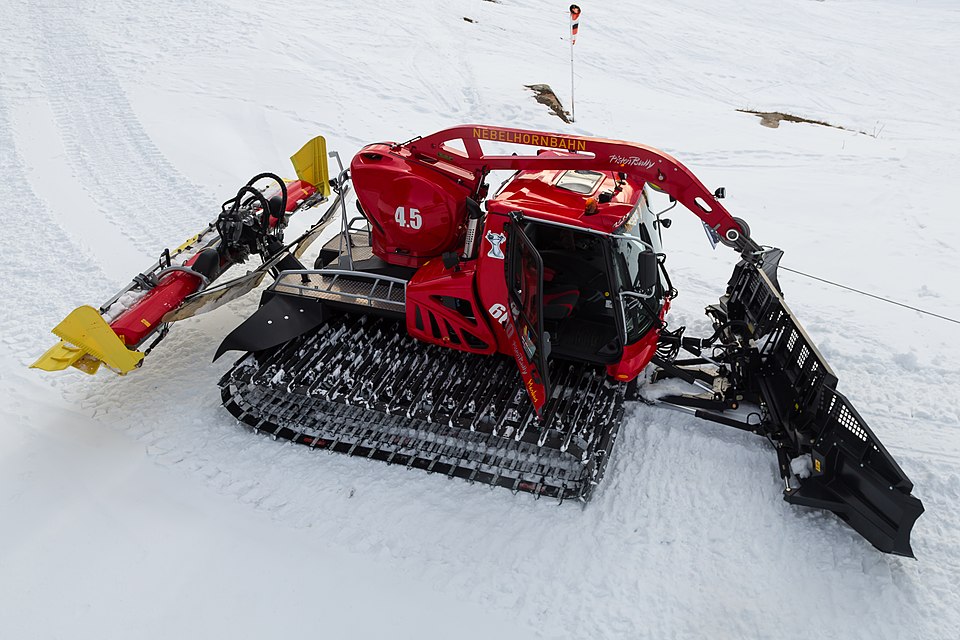

A snow groomer (also called a piste machine) is a tracked vehicle designed exclusively for preparing ski slopes and cross-country trails. The machine combines a rotating Snow Tiller Assembly that digs and mixes the top layer of snow with a rear Drag Blade and Smoothing System that smooths and compacts it. The result is a uniform, dense, skiable surface free of ice patches and wind-sculpted crud.

The design is engineered for mountain duty: tracks distribute load to avoid sinking, a turbodiesel engine provides torque for steep slopes, and an optional Recovery Winch (Optional) enables recovery on slopes over 45°. A single operator controls all functions from a heated cabin using a proportional joystick, working alone at night when slopes are closed to skiers.

Track system and mobility

The Track Drive System are the critical innovation. A pair of rubber or steel Track Belt approximately 2–3 m long distribute the machine weight (5–8 tonnes) over a large footprint (10–15 m²), resulting in ground pressure of 0.5–1 psi — far lower than wheel-based machines. This prevents the machine from sinking into soft powder, crucial for maintaining speed and control on steep terrain.

Each Track Belt wraps around a Drive Sprocket driven by a hydrostatic motor and is supported by 4–5 Support Roller on each side. The Track Tensioner keeps the belt tight as wear occurs. Independent hydrostatic motors for left and right tracks allow steering: reduce flow to the left motor, and the left track slows while the right continues, pivoting the machine.

The low ground pressure and excellent traction enable grooming on 40–50° slopes with steady progress. On slopes steeper than 45–50°, the optional Recovery Winch (Optional) is deployed: the operator reels out the cable, hooks a remote anchor point or tree, and winches the machine uphill, then grooms on descent.

Tiller system and snow mixing

The Snow Tiller Assembly is the grooming engine. The Tiller Drum is a 1–1.5 m wide rotating cylinder with fixed steel tines or paddles. As the machine moves forward, the tiller rotates at 200–400 rpm, driven by a separate Tiller Motor. The tines dig into the top 20–40 cm of the snow layer, breaking up crust, mixing wind-crusted and compressed layers, and aerating dense snow.

The Tiller Housing shroud deflects tilled snow backward and prevents excessive side scatter. The tilled snow is propelled toward the rear, where the Drag Blade and Smoothing System flattens and compacts it. The tiller depth is adjustable hydraulically via Lift Cylinder — lower the tiller for deep grooming, raise it for light touch-ups.

Tiller speed and forward speed are independent, allowing the operator to dial in the ideal mixing: slow forward with high tiller speed chews fine powder into a consistent base; faster forward with moderate tiller speed moves denser material. Skilled operators vary these ratios throughout the night to build a multi-layered base: coarse foundation layers early in the season, progressively finer surface layers as the season advances and snow consolidates.

Drag blade and surface finishing

The Drag Blade and Smoothing System is a flat steel or Teflon-coated plate 2–4 m wide mounted on the rear of the chassis. As the tilled snow flows backward from the tiller, the blade drags across it, compacting and smoothing. The blade pressure is adjusted by hydraulic Blade Tilt cylinders that tilt and angle the blade left/right and forward/backward.

A skilled operator contours the blade to match the slope: slightly tilted to direct snow downhill on traverse sections, leveled on fall-line runs. The blade can be raised completely for transport between slopes, lowered to 5 cm above surface for light grooming, or set to bite 10–15 cm for aggressive base building.

Modern groomers include a secondary drag — a finisher blade with a slightly different angle — to create final surface smoothness. Combined with the tiller's churning action, the blade transforms loose snow into a machine-set surface.

Hydrostatic transmission and engine

The Engine and Drivetrain is a turbodiesel in the 150–300 kW range, chosen for high-altitude reliability and torque. Altitude thins air; a naturally aspirated engine loses power, so mountain groomers use turbochargers. The engine drives a Hydraulic Pump at a fixed ratio.

The pump is a variable-displacement design, maintaining constant pressure (280–350 bar) and varying flow based on demand. When the operator pushes the joystick forward, the pump opens a spool directing flow to both Track Motor equally, driving them forward. Joystick left reduces the left motor flow, turning left. The proportional control is smooth and intuitive — operators make precise line adjustments mid-slope without hunting.

The Tiller Motor is a separate circuit, proportionally controlled so tiller speed is independent of track speed. The Oil Cooler must manage sustained high-power output during 6–8 hour night grooming runs; modern coolers use dual radiators and high-capacity circuits.

Cabin and operator interface

The Operator Cabin and Controls is the only place on the machine where noise abatement and ergonomics matter. Grooming often happens 9 PM to 6 AM, and operators work alone under conditions of wind, cold, and total darkness except for 200+ lux LED headlights. The cabin is fully enclosed with laminated safety glass, floor heating, and a diesel-fired Climate Control that maintains 20 °C interior even in −30 °C mountain air.

The Joystick is the primary input — a multi-axis stick with buttons controlling track drive, tiller engagement/disengagement, blade height, and auxiliary functions. Modern joysticks provide haptic feedback (force-feel) for precise control; some groomers include tiller-depth indication on the stick itself so the operator can feel blade engagement.

The Instruments display engine oil pressure, hydraulic pressure, coolant temperature, and ground speed. A tachometer helps the operator maintain ideal engine RPM for fuel efficiency and longevity. GPS units are increasingly integrated, showing the operator the groomed path and residual ungroomed areas.

The Visibility Systems are essential. Headlights are high-intensity LED (150–250 W per lamp) mounted on the cabin roof for maximum visibility of the tiller and blade ahead. Heated windshield and wipers keep the cabin clear of snow and frost. Heated side mirrors prevent ice buildup.

Optional winch system

The Recovery Winch (Optional) is standard equipment on machines deployed to slopes steeper than 45°. The Winch Spool is a large-diameter spool carrying 150–200 m of Winch Cable (10–12 mm diameter, >20 tonne breaking). The Winch Motor is a powerful hydraulic motor capable of pulling sustained 15 tonne loads.

Operation on a steep, ungroomed slope: the operator descends to a safe lower point, then positions a remote Anchor System — either a pre-placed deadman anchor or a tree. The operator reels out cable, hooks it via a carabiner, and engages the winch. The machine is pulled uphill against gravity. At the top, the cable is unhitched, and the groomer descends with tiller engaged, grooming the slope. The winch system is slow but essential for safety and efficiency on extreme terrain.

Grooming patterns and skill

Ski resorts employ experienced groomers who understand snow metamorphosis and slope aspect. A north-facing slope receives little sun; groomers build the base early and maintain it fine throughout the season. South-facing slopes heat and consolidate; groomers must work earlier in the morning, before sun softens the snow, to avoid creating ice-hard surfaces by day.

Wind-sculpted snow (sastrugi) on exposed ridge-runs requires aggressive tiller work; protected tree-lined glades need only light blade dragging. Operators adjust tiller depth, speed, and blade pressure throughout the night, reading snow conditions by feel (transmitted through the chassis and joystick). Expert groomers can build a superbly fast base that lasts weeks; inexperienced work may create grooved ruts or ice patches within days.
