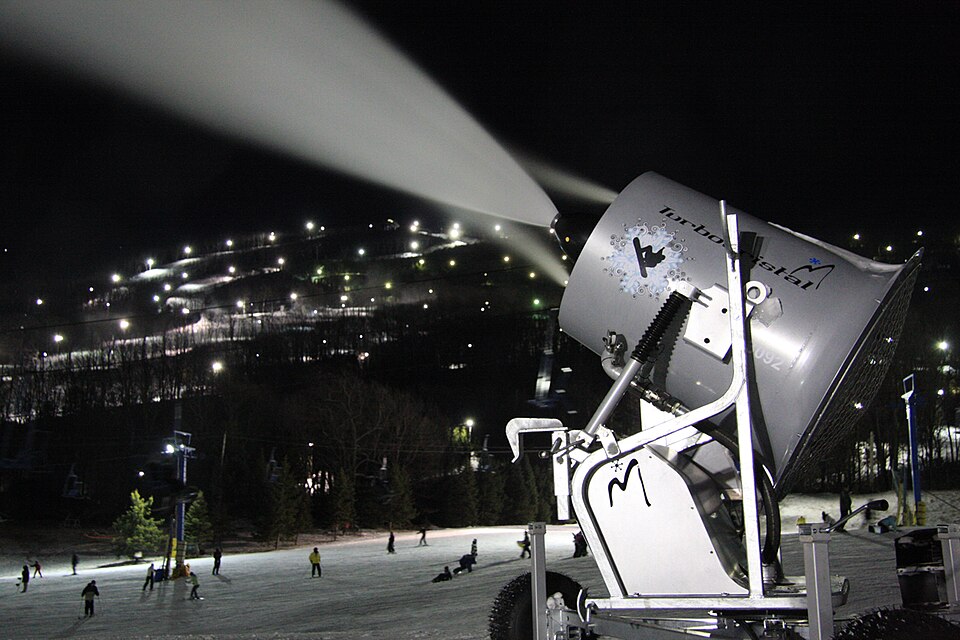

Snow Making Machine Product

Overview

A snow-making machine artificially creates snow for ski resorts, winter sports venues, and northern regions with insufficient natural snowfall. The system combines refrigeration, compressed air, and water spray to nucleate ice crystals in sub-freezing air, producing 1–20 metric tons per night under optimal conditions (-5 to -15 °C ambient, >80% humidity, low wind).

The process requires three key components:

1. Chilled water or glycol loop: An external [[glycol-chiller|glycol chiller]] or [[in-row-cooler|in-row cooler]] supplies -5 to -10 °C coolant to a [[snow-making-machine-heat-exchanger|brazed plate heat exchanger]].

2. Compressed air system: A rotary screw [[snow-making-machine-compressor|air compressor]] (5–15 m³/min @ 8 bar) feeds a [[snow-making-machine-heat-exchanger|cooling HX]] where compressed air (normally 80 °C post-compression) is chilled to <5 °C.

3. Water & nucleation: Pressurized water (50–200 L/min @ 5–8 bar) is sprayed via [[snow-making-machine-nucleator-nozzle|nucleator nozzles]] into the chilled air stream. [[snow-making-machine-nucleation-additive|Nucleation additives]] (Snomax bacterial proteins or silver iodide particles) trigger ice crystal formation on water droplets.

The [[snow-making-machine-fan-motor|axial fan]] discharges this mixture at high velocity (30–60 m/s), atomizing droplets into a fine snow that accumulates downwind. Modern systems use electronic controls to modulate water and air flow based on ambient temperature and humidity, maximizing snow density while minimizing water waste.

Thermodynamic Principle

Nucleation & ice formation:

• Water freezes at 0 °C, but pure water droplets can remain liquid well below 0 °C (super-cooled state, unstable).
• [[snow-making-machine-nucleation-additive|Nucleation additives]] (Snomax = freeze-dried Pseudomonas syringae bacteria) provide ice-nucleation sites at -2 to -5 °C.
• Bacteria proteins are hydrophobic; water droplets wetting the protein trigger heterogeneous ice nucleation.
• A single bacterium can nucleate a 10–20 µm ice crystal; multiple droplets coalesce into larger snow crystals as they fall.

Psychrometric constraints:

• Snow production requires:
  • Wet-bulb temperature <-2 °C: Prevents droplets from evaporating before freezing. Ambient -5 °C + 80% RH ≈ wet-bulb -2.5 °C (sufficient).
  • Wind <5 m/s: Keeps nucleated snow from being blown away before deposition.
  • Humidity >80%: Dry air re-evaporates small ice crystals.

Snow guns typically shut down automatically if wet-bulb exceeds -1 °C or wind exceeds threshold.

How it works

Compressed air preparation: The [[snow-making-machine-compressor|screw compressor]] (5–15 m³/min @ 8 bar) draws ambient air, compresses it adiabatically to 80–90 °C, and delivers it to the [[snow-making-machine-heat-exchanger|cooling heat exchanger]].

Chilled-water cooling: A [[glycol-chiller|glycol chiller]] or [[evaporative-condenser|evaporative condenser]] produces -5 to -10 °C glycol (or water). This cold fluid flows through the air-side of the [[snow-making-machine-heat-exchanger|brazed plate HX]]; compressed air on the opposite side is cooled from 80 °C to <5 °C in a single pass. A [[snow-making-machine-condensate-trap|condensate trap]] auto-drains moisture that condenses from the air stream (otherwise ice would clog the nozzles).

Water spray & nucleation: Pressurized water (50–200 L/min @ 5–8 bar from the [[snow-making-machine-water-pump|water pump]]) is distributed via a [[snow-making-machine-water-manifold|header manifold]] to 6–16 [[snow-making-machine-nozzle-body|hollow-cone spray nozzles]]. A [[snow-making-machine-additive-injector|proportional metering pump]] injects [[snow-making-machine-nucleation-additive|Snomax additive]] at 0.1–1 L/h (typically 1 gram per liter of water). The water droplets atomize in the cold air stream, and Snomax particles nucleate ice formation within 10–50 meters downwind.

Fan discharge: The [[snow-making-machine-fan-motor|axial fan]] (5–20 kW) moves 100–500 m³/min at 30–60 m/s discharge velocity. This high velocity:

• Breaks up water/air mixture into fine droplets (100–500 µm).
• Carries nascent snow crystals downwind before they coalesce and fall.
• Generates turbulent mixing, improving nucleation contact time.

Control logic: A [[snow-making-machine-controller-plc|PLC]] monitors:

• [[snow-making-machine-air-temp-sensor|Discharge air temperature]] (setpoint <5 °C; if >-2 °C, compressor pressure too high → shut down).
• [[snow-making-machine-humidity-sensor|Ambient relative humidity]] (must be >80%; trigger warning if <70%).
• [[snow-making-machine-wind-speed-sensor|Wind speed]] (must be <5 m/s; high wind disperses snow or creates downwind ice accretion).

If conditions are marginal, the PLC reduces water and air flow to minimize energy waste; if conditions are poor, it triggers automatic shutdown.

Refrigeration Integration

Chiller configuration: Modern snow-making installations source chilled liquid from a facility [[glycol-chiller|glycol chiller]] sized for 20–50 kW capacity. The chiller runs independently of the snow gun; water pump at the gun draws cold glycol from a distribution line, cools compressed air in the HX, and returns warm glycol (3–5 °C rise) to the chiller.

Alternative: Evaporative condensing: In low-humidity climates (desert), an [[evaporative-condenser|evaporative condenser]] serving a dedicated refrigeration circuit on the snow gun is more efficient than a centralized chiller. Cold refrigerant circulates through a sump/HX at the snow gun base.

Energy efficiency:

• Chiller COP (coefficient of performance): 3–4 at design conditions.
• Compressor work: 10–20 kW @ 8 bar.
• Fan power: 10–20 kW.
• Water pump: 2–5 kW.
• Total load: 30–50 kW for a large snow gun.
• Overnight operation (8–12 hours/night) is typical; seasonal operation (November–March in temperate zones) reduces annual energy cost.

Nucleation Additive Chemistry

Snomax (proprietary formulation):

• Freeze-dried Pseudomonas syringae bacteria.
• Distributed as fine powder; mixed with water at 1 g/L.
• Ice-nucleation activity: -2 to -5 °C.
• Cost: ~$2–5 per kg; typical application 10 kg/night for large gun.
• Environmental: GRAS (Generally Recognized As Safe); FDA-approved for food processing (used in ice cream production).
• Shelf life: 2–3 years refrigerated.

Silver iodide (AgI):

• Chemical nucleant; less common in modern snow guns due to cost and environmental concerns.
• Nucleation threshold: -5 to -10 °C (requires colder conditions than Snomax).
• Used in some legacy systems or cloud-seeding programs.

Water quality:

• Additives are most effective in soft, pH-neutral water (pH 6–7).
• Hard water (calcium/magnesium ions) can interfere with bacterial nucleation; softening pre-treatment recommended.

Installation & Field Operation

Site preparation:

• Slope or elevated platform for water drainage.
• Chiller connection: Two hoses (supply/return) to the HX at the snow gun.
• Compressor intake: Located away from building exhaust to avoid contamination.
• Compressed air: 8 bar minimum; undersizing compressor reduces snow output significantly.

Seasonal startup (November):

1. Fill chiller with [[glycol-chiller|glycol solution]]; test freeze point (-10 °C target).
2. Prime water pump; flush nozzles to clear sediment.
3. Test compressed air system; dry post-cooler output to <-10 °C dew point (moisture clogs nozzles).
4. Mix Snomax additive at 1 g/L; load into metering pump.
5. Monitor first night operation; adjust water/air balance for snow quality and energy efficiency.

Nightly operation:

• Gun operator checks PLC display (ambient temp, humidity, wind speed).
• If conditions marginal, operator may reduce water flow (coarser snow, less powder).
• Typical run duration: 4–8 hours; production rate 1–3 tons/hour depending on equipment size and weather.

Off-season maintenance (April):

• Drain water system (prevent bacterial growth in idle lines).
• Flush compressor aftercooler; replace filter cartridge.
• Shut down chiller; drain glycol into storage tank (protect from oxidation).
• Inspect nozzles for wear; replace if flow rate drops >5%.

Environmental & Regulatory Considerations

Water consumption:

• Snow guns consume 50–200 L/min.
• A 3-ton/night gun operating 100 nights/season uses ~2.4 million liters.
• Mountain resorts must source this from snowmelt runoff, groundwater, or supplementary storage ponds.

Discharge permits:

• Typically no chemical discharge (Snomax is food-grade).
• Compressed air discharge is noise (see below).

Noise management:

• Compressor + fan = 75–85 dB @ 100 m.
• Rural ski areas tolerate this; residential areas require mufflers and setback distance.

Snomax licensing:

• Snomax is patented; licensed manufacturers include Linde (acquired from Golden Gate Biotech) and others.
• Some snow guns use unlicensed bacterial cultures (Pseudomonas fluorescens) or proprietary blends with variable efficacy.

Comparison: Natural vs. Artificial Snow

Factor	Natural Snow	Artificial Snow
Crystal density	50–100 kg/m³	150–200 kg/m³ (denser, longer-lasting)
Consistency	Variable (wind, temp, humidity)	Controlled (repeatable quality)
Durability	2–4 weeks @ +10 °C ambient	6–8 weeks @ +10 °C (denser sublimes slower)
Cost	Free (in snowy regions)	$1–2 per m³ produced
Production time	Instant (falls naturally)	4–8 hours per 50 m³

Artificial snow is supplementary: resorts use it to extend season (early season November, late season April) or boost marginal snow years. Full-season operation (December–March) relies on mix of natural + artificial.

Snow-making is essential winter sports infrastructure; modern systems balance energy efficiency, water stewardship, and environmental compliance.
