Truck Snowplow Product

Overview

A truck snowplow is a front-mounted blade that mechanically removes snow and compacted ice from road surfaces during winter storm response. The moldboard consists of a hardened-steel cutting edge backed by a large steel plate, angled 30–35° left or right via cab-controlled hydraulic cylinders so operators can throw windrow material to the shoulder. The cutting angle (moldboard pitch and roll) is fixed by truck orientation and gravity; only the horizontal angling is powered.

The design trades hydraulic complexity for simplicity and reliability. The truck engine provides power; on older units, a hydraulic pump is spun directly by the engine PTO, while newer equipment uses electric pumps. The moldboard is protected by Trip Spring Protection that allow it to float up over buried rocks or concrete without shattering — a critical feature on shoulders and roads with debris.

Moldboard and cutting edge

The Moldboard Blade is the working surface. Its Cutting Edge is a replaceable hardened-steel bar bolted to the Backing Plate. As the truck pushes the plow forward, the edge shaves loose snow and breaks up thin ice. The edge wears progressively; operators typically replace it every 400–800 plowing hours depending on road surface (asphalt wears it faster than concrete). A worn edge transitions from shaving snow to compacting it, degrading performance.

Most Backing Plate moldboards are 2.5–3.5 m wide to cover one truck lane plus the centerline, though larger trucks may use 4 m blades. The Side Shield on each end direct windrow snow outward and prevent spillover into adjacent lanes. Many modern plows have Side Shield that extend and retract hydraulically to adjust effective blade width.

Angling and moldboard geometry

The blade pitches forward at about 45°, relying on truck forward motion to push material ahead rather than lift it. The A-Frame Weldment welded to the truck frame carries the Angle Pivot king pin at the moldboard centerline. The Quadrant Arm linkage connects the Angling Cylinder to this pivot, allowing the operator to rotate the moldboard ±30–35° left or right to change windrow direction. Full-left angling throws all snow to the left shoulder; full-right throws to the right; neutral position with both cylinders equally pressurized throws snow straight ahead with minimal side force.

The A-Frame and Cross-Members also includes a Trip Frame that floats on Trip Spring Protection. When the moldboard edge strikes a rock or curb, the trip frame compresses the springs, raising the blade temporarily to clear the obstacle, then resets. This prevents blade fractures and frame bending. On multi-stage snowfall, some operators leave the plow in ''float'' mode (trip springs unlocked) to ride over rough, icy pavement; others lock the trip mechanism for maximum penetration on hard-packed snow.

Hydraulic system

The Hydraulic Angling System is fed by a pump driven from the truck transmission PTO or by an electric motor. The Hydraulic Pump delivers 40–60 L/min at 210–280 bar. The Valve Stack is a proportional directional control valve with integrated relief and check functions. When the operator moves the Proportional Joystick left, the valve opens the left spool, sending pressure to the left Angling Cylinder while the right cylinder vents to tank, rotating the moldboard leftward.

The hose work is modest: typically four hoses (left and right pressure, common tank return) run from engine bay to the blade attachment via a Quick Coupler quick-disconnect set. This allows the entire plow to be removed in 10 minutes by unpinning the Mounting Tongue and disconnecting hoses. Many municipalities maintain a single truck and multiple plows, rotating blades seasonally or between routes.

The Reservoir is small — 30–50 L — because the pump and cylinders do brief, intermittent work; the truck is driving, not stationary. Some designs integrate the tank with the plow frame; others use the truck fuel tank as reservoir. Filtration is usually a 10 µm return-line filter with bypass and clogging indication.

Mounting and attachment

The Truck Mounting System system is nearly universal across truck types. A Mounting Tongue tube receiver slides onto the truck's front-hitch receiver (standard 2-inch or 2.5-inch Class 2 or 3 hitch). Two King Pin locks — a primary pin and a secondary safety pin — secure the A-frame to the truck frame. The Safety Cable is a backup restraint.

Once the tongue is seated and pinned, the Quick Coupler quick-disconnects are joined (flat-face type prevents spillage), and the Control Harness is plugged into the truck electrical system. The whole attachment takes 15–20 minutes. Removal is equally quick, leaving the truck light for summer use.

Control and operation

Modern plows are controlled from the cab using the Proportional Joystick, a two-axis proportional input that commands the Valve Stack. Moving the stick left angles the moldboard left; moving it right angles right; moving it forward or backward controls the angle at which the blade scrapes (on older equipment, this was a fixed mechanical setting; modern proportional systems allow continuous adjustment). The Display Module shows blade angle, height, and system pressure.

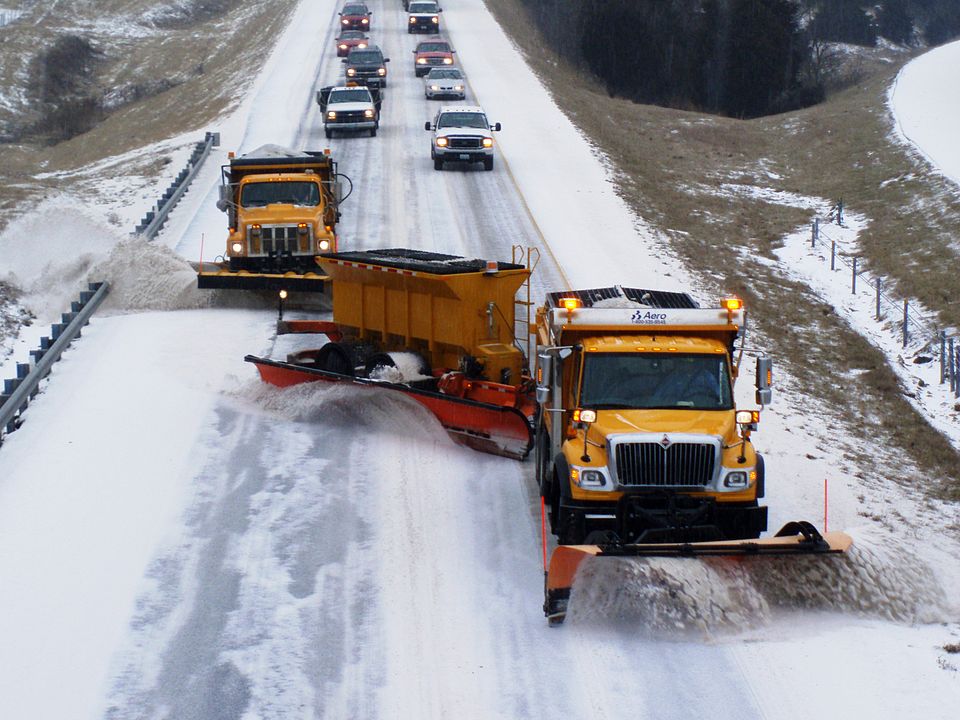

The operator's skill determines efficiency. On a straightforward road, angle left and plow the full width, throwing snow to the left shoulder, then return with the blade raised. On narrow streets or with parked cars, the operator angles the blade gently, moving snow partway across, completing the clear on a second or third pass. During heavy snow, plows work in convoys — lead truck opens the lane, trailing trucks widen and clean to the pavement.

Most Operator Controls systems also control a Truck-Mounted Salt Spreader or Anti-Icing Brine Sprayer mounted behind the blade, applying salt immediately after the plow clears, preventing re-freeze.
