Soda Fountain Dispenser Product

Overview

A soda fountain is a refrigerated dispensing machine that mixes chilled carbonated water with flavored syrup concentrate to produce cold, fizzy beverages on demand. The equipment combines three systems: a refrigeration unit that cools the water and syrup, a carbonation system that dissolves CO2 into water under pressure, and a syrup metering system that injects flavored concentrate at precise ratios.

The core refrigeration loop is a hermetic Compressor, typically 1/4 to 1/2 HP, connected to a Condenser Coil (air-cooled) and an Evaporator Coil submerged in an Ice Bin filled with water or ice. This cold water circulates through a Cold Plate, a dense aluminum or copper heat exchanger where the final beverage passes through and cools to 38–40 °F just before dispensing.

The Carbonation System takes water from a supply line, passes it through the cold plate (chilling it), then forces it through a Carbonator where pressurized CO2 is bubbled through. CO2 is supplied from a CO2 Cylinder (5–10 lb tank, typically replaced weekly in high-volume operations) via a CO2 Regulator that reduces the tank pressure from 800+ PSI to 60–70 PSI operating pressure.

The Syrup System consists of multiple Syrup Pump, typically peristaltic or gear-driven, each drawing concentrate from a syrup bag or keg and injecting it into the carbonated water stream at a ratio of 1 part syrup to 5–6 parts water. A Flavor Selector manifold, operated by solenoid valves, routes the syrup from the selected flavor pump into the mix.

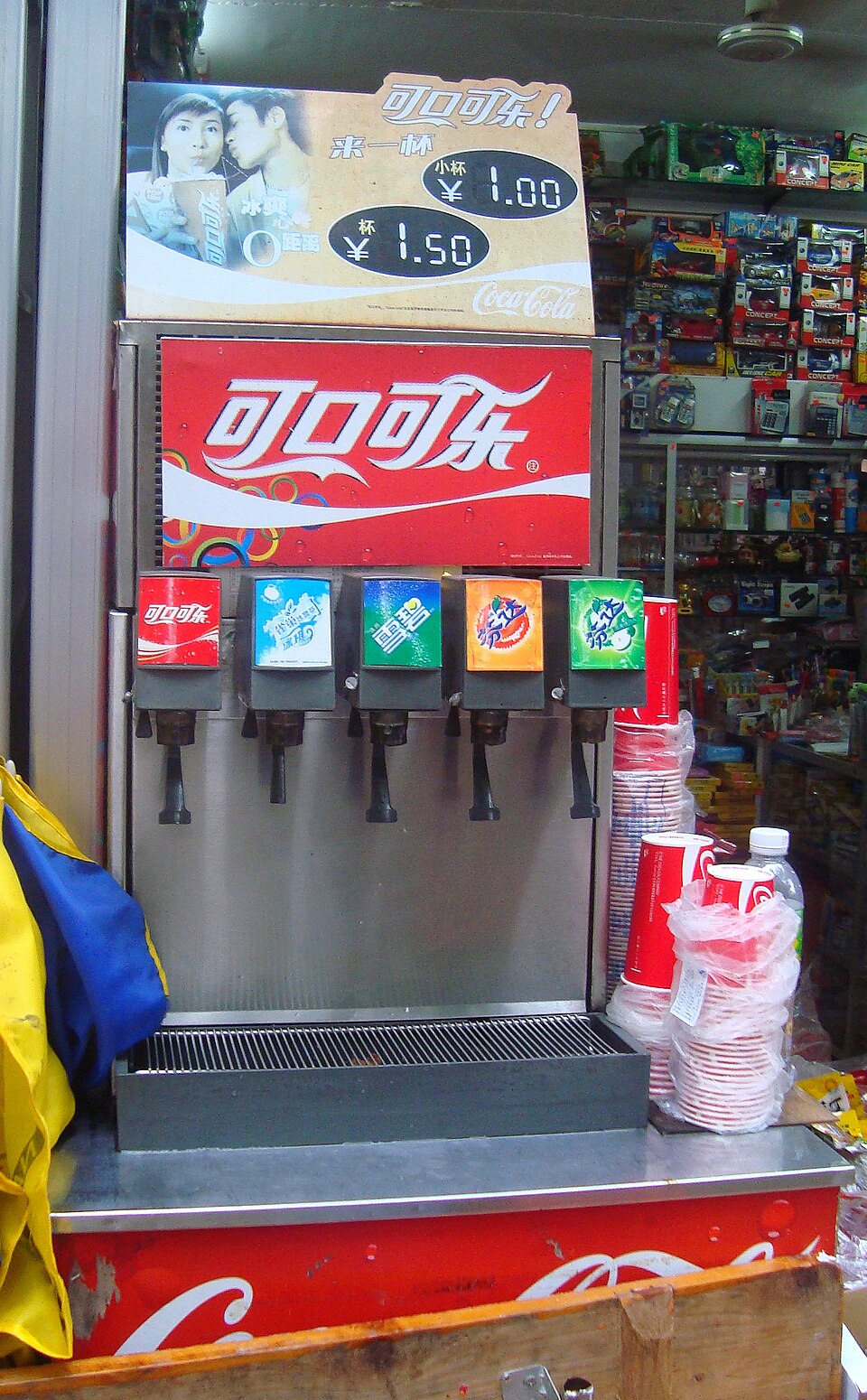

The Dispensing Head mounted on top of the cabinet has 3–8 Dispense Button or lever buttons, one per flavor. Pressing a button opens the Dispensing Valve for that flavor, allowing the pre-mixed, chilled beverage to flow into a cup held beneath the spout.

How it works

When a customer presses a dispensing button, a 120V AC solenoid coil de-energizes the Flavor Selector manifold, routing the chosen syrup pump's output into the main beverage stream. Simultaneously, the button may also trigger the Check Valve to open if there's a mechanical linkage, or solenoid logic ensures that the carbonated water and syrup are both flowing.

Water from a facility supply line enters the unit and passes through a CO2 Line into the Carbonator, a sealed stainless-steel vessel. Pressurized CO2 from the CO2 Cylinder, regulated by the CO2 Regulator, continuously bubbles through the water, dissolving gas molecules. Henry's Law governs this: the higher the pressure and the longer the contact time, the more CO2 dissolves. Commercial soda fountains operate at 60–70 PSI operating pressure, achieving 3.5–4.0 volumes of CO2 (meaning one volume of water absorbs 3.5–4 volumes of gas, making the liquid fizzy when pressure is released).

The carbonated water exits the Carbonator and flows through the Cold Plate, a passive heat exchanger where the Evaporator Coil coil is in contact. The evaporator is the cold side of the refrigeration loop, so heat flows from the beverage into the refrigerant, cooling the water from ~70 °F to 36–40 °F in seconds. This chilling is critical: cold liquid reduces the solubility of CO2, so if the beverage were warm when it left the carbonator, CO2 would come out of solution as bubbles, wasting gas and producing a flat drink.

The chilled, carbonated water enters a mixing tee where the selected Syrup Pump delivers syrup. The ratio is maintained by the pump's displacement and speed, which are preset at the factory (e.g., a pump rated for 1:6 will meter 0.25 oz of syrup per 1.5 oz of water, a typical cola ratio). The syrup and water mix briefly and then flow into the Drip Tray area, where the customer's cup catches the stream from the soda-fountain-spout.

The Check Valve in the syrup line prevents soda from backing up into the syrup container, protecting the concentrate from carbonation and contamination.

Throughout the system, the Refrigeration System runs continuously or cycles on/off via a soda-fountain-thermostat to maintain the Ice Bin and Cold Plate at the target temperature. In high-volume operations, the refrigerator may run continuously.

A soda fountain dispenser is simple in principle—chill water, carbonate it, add syrup, dispense—but the engineering is precise. The carbonation pressure, cold-plate surface area, syrup pump displacement, and mixing geometry are all optimized to deliver a consistent, refreshing beverage thousands of times per day. Fast-food chains, cinemas, and self-serve beverage stations rely on these machines to produce predictable, profitable drinks at high volume.
