Sofa Bed Product

Overview

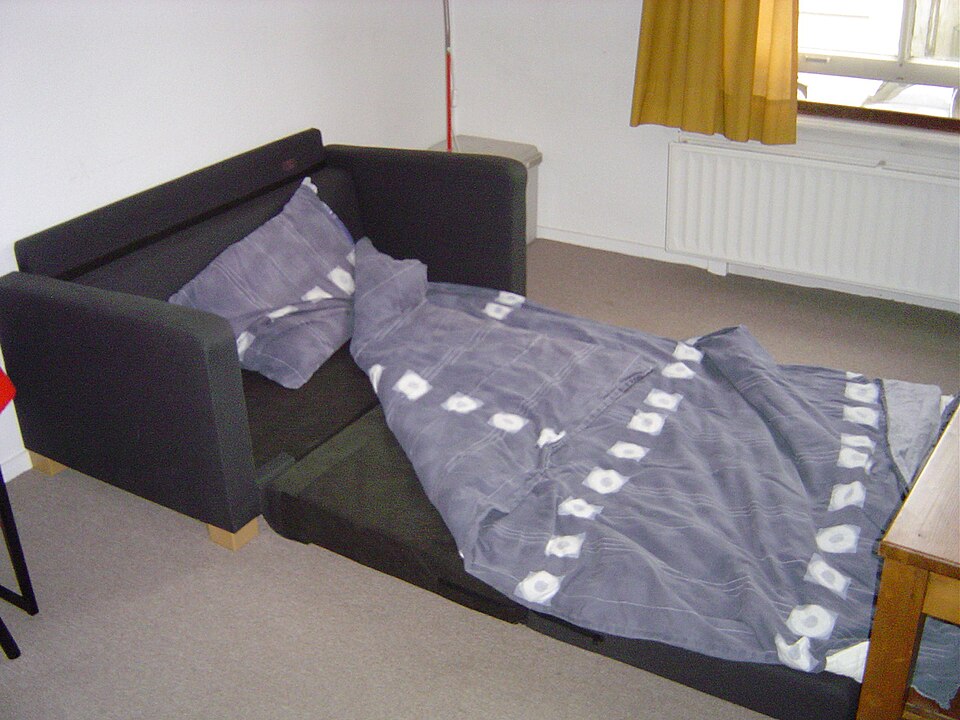

A sofa bed is a sofa whose seat conceals a complete folding bed: a steel linkage, a sprung deck, and a thin mattress stacked in three layers beneath the seat cushions. Removing the cushions and pulling the Handle Bar swings the Fold-Out Mechanism up and out of the Sofa Frame, unfolding the Folding Mattress flat at roughly 190 cm of length. The design dates to the early twentieth century — Bernard Castro's pull-out units popularized the format in the United States from the 1930s — and the tri-fold steel mechanism used today is little changed in principle.

The product is two pieces of furniture sharing one structure, and the engineering compromises follow from that. The mattress must fold in thirds, which caps its thickness near 11 cm and forces foam-only hinge zones at the fold lines. The sofa seat height and depth are set partly by the stack height of the folded mechanism, which is why many sofa beds sit slightly higher and firmer than equivalent sofas.

How it works

The Fold-Out Mechanism is a pair of stamped steel Mechanism Side Frame plates joined by Cross Tubes, with eight or more Linkage Arms per side pivoting on shouldered Pivot Rivets. The linkage is a constrained four-bar chain repeated for each mattress section: pulling the front of the unit forward rotates the first section up and over, which through the cross tubes forces the second and third sections to unfold in sequence. Coil Spring counterbalances are hooked between the linkage and the side frames so the assist force roughly matches the weight of the moving mass; a well-tuned unit can be opened with one hand. At each end of travel an over-center Locking Cam passes its dead point and holds the linkage stable, so the bed cannot fold up under an occupant and the closed stack cannot creep open. Four Mechanism Folding Legs riveted to the linkage swing down automatically and land on Glide Foot caps as the bed deploys.

The sleeping surface is carried by the Sprung Deck: a three-section welded Deck Wire Grid hung from the mechanism tubes on small Helical Edge Springs, covered by a polypropylene Deck Fabric. The springs give the deck a few centimetres of compliance, which matters because the mattress itself is thin. Many units add a ratcheting Head Tilt Bar that props the head section a few degrees above horizontal.

The Folding Mattress is a purpose-built folding innerspring. A core of roughly 300 Bonnell coils is framed by a Border Wire on each face, topped with a felt Insulator Pad and a Comfort Foam Layer on both sides, and closed in quilted Mattress Ticking. The two fold lines contain no springs at all — only foam — so the mattress hinges cleanly without taking a set. Memory-foam and pocket-coil variants exist but must stay within the same fold-thickness budget.

Sofa structure

The Sofa Frame differs from a plain sofa frame because its center is hollow: there is no conventional seat platform, only the mechanism bolted between the two 18 mm plywood Side Panels. Sitting loads therefore travel through the Front Seat Rail and the mechanism itself into the side panels, and Corner Blocks reinforce every joint against the racking imposed by thousands of fold cycles. The Back Frame is a simple ladder structure since the folded mattress stack, not the frame, fills most of the volume behind the seat.

Upholstery follows standard practice: Polyester Batting over the frame edges, fitted Cover Fabric panels with Welt Piping at the seams, and a Dust Cover underneath. The front skirt closes over the stowed mechanism on Hook-and-Loop Strips rather than staples so it can be lifted clear during operation. Seating comfort comes from the loose Cushion Set — high-resilience foam Seat Cushions and fiber-filled Back Cushions in zippered Cushion Covers — all of which are removed and set aside before the bed opens.

Variants and standards

The tri-fold pull-out described here is one of several convertible formats. Click-clack and futon-style sofa beds instead fold the backrest flat, using the seat and back cushions as the sleeping surface and dispensing with the separate mattress; they are lighter and cheaper but sleep firmer. Lateral "jackknife" mechanisms and folding-foam designs occupy the low end.

Durability is tested to furniture standards such as ANSI/BIFMA seating tests and EN 1725 for the bed function, with mechanism cycle tests typically specifying 2,000 or more open/close operations. Upholstery flammability falls under California TB 117-2013 in the US and BS 5852 in the UK. A complete queen unit weighs 90–120 kg, most of it in the steel mechanism, which is also why moving a sofa bed takes noticeably more effort than moving a sofa.
