Sonic Drill Rig Product

Overview

The sonic drill rig is a geotechnical investigation machine that uses high-frequency vibration (1000–2000 Hz, similar to the resonance frequency of certain soils) to cause formation material to temporarily liquefy or rearrange, allowing the drill bit to advance rapidly. Unlike percussion drilling (which shatters rock by impact) or rotary drilling (which abrades and shears), sonic drilling achieves rapid penetration by essentially "shaking" the ground and bit together at resonance.

The key advantage of sonic drilling is speed in cohesive soils (clay, silt, mudstone) and rapid continuous core sampling for geological investigation. A sonic rig can drill 200 meters of clay in 8–12 hours, producing continuous, nearly undisturbed core samples. By contrast, rotary drilling of the same hole would take 24–48 hours and produce cuttings samples of lower quality. Sonic rigs are used extensively for environmental site assessment (Phase II investigations), geotechnical borehole drilling, and aquifer mapping.

How it works

The sonic drill rig converts electrical power (from an onboard alternator) into mechanical oscillation via a high-frequency motor (electromagnetic or variable-stroke hydraulic). The oscillator is tuned to vibrate the Resonant Drill String at its natural resonant frequency. This frequency is typically 1000–2000 Hz, matched to the soil or rock formation being drilled.

At resonance, the drill string vibrates with maximum amplitude (typically 0.5–2 mm peak-to-peak displacement) using minimum power input. The bit cycles up and down tens of thousands of times per minute. In cohesive soils, this high-frequency motion causes the clay or silt to rearrange and compact slightly, reducing friction around the bit. In granular soils, the vibration liquefies the sand momentarily, allowing rapid penetration.

The operator applies downward feed force (30–80 tonne) continuously via hydraulic cylinders. The bit advances steadily—not by abrasion (like rotary) but by a combination of vibration-induced rearrangement and the cutting action of the bit tip. Progress rates are 5–15 meters per hour in clay, 2–8 m/h in sand, and 1–5 m/h in soft rock.

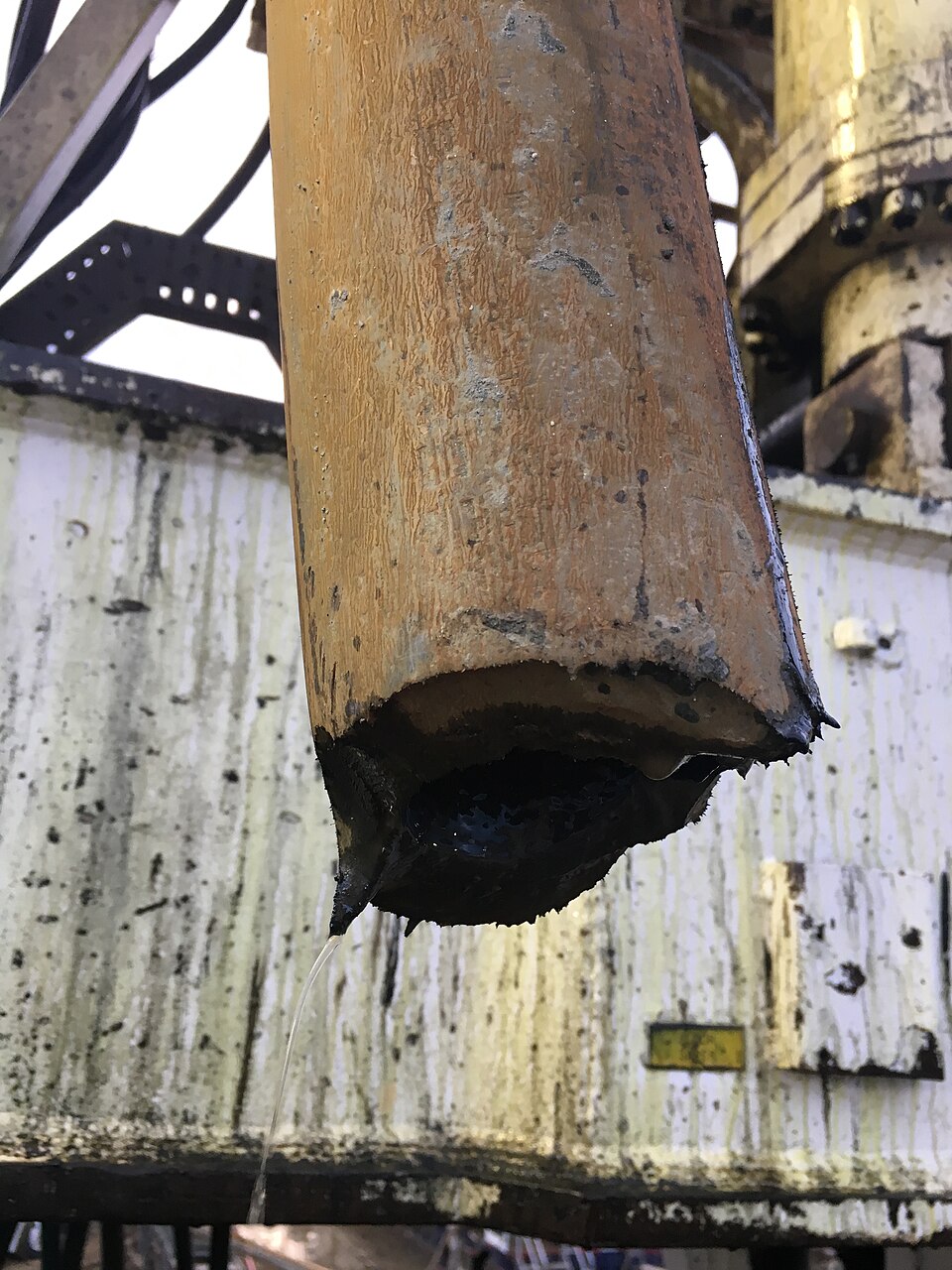

As the hole is drilled, a [[sonic-drill-rig-sample-barrel|split core barrel]] (a removable steel tube inside the drill string) fills with undisturbed core sample. Every 1–3 meters, the drill string is retracted, the core barrel is removed and replaced, and the hole is extended. Unlike rotary cuttings (disaggregated material), the sonic core is a continuous, largely undisturbed sample of the formation.

Key systems

Oscillator head: The Sonic Oscillator Head converts electrical AC power to mechanical vibration. The most common type is an electromagnetic oscillator (similar to a loudspeaker's moving coil) or a variable-stroke hydraulic pump with eccentric cam. The Oscillator Motor runs at high frequency (1000–2000 Hz), continuously moving a mass (the drill string) up and down. The [[sonic-drill-rig-counterweight|tuning mass]] can be adjusted to change the resonant frequency. For soft clay, a lower frequency (1000–1200 Hz) is optimal; for competent rock, a higher frequency (1500–2000 Hz) works better.

A [[sonic-drill-rig-frequency-control|feedback system]] (accelerometer mounted on the drill string) measures actual oscillation frequency and reports it to a microprocessor controller. If the frequency drifts (due to formation change or bit wear), the controller automatically adjusts power input to bring it back to the target resonance.

Drill mast: The Drill Mast is exceptionally rigid, with high lateral stiffness. The vibrating drill string induces intense oscillatory stresses; a flexible mast would resonate out of phase with the bit, wasting energy and causing lateral whip. The mast is a heavy welded steel box section (8–15 m tall), braced internally. The Feed Hydraulics apply smooth downward force via proportional cylinders, independent of the sonic vibration.

Drill string: The Resonant Drill String is the resonator. It is thin-wall seamless steel pipe (25–41 mm OD, minimal wall thickness), carefully designed for low damping and high stiffness. The string length and diameter are tuned (by changing pipe sections or counterweights) to achieve the target resonant frequency. A longer string resonates at lower frequency; a thicker wall damps oscillation (bad). The Sonic Bit is a solid tungsten carbide or diamond bit (50–127 mm diameter), designed to abrade and cut by vibration-assisted cutting.

Power system: A [[sonic-drill-rig-diesel-engine|diesel engine]] (100–200 kW) runs at constant speed (1800 RPM for 60 Hz regions) and drives a [[sonic-drill-rig-alternator|three-phase alternator]] (200–300 kVA). The AC power is converted to the appropriate voltage and frequency for the oscillator (typically 400V, 50/60 Hz, three-phase). Engine speed is governed tightly to maintain alternator frequency; any speed drift would shift the oscillator frequency off resonance and reduce drilling efficiency.

Chassis and mobility: The [[sonic-drill-rig-track-chassis|tracked chassis]] (similar to an excavator) allows the 20–30 tonne rig to traverse muddy, swampy, or soft ground. Rubber continuous tracks distribute weight across a large area. Four [[sonic-drill-rig-leveling-jacks|hydraulic outriggers]] level and stabilize the rig for drilling.

Sampling system: As the hole advances, continuous core is collected in the [[sonic-drill-rig-sample-barrel|split core barrel]] attached to the bottom of the drill string. Every 1–3 meters of drilling, the operator retracts the drill string, extracts the full core barrel (now loaded with undisturbed sample), and inserts a fresh barrel. Core samples are logged, stored in [[sonic-drill-rig-sample-trays|trays]], and photographed for geological analysis.

Field operations

Environmental or geotechnical crews typically drill 3–10 sonic holes per site, each 50–200 meters deep. At each site, the rig is positioned, leveled with outriggers, and the target depth is set.

The operator (inside an enclosed cabin with pneumatic muffler) starts the engine and oscillator. The drill string begins vibrating at high frequency—a visible shimmer. The operator engages the feed cylinders, and the bit begins advancing. The control panel displays current frequency, feed force, drilling rate, and sample depth. As the frequency drifts (e.g., from 1500 Hz to 1480 Hz due to formation hardness change), the controller automatically adjusts power to maintain resonance.

Progress is steady and predictable. Hard formations drill slower than soft, but sonic drilling is fast overall. A 100-meter hole in clay takes 8 hours; in sand, 10–12 hours. Rock requires 20+ hours but is still faster than rotary.

Every 1.5 meters of drilling, the drill string is retracted (takes ~5 minutes), the core barrel is pulled out by hand, and the sample is examined, logged, and placed in a numbered tray. The geologist notes color, grain size, soil type, water content, and odor. The empty core barrel is re-installed and drilling resumes.

Advantages over rotary drilling

1. Continuous samples: Rotary drilling produces cuttings (small disaggregated fragments). Sonic produces continuous core, allowing precise identification of thin soil layers and contamination.
2. Speed in clay: Sonic drilling is 3–5 times faster than rotary in cohesive soils, the most common formation for environmental investigations.
3. Reduced recovery loss: Sonic core recovery is typically 85–95%; rotary cuttings may miss thin fine-grained zones entirely.
4. Reduced disturbance: Sonic core is less disturbed by the drilling process, preserving soil structure and permeability. This is critical for geotechnical sampling.
5. Minimal waste: No circulating mud (unlike rotary), so no drilling fluid waste disposal costs.

Limitations

Sonic drilling struggles in:

• Hard rock: Competent granite or sandstone drills slowly. Percussion or rotary is faster.
• Large open fractures: The drill string can drop into enlarged cavities, destabilizing drilling.
• Very deep wells: Power loss and equipment stress increase with depth; sonic is typically limited to ~500 m.
• High water table: Saturated clay becomes almost liquid and drilling slows. Rotary mud pressure is better in unstable water-saturated sands.

Industry adoption

Sonic drilling has become the standard for Phase II environmental investigations in North America and Europe. Environmental companies maintain sonic rigs as their primary investigative tool. Geotechnical consultants use sonic drilling for large foundation design projects. Oil and gas operators use sonic drilling for shallow monitoring wells ahead of deeper rotary wells.

Advances in control electronics (real-time frequency feedback) and bit design (carbide and diamond enhancements) have made sonic drilling more reliable and faster. Rental companies now offer sonic rigs at day rates comparable to rotary, making it economical for small projects.
