Spectrohelioscope Product

Overview

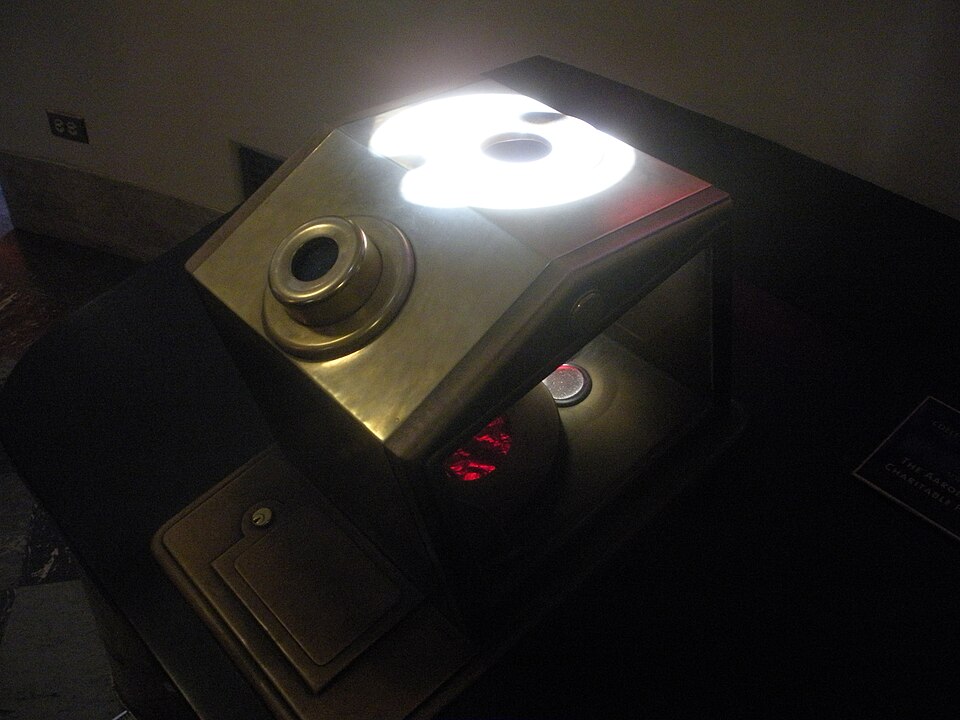

A spectrohelioscope is a specialized solar instrument designed for monochromatic observation and imaging of the Sun in a single narrow emission line, typically hydrogen-alpha (H-alpha) at 656.3 nanometers. By isolating this single wavelength, the observer sees fine details—solar prominences, filaments, and granulation—that would be lost in white-light observation. The instrument uses a [[spectrohelioscope-diffraction-grating|diffraction grating]] to disperse sunlight into its component wavelengths, then two slits to select an extremely narrow band around the desired emission line.

The challenge in solar spectroscopy is that the Sun is bright, and most of its light is in the infrared. A [[spectrohelioscope-solar-objective|solar-optimized collector]] feeds sunlight through a [[spectrohelioscope-filter-system|filter system]] that rejects heat and infrared, protecting internal optics. The [[spectrohelioscope-entrance-slit|entrance slit]] limits the beam to a narrow slice, and the [[spectrohelioscope-collimator-optics|collimator]] spreads this slice into a parallel beam. The [[spectrohelioscope-diffraction-grating|grating]] disperses the light into orders, each order containing the full spectrum. The [[spectrohelioscope-exit-slit|exit slit]] then picks out the narrow H-alpha band, and the [[spectrohelioscope-camera-optics|camera lens]] images this monochromatic light.

To build a two-dimensional image, the [[spectrohelioscope-oscillation-drive|mechanical oscillator]] scans the solar disk across the [[spectrohelioscope-entrance-slit|entrance slit]]. As the Sun moves relative to the slit, the light passing through the slit traces out a line in the monochromatic image. By oscillating the solar image back and forth and integrating the light over time, a full image builds up. A fast oscillation, combined with the eye's persistence of vision or a camera's integration, results in a steady monochromatic view of the solar surface.

How it works

The [[spectrohelioscope-solar-objective|solar objective]] collects unattenuated sunlight and forms a small real image of the Sun inside the spectrohelioscope. Heat and infrared radiation are rejected by the [[spectrohelioscope-filter-system|dichroic and absorption filters]] before they can damage internal optics.

The solar image passes through the [[spectrohelioscope-entrance-slit|entrance slit]], a pair of precision jaws defining a narrow vertical slot, typically 0.1 mm wide. Only light from this thin vertical slice of the solar image continues. The [[spectrohelioscope-collimator-optics|collimator lens]] accepts this divergent light and converts it to a parallel beam, allowing the [[spectrohelioscope-diffraction-grating|grating]] to disperse it efficiently.

The [[spectrohelioscope-diffraction-grating|diffraction grating]] is the heart of the instrument. Ruled with thousands of parallel grooves per millimeter, it splits light into orders, each bent at a different angle. A low order (first or second) spreads wavelengths over a small angular range, making the spectrum hard to resolve. A high order (10th, 20th, or higher) spreads the same spectrum over a much wider angle, achieving high dispersion at the cost of dimmer output because much of the light ends up in the zero-order. Solar spectrohelioscopes typically use 10th–30th orders to isolate a single Angstrom (0.1 nm) or less.

After dispersion, the [[spectrohelioscope-exit-slit|exit slit]], another precision aperture, blocks all but a narrow wavelength band. If the entrance slit is oriented vertically and the [[spectrohelioscope-exit-slit|exit slit]] is horizontal (rotated 90 degrees), then light from any single wavelength passes through. The observer adjusts the [[spectrohelioscope-grating-rotator|grating tilt]] to center the desired line (H-alpha, Ca K, or another solar emission) on the [[spectrohelioscope-exit-slit|exit slit]].

The [[spectrohelioscope-camera-optics|camera lens]] accepts the narrow monochromatic beam and forms an image. This image is a vertical slice of the solar disk, rendered in that single emission line. To build a full 2D picture, the [[spectrohelioscope-oscillation-drive|oscillation drive]] moves the solar image back and forth relative to the [[spectrohelioscope-entrance-slit|entrance slit]]. A motor-driven cam and linkage mechanism push and pull the optical path, oscillating the solar image perpendicular to the entrance slit at a rate of 10–50 Hz. As the image oscillates, different vertical slices pass through the [[spectrohelioscope-entrance-slit|entrance slit]] and get rendered in monochromatic light.

An observer looking through the [[spectrohelioscope-eyepiece-block|eyepiece]] sees the oscillating slice of the Sun. Because the oscillation is fast—faster than the eye can follow—and the light is integrated over time, the observer perceives a steady, full image of the solar disk in H-alpha. Fine details invisible in white light leap into view: the bright network of magnetic field regions, dark filaments marking cool plasma above sunspots, and the fine threads of solar prominences at the limb.

For cameras, a long-exposure monochromatic sensor integration time can replace visual observation. The camera collects light over many oscillation cycles, building a noise-reduced image. This is how modern H-alpha solar images—which often show detail from 0.5 arcseconds and smaller—are created, enabling study of solar activity, prediction of solar flares, and monitoring of coronal mass ejections.
