Spotting Scope Product

Overview

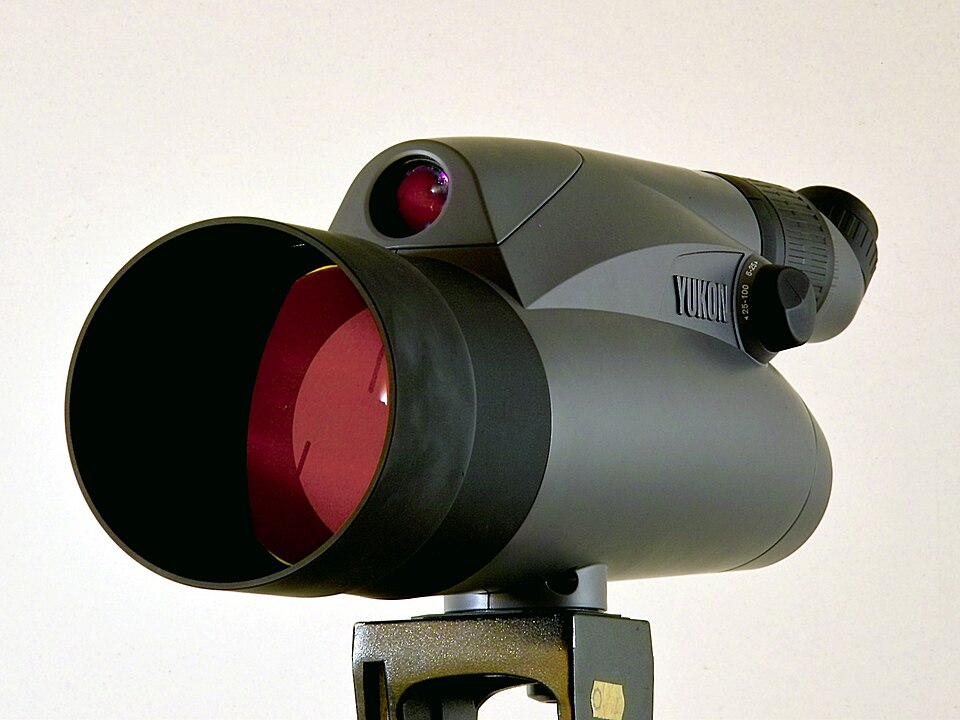

A spotting scope is a small, rugged telescope built for looking at things on land rather than in the sky: distant wildlife, target faces at a shooting range, ships, or scenery. It delivers far more magnification than binoculars while staying portable enough to carry to a tripod in the field, and unlike an astronomical telescope it shows an upright, correctly oriented image.

Light enters the Objective Lens Group, a large front lens that gathers it and forms a bright image. That image is upside-down and reversed, so it passes through the Erecting Prism Assembly, which folds the path to keep the scope compact and turns the picture the right way up. The viewer studies it through the Zoom Eyepiece, whose moving lens group sets the magnification anywhere across its range. Sharp focus across distance is set by the Helical Focus Mechanism. All of this lives inside a sealed Nitrogen-Purged Housing that keeps out water and dust, with a Retractable Sunshade to cut glare and a Tripod Foot & Rotating Collar on a rotating collar so the scope can be turned for comfortable straight or angled viewing.

How it works

The optics work as a relay. The Objective Lens Group uses a doublet — a crown element paired with an ED or flint element — to bend the incoming light to a focus while canceling most of the color fringing that a single lens would leave. The resulting real image sits just inside the body, inverted.

The Erecting Prism Assembly is a roof-prism block that both re-erects that image and reflects the light path back on itself, which is how a long focal length fits in a short tube. The viewer then magnifies the corrected image with the Zoom Eyepiece: rotating the zoom ring drives a cam that slides an internal lens group along the axis, smoothly changing magnification from wide-field searching to high-power detail. Turning the Helical Focus Mechanism shifts a focusing element through its helicoid to bring near or far subjects sharp. Because temperature swings and altitude would otherwise fog the inside, the Nitrogen-Purged Housing is sealed with O-rings and back-filled with dry nitrogen through a purge valve, leaving no moisture inside to condense.
