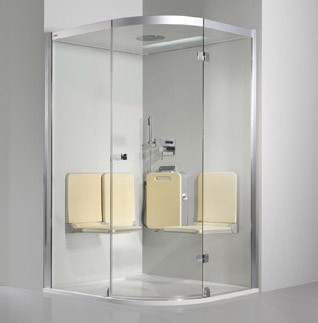

Steam Shower Generator Product

Overview

A steam shower generator is a compact boiler system that heats water to saturation (350–380°F) and pipes the resulting steam to a shower enclosure for luxurious spa-like bathing. Unlike traditional steam rooms (which require dedicated rooms and extensive ductwork), home steam generators fit inside a shower stall, delivering dry saturated steam that hydrates and relaxes muscle tissue. The system automatically fills, heats, and drains on a cycle, with digital controls allowing users to set temperature, duration, and optional aromatherapy infusion.

Core Heating System

The Pressure Vessel and Tank is a pressurized stainless steel or copper-lined tank holding 2–6 gallons of demineralized water. Inside are electric Electric Heating Elements (typically 4–6 kW per element, two elements per unit) submerged in the water. When the user initiates a session via the Control Panel, a Element Contactor energizes the heating elements, raising the water temperature toward saturation.

At saturation (approximately 350°F at 50 PSI), water molecules vaporize and collect as steam in the tank's upper chamber. The tank is designed with an internal standpipe that draws from the top (vapor phase) rather than the bottom (liquid phase), so only dry steam—not hot water—reaches the piping system.

The Thermostat Module maintains the tank at the setpoint (typically 370°F for maximum comfort and safety). Once the tank reaches temperature, the heating elements cycle intermittently to compensate for steam discharge. The Safety Cutoff monitors both temperature and pressure; if either exceeds limits (400°F or 100 PSI), the switch de-energizes the heating circuit automatically.

Control Logic and User Interface

The Control and Thermostat module orchestrates a four-stage cycle:

1. Preheat (10–20 min): Elements energize, tank warms to operating temperature.
2. Ready: Tank idles at setpoint; user presses the Control Panel start button.
3. Steam: Steam flows to the Steam Head Assembly; the Session Timer counts down.
4. Cooldown and Drain: Timer expires, steam shut-off valve closes, and the Autoflush Solenoid solenoid energizes to purge 5–10% of tank water (carrying dissolved minerals) to the drain.

Modern systems offer programmable session durations (15–60 min) and temperature setpoints (300–380°F). Premium models include Wi-Fi connectivity, voice control, and preset "profiles" (e.g., "invigorating," "relaxing") that vary temperature and timing.

Water Supply and Fill

The Water Inlet and Fill System draws cold water from the house supply via a 1/2 inch line. A Inlet Strainer removes sediment and mineral particles that could clog the system or accumulate inside the boiler. The Fill Solenoid Valve is a normally-closed solenoid that opens when the Water Level Electrode electrode detects the tank is low (typically 50% capacity).

A Check Valve prevents backflow from the pressurized tank into the house water supply—a critical safety requirement. The Pressure Relief, set to 100 PSI, protects against overpressure; it discharges excess pressure harmlessly to the drain.

In hard-water regions, many installers use a Inlet Strainer with a soft-water cartridge or mandate periodic descaling of the tank using citric acid or commercial boiler cleaner.

Steam Distribution and Exhaust

High-temperature steam flows through insulated copper Supply Tubing tubing (typically 3/8–1/2 inch OD) toward the Steam Head Assembly, mounted on the enclosure ceiling or high wall. The steam head contains multiple small orifices (0.05–0.08 inches) that diffuse the steam downward at 45–60 degrees, creating a warm, enveloping cloud rather than a scalding jet.

As steam condenses on the cooler enclosure walls and user skin, liquid water accumulates at the bottom of the shower. Some condensate vapor escapes through the door gasket and frame seal; the remaining liquid drains through the floor drain or back into the tank via a Condensate Return.

The Insulation Wrap (1–2 inches of foam wrap) around the supply tubing protects users from accidental contact with 350+ °F metal—a significant safety feature in crowded bathroom environments.

Autoflush and Mineral Management

A critical distinction between home steam generators and industrial boilers is the Autoflush Solenoid. After each session ends, this solenoid-controlled drain valve opens for 15–30 seconds, allowing a small volume of hot water to flow from the tank to the floor drain. This purging removes calcium, magnesium, and silica deposits that would otherwise accumulate on the heating element surfaces, reducing efficiency and increasing risk of scaling-induced failure.

The blowdown is designed to be gentle and controlled (via a Condensate P-Trap), not explosive—excessive backpressure or sudden drain could damage the tank seams or cause thermal shock to the heating elements.

Enclosure Sealing and User Safety

Steam is an excellent heat transfer medium but readily escapes through gaps. The Enclosure Sealing includes a magnetic Door Gasket that compresses when the door closes, minimizing steam leakage into the bathroom. Premium units use frameless glass doors with thick neoprene gaskets.

The Frame Seal is silicone caulk or adhesive-backed foam tape applied where the enclosure frame meets the wall, further reducing escape. Leakage rates of 10–15% are normal and acceptable; anything higher suggests worn gaskets requiring replacement.

User safety features include:

• No exposed steam vents: The Steam Head Assembly is mounted high enough (typically 6–7 feet) that standing users cannot contact it directly.
• Automatic shutoff: The Session Timer ensures steam stops after 60 minutes, even if the user forgets.
• Overpressure relief: The Pressure Relief prevents pressure from exceeding 100 PSI.
• Thermal protection: The Safety Cutoff cuts power if temperature reaches 400°F.

Maintenance and Descaling

Seasonal or as-needed maintenance includes:

• Monthly: Run the enclosure drain and flush with hot water to remove hair and soap residue.
• Quarterly: Pour a citric acid or commercial boiler descaler into the tank (before heating) and run a dummy steam cycle to dissolve mineral buildup. Drain fully.
• Annually: Inspect the Door Gasket for hardening or compression set; replace if necessary.
• Every 5 years: Have a technician flush and inspect the internal heating elements and drain valve for scale accumulation.

Failure to descale in hard-water regions (>150 ppm) can reduce heating efficiency by 30–50% and may cause the Safety Cutoff to trip repeatedly due to slow temperature rise.

Installation Considerations

The Pressure Vessel and Tank is typically wall-mounted in an adjacent cabinet or closet. Water supply requires a 1/2 inch cold-water line with a dedicated shutoff valve. Drain requires a 1 inch waste line with a P-trap, positioned lower than the tank to allow gravity-assisted blowdown. Electrical installation demands a dedicated 30–50 amp breaker and heavy-gauge wire (10 or 8 AWG for 240V; consult local code). Installation of a steam generator in an existing shower usually costs $1,500–$3,000 in labor, plumbing, and electrical work.
