Baby Stroller Product

Overview

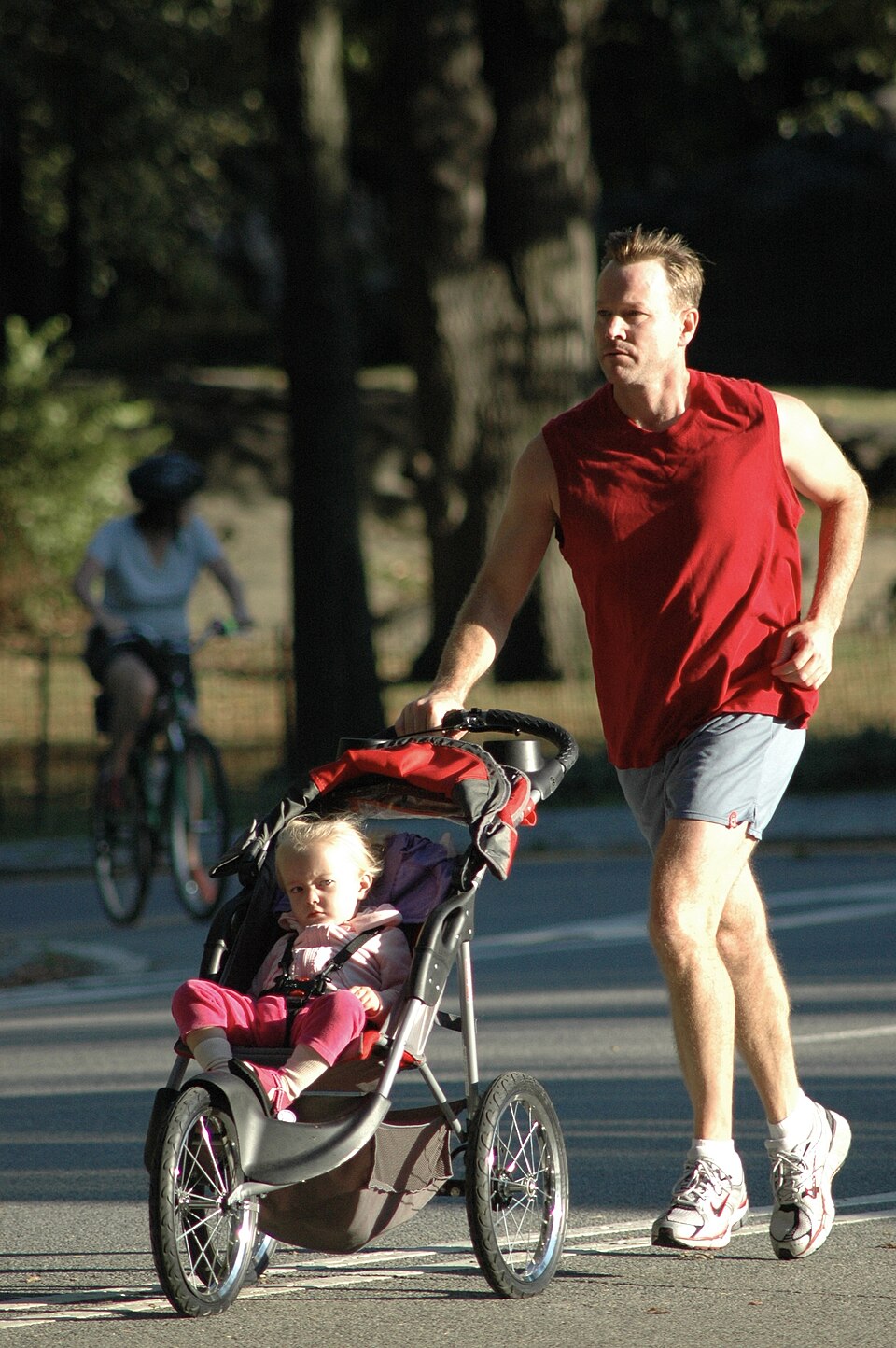

A baby stroller is a wheeled carriage designed to transport infants and toddlers safely while allowing the caregiver to move freely on foot. The fundamental structure combines a rigid aluminum chassis with pneumatic wheels and multi-point suspension, distributing impact from uneven terrain and protecting the child from jolts. The Seat Assembly cradles the baby, while the Wheel Assembly enable mobility and the Braking System provides safety control. Parents manipulate the Push Handle to steer and push, while the Canopy Assembly shields from sun and weather.

The design serves dual function: the seat folds flat or reclines into a bassinet-like sleeping position for newborns, then upright for older infants who can sit. The Chassis Assembly folds for transport in car trunks, and the Locking & Fold Mechanism prevents accidental collapse during use.

How it works

Movement begins at the Wheel Assembly, four pneumatic tires mounted on swiveling or fixed Wheel Hub assemblies. The front wheels typically swivel left and right (front casters), while rear wheels are fixed in line. This geometry allows the entire stroller to pivot around the Push Handle, which pushes against the ground-facing Chassis Assembly frame. The caregiver applies force through the Push Handle, directing the stroller forward, backward, and sideways.

Smoothness comes from the Spring Set, coil springs that absorb energy when the wheels encounter bumps or curbs. Each wheel is attached to the chassis via a Suspension Arm, a rigid arm that connects the hub to the springs. When a wheel strikes an obstacle, the spring compresses, briefly lifting the chassis; as the wheel passes over, the spring releases, re-extending the chassis—this continuous compression and release isolates the cabin from shock.

The child sits secured in the Seat Assembly, which is a fabric sling suspended within the Seat Frame. This isolation from the chassis provides an additional layer of damping. The Safety Harness prevents the child from jumping out or sliding forward; typically a five-point design with two shoulder straps, two hip straps, and a crotch strap, all meeting at a quick-release Quick-Release Buckle.

Speed control relies on the Braking System. Pressing down with the foot on the Brake Lever pulls a Brake Cable, which rotates a Brake Cam on one of the rear wheels. The cam presses a Brake Pad against the wheel rim, generating friction that slows or stops motion. This one-wheel brake is adequate for holding the stroller on gentle slopes, but parents must maintain hand control on steeper grades.

Portability depends on the stroller-folding-mechanism. Two or more Folding Hinge joints allow the chassis to collapse into a compact envelope. The Locking & Fold Mechanism secures the hubs in their folded positions and locks the Seat Assembly in place, preventing unexpected deployment during transport.

Child safety and comfort

The multi-point suspension is key to ride comfort. Pneumatic wheels absorb vibration better than solid plastic wheels because the air itself acts as a secondary spring. The Suspension Arm and Spring Set further dampen oscillation, ensuring a smooth ride over cobblestones, gravel, or park pathways.

The Safety Harness prevents falls. A five-point design distributes force across both shoulders, hips, and between the legs—the same principle used in aircraft and race-car seats. The Shoulder Pad reduces stress on the child s neck by spreading load.

The Canopy Assembly reduces sun exposure, lowering risk of sunburn and heat stress. The built-in Viewing Window mesh lets wind circulate while the parent peers in to check the child.

Maintenance and wear

Pneumatic wheels require periodic pressure checks and repairs after punctures, similar to bicycle tires. The Suspension Arm and Spring Set degrade over time as the spring metal fatigues; most strollers are designed for 5–10 years of typical use. The Brake Pad wears down with use and may eventually require replacement. Fabric components—the Seat Upholstery, Canopy Fabric, and Harness Strap—are subject to UV degradation and may split or fray after years of exposure.

The Folding Hinge and Locking & Fold Mechanism are stress points where wobbling or resistance often develops; loose hinges can be tightened with an allen wrench, and locked hinges can sometimes be freed with penetrating oil.
