Stunt Kite Product

Overview

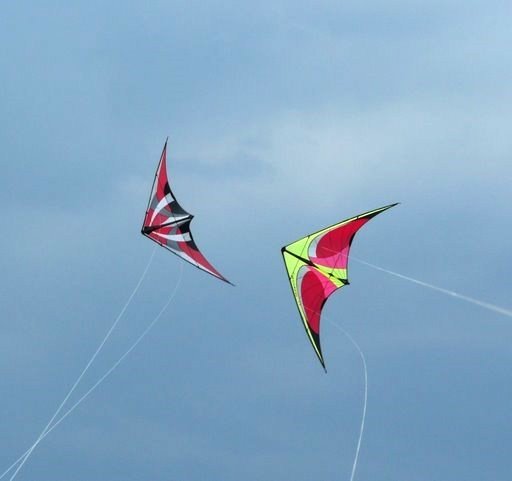

A stunt kite is a lightweight flying wing designed for precise manual control. Unlike single-line kites that rely on environmental wind to sustain altitude, stunt kites are commanded by the flier through dual or quad control lines. The Sail Panel is a ripstop nylon membrane stretched over a Spar Frame of carbon-fiber tubes, forming either a delta (triangular), diamond, or quad-wing shape. The Bridle System routes control forces from the Flying Line to specific points on the frame, allowing the flier to adjust pitch, roll, and yaw. With practice, a skilled flier can execute loops, rolls, hovers, and precision landing maneuvers.

The Sail Panel is cut from ripstop nylon, a tightly woven fabric with a high-tenacity polyester warp and nylon fill, creating a grid pattern that stops tears from propagating. Ripstop typically weighs 40–60 g/m² and comes in bright colors for visibility. The sail is seamed with thread (often nylon or polyester), and stress points where the Spar Frame intersects the sail are reinforced with ripstop patches or mylar tape to prevent tearing under load.

The Spar Frame is the skeleton. Leading-edge spars (7–10 mm carbon tubes, 1–1.5 mm wall) form the swept-back edges; a horizontal or diagonal cross-spar provides lateral bracing; and a vertical spine spar runs fore-to-aft. Spars are connected using plastic T-joints or cross-connectors (often ABS or reinforced nylon). Carbon fiber is preferred because it offers a 30 percent weight savings versus fiberglass while doubling stiffness. Weight is critical: a typical 1.5 m² delta kite weighs only 200–400 grams, so it accelerates rapidly in response to line inputs.

Bridle geometry and control

The Bridle System is a network of lightweight bridle lines (50–100 lb polyester or kevlar, 0.5–1.0 mm diameter) routed from the Spar Frame to the Flying Line. A delta-wing bridle typically has four bridle points: the two leading edges and the tail. A quad-wing kite has bridles at each corner and possibly at edges. The bridle angle (the angle between the bridle and the sail plane) determines pitch stability and response sensitivity. A steeper bridle angle (closer to perpendicular) makes the kite more pitch-stable but slower to respond; a shallower angle (more parallel to the sail) makes it faster and more twitchy.

Control happens through differential tension. The flier holds two handles connected via the Flying Line (75–200 lb break strength, 1–2 mm diameter polyester or kevlar-nylon blend). To pitch the nose up, the flier pulls back on both lines equally; to pitch down, the flier pulls forward. To roll right, the flier pulls the right line harder than the left, creating differential lift on the two wings. The bridle geometry translates these line inputs into wing deformation and angle-of-attack changes, which generate lift and drag forces that move the kite.

Flight dynamics

The Sail Panel must present an angle of attack (typically 10–20 degrees in steady flight) to the apparent wind to generate lift. A typical dual-line kite requires 8–25 km/h sustained wind; in lighter winds, the flier must run or shift position to create relative airflow. In stronger winds (above 30 km/h), the kite becomes harder to control and the structural loads on the Spar Frame increase dramatically.

The Flying Line, typically 75–150 meters long, are wound onto a Line Storage reel for transport. During flight, the flier extends the lines by releasing tension on the reel handle. Dual-line kites are simpler; the two lines control pitch (both together) and roll (differential). Quad-line kites have an additional pair of lines controlling depth (back lines), enabling hovers, precise landings, and inverted flight. Advanced trick flying (rotation, slack-line recoveries, axles) becomes possible with quad-line designs.

Construction techniques

The Sail Panel is typically cut from a ripstop sheet and hand-stitched using a sewing machine or needle-and-thread. Professional kites use a zigzag stitch to prevent unraveling and a separate line of stitching parallel to the edge (French seaming) for added strength. The Patches are glued and stitched at points where the Spar Frame touches the sail; these patches distribute spar loads over a wider area, preventing puncture.

The Spar Frame spars are cut to length and assembled by inserting the spar ends into the plastic connectors, then gluing them with epoxy. The completed frame is placed over the Sail Panel panels, and the sail is folded around the spars and stitched in place. The Bridle System is then hand-tied using overhand or double overhand knots, with each bridle line carefully measured and adjusted so that all bridle points are equidistant from the Handle Assembly in neutral position.

Handles and line management

The Handle Assembly are hand-held grips, typically 20–30 cm long and wrapped in foam or formed from wood, with wrist straps (velcro or elastic) to prevent loss if the flier releases. Some dual-line handles are connected by a spreader bar that holds them at a fixed separation; quad-line handles are often separate, allowing more nuanced control. The Line Storage is either a spool reel with a crank handle or a simple hand-wrap system. Fast-wind reels are preferred for quick pack-up after flying.

Maintenance and repair

Ripstop is durable but not indestructible. Small tears (< 3 cm) are patched using the Repair Kit: a ripstop patch is glued with flexible fabric adhesive and stitched or taped over the tear. Larger tears or bridle damage warrant field repair if possible or replacement of the sail. The Spar Frame carbon tubes rarely break under normal use; if a spar is creased or bent, it can be reinforced with a short sleeve of carbon tape. Bridle lines fray over time and should be trimmed and sealed with a heat gun or lighter (carefully) to prevent unraveling.

The Flying Line should be inspected before each session for cuts, abrasion, or knots. Nicks in the line can propagate into breaks under flight loads, causing loss of the kite. Regular line replacement every 20–50 hours of flight time is recommended for serious fliers.
