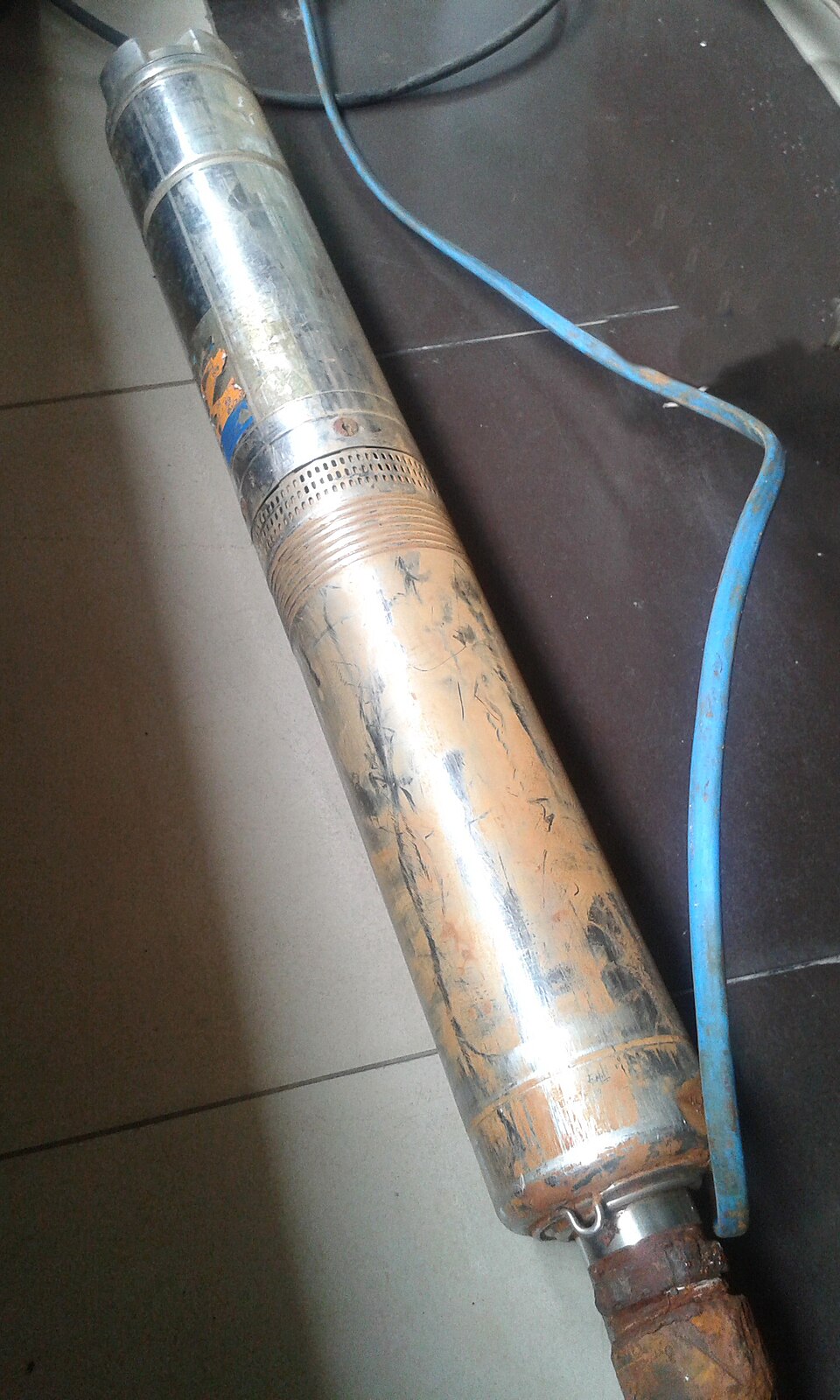

Submersible Well Pump Product

Overview

The submersible well pump is the modern workhorse of groundwater extraction. Installed directly in the well and submerged below the water table, it uses multistage centrifugal impellers to lift water hundreds of meters to the surface. Unlike surface pumps (which create suction and struggle above ~7 meters of lift), submersible pumps place the rotating machinery in the water, eliminating suction lift limits and achieving much deeper operation.

A typical residential well uses a 1–2 kW pump delivering 10–30 GPM at 100–150 meters head. Commercial irrigation wells employ 5–10 kW pumps at 50–100 GPM. Municipal and industrial wells can use 15+ kW units at 300+ GPM. The submersible pump's reliability, compactness, and efficiency have made it the standard for drilled water wells worldwide.

How it works

A submersible pump is lowered into the well on a rigid riser pipe and suspended by a cable or clamp system. The Intake Assembly sits 3–10 meters above the well bottom (to avoid silt). Three-phase power cable runs down the inside or outside of the riser pipe. A surface-mounted Pressure Switch Controller controls the motor start/stop via a simple wired connection.

When the water level drops (e.g., a faucet opens and the household tank pressure falls below ~20 psi), the pressure switch contacts close and 120V or 460V AC power flows to the motor windings. The motor stator creates a rotating magnetic field at 1800 RPM (4-pole, 60 Hz in North America). The rotor (a squirrel-cage bar assembly) spins synchronously. The motor shaft couples rigidly to the [[submersible-well-pump-pump-head|pump impeller stack]].

The impellers are rotating curved-blade disks (2–4 inches diameter) stacked vertically with [[submersible-well-pump-diffuser|diffuser vanes]] between them. As the bottom impeller rotates, it accelerates water radially outward by centrifugal force. The diffuser vanes redirect this high-velocity water into the inlet of the next impeller stage, which further accelerates it. Each stage adds pressure (typically 10–20 meters of head per stage). A 10-stage pump generates ~100 meters of lift; a 16-stage pump reaches 300+ meters.

The water rises through the riser pipe. At the surface, it flows through the Discharge Check Valve into the household tank or reservoir. As the tank fills, pressure rises. When pressure reaches the preset switch value (e.g., 50 psi), the pressure switch contacts open, cutting power to the motor. The pump coasts to a stop. Water cannot back-flow down the well because the [[submersible-well-pump-intake-check|foot check valve]] at the pump inlet springs closed.

Key systems

Motor: The Submersible Motor is a three-phase induction motor, compact and lightweight (25–100 kg). It is totally enclosed—the windings are sealed inside a steel or stainless steel cylinder, and the internal cavity is filled with dielectric oil that cools the copper windings and lubricates the bearings. Three-phase motors are preferred in commercial installations; single-phase motors (less efficient, noisier) are used in residential sites where 3-phase power is unavailable.

Water-lubricated bearings at the pump intake (the Bearing Protector) keep groundwater away from the motor oil cavity. A rubber diaphragm seal isolates the oil from the water-filled pump. Stainless steel housings (preferred) resist corrosion in brackish or sulfurous water; mild steel is used in benign aquifers. Motor life is typically 10–20 years under normal service.

Pump stack: The Pump Stack is the heart of the lift. Each Pump Impeller is a precision casting (brass, bronze, or ductile iron), dynamically balanced to run true at 1800 RPM without vibration. The Diffuser is a stationary guide vane that follows each impeller, redirecting flow. The impellers and diffusers are stacked in a rigid [[submersible-well-pump-stage-collar|collar assembly]]. A Thrust Bearing at the top supports the weight of water in the riser pipe (hundreds of kg for deep wells).

Head per stage is approximately proportional to impeller diameter and speed: head ≈ (RPM / 1000)² × diameter. A 3-inch impeller at 1800 RPM produces ~20 meters per stage. Thus, a 100-meter lift requires 5 stages; a 300-meter lift, 15 stages. More stages = more cost and weight, but increased depth capability.

Intake: The Intake Assembly sits 3–10 meters above the well bottom. Its Intake Screen (stainless steel mesh, 100–200 microns) prevents sand from entering the pump. A [[submersible-well-pump-intake-check|foot check valve]] allows water in but prevents backflow when the pump is idle. The Bearing Protector is a floating bearing sleeve that self-adjusts to water level; if sand settles and clogs the main intake, this protector still allows the bearing cavity to draw cool water.

Power cable: The Power Cable is custom-cut to the well depth (e.g., 200 meters). It is a three-conductor or three-phase cable rated for 600+ V and moisture. Insulation is typically rubber (neoprene) or synthetic (XLPE), resistant to groundwater chemicals. The outer jacket is nylon or PVC for UV and abrasion protection. Cable is routed down the inside of the riser pipe (if wide enough) or tied to the outside with plastic clamps. Every 5–10 meters, a clamp prevents the cable from whipping during pressure transients.

Pressure switch: The Pressure Switch Controller is the brain of the system. A rubber Pressure Diaphragm flexes with discharge water pressure. At a preset pressure (e.g., 20 psi, adjustable), a spring pushes the diaphragm, closing electrical Switch Contacts. Current flows to the motor starter relay. When pressure rises to a cut-out pressure (e.g., 50 psi), the spring releases, and contacts open. The pressure difference (30 psi in this example) prevents rapid cycling if the pump is small or the tank is tiny.

A Pressure Gauge displays current pressure to the homeowner. Modern systems add a tank-top pressure gauge, water meter, and isolation valve for maintenance.

Discharge check valve: The Discharge Check Valve at the wellhead prevents water from flowing backward down the well when the pump stops. This is critical because without it, the riser pipe would drain, and on the next pump start, the motor would run "dry" (no water cooling) and overheat. The check valve is a simple flapper or poppet spring-loaded to allow only upward flow.

Installation

A technician lowers the pump into the well on a rigid riser pipe. The riser is typically 1–2 inches diameter, PVC or steel, cut to exact length (static water level + drawdown + safety margin). The pump is attached to the top of the riser with a Discharge Head fitting. The motor power cable is routed down the riser, secured with clips every 5 meters. At the surface, the riser terminates at a Pitless Adapter (a subsurface fitting below the frost line) that routes discharge to a buried water line, avoiding the need for a visible pump pit.

The pressure switch is mounted on a bracket near the wellhead. Two wires connect to the motor. The system is tested: the tank is filled, pressure checked, and the switch is set so the pump turns on at appropriate pressure (e.g., 20 psi) and turns off when full (e.g., 50 psi). Initial startup may require "priming" (filling the riser with water) to displace trapped air. Once air is purged, the system runs automatically.

Advantages and limitations

Submersible pumps excel in deep wells where suction lift is impossible. They are quiet (submerged in water, vibration is damped). They are self-priming and require no complex plumbing at the surface. Maintenance is minimal—servicing requires pulling the entire pump, which happens every 10–20 years.

Disadvantages: if sand intrusion occurs, it damages the impellers (erosion) and bearings (abrasion). If water chemistry is corrosive (high iron, sulfur, low pH), stainless steel motors are mandatory but costly. Motor failure requires pulling the pump from the well (labor-intensive). Depth limit is ~300 meters due to cable length and motor cooling (deeper wells need more cable insulation, which impairs heat dissipation).

Modern electronic controllers (Variable Frequency Drives) are now paired with submersible pumps to vary motor speed based on demand, reducing pressure tank size and improving efficiency. These systems are reshaping well water delivery from constant-speed cycling to smooth, continuous operation.
