Swim Spa Product

Overview

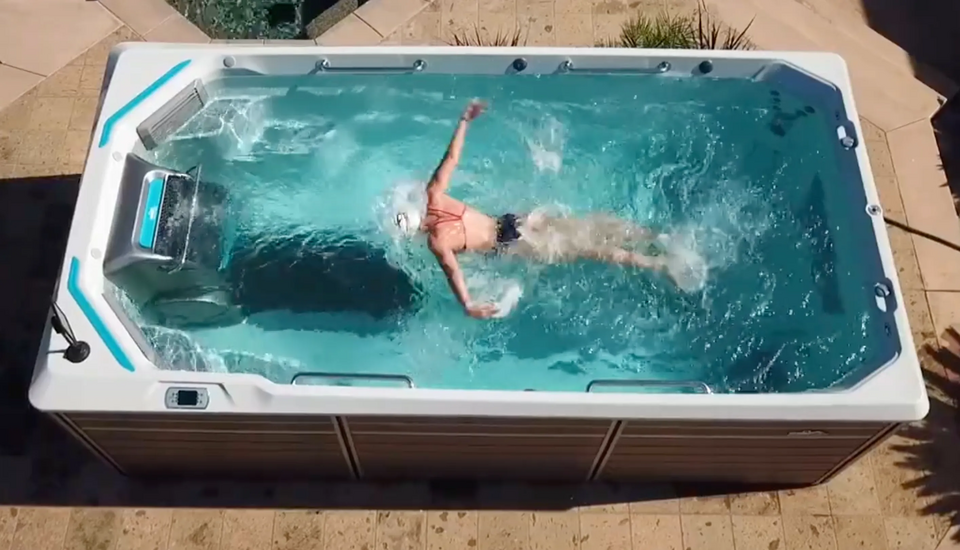

A swim spa combines a narrow swimming pool (4–6 m long, 2–2.5 m wide, 1–1.2 m deep) with an integrated hot tub spa end. The pool zone features adjustable swim current jets—a propeller submerged at one end generating laminar flow against which swimmers exercise—while the shallow spa zone (0.8–1.0 m, 2 m² footprint) provides massage jets and independent heating for hydrotherapy during non-swim periods.

The engineering advantage over separate pool and tub is unified filtration and plumbing under shared control. Dual independent heaters maintain spa end warm (38–40 °C) while pool end remains cool (28–32 °C), enabling simultaneous warm soak and cool lap training without water mixing.

Dual-Zone Thermal Architecture

The Dual-Zone Heating System system uses two separate immersion heaters on independent thermostats, routed through a Motorized Zone Diverter Valve motorized valve:

• Spa Zone Heater: 5–8 kW element raising shallow end 38–40 °C for bather comfort.
• Pool Zone Heater: 3–5 kW element maintaining lap zone 28–32 °C for exercise and endurance.

A motorized 2-way valve alternates heating cycles—in morning mode, it may warm spa zone first, then pool zone. In evening, it may heat spa only. Logic in the Dual-Zone Control Panel prevents simultaneous full heating (electrical peak demand), instead prioritizing spa over pool if thermal load is high.

Thermal Efficiency: Dual zone heating increases operating cost (~15–20%) versus single temperature, but enables year-round use—winter mornings allow warm soaks, while summer enables cool swimming without waiting for complete cooldown. Insulation is critical: 150 mm EPS foam (R40+) around the entire cabinet minimizes loss.

Swim Current Generation

The Swim Current Jet System motor is a 3–5 HP VFD-driven propeller submerged at one pool end, mounted in a protective Propeller Shroud Duct. The propeller rotates 0–1800 RPM, creating laminar flow 0–2.5 m/s (variable via Current Speed Control slider). Swimmers remain stationary, swimming against the jet to travel laps.

Flow characteristics:

• Low speed (20–40%): Suitable for walking/water aerobics, light resistance.
• Medium speed (50–70%): Comfortable lap swimming for intermediate swimmers, ~1.5 m/s.
• High speed (80–100%): Challenge swimmers, competitive training, 2.0–2.5 m/s.

The motor uses a soft starter to avoid electrical shock-loading on grid. Flow is typically laminar (minimal turbulence) if shroud design minimizes recirculation zones. Unlike wave-generating pools, swim spas produce passive current against which the swimmer actively swims—no mechanical body resistance.

Circulation & Filtration

Unlike a hot tub, swim spas require robust filtration due to higher bathing load and larger surface area. The Advanced Cartridge Filtration uses a large pleated cartridge filter (30–50 m² surface area, 5 micron nominal), rated 75 psi, with Filter Bypass Pressure Relief relief opening if pressure differential exceeds 20 psi (cartridge saturated).

The Dual Circulation Loop employs dual independent loops:

1. Spa Zone Loop: 1.5–2 HP pump circulates shallow end through heater and filter.
2. Pool Zone Loop: 2–3 HP pump handles larger lap volume and swim current supply.

A motorized 3-way Circulation Mode Selector enables:

• Spa-Only Mode: Only shallow heater and jets run (morning warm soak).
• Pool-Only Mode: Current and pool circulation, no spa heating.
• Both Zones: Simultaneous circulation (evening full-system use).

Check valves (one per zone) prevent cross-contamination during unequal flow states. Pressure sensors feed back to control panel for diagnostics.

Spa Zone Hydrotherapy

The shallow Spa Zone Jet Package end includes 6–8 body Body Massage Jet Nozzle (rotating or fixed), plus 2 dedicated Neck & Shoulder Jet for shoulder/upper-back massage. Nozzles are arranged at jet-seat recesses, similar to a hot tub. Flow is independent of the pool zone—the spa Spa Circulation Pump pressurizes only shallow-end water.

Unlike competitive hot tubs, spa zone jets are typically lower power (15–25 psi) and frequency (lower GPM) because the pool zone's large surface area and current motor demand priority on the main circulation pump.

Control System Architecture

The Dual-Zone Control Panel is a sophisticated dual-zone PLC managing:

• Two independent thermostats with LCD displays (Spa Zone Display, Pool Zone Display).
• Motorized zone diverter and pump selector sequencing.
• VFD ramp control for swim current speed (0–100%).
• Safety interlocks ensuring heater cannot run without circulation.

Typical user interface:

• Spa Side Display: Shows spa temperature (e.g., 39 °C), setpoint dial, jet on/off.
• Pool Side Display: Shows pool temperature (e.g., 30 °C), current speed percentage slider, filtration timer.
• Master Controller: Central unit storing schedules—e.g., "warm spa to 40 °C by 6 AM, run current at 75% from 7–9 AM, then cool pool to 28 °C."

WiFi or cellular gateway (optional) allows smartphone app control: adjust temperature, start current, check filter pressure remotely.

Structural & Installation

The Heavy-Duty Cabinet Frame is a heavy-duty structure rated for 7500–9500 kg wet load. A reinforced steel frame (3×6×4 m typical footprint) with 150 mm EPS insulation and composite or aluminum siding supports the acrylic shell. Installation requires:

• Concrete pad foundation (20 cm depth minimum).
• Electrical service: 240V 60+ A (single-phase); 208–240V 3-phase recommended for VFD and dual heater.
• Gas supply (optional, if gas heater preferred).
• Drainage: Overflow and backwash drain lines to sump or municipal system.

Delivery and setup typically require professional crew (2–3 days) due to 2–3 ton dry shell weight. The unit is assembled on-site from acrylic panels thermally bonded.

Usage Patterns & Maintenance

Morning Ritual (6–9 AM):

• Timer awakens spa heater, warms shallow end to 40 °C.
• Circulation pump runs 1 hour (filter refresh).
• Operator relaxes 20–30 min in warm spa.

Daytime (9 AM–5 PM):

• Spa in idle; pool zone on minimal circulation (8 hours weekly).
• Cost: ~0.5 kW baseline loss through insulation.

Evening Exercise (5–8 PM):

• Current activates at 75% speed, cool pool 30 °C.
• Swimmer completes 10–20 lap sessions.
• Spa zone off.

Night (8 PM–6 AM):

• Both zones off; circulation minimal.
• Insulation holds 2–3 °C drop overnight.

Weekly Maintenance:

• Test water chemistry (chlorine, pH, alkalinity) in both zones (may vary slightly).
• Inspect filter pressure gauge; backwash or replace cartridge if ≥20 psi differential.
• Check pump seals for weeping.

Monthly: Shock-dose chlorine, brush shell, inspect VFD cooling fan.

Annual: Drain and flush both loops, replace cartridge filter, inspect hose couplings for corrosion.

Variations

Saltwater Chlorinator Option: Replace chemical chlorine dosing with a Salt Chlorine Generator (see linked product), generating chlorine on-demand from NaCl brine.

Integrated Heat Pump: Upgrade from immersion heaters to a 10–15 kW air-source heat pump compressor, reducing heating cost by 60–70% in mild climates (COP 4–5).

Rooftop or Underground Install: Smaller spas (4×2×1 m) can be partially buried (reducing cabinet height) or mounted on decks with proper structural support.

Competitive Training Pod: High-end models include current speed programmable via app with sprint intervals, resistance profiles mimicking different pool conditions.
