Overview

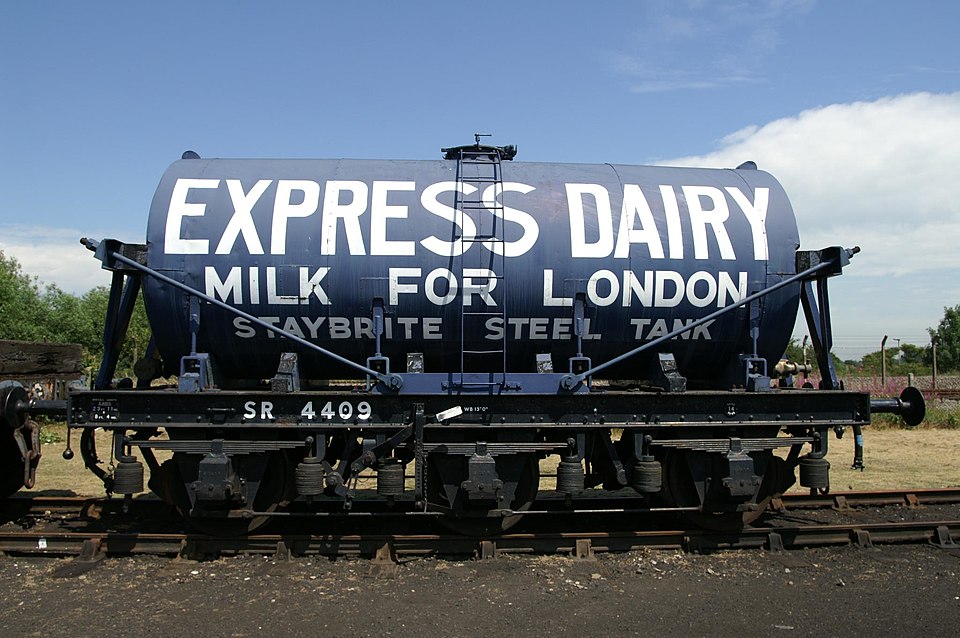

A tank wagon is a rail vehicle whose cargo container is a welded steel pressure barrel. A modern European four-axle wagon of the Zacns class carries 88–98 m³ of mineral oil products at a 90 t gross mass on two Freight Bogie (Y25) units, running at 100 km/h laden. The same architecture, with thicker shells and different valve gear, carries chemicals, liquefied gases at up to 26.4 bar test pressure, and powders discharged by air pressure. Construction and operation are governed by RID (the dangerous-goods rules for rail) and the EN 12561 series.

Barrel and structure

The Tank Barrel is built from rolled Shell Course rings, 6–12 mm thick depending on product class, closed by pressed Dished End heads. Perforated Surge Baffle plates limit the longitudinal slosh of a part-loaded cargo during braking — an unbaffled 90 t liquid column can shift coupler forces violently through a train. The bottom slopes toward an Outlet Sump so the wagon drains completely. Cargoes like bitumen or palm oil that solidify in transit get an Insulation Jacket and Heating Coils fed with steam or hot glycol at the discharge terminal.

In most modern designs the barrel is self-supporting: it sits on Tank Saddle cradles over a short Underframe whose real job is to carry coupling forces. The Headstock at each end mounts Side Buffer pairs and Draw Gear rated to UIC 1350 kN proof load, with Solebar members and Bolster beams feeding vertical load into the bogie pivots.

Running gear

The Y25 bogie is the European freight standard. Its Bogie Frame carries two Wheelset assemblies — 920 mm monobloc wheels on forged axles rated 22.5 t — in Axlebox housings on nested Coil Spring pairs. Damping comes from the Lenoir Damper, an inclined link that converts part of the spring load into friction on a wear plate, so damping automatically grows with payload. Each bogie carries its own Bogie Brake Rigging applying shoes to all four wheels.

Loading and discharge

Loading happens at the dome. The operator stands on the Dome Platform, couples the rack arm to the Fill Valve, and routes displaced vapour back through the Vapour Return Valve to the terminal's recovery system. The Dip Tube verifies the level: RID caps the filling ratio at 95–97% (cargo-dependent) so thermal expansion can never hydraulically lock the barrel. The bolted Manway gives cleaning access between cargo changes.

Discharge uses the triple-barrier Bottom Discharge System. Innermost is the Foot Valve, a spring-closed valve seated inside the barrel at the sump; its design intent is that if a derailment tears off everything below the shell, the valve shears at a groove and the barrel stays sealed. Outside it sit the Bottom Ball Valve used for normal discharge and the Outlet Blank Cap as mandatory third closure. The Valve Actuator opening the foot valve is lockable and flagged so a wagon cannot move with the outlet open.

Braking and safety

The Air Brake System is the UIC automatic air brake: a 5 bar Brake Pipe runs the length of the train, and any pressure drop — commanded or caused by a parted hose — makes the Distributor Valve feed air from the Auxiliary Reservoir into the Brake Cylinder pair. A Load Sensing Valve scales the force between empty and laden so an empty wagon does not slide its wheels, and a handwheel Parking Brake secures the stabled wagon.

Dangerous-goods service adds the Safety Equipment package: a Pressure Relief Valve that vents above set pressure rather than letting a fire-engulfed barrel burst, Crash Buffer Element elements and Anti-Climber ribs that stop a colliding wagon overriding the headstock and puncturing a head, Earthing Lug points for static bonding during transfer of flammables, and orange Hazard Identification Plate panels carrying the UN number that tells emergency responders exactly what is inside.
