Tower-Mounted Amplifier Product

Overview

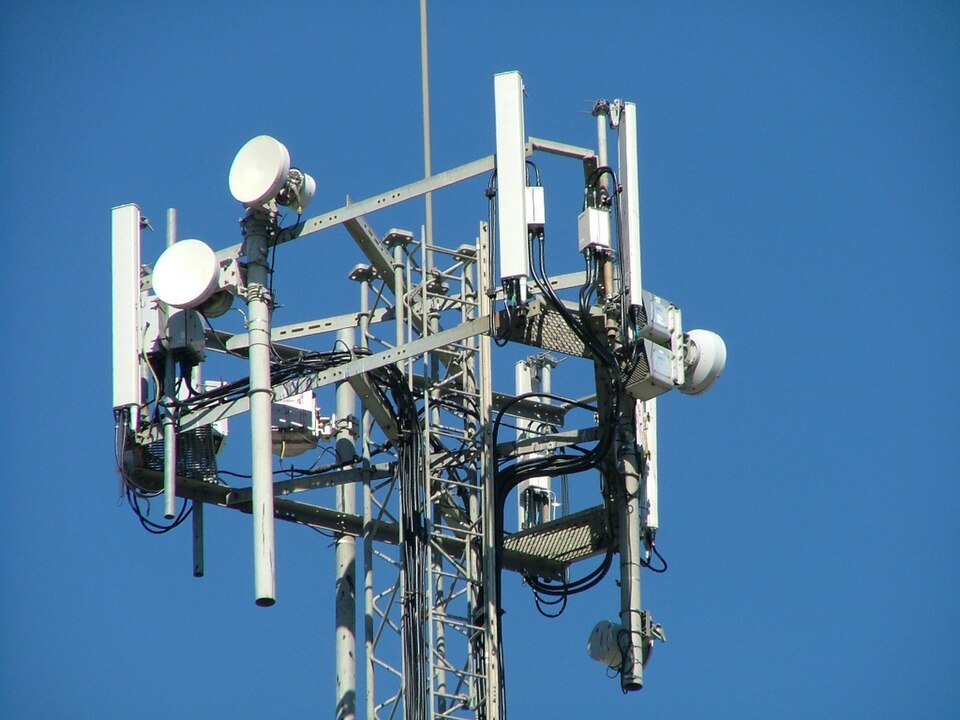

A tower-mounted amplifier (TMA) is a low-noise RF amplifier installed at or near the antenna on a cellular tower, designed to overcome the path loss and cable losses between the antenna and the baseband processor in the shelter. By amplifying the received signal before it travels through the long feeder cable, the TMA reduces the overall system noise figure, improving sensitivity and capacity.

In a typical macro-cell site, the signal from the antenna travels 100–300 feet through a 7/8 inch or 1-1/4 inch coaxial feeder to the baseband equipment in the shelter. The feeder alone introduces 1–3 dB of loss (depending on frequency and length), and the long cable run increases the noise figure of the overall receiver. A tower-mounted amplifier positioned at the antenna introduces gain (15–20 dB) before the signal enters the lossy feeder, dramatically reducing the effective noise figure of the receiver chain.

The TMA consists of a LNA Module (the core low-noise amplifier), a Duplexer Module (separating transmit and receive paths), Surge Protection (defending against lightning and ESD), a weatherproof Housing Assembly (maintaining thermal stability), a Power Module (converting DC supply to regulated voltages), and a Mounting Bracket (clamping to the mast).

The LNA Module is built on a high-frequency PCB with a monolithic microwave integrated circuit (MMIC) amplifier chip, providing 15–20 dB gain across a 20–40 MHz receive band with noise figure as low as 0.5–0.8 dB. This noise figure is critical: it directly affects the sensitivity of the entire receive chain and, in turn, the data rates achievable by mobile devices at the cell edge.

The Duplexer Module prevents the high-power transmit signal (35–46 dBm from the baseband) from saturating the input of the LNA. The duplexer's transmit filter allows the TX signal to pass to the antenna with minimal loss, while its receive filter blocks any TX leakage, protecting the sensitive LNA input. Isolation between TX and RX paths is typically 50–80 dB.

Surge protection is essential: lightning can induce transient currents on the feeder and mast, creating voltages capable of destroying the MMIC within microseconds. The Surge Protection assembly uses a combination of gas tube arrestors (responding in nanoseconds to high-voltage spikes), Schottky clamping diodes (fast secondary protection), and ferrite chips (ESD and high-frequency damping).

Power comes from the shelter as 48V DC, carried up a separate twisted pair in the feeder jacket or in a dedicated power cable. The Power Module converts 48V to the MMIC bias voltage (typically 5–8V), with linear regulators ensuring clean power free of noise that could degrade low-signal performance. Monitoring circuits sample the supply voltage, output power, and die temperature, reporting back to the baseband via a low-bandwidth control line.

The TMA enclosure is machined aluminum, anodized for UV and salt-spray resistance, sealed to IP67 to prevent water ingress. Passive heatsinks dissipate the 0.5–1 W of heat from the MMIC, maintaining the die at a safe temperature. Vent slots allow air circulation while hydrophobic membranes block liquid water, preventing condensation from accumulating inside during temperature cycling.

Installation is straightforward: the TMA is clamped directly to the antenna mast via the Mounting Bracket, and the RF feeder from the antenna is connected directly to the TMA input. The output feeder then runs to the baseband. The mounting bracket provides tilt and azimuth adjustment to fine-tune antenna orientation without requiring the TMA to be removed.

How It Works

Mobile devices transmit at 23–33 dBm (200–2000 mW), and signals arriving at the base station antenna are extremely weak: –80 to –120 dBm depending on distance, path loss, and fading. After amplification by the LNA Module, the signal is 20 dB stronger: –60 to –100 dBm entering the feeder. Without the TMA, the feeder would attenuate the signal by an additional 2 dB, and the baseband receiver (with its own 7–10 dB noise figure) would struggle to detect weak signals, especially in noise or interference.

With the TMA in place, the feeder loss is overcome before the signal is attenuated, and the system noise figure improves by 15–20 dB. Mathematically, the TMA shifts the dominant noise source from the baseband receiver to the TMA itself, which has a much lower noise figure (0.5–0.8 dB versus 7–10 dB for the baseband receiver). This translates to improved coverage at the cell edge and higher capacity for cell-edge users.

Downlink (base station to mobile) is unaffected by the TMA: the baseband transmitter sends a signal to the antenna, which radiates it. The TMA is bypassed on transmit via the duplexer's transmit filter.

Maintenance and Troubleshooting

TMAs are passive (no moving parts) and reliable, with typical lifespans of 10–15 years. Failures are rare but can include:

Gain Loss: Over time, the MMIC bias network may drift due to component aging, reducing gain by 1–2 dB. This is gradual and may not be noticed until detailed RF measurements are made.

Noise Figure Increase: Surge events can degrade the MMIC input stage, raising noise figure by 0.5–2 dB. Even partial events (ESD) can cause cumulative degradation.

Complete Failure: Lightning strikes or water ingress can destroy the MMIC or the power module instantly. Failed units must be replaced.

Preventive maintenance includes annual visual inspection for corrosion, water staining, or cable damage, and periodic RF measurement to confirm gain and noise figure are within specification. Following a lightning strike to the tower or nearby ground, the TMA should be inspected immediately for damage, even if the equipment appears operational.
