The toy capsule machine — gashapon in Japan, after the gasha of the crank and the pon of the capsule dropping — is a vending machine with no electronics whatsoever. Capsules tumble visibly in the Capsule Globe, the customer feeds coins into the Coin Mechanism and turns the crank one full revolution, and the Dispensing Wheel meters exactly one capsule into the Delivery Chute. The mechanism descends directly from penny gumball machines of the 1900s; Bandai industrialised the toy-capsule form in 1977, and the same all-mechanical mech now vends everything from bouncy balls to collectible figure series. No power, no maintenance electronics, no software: the machine earns money anywhere it can be bolted down.

The coin mechanism

The coin mech is the clever part, and it is pure mechanism. The crank shaft does not connect to anything by default — the Crank Handle spins a Coin Carrier Wheel wheel that has coin-shaped slots cut into its rim, and torque can only pass to the vend train when correct coins sit in those slots, physically bridging the gap between the carrier and the driven plate behind it. The coin itself becomes the clutch dog. Too few coins, and the handle just turns the carrier idly.

Before a coin ever reaches the carrier it must pass the Coin Gauge, a hardened plate whose slot admits only the right diameter and thickness; undersized coins and washers drop through the Reject Slot to the return cup on the Coin Faceplate. A spring-loaded Ratchet Pawl blocks reverse rotation, defeating the classic fraud of backing the handle up to re-use a coin: once a vend starts, the only way out is forward through the full revolution, at the end of which the coins fall off the carrier through the Coin Funnel into the locked Vault Drawer. Pricing changes are mechanical too — the operator swaps the carrier wheel for one with more or fewer coin slots.

Metering one capsule

Under the globe's Funnel Floor sits the horizontal Pocket Wheel, the metering element. Each pocket holds exactly one capsule; gravity feeds capsules from the pile into whichever pocket is open under the fill zone. The crank, through a Helical Gear Pair, indexes the wheel one pocket per revolution. As the loaded pocket travels, the Brush Gate wipes off any second capsule riding on top, and when the pocket aligns with the hole in the stationary Drop Plate, the capsule falls through into the chute. A swappable Size Insert adapts the same wheel to 45, 65, or 75 mm capsules, which is how one machine body serves both small bouncy balls and large figure capsules.

Granular materials bridge, and capsules are no different: a pile of spheres can arch over the feed opening and starve the pockets while the globe still looks full. The Agitator solves this — flexible Agitator Arm fingers on a hub geared to the wheel churn the bottom of the pile every vend, collapsing any bridge before it matters.

Globe, chute, and theft resistance

The Globe Shell is the sales pitch: 3-5 mm of clear polycarbonate showing the prizes. It clamps to the mech housing with the Globe Ring, and the operator refills through the Globe Lid, secured by a keyed Lid Lock — keyed separately from the Vault Lock, so a restocking employee never has access to the cash. The Chute Body decelerates the falling capsule and presents it behind the spring-loaded Flap Door; an Anti-Theft Baffle kinks the path so an arm cannot reach up from the door to the globe. The whole machine stands on a Stand Column and Base Plate, usually bolted down or ganged to its neighbours with Gang Bracket plates into the banks of six or eight machines that line arcade walls.

The capsule

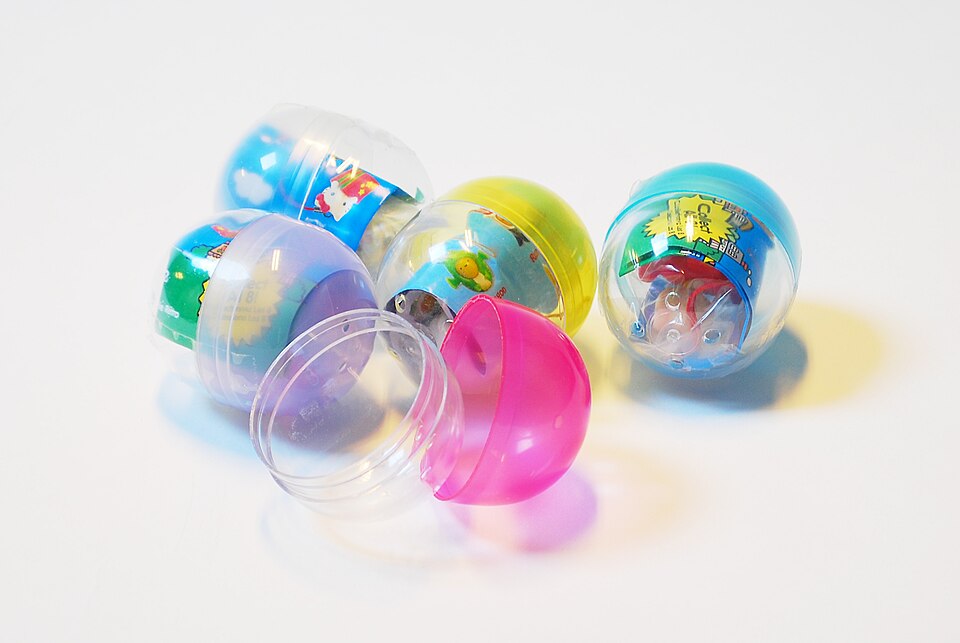

The vend unit itself is engineered: two Capsule Half hemispheres — typically one clear, one colored — snap together around the Toy Prize and its Insert Sheet. The capsule must be round and stiff enough to feed reliably through the pocket wheel, light enough not to jam the pile, and openable by a child but not by tumbling. In the gashapon trade the capsule series, refreshed monthly and collected like trading cards, is the actual product; the machine is just its patient, unpowered salesman.
