Tunnel Muck Conveyor Product

Overview

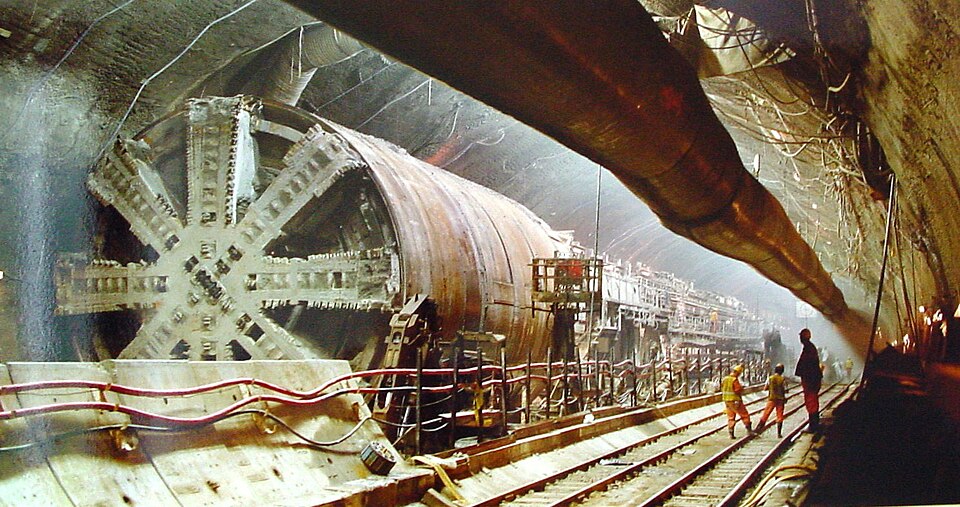

A tunnel muck conveyor is a heavy-duty belt system that transports broken rock and excavated soil from a TBM or drill-and-blast working face to the mine portal, surface hopper, or external loader. The conveyor typically extends 100–500 m inside the tunnel, fed continuously by the TBM [[bord-and-pillar-miner-conveyor-boom|conveyor boom]] or manual loading, and discharges into a truck or primary jaw crusher at the portal.

Modern tunnel muck conveyors are semi-mobile: the Conveyor Frame Structure and Conveyor Belt Assembly are erected in place and reconfigured as the tunnel advances. Unlike surface conveyors, tunnel systems operate in high-dust environments, with variable inclines (uphill, downhill, or level) and frequent material bridging (hang-ups) that require on-site maintenance and emergency procedures.

Belt Construction

The Belt Reinforcement Plies is a reinforced rubber belt with multiple fabric plies (6–10 layers of polyester or nylon) embedded in rubber. Thickness ranges from 12–25 mm depending on load and abrasion duty. Load capacity ranges from 315 N/mm (light) to 1600 N/mm (heavy) tensile strength per mm of belt width.

The Belt Sideboard Assembly are rubber or polyurethane edge strips (150–300 mm high) vulcanized or bolted to belt sides to prevent material spillage on curves and inclines. Belt Carry Profile and Cleats (raised diamonds or angle-bar pattern) are bonded or riveted to the belt surface for inclined carries (>10°) to prevent material rollback.

Splicing in the field uses Belt Splice Fasteners (steel plates and rivets or bolts) mechanical fastening—50–100 fasteners per splice, installed with hand tools or pneumatic riveters. Splice strength is typically 70–80% of belt tensile strength due to stress concentration at fastener holes.

Drive and Motor

The Drive Motor and Gearbox comprises:

• Motor Drive Motor: 50–300 kW three-phase AC induction motor, soft-started or fitted with variable-frequency drive (VFD) for variable load matching
• Gearbox Speed Reduction Gearbox: helical or epicyclic reducer with 5:1 to 20:1 ratio; carries torque of 10,000–50,000 Nm for full-load condition
• Coupling Motor-Gearbox Flexible Coupling: flexible elastomer or fluid coupling to absorb shock from sudden material dumping onto belt
• Drive pulley Drive Pulley (Drum): steel drum (0.8–2 m diameter) with grooved lagging that grips belt and transmits torque

Typical belt speed is 2–4 m/s; faster speeds increase throughput but accelerate belt wear (30–50 mm lost per year in abrasive rock). Faster speed also reduces idler life due to impact loading.

Idler Roller Support

Carrying side Carrying Side Idler Rollers are spaced 1–2 m apart and support the laden belt; typical idler diameter is 200–300 mm with two journal bearings. Return side Return Side Idler Rollers are lighter (less robust) because they carry only belt weight (~2–5 tonnes per 100 m span).

Impact loading at the Impact Absorbing Inlet Roller inlet requires shock-absorbing idlers with elastomer bushings or suspension systems (spring or rubber-in-shear). Without impact absorption, the first 2–3 idlers wear out in months.

Typical idler bearing life is 3–5 years under continuous duty (16–24 hour/day); replacement via frame removal is a 4–6 hour operation.

Storage Cassette and Material Buffering

The Extensible Storage Hopper is an accordion-fold or telescoping hopper section that expands vertically as material accumulates and contracts as the truck is loaded. Capacity is typically 50–200 tonnes (0.5–2 m height expansion), allowing continuous TBM excavation even if truck removal is delayed.

Fixed Hopper Body base structure is welded steel; Telescoping Hopper Extension upper walls slide or accordion-fold vertically. Hopper Structural Bracing internal struts prevent collapse under full load (200–300 tonne impact).

A Discharge Chute and Gate (hinged or roller gate) at the hopper base allows selective dumping to truck or secondary crusher. Fully opened gate dumps continuously; partial opening controls flow rate during crushing operations.

Belt Tensioning and Control

The Belt Tensioning System maintains optimal belt tension (typically 5–15% elongation at center span) to:

• Prevent slippage on drive pulley (loss of torque transmission)
• Avoid over-tension (accelerates bearing wear and shortens belt life)
• Allow idler deflection (25–50 mm sag under load)

Two common approaches:

1. Manual screw tensioner Screw Tensioner (Manual): operator turns handwheel or hydraulic jack monthly to adjust take-up position; measurements by deflection gauge or tape
2. Automatic gravity/spring tensioner Spring or Gravity Tensioner (Automatic): counterweight or spring maintains constant tension within ±10% as belt stretches

Modern systems log tension via Pressure Sensor load cells on the take-up idler, transmitting data to surface control room for trend analysis.

Control and Emergency Stops

The Electrical Control Panel typically includes:

• Local pushbutton station at conveyor: start, stop, emergency stop (all hardwired, no wireless)
• Remote pendant Remote Control Pendant: wireless start-stop (limited by tunnel RF absorption; ~100 m range)
• Limit switches Limit and Level Sensors: hopper full/empty detection; belt slip or misalignment warning
• Temperature monitoring: infrared sensors on motor and gearbox alert operators to overheating

Interlocks prevent hopper discharge if conveyor is not running (avoiding chute overflow).

Material-Specific Challenges

Fine Coal or Ore Fines:

• Dust creation during loading; requires water spraying or ventilation control
• Reduced friction between belt and pulley; may require lagging or rubber covering on drive pulley

Wet Clay or Sticky Material:

• Material sticks to belt and hangs from underside; requires cleaners (scraper blades) on return run
• Accumulation increases load on return-side idlers; bearing life reduced

Large Rock Blocks (>500 mm):

• Impact shock can crack belt (torn ply) or break idler shaft
• Sizing grizzly at hopper inlet mandated to reject oversized material

Frozen Material (in cold climates):

• Material bridges conveyor; requires thermal or mechanical methods to break bridges
• Metal-to-metal friction increases when ice forms; belt slip more likely

Maintenance Schedule

Weekly:

• Visual inspection for belt damage, torn sideboards, tracking drift
• Check idler rotation and bearing temperature
• Motor and gearbox temperature measurement (IR gun)

Monthly:

• Belt splice fastener torque check; tighten any loose fasteners
• Bearing lubrication (grease or oil) and play measurement
• Impact idler and drive pulley lagging condition inspection

Quarterly:

• Belt tracking adjustment (spray paint guide marks; measure drift)
• Gearbox oil level and condition; drain sample for contamination analysis
• Drive coupling inspection for wear or elastomer hardening

Annually:

• Complete idler bearing replacement (even if not yet failed)
• Belt splice inspection; plan for replacement if fastener holes wear
• Motor insulation resistance test (megohmmeter >5 MΩ)
• Gearbox oil and filter change

Every 2–3 years:

• Belt replacement if wear exceeds 5 mm (thickness), tears, or fastener holes enlarge
• Motor rewinding or replacement if insulation resistance <1 MΩ
• Drive pulley lagging renewal

Typical Failure Modes and Mitigation

Failure	Cause	Prevention
Belt slip	Wet pulley, worn lagging, over-tension	Pulley cleaner, lagging replacement, tension check
Idler breakage	Misalignment, impact, bearing failure	Alignment laser, impact idlers, bearing replacement schedule
Motor overload	Belt slip, bridged material, bearing friction	Slip detection, bridge breaker, bearing inspection
Splice failure	Fastener corrosion, over-tension, impact	Regular fastener torque, tension control, impact mitigation
Conveyor noise	Worn bearings, idler run-out, belt tracking	Bearing replacement, balancing, tracking correction

Proactive maintenance (regular bearing replacement on schedule, quarterly oil analysis, annual belt inspection) reduces emergency downtime and extends asset life.
