TLR Camera Product

Overview

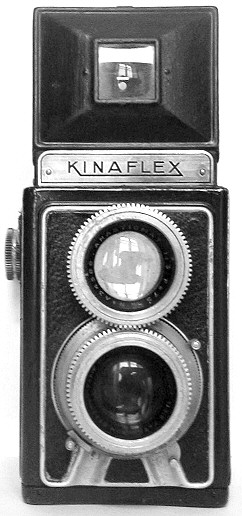

A twin-lens reflex (TLR) camera is a medium-format camera with two lenses of identical focal length mounted side-by-side. The upper Viewing Lens Assembly is used only for composition and focusing, its image directed to a ground glass hood via a Mirror and Prism System. The lower Taking Lens Assembly is the actual picture-taking lens, exposing the film.

The two lenses are mechanically linked by the Focus Coupling Mechanism, so adjusting the focus knob focuses both lenses simultaneously. This design offers several advantages: a bright, erect, real-time viewing image (eliminating the dim inverted mirror image of single-lens reflex cameras), and interchangeable film formats without changing lenses. The TLR was a dominant professional and enthusiast format from the 1950s through the 1980s.

How it works

Viewing Path: Light from the subject enters the Primary Viewing Lens, a fixed or slightly adjustable converging lens (typically 75–80 mm focal length). The light is immediately reflected downward by the Viewing Mirror, a plane mirror at 45 degrees. The light is then inverted to an erect image by the Roof Prism Erector, a glass optical prism. The erect image is projected onto the Ground Glass Viewing Hood, a removable hood with a ground glass viewing screen and pop-up magnifier. The photographer views this image from above, composing and checking focus in real-time.

Taking Path: Light from the subject simultaneously enters the Primary Taking Lens, which is identical in focal length and construction to the viewing lens. The light is focused by the Focusing Helicoid, a helical focusing mechanism driven by the Focus Knob. The focused image is projected directly onto the film at the Film Gate.

Focus Coupling: The Focus Coupling Mechanism mechanically links the focus helicoids of both lenses. Typically, the focus knob drives a rod or cam that rotates both helicoids in tandem. Because both lenses are optically identical and mechanically synchronized, when the viewing lens is in sharp focus, the taking lens is automatically in sharp focus at the same subject distance. This is a unique advantage of the TLR design: no need for a reflex mirror (which blocks the viewfinder during exposure) and no mirror slap vibration.

Exposure: The Shutter Mechanism is a focal-plane shutter (fabric or titanium curtains) controlling the exposure duration (1 second to 1/500 second typical). The Iris Diaphragm in the taking lens controls aperture (f/2.8 to f/22). The Film Transport Mechanism advances the film one frame per pull of the Film Advance Lever. An automatic mechanical link (Shutter Cock Coupling) cocks the shutter as the film is advanced, preventing accidental double exposures.

Advantages of the TLR Design

1. Bright Viewfinder: The direct optical path (no reflex mirror or electronic display) provides a bright, real-time image, ideal for precise focus and composition even in dim light.

2. No Mirror Slap: Unlike SLR cameras, the TLR has no mirror that flips up during exposure, eliminating vibration and allowing faster, more reliable flash synchronization.

3. Waist-Level Viewing: The top-mounted viewfinder is naturally used at waist level, a unique compositional perspective that encourages different creative angles.

4. Rugged Mechanical Design: TLRs are entirely mechanical; they require no batteries for basic operation (except for light meters, if built-in). They are reliable and long-lasting.

5. Medium Format Negative: 6×6 cm (120 film) or 35 mm (some models) negatives offer superior image quality and enlargement capability compared to 35 mm SLR.

Limitations and Trade-offs

1. Fixed Focal Length: Most TLRs have a single, non-interchangeable lens (75–80 mm equivalent to ~50 mm on 35 mm film). Wide-angle or telephoto variants exist but are less common and more expensive.

2. Parallax Error: The viewing and taking lenses are physically separated (by ~50 mm). At close focus distances, the viewing lens sees a slightly different composition than the taking lens. Parallax correction lines are etched on the ground glass to account for this at close distances.

3. Slower Focusing: The coupled helicoid requires smoother, slower focus adjustment than the fast helicoid on modern cameras. In fast-action photography, the TLR is less responsive.

4. Heavier Than 35mm SLRs: Medium-format film and the dual-lens structure make TLRs heavier than 35 mm equivalents, though lighter than view cameras.

Film Formats

120 Roll Film (Medium Format): The standard for TLRs. Produces 6×6 cm (square), 6×4.5 cm (4:3 aspect), or 6×9 cm images depending on the camera. A 120 roll yields 12 exposures (6×6), 15 exposures (6×4.5), or 8 exposures (6×9).

35 mm Film: Some TLRs (Mamiya C series) are designed for 35 mm, offering the convenience of 35 mm film with the TLR optical and mechanical advantages.

Lens Interchangeability

Advanced TLRs like the Mamiya C330 and Hasselblad feature interchangeable lens pairs. The photographer can swap the entire front Front Panel assembly, replacing the viewing and taking lenses together. This modularity is expensive to manufacture but provides flexibility for wide-angle, normal, and telephoto work.

Viewfinder and Magnification

The Ground Glass Viewing Hood displays a large, bright image (typically 2×2 inches for 120 film). A pop-up magnifier (2–4×) aids precise focus checking. The waist-level viewing angle (looking down at the camera at chest height) is distinctive and encourages unconventional compositions compared to eye-level SLR viewfinding.

Mechanical Precision and Focus

The Focusing Helicoid is typically 20–32 threads per inch, allowing smooth, infinitely variable focus. Focus scale markings (0.3 m, 0.5 m, 1 m, 2 m, infinity) aid estimation, but precise focus is achieved by examining the ground glass image with the magnifier.

At close focus distances (0.3 m), parallax becomes significant; the ground glass includes etching or markings showing the taking lens's actual field of view at close distances.

Film Advance and Shutter Cocking

The Film Advance Lever is large (2–3 inches) and easy to operate with one hand. A single lever stroke advances the film by one frame and cocks the shutter. The Frame Counter automatically advances, indicating exposure count. A ratchet prevents back-winding during advance lever reset.

Historical Development and Use

The TLR design was pioneered in the 1930s and achieved peak popularity from the 1950s to 1980s with models like the Hasselblad 500 series (actually an SLR, but inspired by TLR design) and Mamiya C330. Renowned photographers including Diane Arbus and Irving Penn used TLRs for much of their work.

With the rise of digital photography and the convenience of autofocus SLRs, TLR production declined sharply by the 2000s. However, TLRs remain highly sought by film photographers for their optical quality, mechanical reliability, and unique aesthetic.

Contemporary Usage

Today, TLR cameras are:

• Film photography enthusiasts: Valued for image quality, mechanical simplicity, and longevity.
• Professional photographers: Some commercial, fashion, and fine-art photographers still prefer film TLRs (e.g., Hasselblad 500 series) or digital medium-format cameras inspired by TLR design.
• Collectors: Vintage TLRs are prized for their craftsmanship and historical significance.

Modern digital medium-format cameras (Phase One, Hasselblad H6) carry forward the TLR philosophy: interchangeable lenses, large sensors (comparable to 6×6 film), and modular design.
