Ultra-Low Temperature Freezer Product

Overview

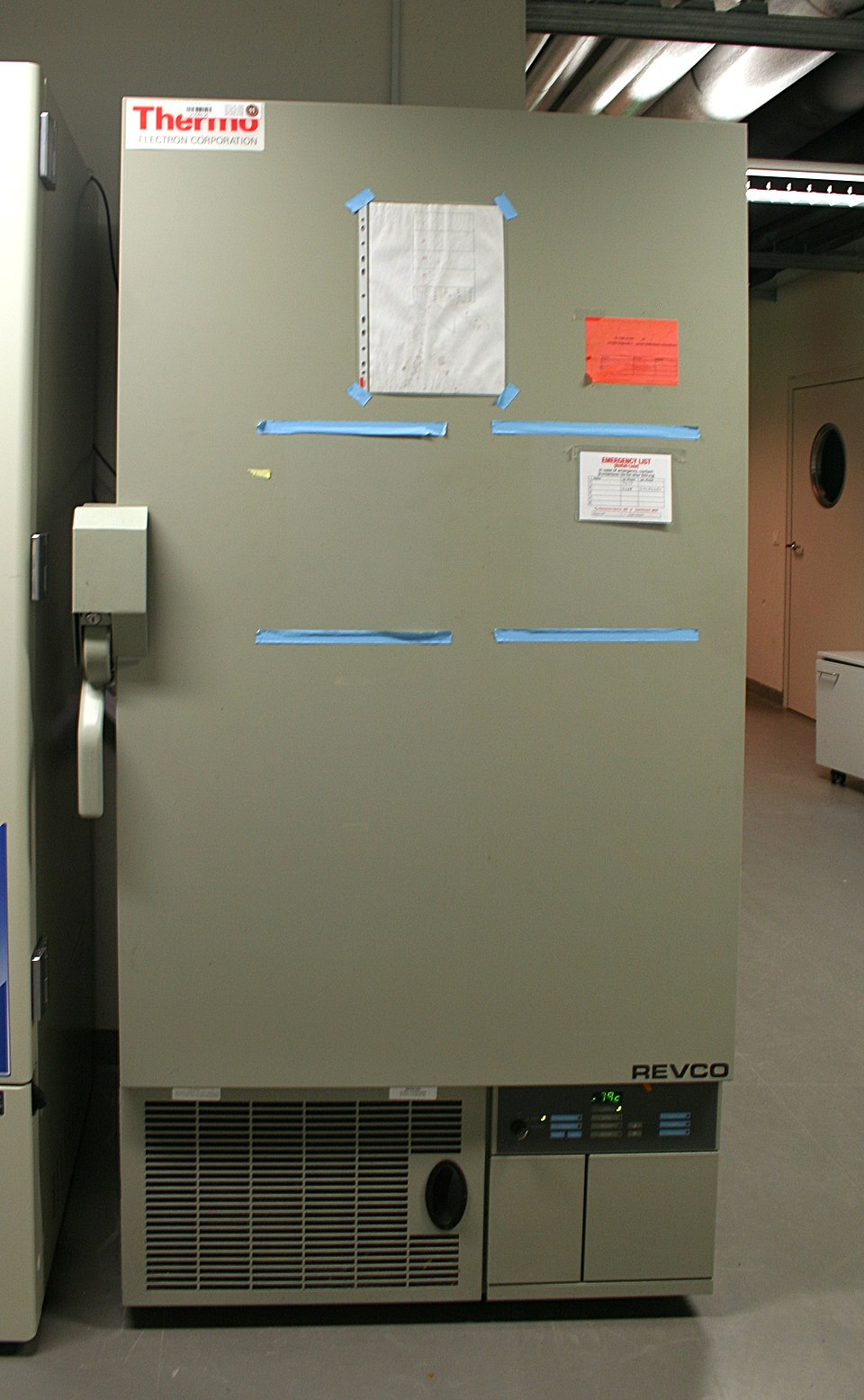

An ultra-low temperature (ULT) freezer maintains temperatures between −70 °C and −86 °C for long-term storage of biological samples, pharmaceuticals, vaccines, plasma, and research materials. Unlike standard laboratory freezers (−20 °C) or deep freezers (−40 °C), ultra-low models require cascade refrigeration to achieve the extreme cold necessary for preserving cellular viability and biochemical activity over years or decades.

ULT freezers are critical infrastructure in pharmaceutical manufacturing (vaccine storage), biobanking, medical research (tissue and cell lines), and clinical laboratories. A single ULT freezer may contain thousands of irreplaceable samples; reliability and redundancy are paramount.

How it works

The Cascade Compressor operates in two stages. The High-Stage Compressor compresses refrigerant (typically HFC-134a) to intermediate pressure and temperature, discharging into a Condenser Cooler. The condensed liquid collects in the Liquid Receiver.

From the receiver, liquid refrigerant flows through an Expansion Valve into the Low-Stage Compressor. This low-stage compressor re-pressurizes the partially vaporized refrigerant, achieving much lower saturation temperature. The low-stage discharge passes through an Oil Separator (removing entrained lubricating oil) and enters the Evaporator Coil, which expands back to very low pressure and temperature (−80 °C saturation).

A Air Circulation Fan draws ambient air from the cabinet interior across the Evaporator Coil, cooling it to −80 °C, then recirculates back into the cabinet. The temperature rises as samples absorb heat; a Temperature Controller monitors a RTD Sensor and cycles the Compressor Contactor, turning compressors on or off to maintain setpoint.

The Insulated Cabinet with Foam Insulation and Vapor Barrier minimizes heat leakage. The Inner Door creates an airlock, reducing infiltration each time samples are accessed.

Cascade Refrigeration Principle

A single-stage compressor cannot achieve −80 °C; saturation temperature of HFC-134a at −1 bar (absolute) is only about −45 °C. By cascading—using a second stage—the low-stage evaporator becomes the load for low-stage compression, achieving lower saturation temperature. The trade-off is higher overall power consumption and complexity.

Thermal Insulation

The Foam Insulation (typically 80–100 mm polyurethane) provides R-value ~6.5 per inch, yielding total cabinet insulation R-value of 500–650. Heat leakage rate is proportional to (T_inside − T_outside) / R_value. In a 25 °C ambient, at −80 °C interior: ΔT = 105 K, leakage = 105 K / 500 = 0.21 K per unit cooling capacity. At steady state, compressor cooling must offset this leakage plus heat from door openings.

The Vapor Barrier prevents humidity diffusion into the foam. Without it, condensation and frost accumulate in the insulation, reducing R-value and eventually causing structural failure.

Defrost Cycle

Frost accumulates on the Evaporator Coil during operation, reducing air flow and heat transfer. Periodic defrost (daily or weekly, depending on humidity and door-open frequency) heats the evaporator via a Defrost Heater. A Defrost Solenoid valve may bypass high-pressure hot gas from the high-stage compressor into the evaporator, warming it above 0 °C to melt ice. Defrost runs 30–60 minutes; during this time, cabinet temperature may rise slightly, risking sample degradation if defrost duration is excessive.

Temperature Control Loop

The Controller Module monitors RTD Sensor every few seconds. When temperature rises above setpoint + deadband (e.g., −78 °C for −80 °C setpoint), it energizes the Compressor Contactor, starting both compressors. When temperature drops below setpoint − deadband (e.g., −82 °C), contactors de-energize. A deadband of ±2–3 °C prevents chatter (rapid on/off cycling) and extends motor life.

Alarm Monitoring

The Alarm Module triggers alarms on:

• Temperature high: Above −60 °C (indicating compressor failure or excessive door open time).
• Temperature low: Below −90 °C (indicating sensor malfunction or thermostat stuck).
• Door open: Door Switch left open >2 minutes.
• Compressor failure: No temperature change within 30 minutes of compressor start.

Alarms sound a Alarm Buzzer and light a panel LED. Optional Network Module sends email or SMS alerts, critical for overnight and weekend monitoring.

Sample Storage Organization

The cabinet interior is fitted with Drawer Rack on ball-bearing slides and Shelf Unit systems. Samples go into Sample Box (polycarbonate boxes rated to −80 °C), subdivided by Divider Set. Organized storage enables rapid retrieval without prolonged door opening; each minute a door is open, cabinet temperature can rise 10–20 °C.

Access and Safety

The Inner Door is an inner insulated door that opens first, followed by the outer Door Frame. This double-door design is most common; it reduces thermal shock to the cabinet interior. A Safety Latch (solenoid-controlled) prevents accidental entrapment; a person locked inside cannot freeze in seconds—the interior temperature is stable and well above lethal cold (though still dangerous).

Power Requirements and Soft-Start

A ULT freezer draws 15–30 A startup current. Many labs use soft-start electrical contactor or VFD (variable frequency drive) to limit inrush current and reduce voltage sag affecting other equipment. A dedicated 20 A circuit breaker is recommended.

Maintenance and Longevity

The High-Stage Compressor and Low-Stage Compressor have design life of 15,000–20,000 operating hours (5–10 years typical use). Oil degradation and refrigerant moisture ingress are primary failure modes. Quarterly or annual preventive service (oil analysis, refrigerant purity check) extends life.

Sample viability depends on consistent −80 °C storage. Freezer breakdowns costing weeks of repair risk $10M+ in sample loss in a large biobank. Redundant freezers and backup power (UPS + generator) are common in clinical and research settings.

Design Tradeoffs

• Energy efficiency vs. response time: More insulation reduces power but slows recovery after door opening.
• Noise vs. compressor size: Smaller compressors with frequent on/off cycling are quieter; larger, slower-cycling compressors are louder but more efficient.
• Manual vs. automatic defrost: Automatic defrost is convenient but risks sample loss if defrost runs too long; manual defrost (operator-scheduled) gives more control.
• Single vs. dual refrigeration loops: Dual independent loops allow service without warming the cabinet; single loop is simpler and cheaper but requires full defrost during repairs.

Applications

• Pharmaceutical and vaccine storage (regulatory requirement often specifies −20 to −8 °C, −40 °C, and −80 °C tiers)
• Biobank storage of blood, plasma, tissue, and genetic material
• Research cell line and bacterial strain preservation
• Enzyme and protein storage to prevent denaturation
• Bacterial and viral library maintenance
• Organ and reproductive tissue cryopreservation in reproductive medicine
