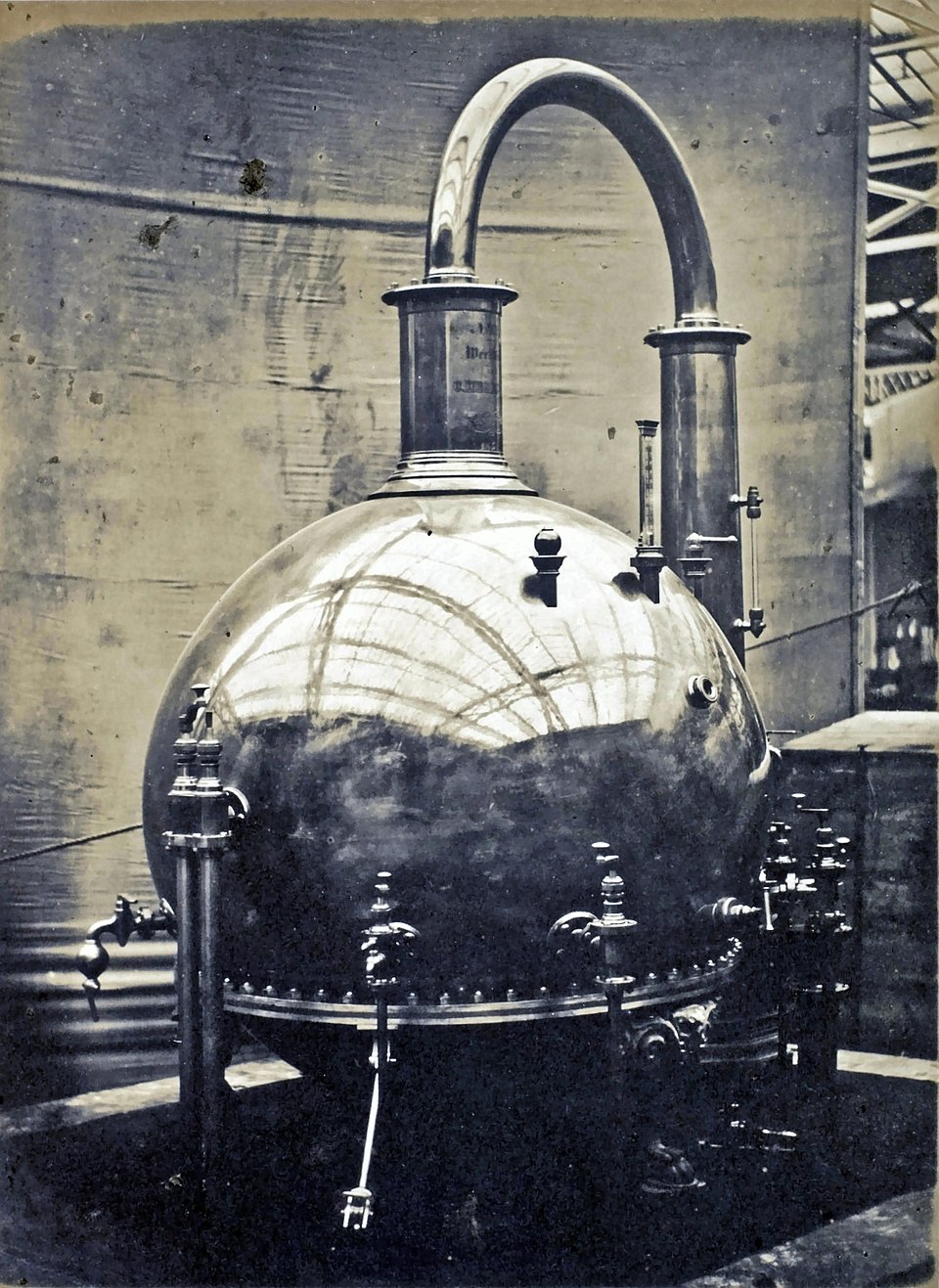

Vacuum Pan Product

Overview

The vacuum pan is the core crystallization vessel in sugar processing, converting clarified juice into crystalline sugar through controlled evaporation and seeding. By operating under vacuum (0.05–0.1 bar absolute), the boiling point of sugar juice drops to 70–80 °C, well below atmospheric boiling. This low-temperature evaporation prevents caramelization (color development) and thermal degradation, yielding whiter crystals and higher-quality product. The vacuum pan is the most critical control point in sugar manufacturing; improper cooking produces off-spec sugar or uncrystallizable molasses.

How it Works

Clarified juice enters the Vacuum Vessel from upstream Cane Diffuser processing at approximately 65 °C and 18–20 °Brix (18–20% dissolved solids). Steam Control Valve valves open, admitting saturated steam (typically 2.5–3 bar) into the submerged Calandria Tubes. The steam condenses, releasing latent heat to boil water from the juice. The Vacuum Pump continuously removes water vapor, maintaining low absolute pressure.

As water evaporates, sugar concentration rises. Operators monitor Brix Sensor readings, typically raising from 70 °Brix (entry) to 95 °Brix (saturation) over 30–40 minutes. At saturation, juice is supersaturated and unstable—any disturbance will crystallize it instantly into unusable mush.

To control crystallization, the operator injects fine sugar crystal Seed Magma System suspension (seed magma) into the boiling pan. The seed crystals provide nucleation sites; fresh sugar molecules deposit onto seed crystals rather than forming new random crystals. Over 15–20 minutes, crystals grow to the target size (0.5–1 mm), monitored by Crystal Detector.

The Condenser & Vacuum removes latent heat from vapor exiting the pan, cooling vapor to liquid water and condensing it. This condensation is essential: it reduces vapor volume, maintaining low pressure. The liquid ring vacuum pump provides continuous evacuation, preventing pressure rise.

When crystals reach target size, the operator closes Steam Control Valve and opens the manual discharge valve, allowing molten sugar mass (mother liquor + crystals) to flow down into a centrifuge.

Design Principles

Vacuum cooking is mandatory for sugar quality because:

• At atmospheric pressure (100 °C), juice rapidly caramelizes, browning the product.
• At vacuum (70–80 °C), chemical reactions are minimized, preserving color and purity.
• Sugar solubility increases dramatically with temperature; low-temperature operation allows high supersaturation without spontaneous crystallization.

The Calandria Tubes placement is critical: submerged below the boiling surface, it heats via conduction through metal, not hot-steam bubbles. Immersion avoids violent bumping (sudden vapor release) and gives smooth, controllable heat input.

Low-speed agitation by Agitation & Circulation keeps crystals uniformly distributed and prevents settling and compaction (which slows crystallization). Circulation pumps return syrup from the bottom to maintain thermal uniformity, especially important at the transition from evaporation to crystallization.

The Surface Condenser must be large and efficient; inadequate condensation allows pressure to rise, boiling point climbs, and color development accelerates. Most designs operate the condenser with cooling water at 15–20 °C inlet, removing heat at 200–250 kW rate for a large pan.

Operational Challenges

Grain loss occurs when seed concentration is too low or injection timing is wrong—juice crystallizes without seed, forming uncontrollable grain. High-grain batches cannot be centrifuged.

Gum formation is buildup of invert sugar (glucose + fructose from sucrose hydrolysis) on vessel walls, degrading heat transfer. Periodic acid washes are required.

Foam and bumping can occur if juice contains proteins or impurities. Modern pans use electronic foam detection and anti-foaming agents.

Condenser scaling reduces cooling capacity over time. Condenser tubes require regular chemical cleaning (citric acid or similar).

Integration

Juice from Cane Diffuser → clarification (liming, settling, filtration) → Vacuum Pan → Sugar Centrifugal → white/refined sugar; mother liquor → re-melt → Molasses Desugarization.

Exhaust steam from the vacuum pan typically goes to the vacuum pump discharge (atmospheric), wasting latent heat. Advanced plants use multi-effect evaporators or vapor recompression to recycle vapor energy.
