Vault Door Product

Overview

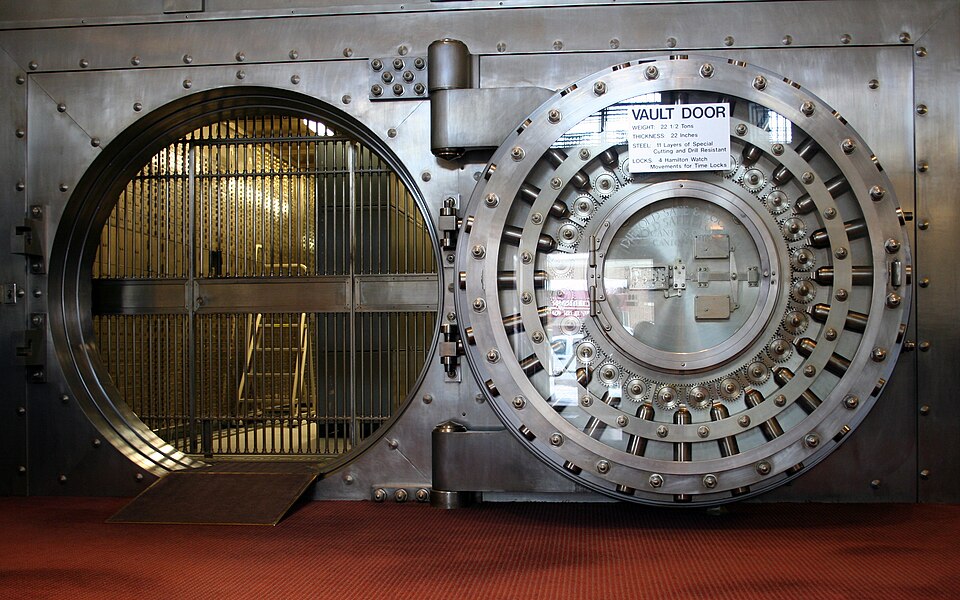

A vault door is the most secure form of door found in commercial and financial institutions. It is not a simple hinged door but rather an assembly of multiple interlocking mechanical systems: a laminated composite outer panel designed to resist cutting and drilling, a complex [[vault-door-locking-bolt-work|bolt work system]] with multiple hardened steel bolts engaging strike cavities, and a [[vault-door-time-lock-mechanism|mechanical time lock]] that prevents the door from opening before a scheduled time.

Vault doors are rated by Underwriters Laboratories (UL) according to the amount of time they can resist a skilled attack with professional tools. A TL-15 door resists 15 minutes of attack with hand tools, pry bars, and small power tools. A TL-30X door resists 30 minutes including x-ray attacks (techniques to see inside the lock mechanism without opening it). Vault doors protect currency, precious metals, jewelry, legal documents, and high-value pharmaceuticals in banks, jewelry stores, law offices, and government facilities.

How it works

The [[vault-door-outer-panel|outer panel]] is the primary defense against attack. It is constructed from laminated sheets of hardened steel (tool steel, 200+ HV) alternating with layers of softer steel or composite materials. This layering serves several purposes:

• Impact absorption: When a sledgehammer or pry bar strikes the panel, the soft layers absorb energy and prevent crack propagation into the structure.
• Drill resistance: As a drill bit penetrates the hardened surface, it encounters alternating hard and soft layers, causing the bit to skate or break before reaching the internal mechanism.
• Saw resistance: Cutting through multiple hard and soft layers requires different cutting speeds and tools, slowing progress significantly.

The total panel thickness ranges from 150 mm (TL-15) to 300 mm (TL-30X) depending on the rating. Modern vault doors also include layers of specialized composite materials (high-density ceramics, tungsten) that offer superior hardness-to-weight ratio.

The [[vault-door-inner-frame|inner frame]] is a welded steel structure that supports the [[vault-door-locking-bolt-work|bolt work assembly]]. The bolt work consists of 4–12 individual hardened steel throw bolts, each typically 50–100 mm in length. When the combination lock is opened and the door is pulled, each bolt retracts from its strike cavity in the vault frame. If a single bolt fails to retract, the door will not open; this redundancy is intentional and is the core of the security design.

Time lock and access control

The [[vault-door-time-lock-mechanism|time lock mechanism]] is the defining feature of a vault door. It is a mechanical chronometer that measures elapsed time and physically prevents the bolt work from retracting until a scheduled time arrives. For example, a typical bank vault is programmed to remain locked from 6 PM (close of business) until 6 AM (open of business). During this window, even if someone has the correct combination and turns the lock dial, the time lock solenoid prevents the bolt work from releasing.

There are two types of time lock designs:

Mechanical Escapement: A precision clockwork mechanism (similar to a watch) with a balance wheel or pendulum that ticks off seconds. A mechanical lock pawl physically blocks the bolt release lever until the timer advances to the scheduled time. These are purely mechanical and require no electricity; they are extremely reliable but cannot be adjusted remotely.

Electronic Quartz Timer: A crystal-controlled oscillator measures time with an MCU and drives a solenoid latch. When the scheduled time arrives, the solenoid de-energizes and the bolt work can be released. Electronic timers are programmable and can support multiple opening/closing schedules. They require a backup battery for correct timekeeping during power loss.

The [[vault-door-combination-lock|combination lock]] is the user interface to the bolt work. For a dial lock, the user enters a multi-digit combination (typically 3–6 numbers) by rotating the outer dial. The dial is coupled to a series of wheels with notches; when all wheels are aligned correctly, a fence solenoid drops and allows the bolt work linkage to move. For modern vaults, the dial is replaced with an electronic keypad that accepts a numeric PIN; the keypad is encrypted and tamper-resistant.

Day gate and access patterns

Many vaults include a [[vault-door-day-gate|day gate]], a smaller inner swing door within the main vault door frame. The day gate has its own combination lock and bolt work (typically 2–4 bolts) and is rated for lower security (e.g., TL-5: 5 minutes). It allows employees to access items stored in the vault during business hours without opening the main vault door, saving time and reducing wear on the main mechanism.

The day gate is independently time-locked: it might be programmed to open from 8 AM to 5 PM, while the main door opens from 6 AM to 6 PM. This allows morning prep work before the main business day and prevents after-hours access via the day gate.

Hinge and mechanical design

The vault door is extremely heavy (2000–5000 kg), so the [[vault-door-hinges|hinge system]] must be precision-engineered. The door hangs on heavy-duty pivot hinges, typically mounted at the top and bottom of the door frame. Each hinge includes a [[ball-bearing|precision ball bearing]] that supports the radial load and allows frictionless rotation. The hinge bolts are secured with lock washers and anti-vibration fasteners.

The door frame (strike cavity assembly) is bolted or welded to the building structure. The strike cavities themselves are hardened steel inserts that are induction-hardened to 500+ HV, preventing the bolt tips from being sheared off during attack. The cavities are designed with slightly tapered engagement surfaces so that the bolts bind if the door is forced.

The [[vault-door-sealing-system|sealing system]] is crucial for maintaining temperature and humidity inside the vault, protecting valuable contents from environmental damage. As the door closes, the gasket system creates a series of compression seals in stages:

1. Primary seal: Outer gasket contacts first, providing bulk weatherproofing.
2. Secondary seal: Mid-level gasket tightens as door closes further.
3. Thermal seal: Inner gasket isolates the vault interior from external temperature swings.

The gaskets are typically EPDM rubber with compression springs to ensure they maintain their sealing force over decades of use.

Attack modes and resistance

UL vault door testing involves multiple attack vectors:

Cutting attacks: Attackers use power saws, angle grinders, or plasma cutters to attempt to cut through the outer panel. The laminated construction ensures that even if the outer hardened layer is cut, the soft layers underneath bind and jam the cutting wheel.

Drilling attacks: Attackers attempt to drill through the door to reach the lock mechanism. The alternating hard and soft layers cause drill bits to skate or break. Modern vault doors also include hardened steel plugs in critical areas (around combination dial, behind the lock case) that break drill bits instantly.

Prying attacks: Using hydraulic pry bars or jacks, attackers attempt to bend or flex the outer panel enough to break welds or pop bolts. The rigid laminated construction and multi-point bolt engagement prevent this; there is no single "weak point" that can be widened.

X-ray attacks: TL-30X rated doors include lead or tungsten layers that are opaque to x-rays, preventing attackers from photographing the internal lock mechanism.

Explosive attacks: Some vault doors include internal ballistic barriers or energy-absorbing composites to survive blast pressure and shrapnel.

Maintenance and re-certification

Vault doors require periodic inspection and maintenance. The bolt work must be checked for alignment and smooth operation; even a 1 mm misalignment can cause a bolt to jam or not fully retract. The seals must be inspected for degradation; failed seals reduce security and allow environmental contamination.

Time lock mechanisms must be verified against the official time source quarterly or annually. Mechanical escapement locks are especially sensitive to drift; a loss of accuracy greater than 1 minute per month indicates the need for servicing.

Bank regulators and security consultants periodically audit vault door compliance. If a door shows signs of tampering, corrosion, or mechanical failure, it must be re-certified (or replaced) before the vault can resume operation. Major vault door manufacturers (Diebold Nixdorf, AMSEC, HUWIL) maintain service centers and provide spare parts and expertise worldwide.

Cost and lifecycle

Vault doors are expensive: a TL-15 door costs $50,000–$150,000; a TL-30X door costs $200,000–$500,000 or more, depending on customization and ratings. Installation and frame work can add another $50,000–$200,000. As a result, vault doors are expected to last 50+ years with proper maintenance. Most vault doors installed in the 1970s–1990s are still in active service today.

Upgrading an existing vault to higher security can involve installing a new outer panel over the existing structure or retrofitting electronic lock and sensor systems without replacing the main door frame. Manufacturers maintain parts inventories for decades to support legacy equipment.
