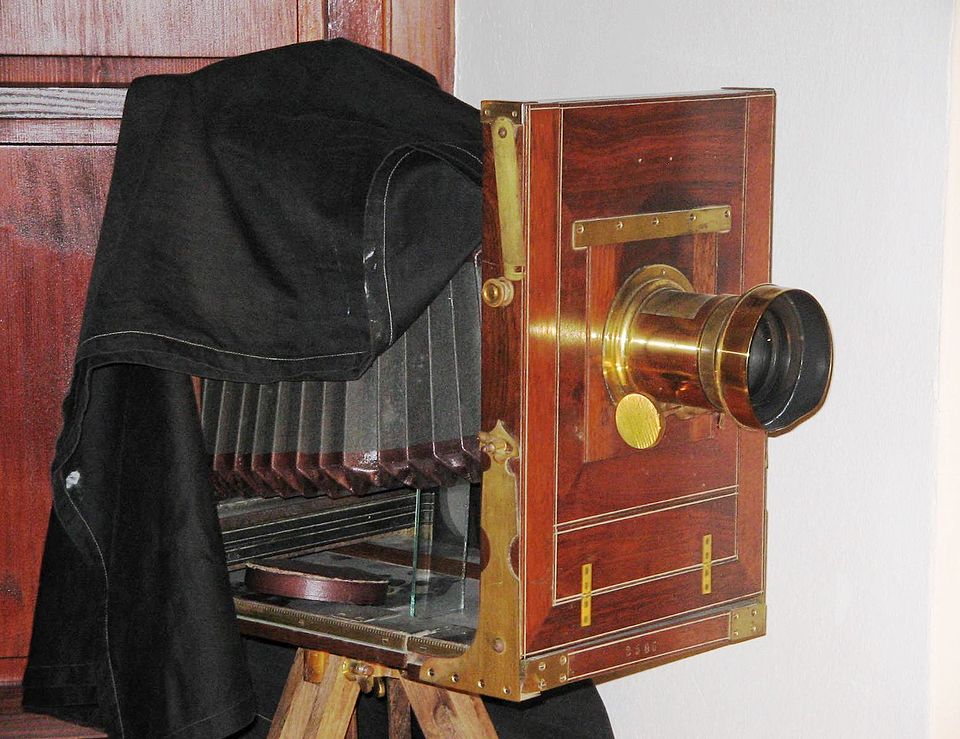

Large Format View Camera Product

Overview

A large format view camera is a precision camera system that accepts cut film sheets (4×5, 5×7, or 8×10 inches) and features independently adjustable front and rear standards. The fundamental advantage of a view camera is perspective control: the lens and film planes can be tilted and shifted independently, allowing the photographer to correct perspective distortion (converging lines in architecture), control the plane of focus without stopping down the lens aperture, and achieve extreme depth of field through movements.

The Rail Base Assembly is a rigid precision rail supporting the Front Standard Assembly (lens assembly) and Rear Standard Assembly (film plane). The Bellows Assembly is a flexible, light-tight coupling between standards that compresses and extends as standards are adjusted. The Ground Glass Back Assembly allows the photographer to compose and focus the image on a ground glass screen before loading a film holder. All movements are infinitely adjustable within the range of the mechanical mechanisms.

How it works

Optical Path: Light from the subject enters through the Lens Board and Mount, which holds an interchangeable large-format lens (90–300 mm typical focal length). The lens projects a real image through the Bellows Assembly onto the Ground Glass Back Assembly, where it is viewed and focused. The optical image distance (from lens to film plane) depends on the lens focal length and subject distance via the lens equation:

1/f = 1/u + 1/v

where f is focal length, u is object distance, and v is image distance.

Focusing: The photographer adjusts the Rail Carriage, moving the rear standard forward or backward along the Main Rail until the image on the ground glass is sharp. The ground glass is replaced by a Cut Film Holder Adapter, which is positioned precisely at the focal plane.

Movements: View cameras allow six independent adjustments:

1. Front Rise/Fall: Vertical displacement of the lens board, raising or lowering the lens relative to the rail. Used to avoid clipping architectural details at the top or bottom of the frame.

2. Front Shift: Lateral (left/right) displacement of the lens via the Front Shift Rails. Used for composition without moving the camera, or to correct perspective in architectural photography.

3. Front Tilt: Forward/backward rotation of the Front Tilt Mechanism around a horizontal axis. Rotates the lens plane relative to the film plane, controlling which parts of the subject are in focus.

4. Front Swing: Left/right rotation of the Front Swing Mechanism around the vertical axis. Like tilt, but for left-right plane-of-focus control.

5. Rear Tilt: Forward/backward rotation of the Rear Tilt Mechanism, tilting the film plane relative to the lens. Used to align the film plane with an inclined subject plane for complete sharpness.

6. Rear Swing: Left/right rotation of the Rear Swing Mechanism, rotating the film plane around the vertical axis.

The Scheimpflug Principle

The movements follow the Scheimpflug Principle: if the lens plane, film plane, and subject plane are arranged so that they intersect at a common line (the "Scheimpflug line"), then the entire subject plane is rendered in sharp focus, regardless of aperture. This allows the photographer to focus a landscape that recedes to the horizon with the lens wide open (f/5.6), yielding shallow depth of field from the lens in traditional perspective but complete sharpness of the landscape through tilt/swing manipulation.

Conversely, front tilt without rear tilt can create an intentional plane of sharp focus—e.g., a slanted band of sharpness across a tilted composition.

Ground Glass and Composition

The Ground Glass Back Assembly displays the aerial image in real-time, allowing the photographer to compose, check focus, and verify exposure using the image brightness. The ground glass surface is deliberately diffuse (finely ground), scattering light so the image is visible from angles. A Focus Magnifier (folding 2–4× magnifier) allows critical focus checking.

The photographer covers their head with a Dark Cloth to exclude ambient light and see the ground glass image clearly. This is slow, deliberate photography—very different from hand-held 35mm or digital cameras.

Lens System

View camera lenses are large-format lenses (90–300 mm focal length typical) designed for 4×5 to 8×10 inch film. They differ from small-format lenses:

• Coverage: A 150 mm large-format lens covers an 8×10 sheet; a 150 mm 35mm lens covers only ~70°. Large-format lenses have a wide coverage circle (often 70–80° or more) to accommodate movements without vignetting.
• Shutter: The shutter is integrated into the lens (leaf shutter, Copal or Compur brand), not in the camera body. Leaf shutters allow flash synchronization at all shutter speeds.
• Diaphragm: The aperture is manually set via an iris diaphragm, typically f/5.6 to f/45.
• Image Circle: The lens projects a circular image. If front tilt shifts the image outside the circle, vignetting occurs.

Film Holder and Capture

The Cut Film Holder Adapter is a simple mechanical device holding a single cut film sheet (e.g., 4×5 Kodak Portra 400) at the focal plane. The film is loaded in the dark (or in a changing bag) and inserted into the holder's Film Holder Shell. A Dark Slide (dark slide) blocks light until exposure.

To capture an image:

1. Compose and focus on the ground glass.
2. Replace the ground glass with a film holder containing a cut film sheet.
3. Remove the dark slide.
4. Trigger the shutter via a Shutter Release Mechanism (cable release) to avoid vibration.
5. Reinsert the dark slide.
6. Remove the film holder and reload another sheet (or process this one).

Each exposure consumes one film sheet, making view camera photography deliberate and expensive.

Stability and Precision

The Rail Base Assembly is a precision-ground steel rail, typically 0.5×1 inch in cross-section, offering exceptional rigidity. The Rail Carriage rides on the rail with adjustable "gibs" (friction-controlling screws), allowing smooth, friction-free motion while eliminating backlash. The Leveling Feet ensure the rail is perfectly level, critical for accurate focus and movement control.

Movements and Perspective Correction

Architectural Example: Photographing a tall building with a hand-held camera results in converging vertical lines (perspective distortion). With a view camera:

• The camera is positioned so the film plane is vertical.
• The lens board is shifted upward (front rise), moving the lens above the film center.
• The ground glass now shows the top of the building without the lens tilting, and the vertical lines remain parallel.

This is a unique capability of view cameras, impossible with fixed-lens or rigid-body cameras.

Exposure Determination

The large ground glass allows direct visual assessment of exposure. The photographer can estimate based on the brightness of the ground glass image—brighter scenes allow slower shutter speeds. Incident or spot light meters are common for precise exposure control, or test exposures on film are used to dial in the correct settings.

Large Format Film

Cut film sheets (4×5, 5×7, 8×10) are individually loaded, processed, and handled. The large negative size (4×5 inch = 107×127 mm) yields exceptional resolution and tonal range. Modern black-and-white films (Kodak Tri-X, Fujifilm Acros) and color films (Kodak Portra, Fujifilm Velvia) are available in cut film.

Scanning or contact printing large negatives reveals extraordinary detail and tonality unmatched by smaller formats or digital capture at the same resolution.

Contemporary Use

View cameras remain the preferred tool for:

• Commercial and architectural photography: Perspective control and extreme depth of field.
• Fine art photography: Deliberate, slow process and large negatives.
• Technical photography: Scientific, copy work, product photography.
• Landscape photography: Scheimpflug principle for infinite depth of field at wide apertures.

Digital view cameras (Phase One, Sinar) have been introduced, replacing the film holder with a digital back, but most contemporary view camera users prefer film for its tonal and color qualities.
