Overview

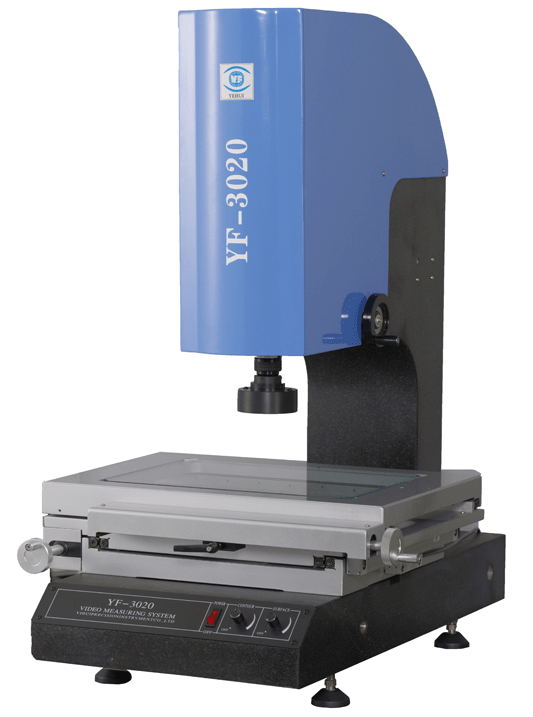

A vision measuring machine is a precision optical metrology instrument that measures dimensions and geometry by imaging samples and analyzing edge positions and feature boundaries. Unlike manual micrometers or calipers, which require human skill and repeated measurements, a vision measuring machine automates the process: motorized stages position the sample, a camera captures an image, software detects edges with sub-pixel accuracy, and geometric fitting (lines, circles, fits to point clouds) yields dimensions in 2D or 3D. Typical applications include verifying part tolerances in manufacturing, inspecting circuit-board features, and validating stamped or molded geometries with minimal human interaction.

The Granite Base Plate is a precision-ground granite slab that thermally stable and vibration-dampened, ensuring long-term accuracy. The XYZ Stage Assembly house motorized stepper or servo motors that move the sample in X, Y, and Z; each axis carries a precision glass X-Axis Glass Scale or encoder for absolute position readout. The Optical Head Assembly deliver a magnified image to the Vision Camera Module, which captures the sample at high resolution. The Illumination Assembly system uses coaxial and ring LEDs to provide even, glare-free lighting. The Motion Control Unit synchronize stage motion with camera acquisition, and the Control Computer Unit runs the measurement algorithms: edge detection, feature fitting, and tolerance checking.

How it works

The operator loads a part onto the Granite Base Plate and positions it roughly under the Optical Head Assembly. The Control Computer Unit guides the measurement routine, which might be a pre-programmed macro (e.g., measure 5 hole diameters, verify an edge-to-edge distance). The first step is autofocus: the Focus Control System motorizes the Z-axis, capturing images at each position and selecting the Z with maximum image sharpness (contrast).

Once in focus, a video image is digitized and passed to vision algorithms. For a circular hole, the software applies a Sobel or Canny edge detector to isolate the dark hole boundary against a bright background, then fits a circle to those edge points using least-squares. The circle center is the hole location, and its radius is the feature diameter. For rectangular features, edge detection is followed by line fitting: parallel lines that best fit the detected top and bottom edges yield the width. The software reports coordinates and dimensions against a CAD model or nominal dimensions, flagging out-of-tolerance parts.

The vision-measuring-machine-scales provide absolute position feedback: glass scales on X and Y measure linear position, and the Z encoder measures height. By recording stage coordinates when key edges are detected, the system can compute 3D coordinates without re-imaging.

Accuracy depends on magnification: at low magnification (0.7×), the field of view is large but resolution is coarse (~5 µm); at high magnification (4.5×), resolution improves to ~0.5 µm, but the field shrinks and more time is needed to image multiple features. The granite base provides thermal stability; measurements are accurate only if the machine is allowed to stabilize at constant temperature.

Applications

Manufacturing quality control: stamped metals, plastic-molded parts, machined components all are verified using vision measuring machines. Automotive suppliers measure critical dimensions on brackets, fastener holes, and bearing races. Electronics manufacturers inspect PCB pads, via placements, and solder-joint size. Optical manufacturers measure lens diameters, edge thickness, and coating uniformity. Medical device makers verify critical features on catheters, stents, and implants. Aerospace and defense use vision measuring machines for complex parts where high accuracy and traceability are mandated. The machines provide fast, repeatable, documented measurements suitable for statistical process control and lot acceptance.
