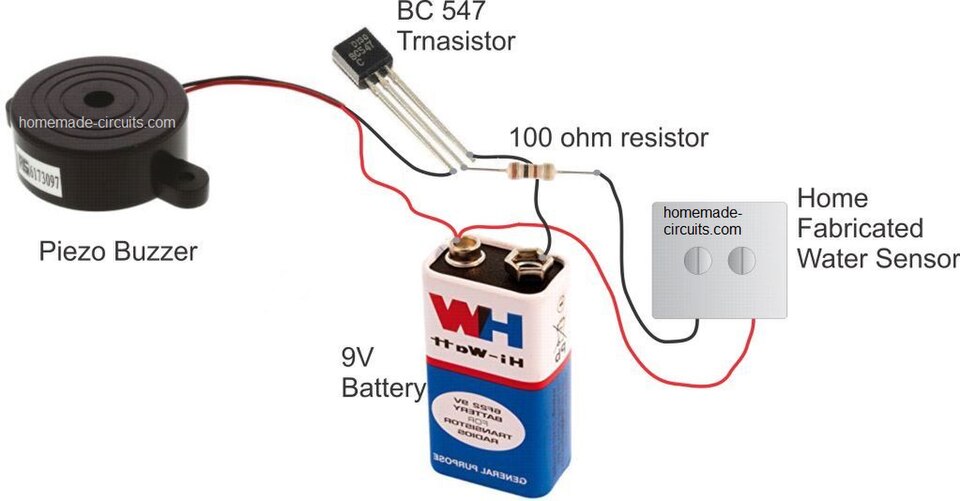

Water Leak Detection System Product

Overview

A water leak detection and shutoff system is an automated water damage prevention solution that continuously monitors key areas of a home or building for leaks, then immediately stops water flow to prevent flooding. Wireless sensors placed under washing machines, water heaters, ice makers, and along foundation walls detect the slightest moisture. When a sensor is triggered, a signal reaches a central hub which automatically energizes a motorized shutoff valve on the main water supply, cutting water flow in 1–2 seconds. Simultaneously, mobile alerts notify the occupant of the leak location and valve closure.

This system transforms water damage from catastrophic (days of interior damage while the occupant is away) to manageable (minor surface dampness that can be addressed quickly). Insurance studies show that an automated shutoff system reduces average water damage claims by 80%.

How it works

Under normal operation, the [[water-leak-detector-sensor-nodes|wireless moisture sensors]] scattered throughout the house (under appliances, along basement walls, in crawl spaces) remain dormant, polling their [[water-leak-detector-moisture-sensor|resistive electrodes]] once per minute. Dry air between the electrodes creates high impedance (megohms); the sensor recognizes this and sends a brief "OK" status radio message to the [[water-leak-detector-hub|central hub]].

When water reaches a sensor—e.g., a washing machine hose bursts and water pools under the machine—the water conducts electricity between the [[water-leak-detector-probe-electrodes|sensor electrodes]], dropping impedance from megohms to kiloohms. The sensor immediately wakes its radio, transmits an alert to the hub, and illuminates its red [[water-leak-detector-led-indicator|LED]].

The hub receives the leak signal and executes logic:

1. Immediate shutdown: The hub energizes the [[water-leak-detector-valve-actuator|solenoid driver]], pulling the solenoid plunger and pushing the [[water-leak-detector-shutoff-valve|main shutoff valve]] ball to the closed position within 1–2 seconds.
2. Audible alarm: The [[water-leak-detector-alarm-buzzer|piezo buzzer]] on the hub sounds at 85+ dB.
3. Mobile alert: The hub sends a push notification to the occupant's [[water-leak-detector-app-interface|mobile app]] via WiFi and cloud API, specifying which sensor triggered (e.g., "Leak detected: Master Bathroom").
4. Cloud logging: The event is recorded in the [[water-leak-detector-audit-log|cloud audit database]] for insurance documentation.

The water supply remains shut off until manually reopened via the [[water-leak-detector-manual-switch|override button]] on the hub or the [[water-leak-detector-app-interface|mobile app]].

Components & Design

Moisture Sensors

The [[water-leak-detector-sensor-nodes|sensor nodes]] are compact (2×2×1 inch) battery-powered devices placed in strategic locations: directly under washing machines, under kitchen sinks in the cabinet, next to water heater and HVAC equipment, and along basement perimeter walls. Each sensor contains a [[water-leak-detector-moisture-sensor|capacitive or resistive moisture-sensing PCB]] with two stainless [[water-leak-detector-probe-electrodes|electrodes]] separated by 1–2 mm.

In dry conditions, impedance between the electrodes is >10 MΩ (air is an insulator). When water bridges the gap, impedance drops to <100 kΩ (water conducts due to dissolved minerals). The sensor's microcontroller detects this impedance change and immediately alerts the hub via [[water-leak-detector-rf-transceiver|Bluetooth Low Energy (BLE) or Zigbee radio]].

Each sensor runs off a single [[water-leak-detector-coin-cell-battery|CR2032 coin cell or AA lithium battery]] and operates for 2–3 years due to aggressive power-down firmware (the radio powers on only when needed, consuming nanoamps at rest). The [[water-leak-detector-led-indicator|dual-color LED]] provides visual feedback: green (battery OK and no leak), red (leak detected or low battery).

Central Hub

The [[water-leak-detector-hub|central hub]] is a wall-mounted device (roughly 6×4×2 inches) containing the intelligence: an [[water-leak-detector-main-pcb|ARM Cortex processor]], a [[water-leak-detector-wireless-radio|WiFi or Z-Wave radio]] for communicating with sensors and cloud, and a [[water-leak-detector-power-supply|12V DC power supply]]. The hub polls sensors via radio; when any sensor sends an alert, the hub immediately triggers the [[water-leak-detector-solenoid-coil|solenoid valve coil]].

The hub includes a [[water-leak-detector-display-panel|small LCD display]] showing current system status, water pressure (if a [[water-leak-detector-pressure-sensor|pressure transducer]] is installed), and any active alerts. A [[water-leak-detector-backup-battery|rechargeable 12V li-ion battery]] (5 Ah) provides 8–12 hours of solenoid shutoff capability during a power outage, ensuring the valve remains closed even if electricity fails.

A [[water-leak-detector-manual-override-switch|physical pushbutton]] allows manual valve closure without relying on wireless or network connectivity—critical in an emergency or if the hub is offline.

Shutoff Valve Assembly

The [[water-leak-detector-shutoff-valve|solenoid shutoff valve]] is installed in the main water supply line entering the house (or in hot and cold branches separately for redundancy). It's a 1–1.5 inch full-port brass or ductile iron [[water-leak-detector-valve-body|ball valve]] rated 125 PSI with an integrated [[water-leak-detector-solenoid-coil|24V AC or 24V DC solenoid coil]] mounted above the ball.

Under normal operation (no leak detected), the solenoid is de-energized and the valve ball remains in the open position. Water flows freely through the valve at normal supply pressure. When the hub detects a leak, it energizes the solenoid (15W brief pulse), creating a magnetic field that pulls the solenoid plunger downward. The plunger mechanically pushes the [[water-leak-detector-valve-actuator|valve actuator linkage]], rotating the ball 90° to the closed position, blocking all water flow.

A [[water-leak-detector-manual-lever|mechanical override lever]] allows the valve to be opened manually (without power) in an emergency. The valve is fail-safe: if power is lost, the [[water-leak-detector-backup-battery|battery]] maintains power to keep the solenoid energized and valve closed; if the battery also depletes, the valve remains closed (fail-safe is closed, not open).

Flow & Pressure Monitoring

Optional sensors enhance leak detection accuracy. A [[water-leak-detector-water-flow-sensor|turbine flow meter]] in the main line continuously measures water consumption in gallons per minute. The hub's firmware establishes a baseline (typical daily usage) and flags anomalies: if consumption suddenly jumps to 50 GPM at 2 AM (when no one is awake), the hub assumes a burst pipe and triggers the solenoid valve. This "smart" detection catches leaks before moisture sensors can.

A [[water-leak-detector-pressure-sensor|main-line pressure transducer]] (0–100 PSI) detects sudden pressure drops; a burst pipe causes rapid depressurization, which the hub interprets as a catastrophic leak and closes the valve automatically.

Cloud Integration & App

The hub communicates via [[water-leak-detector-wireless-radio|WiFi or Zigbee radio]] to the home router, then via TLS-encrypted [[water-leak-detector-cloud-gateway|MQTT or REST API]] to a cloud backend. The cloud processes sensor events, sends push notifications, logs events, and provides the occupant with remote access.

The [[water-leak-detector-mobile-app|iOS and Android app]] displays real-time system status, a heat map of recent sensor activity, daily water usage graphs, and manual controls. The occupant can view which sensor triggered, when, and what water usage looked like leading up to the event. From the app, the occupant can also remotely reopen the [[water-leak-detector-shutoff-valve|main shutoff valve]] once the leak is fixed (or authorize a plumber to do so).

[[water-leak-detector-user-authentication|Multi-user authentication]] and role-based permissions allow the homeowner to grant temporary access to a plumber or property manager without sharing credentials.

Installation & Sensor Placement

Sensor placement is critical for effective detection. Recommended locations:

• Under washing machine: Most common leak source; place sensor directly under the machine.
• Under water heater: Tank corrosion or valve failure; sensor at tank base on tile or small mat.
• Kitchen cabinet under sink: P-trap or shutoff valve leaks; sensor in back corner.
• Bathroom vanities: Faucet supply lines and P-traps; sensor under cabinet.
• Crawl space or basement perimeter: Foundation seepage or sump pump overflow; sensors every 10 feet along walls.
• Attic (if water lines present): Frozen or pinhole leaks in cold climates; sensor mounted on rafter near pipe.

The main [[water-leak-detector-shutoff-valve|shutoff valve]] installs on the main water inlet inside the house near the meter or at the utility entry point. Installation typically requires a plumber to cut the supply line and install the valve. After closure, the entire house is without water until the valve is manually reopened; therefore, the [[water-leak-detector-manual-override-switch|physical override button]] must be accessible and the occupant trained on its use.

Some installations use a "zone valve" approach: separate shutoff valves on hot water branch (kitchen, bath) and cold water branch, allowing selective supply cutoff without affecting the entire house. However, this increases cost and complexity.

Maintenance & Reliability

Sensor Battery Replacement

Sensors typically operate 2–3 years on a single battery. The hub's app displays battery levels; when a sensor drops below 30%, the occupant replaces the battery (coin cell or AA) without removing the sensor from its location.

Solenoid Valve Testing

Annually, test the shutoff valve by pressing the [[water-leak-detector-manual-override-switch|manual button]] to close the valve. Water flow should cease completely within 2 seconds. Then re-open the valve via button or app. This exercise ensures the solenoid is not stuck and the mechanical linkage is not corroded.

Hub Power & Connectivity

The hub's [[water-leak-detector-power-supply|power adapter]] should be plugged into a wall outlet near the water meter. If the hub loses WiFi connection to the router, the [[water-leak-detector-wireless-radio|radio indicator]] on the display shows "No WiFi"; sensor alerts still trigger the solenoid locally (via RF), but mobile push notifications will fail until connectivity is restored.

The [[water-leak-detector-backup-battery|backup battery]] should be charged weekly via the hub's power adapter; the charger indicates full charge status via LED. If the hub is unplugged for extended periods, manually re-charge the backup battery annually to maintain readiness.

Sensor Calibration

Most sensors require no calibration; they detect impedance change and report leaks. In hard-water areas, mineral deposits may accumulate on the [[water-leak-detector-probe-electrodes|electrodes]], reducing sensitivity. Annually, visually inspect sensors and gently clean the electrode surfaces with a dry cloth if visible deposits are present.

Limitations & Failsafe Considerations

Single-Point Failure

If the hub loses power and the [[water-leak-detector-backup-battery|backup battery]] is depleted, water will flow freely even if a sensor detects a leak (the sensor cannot close the [[water-leak-detector-shutoff-valve|valve]] alone). The backup battery must be periodically charged.

Cloud Dependency

Push notifications to the mobile app depend on cloud connectivity. If the cloud API is unreachable, mobile alerts fail but local [[water-leak-detector-alarm-buzzer|hub alarm]] still sounds, alerting anyone at home.

False Positives

High humidity in bathrooms or laundry rooms can occasionally trigger sensors. The hub typically requires 2–3 sensor triggers before closing the valve to reduce false positives, but this delay (5–10 seconds) may allow significant water damage in a burst-pipe scenario.

Water Shut-Off Issues

If the [[water-leak-detector-shutoff-valve|solenoid valve]] or [[water-leak-detector-manual-lever|manual lever]] has not been exercised for months, rust or mineral deposits may prevent closure. Test the valve quarterly to ensure smooth operation.

Standards & Codes

Water leak shutoff systems are not regulated by code but are permitted under IPC (International Plumbing Code) when installed with proper [[water-leak-detector-inlet-strainer|inlet strainer]] and backflow prevention. The [[water-leak-detector-shutoff-valve|solenoid valve]] must be rated to the main supply pressure (typically 50–80 PSI).

Insurance companies increasingly offer 10–15% premium discounts for homes with an automated shutoff system, recognizing the dramatic reduction in claim frequency and severity. Some homeowner policies now mandate automatic shutoff for high-value homes or those in flood-prone areas.

Many water utility companies encourage (and occasionally subsidize) installation of smart meters and leak detection systems to reduce non-revenue water loss from pipe breaks and indoor leaks.
