Overview

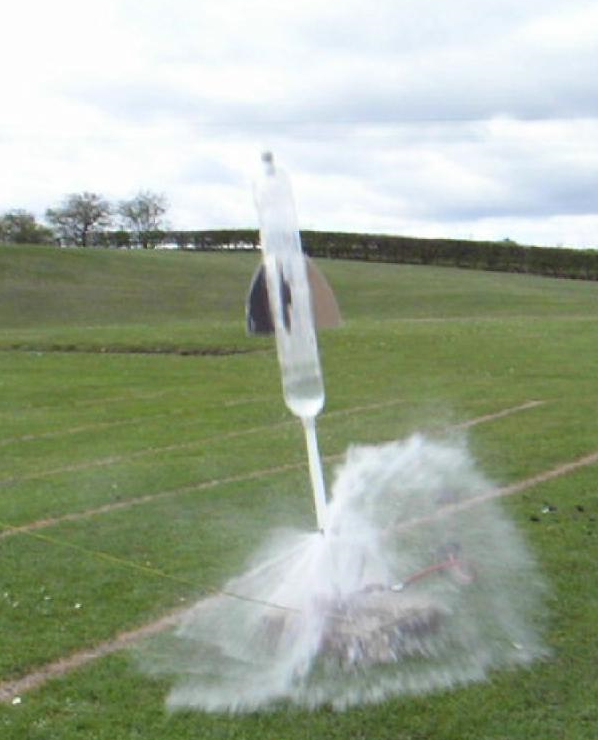

The water-rocket-launcher is a pneumatic launch system for compressed-air-powered water rockets. Standard 2-liter beverage bottles serve as rocket bodies and propellant containers. The [[water-rocket-launcher-base|launch base]] is a tripod that positions a [[water-rocket-launcher-launch-tube|launch tube]] at adjustable angles. A [[water-rocket-launcher-pump|hand-operated pump]] generates air pressure (0–100 PSI), which is fed through a [[water-rocket-launcher-pump-hose|hose]] to a [[water-rocket-launcher-nozzle|nozzle adapter]] that couples the pump air supply to the rocket bottle nozzle. A [[water-rocket-launcher-release|solenoid-driven release clamp]] holds the rocket in place on the [[water-rocket-launcher-launch-rod|launch rod]] until triggered. When released, the pressurized air inside the rocket forces water out the nozzle at high velocity, propelling the rocket upward. The system is mechanical and requires no electronics beyond the release solenoid and optional countdown timer.

How it works

The rocket is prepared by filling it 1/3 to 1/2 with water, sealing the nozzle, and placing it on the [[water-rocket-launcher-launch-tube|launch tube]]. The pump operator pushes down on the [[water-rocket-launcher-pump-handle|pump handle]], driving the [[water-rocket-launcher-pump-piston|piston]] into the [[water-rocket-launcher-pump-cylinder|cylinder]]. This compresses air, which passes through the pump's one-way check valve and flows into the [[water-rocket-launcher-nozzle|nozzle adapter]]. The nozzle couples the high-pressure air to the rocket bottle interior. The rocket sits clamped on the [[water-rocket-launcher-launch-tube|launch tube]], held by the [[water-rocket-launcher-release|spring-loaded clamp]]. As the operator makes successive pump strokes, pressure inside the rocket increases. The [[water-rocket-launcher-pump-gauge|pressure gauge]] displays current pressure.

When the desired pressure is reached (typically 60–80 PSI for optimal range), the operator presses the [[water-rocket-launcher-release-button|launch button]]. This triggers a [[water-rocket-launcher-release-solenoid|solenoid coil]], which retracts the clamp latch, allowing the [[coil-spring|clamp springs]] to push the [[water-rocket-launcher-release-arm|clamp arms]] open. The rocket is no longer held on the [[water-rocket-launcher-launch-rod|launch rod]] and accelerates upward as the internal air pressure expels water downward (Newton's third law). The rocket typically reaches peak altitude in 3–5 seconds.

The [[water-rocket-launcher-nozzle-valve|ball valve]] in the [[water-rocket-launcher-nozzle|nozzle]] isolates the pump from the rocket during pressurization; once released, the rocket nozzle pulls away from the launcher, breaking the air seal and venting the valve automatically.

Pressure-altitude relationship

Water rocket altitude is highly dependent on launch pressure and water fill ratio. At 60 PSI with 30% water fill, a typical 2L bottle reaches 60–80 meters (200–260 feet). At 80 PSI with 40% fill, altitude increases to 100+ meters. Over-pressurization (>100 PSI) does not increase altitude significantly and risks bottle rupture. The [[water-rocket-launcher-pressure-reg|pressure regulator]] caps pump output at 100 PSI, protecting against over-pressurization.

The optimal water mass is 40–50% of bottle volume; less water provides less thrust; more water leaves less air volume and reduces expansion. Experienced launchers fine-tune both pressure and fill ratio experimentally.

Launch mechanics

The [[water-rocket-launcher-launch-rod|launch rod]] guides the rocket for the first 50–100 mm of travel, providing directional stability during initial acceleration. Once the rocket clears the rod tip, aerodynamic drag and gravity govern trajectory. The [[water-rocket-launcher-angle-clamp|angle clamp]] allows launch angles from 0° (horizontal, minimum altitude; maximum range) to 90° (vertical, maximum altitude). 45° typically yields maximum range in ideal conditions.

Safety and regulation

The [[water-rocket-launcher-pressure-reg|adjustable relief valve]] is set to 100 PSI maximum. If the operator over-pumps, excess pressure vents automatically, preventing bottle rupture. The [[water-rocket-launcher-safety|safety control system]] isolates the release solenoid circuit from pump pressure, ensuring no unintended launches. The [[water-rocket-launcher-countdown-timer|countdown timer]] (optional) displays seconds before launch, creating dramatic tension and giving observers time to clear the landing zone.

Water rockets have killed recreational users who stood directly beneath launches without eye protection or were struck by falling rockets. Modern launchers mandate a 20-meter clearance and recommend padded recovery nets or open-field launching.

Rocket design and recovery

Standard plastic 2-liter bottles are the most common rocket airframes. Some designs add cardboard nose cones, aluminum foil fins, and parachute recovery systems. More advanced rockets incorporate dual chambers (one for water ballast, one for separation), active gimbal-mounted canards for flight control, or active parachute ejection systems. Educational programs use water rockets to teach fluid dynamics, momentum, and aerodynamics.

Operational procedure

1. Fill rocket 30–50% with water, seal nozzle.
2. Place on [[water-rocket-launcher-launch-tube|launch tube]], secure with [[water-rocket-launcher-release|clamp]].
3. Adjust [[water-rocket-launcher-angle-clamp|launch angle]] (typically 45° for range, 90° for altitude).
4. Pump air into rocket using [[water-rocket-launcher-pump|pump handle]], checking [[water-rocket-launcher-pump-gauge|pressure gauge]] frequently.
5. Stop pumping at desired pressure (60–80 PSI typical).
6. Clear launch area; announce countdown.
7. Press [[water-rocket-launcher-release-button|launch button]].
8. Rocket launches; observe flight and recovery.
9. Pressurize [[water-rocket-launcher-nozzle-valve|isolation valve]], disconnect pump hose, recover rocket.

Variants and DIY alternatives

Commercial launchers (like this one) feature automatic release solenoids and pressure regulation. DIY enthusiasts build simpler versions using:

• Manual string-pull releases (retracting clamp pin by hand).
• No pressure regulation, relying on over-pressure rupture (unsafe).
• PVC pipe instead of aluminum tubing.

Most organized water rocket clubs mandate commercial or well-engineered launchers with failsafe pressure limits and proper clearance protocols. The physics and engineering appeal to students, hobbyists, and STEM educators worldwide.
