Wheel Truing Stand

Product

Overview

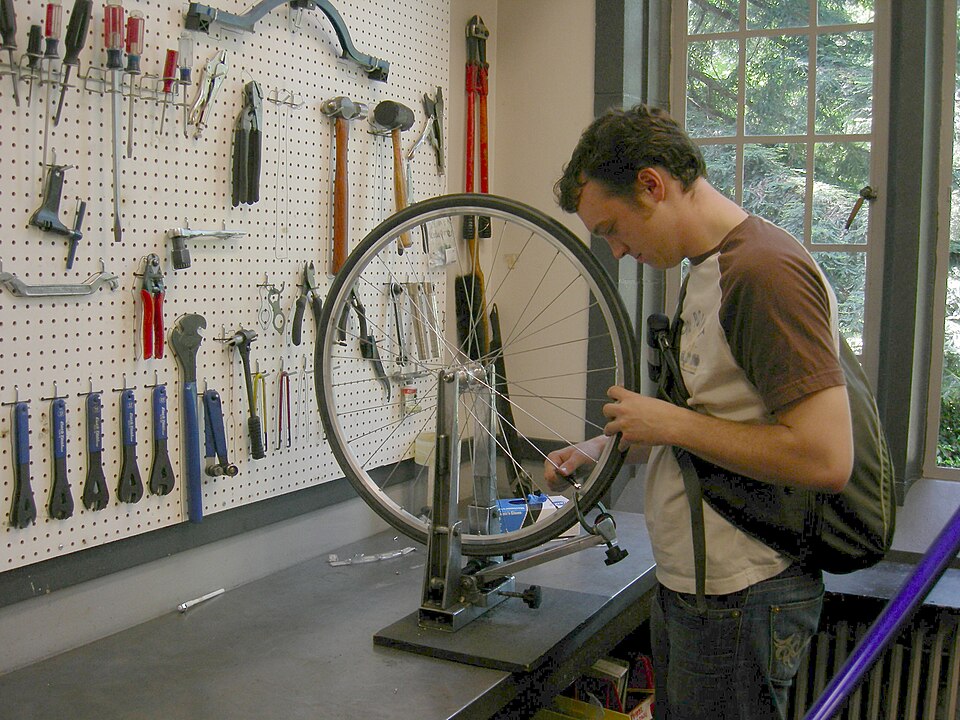

A wheel truing stand is a precision measurement instrument for bicycle wheel diagnosis and repair. The heavy cast-iron base and vertical support column provide a rigid platform anchoring a precision ball-bearing spindle. A bicycle wheel axle is clamped onto the spindle, allowing the wheel to spin freely with minimal runout (wobble).

Two or three mechanical dial gauges mounted on adjustable sliding arms measure the wheel's deviations as it rotates. The lateral gauge detects left-right sway (wobble); the radial gauge detects up-down hop. An optional centering gauge measures the axle's concentricity.

The stand is the diagnostic tool; once deviations are identified, the mechanic removes the wheel and uses spoke wrenches or nipple drivers to adjust individual spoke tensions, gradually correcting the rim position. The stand then re-confirms improvement.

This is an essential tool in any bicycle shop or serious amateur workshop.

How it works

The user places the bicycle wheel onto the spindle, inserting the wheel axle into the spindle's tapered or collet chuck. The axle clamp tightens, securing the wheel concentrically (assuming the hub and axle are sound). The wheel is now stationary but free to rotate; any lateral or radial offset will become apparent as the wheel spins.

The mechanic manually spins the wheel, observing the lateral dial indicator. As the wheel rotates, if the rim is wavering left-to-right, the gauge needle oscillates, showing the magnitude of sideways runout. Similarly, spinning the wheel while observing the radial gauge reveals any up-and-down hop (a high or low spot on the rim).

The spindle itself has very low runout (±0.01 mm or better), so deviations detected by the gauges are genuine wheel faults, not artifacts of the stand.

Typical measurements quantify runout in millimetres:

  • Lateral runout: 0–5 mm (target: <1 mm for road bikes, <2 mm for casual bikes)
  • Radial runout: 0–5 mm (target: <1 mm)

Once measured, the mechanic places the wheel in a work stand (different from the truing stand) and adjusts spoke tensions to correct the runout. This is iterative: the mechanic identifies which spokes need tightening or loosening (based on the deviation location), makes adjustments, then re-checks the wheel on the truing stand to confirm improvement.

The heavy cast-iron base is critical; it provides thermal mass that absorbs vibration, and its weight ensures the stand remains stable during measurement. Lighter aluminum versions exist but are less common in professional shops, as they are more prone to vibration-induced measurement noise.

The precision ball bearings supporting the spindle allow smooth, low-friction rotation. Typical spindles use 7000-series (angular contact) or 6000-series (deep-groove) bearings, preloaded to eliminate axial play. This preload is critical; without it, the wheel would rock side-to-side, producing false gauge readings.

Measurement technique

The mechanic spins the wheel slowly by hand while observing the lateral gauge. A deviation pattern emerges: the needle swings left and right as high and low spots on the rim pass the gauge stem. The mechanic notes the magnitude (e.g., "3 mm lateral runout") and the location on the wheel where the maximum deviation occurs (e.g., "the rim is furthest left at the 7 o'clock position").

Based on this, the mechanic knows which spokes to adjust:

  • If the rim is to the left at a given point, spokes at that location are too loose; they need tightening.
  • If the rim is to the right, spokes are too tight; they need loosening.

Spoke tension is adjusted by turning the spoke nipple (a small threaded nut at the rim) with a spoke wrench. Tightening the nipple increases tension on that spoke, pulling the rim towards its anchor point. Loosening reduces tension.

The process is iterative: small adjustments are made, the wheel is re-checked on the truing stand, and corrections are refined until the runout is acceptable.

Variants and measurement options

Professional shop stands often include electronic dial indicators (with digital readout) instead of mechanical gauges, speeding up measurement and reducing reading errors. Some stands also feature a centering gauge, which measures whether the wheel axle is truly coaxial with the spindle. This reveals hub problems (bent axle, worn bearings) that spoke tension cannot fix.

Portable versions for home mechanics or touring cyclists exist, using simpler designs (fewer bearings, less rigid bases) and smaller gauge ranges. These trade precision for portability.

Some advanced shops use automated wheel-building systems that combine truing stands with motorized spoke tensioners, allowing hands-free spoke adjustment and faster build times.

Maintenance and care

The precision bearings require occasional maintenance:

  • They must be kept clean and free of grit (which accelerates wear).
  • Preload should be checked periodically (the spindle should rotate freely with no side play).
  • Bearings should be lightly oiled or greased; excessive lubrication attracts dust.

The dial gauges are delicate instruments; they should not be subjected to sharp impacts. Gauge needles can stick if the gauge is laid on its side; they should be stored and used upright.

The cast-iron base can rust if exposed to moisture. A light coat of machine oil or wax, periodically refreshed, prevents oxidation and corrosion.

Wheel Truing Stand parts and their functions

6 top-level parts · 41 parts in total · full bill of materials below
Wheel Truing Stand parts diagram: 1 base platform, 2 vertical support post, 3 spindle & wheel mount, 4 calliper arm system, 5 dial gauge (indicator) set, 6 centering gauge (optional). 41 parts in 6 top-level items.
Wheel Truing Stand parts diagram. Numbers match the table below; each box is one top-level part or assembly with what it contains.
#PartQtyWhat it does
1 Base Platform 3 parts 1× Cast-iron or ductile base platform
2 Vertical Support Post 3 parts 1× Vertical support column
3 Spindle & Wheel Mount 5 parts 1× Axle mounting and rotation assembly
4 Calliper Arm System 5 parts 1× Adjustable calliper mounts
5 Dial Gauge (Indicator) Set 5 parts 2× Lateral and radial runout indicators
6 Centering Gauge (Optional) 3 parts 1× Optional axle-to-rim reference

3D model

No 3D model yet. Have a CAD file of this? Add a 3D model. STL renders right on this page; STEP, FreeCAD, and OpenSCAD sources are welcome too (openly licensed, like all 3D models on BOMwiki).

Build & assembly graph

expand / collapse · shared sub-assemblies converge · links to related products · est. labour
product / assembly shared across products atomic part related product

Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.

Bill of materials for Wheel Truing Stand

6 top-level lines · 30 rows shown · 41 parts total · indented to 3 levels
# Item / sub-assembly Part no. Qty/assy Ext. qty Parts Type
1 Base Platform 3 parts wheel-truing-stand-base 1× 1 5 assembly
1.1 Base Casting wheel-truing-stand-base-casting 1× 1 · part
1.2 Levelling Feet wheel-truing-stand-levelling-feet 3× 3 · part
1.3 Anti-Vibration Pad wheel-truing-stand-anti-vibration-pad 1× 1 · part
2 Vertical Support Post 3 parts wheel-truing-stand-post 1× 1 3 assembly
2.1 Post Casting wheel-truing-stand-post-casting 1× 1 · part
2.2 Post Clamp wheel-truing-stand-post-clamp 1× 1 · part
2.3 Arm Mounting Slot wheel-truing-stand-arm-mounting-slot 1× 1 · part
3 Spindle & Wheel Mount 5 parts wheel-truing-stand-spindle 1× 1 7 assembly
3.1 Spindle Shaft wheel-truing-stand-spindle-shaft 1× 1 · part
3.2 Spindle Bearing wheel-truing-stand-spindle-bearing 2× 2 · part
3.3 Bearing Cup wheel-truing-stand-bearing-cup 2× 2 · part
3.4 Axle Clamp wheel-truing-stand-axle-clamp 1× 1 · part
3.5 Runout Reference Collar wheel-truing-stand-axle-runout-collar 1× 1 · part
4 Calliper Arm System 5 parts wheel-truing-stand-indicator-arms 1× 1 7 assembly
4.1 Lateral Runout Arm wheel-truing-stand-lateral-arm 1× 1 · part
4.2 Radial Runout Arm wheel-truing-stand-radial-arm 1× 1 · part
4.3 Arm Position Clamp wheel-truing-stand-arm-clamp 2× 2 · part
4.4 Arm Slide Guide wheel-truing-stand-arm-slide 1× 1 · part
4.5 Gauge Mount Base wheel-truing-stand-gauge-base 2× 2 · part
5 Dial Gauge (Indicator) Set 5 parts wheel-truing-stand-dial-gauges 2× 2 8 assembly
5.1 Lateral Gauge wheel-truing-stand-lateral-gauge 1× 2 · part
5.2 Radial Gauge wheel-truing-stand-radial-gauge 1× 2 · part
5.3 Gauge Needle wheel-truing-stand-gauge-needle 2× 4 · part
5.4 Gauge Dial Face wheel-truing-stand-gauge-face 2× 4 · part
5.5 Gauge Stem & Spring wheel-truing-stand-gauge-stem 2× 4 · part
6 Centering Gauge (Optional) 3 parts wheel-truing-stand-centering-gauge 1× 1 3 assembly
6.1 Centering Measurement Arm wheel-truing-stand-centering-arm 1× 1 · part
6.2 Centering Gauge wheel-truing-stand-centering-gauge-unit 1× 1 · part
6.3 Centering Contact Point wheel-truing-stand-centering-contact 1× 1 · part
