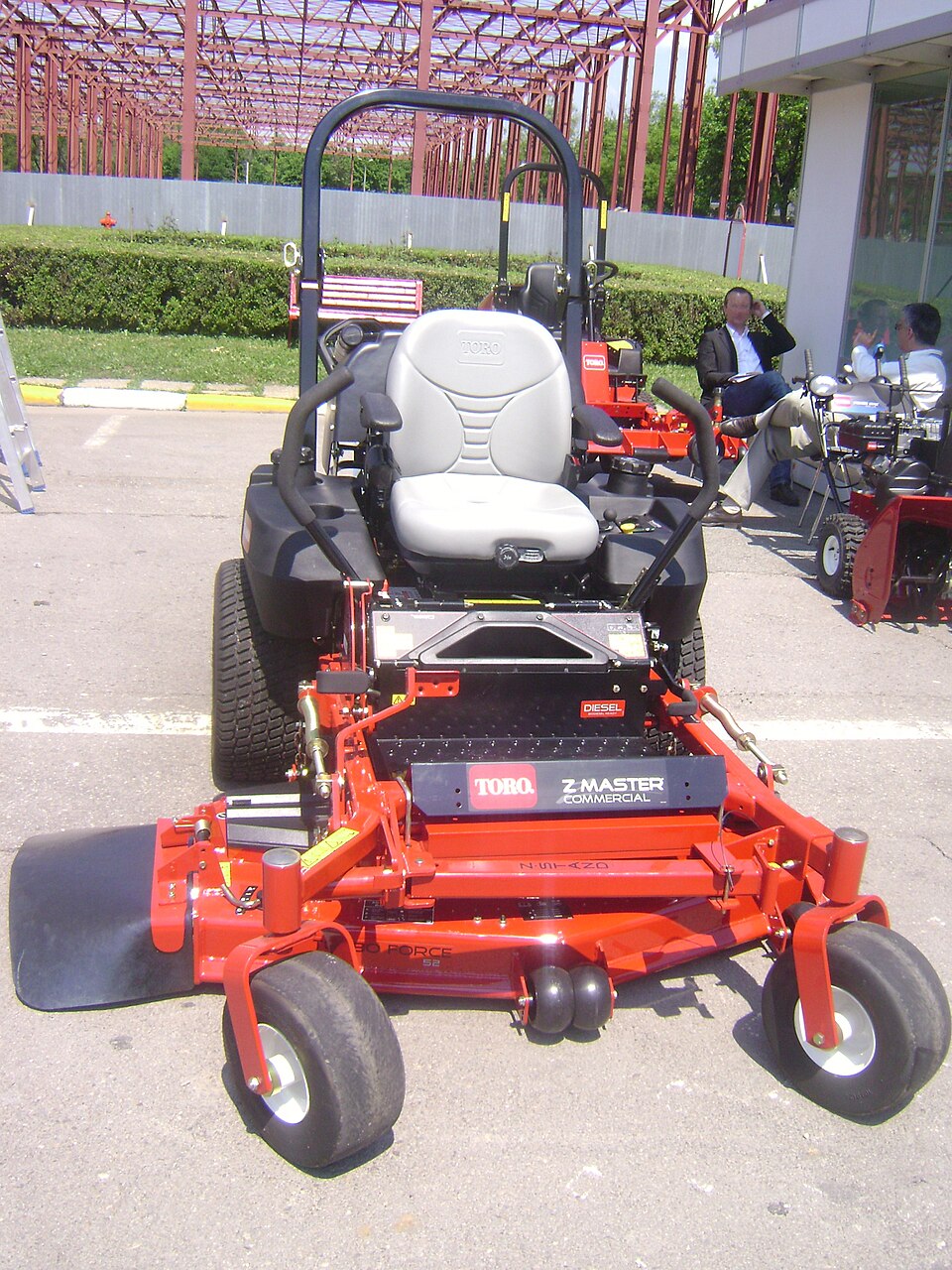

A zero-turn mower is a riding mower with no steering wheel and no steered axle. Each rear wheel is driven by its own Hydrostatic Transaxle, and the operator commands wheel speed directly with the Lap Bar Controls. Because the two wheels can turn at different speeds — or in opposite directions — the machine can rotate about a point between its drive wheels, giving the "zero turning radius" the category is named for. The front of the machine rides on free-swivelling casters in the Wheels & Casters assembly that simply follow whatever path the rear wheels dictate.

The layout puts the V-Twin Engine behind the seat, the Mower Deck under the operator between the axles, and the fuel in two saddle tanks of the Fuel System straddling the frame. This mid-mount arrangement keeps the centre of gravity low and lets the operator place the deck edge precisely against obstacles, which is the machine's main economic advantage: trimming passes that a lawn tractor would need a string trimmer to finish are done in the same pass.

How it works

The engine's vertical Vertical Crankshaft carries two pulleys. The upper pulley drives a belt looped around the input pulleys of both transaxles; the lower one drives the deck belt through the Electric PTO Clutch, an electromagnetic clutch-brake that engages the blades when energised and brings them to rest within five seconds when released, as required by ANSI/OPEI B71.1.

Inside each transaxle, a Axial Piston Pump runs continuously at input speed. Its swash plate is tilted by the Control Linkage from the lap bar: tilted one way it pumps oil to the Hydraulic Wheel Motor in the forward direction, tilted the other way the flow reverses, and at the centre position no flow passes and the wheel holds still. Output torque reaches the axle through a Helical Gear Pair reduction inside the Gearbox Housing. A Bypass Valve on each unit shorts pump to motor so the mower can be pushed by hand with the engine off.

Steering is therefore pure differential drive. Both bars forward by equal amounts gives straight travel; unequal amounts steer; one forward and one back spins the machine in place. Steering Dampers on each lever and return-to-neutral Coil Springs keep inputs smooth, because the hydrostatic response is fast enough that abrupt lever movement would tear turf or lift a caster.

Cutting deck

The Mower Deck is a welded 10-gauge steel shell carrying three Blade Spindle assemblies on a single serpentine belt tensioned by two spring-loaded Idler Pulleys. Each spindle turns a 46 cm high-lift Cutting Blade at roughly 2,800 rpm, holding blade tip speed near the 5,500 m/min that gives a clean shear cut without exceeding the regulatory tip-speed ceiling. Upswept blade tips act as fan vanes, creating suction that stands grass up before the cutting edge arrives and then propels clippings out the side discharge.

Cutting height is set from the seat by the Deck Lift Linkage: a foot pedal lifts the deck off its stops and a pin selects one of thirteen positions between 38 and 114 mm. Four Anti-Scalp Wheels on the deck perimeter ride over crowns and ridges so the blades do not dig into soil on uneven ground.

Operator station and safety interlocks

The operator sits on a suspension Seat Assembly mounted to the Frame Weldment, protected by a folding ROPS Bar and seat belt. Rollover is the dominant fatal accident mode for ride-on mowers, particularly on slopes above 15°, which is why ROPS structures became standard equipment on zero-turns during the 2000s.

The Interlock Module enforces the starting and running logic. The engine will only crank when both lap bars are swung outboard to their parked position (closing each Neutral Safety Switch) and the PTO is off. Once running, leaving the seat with the blades engaged or the bars out of neutral kills the ignition. The same module sequences the Relays for the Starter Motor and PTO clutch, fed from a 12 V 12 V Battery charged by the flywheel alternator under the Flywheel.

Fuel and engine systems

The Fuel System uses two 14 L rotomoulded tanks joined by a selector valve, with a crankcase-pulse Fuel Pump lifting fuel through an inline Fuel Filter. The engine itself is a conventional overhead-valve V-twin: aluminium Engine Block with cast-iron liners, two Cylinder Heads, and a finned flywheel that doubles as the cooling fan, drawing air through the cyclonic Air Filter Assembly. Grass dust is the dominant wear input, so the dual-element filter and frequent oil changes (typically every 50 hours, tracked against the machine's hour meter) govern engine life, which is commonly 1,500–3,000 hours for residential and commercial units respectively.

Performance

With a 132 cm deck at 13 km/h, theoretical coverage is about 1.7 ha/h; real figures run 70–85% of that after overlap and turns. Against a comparable lawn tractor the zero-turn's advantage is almost entirely manoeuvring time: on a lawn with trees and beds, total mowing time typically falls by 30–45%. The trade-offs are poor slope behaviour (drive wheels unload and casters cannot steer on descents) and a higher purchase price driven by the two hydrostatic transaxles.
