Acoustic Guitar Product

Overview

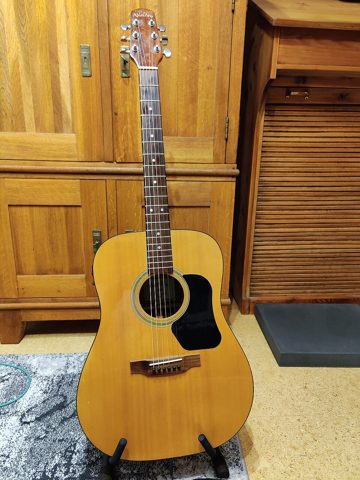

An acoustic guitar is a fretted, six-string chordophone that produces sound without electronic amplification. The player plucks or strums steel strings, and the energy of the vibrating strings is transferred through the bridge into a hollow wooden box, which radiates the sound into the air. The pitch of each string is set by its length, mass and tension; fretting a string against the fingerboard shortens its vibrating length to raise the pitch. The dreadnought described here is a large-bodied flat-top guitar tuned to standard pitch, built from solid tonewoods and braced to balance volume against structural strength.

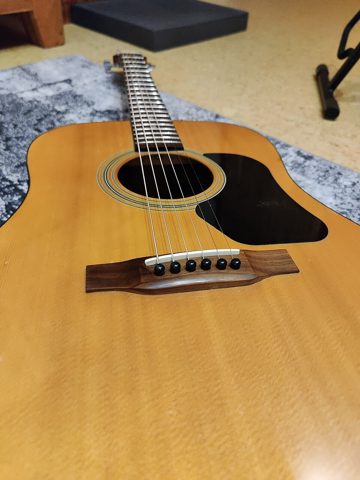

The sound originates at the String Set, six phosphor-bronze strings anchored at the bridge and tensioned across the body. String vibration is coupled into the Body Assembly, whose thin Sitka spruce Spruce Soundboard acts as the main radiating surface. The soundboard's stiffness and resonance are tuned by the internal Top Bracing, a scalloped X-pattern of spruce struts that controls how the top flexes. Rosewood back and sides form the rest of the resonating chamber, and the round sound hole lets the enclosed air mass contribute a Helmholtz resonance that reinforces the low end.

Construction

The instrument is built as two major sub-assemblies that meet at a glued joint. The Body Assembly is assembled first: the spruce top and rosewood back are bound to bent sides, with the Top Bracing glued under the top and kerfed linings reinforcing the seams. The Neck Assembly carries the ebony fretboard, the seated fret wire, the bone nut and an internal truss rod that counters string tension. Neck and body are joined with a dovetail, and the Headstock Assembly holds six geared tuning machines that set string tension. Strings run from the machines over the nut and saddle and anchor at the bridge, completing the vibrating length that defines the guitar's voice. ', },

'digital-piano': { specs: [ ['Type', 'Digital piano with sampled sound engine'], ['Keys', '88, full-size'], ['Action', 'Graded hammer action, weighted'], ['Touch sensitivity', 'Velocity-sensitive, multiple curves'], ['Polyphony', '256 notes'], ['Voices', '20+ instrument tones'], ['Sound source', 'Multi-velocity sampled grand piano'], ['Speakers', '2-way stereo, bass-reflex enclosure'], ['Amplifier', 'Class-D, stereo'], ['Pedals', '3 (sustain, soft, sostenuto)'], ['Connectivity', 'MIDI, USB, headphone, line out'], ['Display', 'Backlit LCD'], ['Power', 'Internal AC/DC supply'], ], body: '

Overview

A digital piano reproduces the sound and feel of an acoustic piano using recorded samples and electronic synthesis rather than struck strings. When a key is pressed, a sensor measures how fast it travels and the instrument plays back a stored recording of a real piano note at the matching loudness. A weighted action gives the keys the graded resistance of a hammered piano, so the playing technique transfers, while the sound is generated entirely in the digital domain and reproduced through built-in amplified speakers or headphones.

Sound begins at the Graded Hammer Action, an 88-key graded hammer mechanism whose weighted hammers and return springs mimic acoustic key feel. Each keystroke is read by the Key Scan Board, which scans rubber dome contacts to capture note and velocity. That data passes to the Sound Engine Board, where a DSP tone generator retrieves waveforms from the sample ROM and converts them to analog audio through the DAC. The Amplifier & Speaker Unit amplifies the signal and drives a stereo speaker pair in a ported enclosure.

How it works

The instrument is organized around its electronic signal chain housed in the Cabinet & Chassis. The player interacts through the Control Panel, selecting voices and settings via buttons, a rotary encoder and an LCD. The Pedal Unit provides three pedals whose switches feed the sound engine to sustain, soften or selectively hold notes. The Sound Engine Board is the heart of the system: it holds the controller, DSP, sample ROM and DAC, and routes audio to the amplifier and to the headphone and line jacks on the Jack Panel. MIDI and USB on that panel let the keyboard act as a controller for, or be driven by, external gear, so the same key action can play either internal or external sounds. ', },

'violin': { specs: [ ['Type', 'Acoustic bowed string instrument'], ['Size', '4/4 (full size)'], ['Body length', '14 in (356 mm)'], ['String length', '13 in (330 mm)'], ['Strings', '4 (G3, D4, A4, E5)'], ['Tuning', 'Perfect fifths'], ['Top wood', 'Spruce'], ['Back, sides & neck', 'Maple'], ['Fingerboard', 'Ebony'], ['Fittings', 'Ebony pegs and tailpiece'], ['Bridge', 'Maple, carved'], ['Bow', 'Pernambuco stick, horsehair'], ['Finish', 'Oil or spirit varnish'], ], body: '

Overview

The violin is a bowed string instrument and the highest-pitched member of the modern string family. Four strings are tuned in perfect fifths and set into vibration by drawing a rosined horsehair bow across them, or by plucking. The player stops the strings against an unfretted fingerboard to choose pitches, and tone is shaped continuously by bow speed, pressure and contact point. The strings themselves move little air; the bridge transmits their vibration into a carved wooden body that resonates and radiates the sound.

The bowed energy enters the Bridge, a thin carved maple bridge that stands on the belly and couples string motion into the Body Assembly. The spruce Spruce Top is the primary soundboard; beneath it a bass bar distributes low-frequency energy along the grain, while a small Sound Post wedged between top and back transfers vibration to the maple back and sets the instrument's acoustic balance. Two carved f-holes vent the enclosed air and let the body breathe, reinforcing the lower register.

Construction

The body is built from carved plates: a spruce top and maple back joined to bent maple ribs with corner and end blocks and inlaid purfling, then sealed with varnish. The carved-maple Neck Assembly carries an ebony fingerboard and the nut, and seats into the body without a heel cap. Four ebony Ebony Tuning Pegs in the pegbox set coarse tuning, while the Tailpiece Assembly anchors the string ends and carries fine tuners for precise adjustment. The instrument is played with a separate Bow Assembly: a tapered pernambuco stick strung with horsehair and tensioned by the frog screw, the hair gripping the strings only once coated with rosin. ', },

'drum-kit': { specs: [ ['Type', 'Acoustic drum set'], ['Configuration', '5-piece'], ['Bass drum', '22 × 18 in'], ['Snare drum', '14 × 5.5 in'], ['Rack toms', '12 in and 10 in'], ['Floor tom', '16 in'], ['Shell material', 'Maple/birch plywood'], ['Heads', 'Mylar (PET film), batter + resonant'], ['Cymbals', 'Hi-hats, crash, ride (bronze)'], ['Bass pedal', 'Chain-drive, single'], ['Hardware', 'Double-braced tripod stands'], ['Tuning', 'Tension-rod lugs, drum key'], ], body: '

Overview

A drum kit is a collection of percussion instruments arranged so a single seated player can strike them with sticks and foot pedals. Each drum is a membrane stretched over a hollow shell: striking the head sets it vibrating, the air column and shell shape the resonance, and the tuned heads determine pitch and sustain. Cymbals are thin bronze plates that ring when struck. The five-piece kit described here pairs four tuned drums with a set of cymbals and the stands and pedals that position and play them.

The low end comes from the Bass Drum, a large drum struck by a foot beater, while the Snare Drum produces its sharp crack from Snare Wires rattling against the bottom head. Pitched fills are played on the Rack Tom pair and the deeper Floor Tom. Each drum's pitch is set by tensioning the heads evenly with tension rods at the lugs, adjusted with a drum key. The Cymbal Set adds hi-hats, a crash and a ride for accents, time-keeping and color.

How it's played

The drums and cymbals are held in playing position by hardware. The Hi-Hat Stand uses a foot-operated pull rod to clap two cymbals together, while Cymbal Stand tripods and the Snare Stand hold the crash, ride and snare at reach. The Bass Drum Pedal is a chain-drive mechanism that swings a beater into the bass drum head and returns it with a spring, letting the player sound the lowest drum with one foot. The drummer sits on the height-adjustable Drum Throne at the center of the kit, within reach of every surface, so hands and feet can play independent rhythmic parts at once. ', },

'trumpet': { specs: [ ['Type', 'Brass valved aerophone'], ['Pitch / key', 'B♭'], ['Bore', '0.459 in (11.66 mm), medium-large'], ['Bell diameter', '4.8 in (123 mm)'], ['Bell material', 'Yellow brass'], ['Valves', '3 piston valves'], ['Tubing length', '~4.9 ft (1.48 m) sounding'], ['Leadpipe', 'Tapered, reverse or standard'], ['Mouthpiece', 'Removable cup, 7C-class'], ['Slides', 'Main tuning slide + 3 valve slides'], ['Water keys', '2 (1st and 3rd slides)'], ['Finish', 'Clear lacquer'], ], body: '

Overview

The trumpet is a brass instrument that produces sound from the player's vibrating lips coupled to a column of air inside a length of tubing. Pressing the lips against the mouthpiece and buzzing sets the air column resonating; the player selects between natural harmonics of that column by varying lip tension and air speed. Three piston valves fill the gaps between harmonics by adding short lengths of tubing, lowering the pitch and giving the instrument its full chromatic range. The B♭ trumpet described here is the standard model in bands and orchestras.

Air enters through the Mouthpiece, a removable cup that focuses the lip buzz, and passes into the Leadpipe Assembly, a tapered tube whose flare shapes intonation and resistance. From there it reaches the Valve Block, the mechanical heart of the instrument: three spring returned piston valves that reroute air through extra tubing when depressed. The air finally flares out through the Bell Assembly, whose expanding profile radiates the sound and sets its bright, projecting timbre.

How it works

Tuning and chromatic completeness come from the slides. The Main Tuning Slide is a U-shaped telescoping crook that sets the overall pitch of the instrument. The Valve Slide Set provides the first, second and third valve slides whose lengths are calibrated so that combinations of the three valves produce all twelve semitones; the first and third slides carry rings and saddles the player nudges to correct the intonation of certain notes. Condensation from the warm breath collects in the slides and is drained through the spring-loaded Water Key spit valves. Stay braces tie the tubing into a rigid frame, and a clear lacquer protects the brass. ', },

'synthesizer': { specs: [ ['Type', 'Keyboard synthesizer (analog/digital hybrid)'], ['Keys', '61, synth-action'], ['Touch', 'Velocity-sensitive'], ['Polyphony', '8 voices'], ['Voice architecture', 'VCO → VCF → VCA per voice'], ['Oscillators', '2 analog VCOs per voice'], ['Filter', 'Resonant analog low-pass (VCF)'], ['Modulation', 'LFOs and envelope generators'], ['Controllers', 'Pitch and modulation wheels'], ['Display', 'Backlit LCD'], ['I/O', 'MIDI, USB, CV/gate, stereo line out'], ['Power', 'Internal switching supply'], ], body: '

Overview

A synthesizer is an electronic instrument that generates sound from scratch rather than amplifying a vibrating string or membrane. Voltage-controlled circuits create waveforms, shape their harmonic content with filters, and control their loudness over time, all steered by the keyboard and panel controls. The hybrid design described here pairs analog signal-path circuitry, prized for its character, with digital control and modulation, giving eight voices of subtractive synthesis playable from a 61-key keyboard.

Each note is built by a voice on the Voice Board Assembly, which follows the classic subtractive chain: analog VCO chips generate raw oscillator waveforms, VCF chips filter them to sculpt timbre, and VCA chips set the amplitude envelope. A DSP system-on-chip handles modulation and digital effects, and DACs render the result to analog audio. The keys themselves live in the Keyboard Assembly, where conductive rubber contacts under each key are read by a scan board that reports which notes are held and how hard, driving the voice engine.

How it works

The player shapes the sound through the Control Panel Assembly, a dense array of knobs, faders, buttons and a panel controller that map directly to synthesis parameters such as filter cutoff, resonance and envelope times. Mounted alongside are the Pitch Wheel and Modulation Wheel for expressive bends and vibrato. Patches and the current state are shown on the Display Assembly. Audio leaves through the Audio Output Board, which provides line outputs, a headphone amp and MIDI, USB and CV/gate jacks, so the synthesizer can be sequenced by a computer or wired to other analog gear. All of this is housed in the Chassis Assembly, a metal-and-wood enclosure with end cheeks that carries the boards, keybed and panel. ', },

'dj-controller': { specs: [ ['Type', 'USB DJ controller with audio interface'], ['Decks', '2 (4-deck capable in software)'], ['Jog wheels', '2, weighted, capacitive touch'], ['Audio interface', 'Built-in 24-bit / 44.1–48 kHz'], ['Mixer', '2-channel with replaceable crossfader'], ['Performance pads', '16 (8 per deck), velocity, RGB'], ['Channel EQ', '3-band + filter per channel'], ['Outputs', 'Master (RCA + XLR), booth, headphone'], ['Inputs', 'Microphone'], ['Connectivity', 'USB-MIDI / USB audio'], ['Display', 'Central status LCD + jog displays'], ['Power', 'External DC adapter'], ], body: '

Overview

A DJ controller is a hardware surface for performing with music software. It does not generate sound from acoustic vibration; instead, its knobs, faders, buttons and wheels send control data to a host computer, while a built-in soundcard converts the software's audio back to analog outputs. The two-deck unit described here combines a tactile control layout with a full audio interface, so a performer can mix, scratch, loop and trigger tracks without touching the computer directly.

Every control is read by the Main Control Board, a microcontroller that scans buttons and encoders and digitizes the analog faders and pots, then streams the result to the host as USB-MIDI. The expressive centerpiece is the Jog Wheel: a weighted platter with a capacitive touch top and a high-resolution encoder that detects nudging and scratching for beat-matching and cueing. The Mixer Section blends the decks with channel faders, a replaceable crossfader and EQ/filter pots, while the Performance Pad Bank banks of RGB-lit silicone pads fire cue points, loops and samples.

How it works

Audio is handled by the onboard Audio Interface Board, a USB soundcard whose codec converts software audio to analog and a microphone input back to digital. Its outputs reach the I/O Panel, which carries RCA and balanced XLR master outs, a booth output, a mic input and headphone jacks, so the performer can hear a cue mix while the house hears the program. The Deck Control Cluster provide transport, browse and tempo controls per deck, and a central Status Display shows deck and library status. The whole layout is mounted on the Chassis & Enclosure, a metal top plate over a plastic base that keeps the surface rigid under heavy hand movement. ', },

'studio-microphone': { specs: [ ['Type', 'Large-diaphragm condenser microphone'], ['Address', 'Side-address'], ['Capsule', 'Dual-membrane, gold-sputtered Mylar'], ['Diaphragm', '1 in (25 mm), 6 µm film'], ['Polar patterns', 'Omni, cardioid, figure-8'], ['Frequency response', '20 Hz – 20 kHz'], ['Sensitivity', '−34 dBV/Pa'], ['Max SPL', '136 dB (144 dB with pad)'], ['Pad', '−10 dB switchable'], ['Low-cut filter', 'Switchable high-pass roll-off'], ['Output', 'Balanced 3-pin XLR, transformer-coupled'], ['Powering', '48 V phantom power'], ['Impedance', '200 Ω output'], ], body: '

Overview

A studio condenser microphone converts sound into an electrical signal using a charged capacitor whose capacitance changes as sound waves move one of its plates. A thin conductive diaphragm is mounted close to a fixed backplate to form that capacitor; arriving sound pressure flexes the diaphragm, varying the spacing and producing a tiny voltage that mirrors the waveform. Because the moving mass is so small, condensers capture detail and transient response that make them the standard for recording vocals and acoustic instruments. The large-diaphragm, side-address model described here adds switchable patterns and a transformer-coupled output.

The signal starts at the Condenser Capsule, a dual-membrane assembly of gold-sputtered Mylar diaphragms over a drilled brass backplate held by an insulating ring. The capsule's extremely high source impedance cannot drive a cable directly, so it feeds the Impedance-Converter Board, a head-amplifier board built around a low-noise FET impedance converter and an output transformer that produces the balanced, isolated XLR line. A polarization network supplies the capsule's bias voltage from incoming phantom power.

How it works

Pattern and level control come from the Switch Pack: a pattern switch changes the biasing of the two membranes to select omni, cardioid or figure-8 response, while a combined switch inserts a −10 dB pad for loud sources and a low-cut filter to tame proximity bass. The capsule and board sit inside the Headbasket & Body, whose wire-mesh headbasket screens wind, plosives and RF interference while letting sound reach the diaphragm. For use, the mic is held in the Shock Mount, an elastic suspension cradle that isolates the capsule from stand and floor vibration, and the Pop Filter breaks up plosive air blasts from close vocal work.
