Aerial Ladder Truck Product

Overview

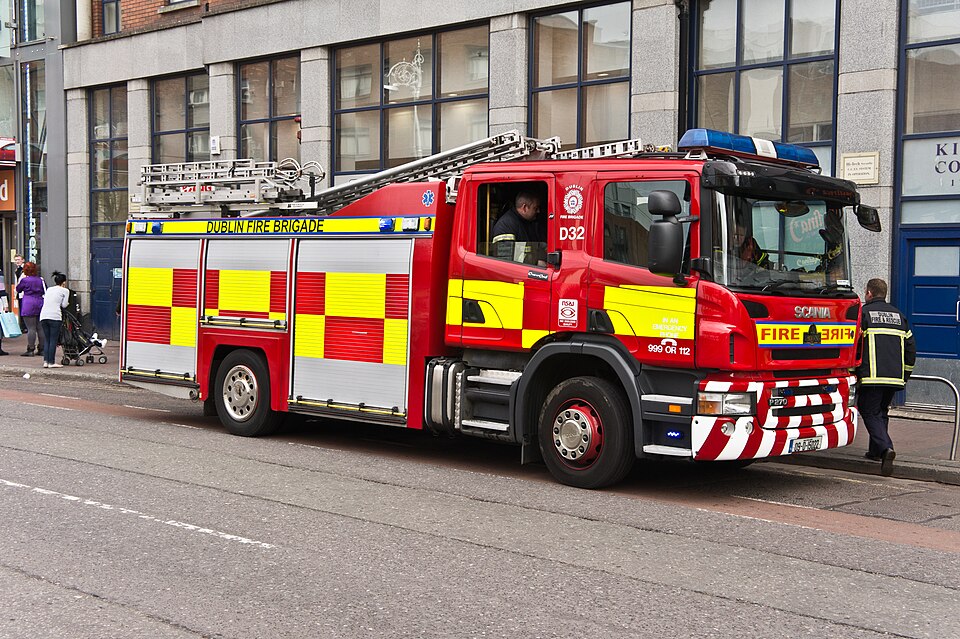

An aerial ladder truck carries a powered telescopic ladder on a rotating turntable, giving firefighters a climbable path to roughly 30 m: upper-floor rescue, roof access for ventilation, and a position for an elevated master stream. Unlike a platform (bucket) apparatus, the ladder itself is the working surface — it can be climbed at any extension and angle, and casualties can be brought down it continuously rather than in platform loads.

The machine is three systems sharing one chassis: a heavy truck that drives to the scene, a crane-like structure that must hold a cantilevered load with people on it, and a water delivery main. The structural problem dominates the design — a 30 m ladder at full horizontal extension with a 250 kg tip load puts an overturning moment on the Truck Chassis that the suspension could never react, which is why nothing moves until the stabilizers are set.

Structure

The Telescopic Ladder Set nests four welded sections: the Base Section pinned to the turntable, two Mid Section stages, and the Fly Section at the tip. A single Extension Cylinder strokes the first stage; Extension Cable wire ropes reeved over sheaves multiply that motion so all sections extend together, riding on dozens of hardened Ladder Roller guides. Rung alignment between sections is maintained at preset extension stops, so climbers get even spacing at any working length.

The Turntable rotates on a large geared Slewing Ring bolted to the chassis torque box. The Slew Drive's hydraulic motor and planetary reduction mesh a pinion with the ring gear for continuous 360° rotation; a Collector Ring passes electrical circuits across the rotating joint, and a rotary water joint on the same axis does the same for the waterway. The operator works from the Pedestal Console on the turntable, with sightlines up the ladder.

Stability comes from the Stabilizer Jacks: four Outrigger Beam arms extend to about a 5.5 m footprint, then Jack Cylinder rams press Ground Pad floats down until the chassis weight transfers off the springs. A Pressure Sensor at each jack confirms ground contact, and cylinder-mounted check valves lock jack position hydraulically if a hose bursts. Interlocks prevent raising the ladder until the jacks are loaded, and short-jacking on one side restricts rotation to the supported side.

Power and control

The Diesel Engine drives the road wheels through the Automatic Transmission; on scene, a power take-off spins the Hydraulic Pump at about 210 bar. The Valve Bank meters flow to the twin Elevation Cylinder rams, the extension cylinder, the slew drive, and the jacks, fed from the Oil Reservoir through the Hose Set.

The operator's Control Joystick commands pass through the Aerial Control System envelope computer rather than directly to the valves. The Control Unit continuously compares ladder angle (from each Inclinometer) and extension (from the Extension Encoder) against the load chart, slowing and then stopping motion at the envelope boundary — allowable tip load falls as the ladder goes long and flat. Dual Microcontroller channels and hardwired Relay cutoffs make the limit function redundant.

Waterway

The Waterway System is a telescoping aluminum main clamped along the ladder: four Waterway Pipe sections sliding through Waterway Seal packs, fed through the base Waterway Valve. At the fly tip, the Tip Monitor aims its Monitor Nozzle — up to 3800 L/min — by Servo Motor articulation, controlled from the pedestal so no one needs to be on the ladder while the master stream flows — the 113 kg flowing tip rating reflects nozzle reaction loads.

Crew and response

The Crew Cab seats four to six in Seat Assembly positions with integrated SCBA brackets, behind the Instrument Panel and under the Warning Lightbar. Typical setup time from parking brake to ladder at a window is under two minutes with a practiced operator: jacks down, turntable swung, ladder raised and extended — each step interlocked against the last.
