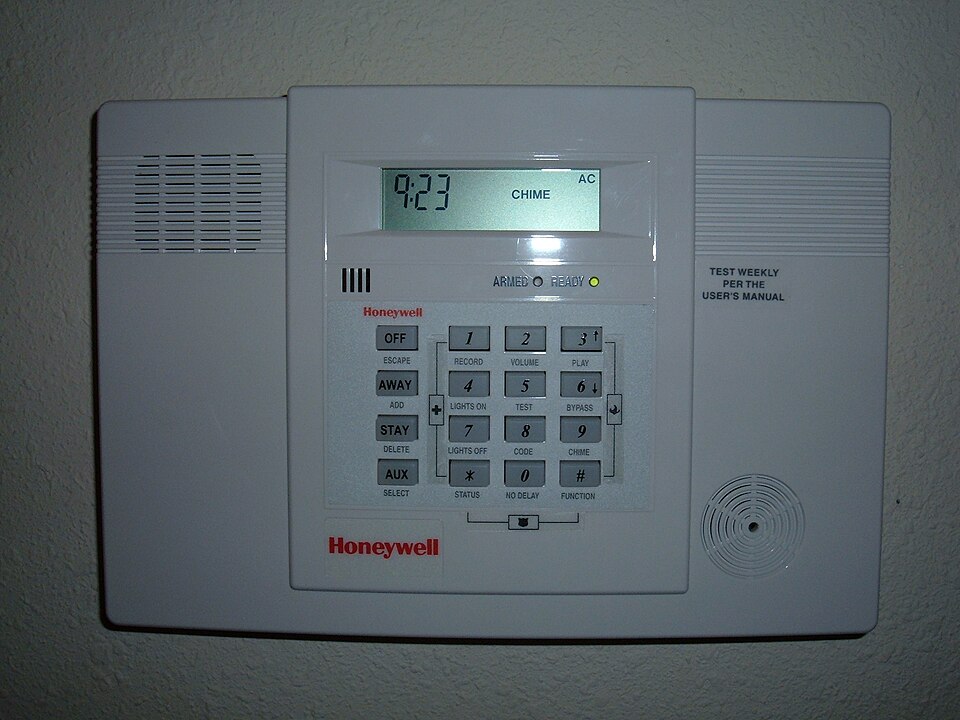

Intrusion Alarm Panel Product

Overview

An intrusion alarm control panel is the central hub of a hardwired security system. It continuously monitors multiple security zones (door/window contacts, [[pir-motion-detector|motion detectors]], [[glass-break-detector|glass-break sensors]]), evaluates alarm conditions, and initiates response protocols (sound siren, notify monitoring station, unlock emergency exits). The panel is installed in a secure, central location (manager office, security room) and is typically backed by 24-hour professional monitoring.

Hardwired alarm systems are found in retail stores, banks, offices, warehouses, and residential properties. The "hardwired" designation means each zone is connected by individual wiring (as opposed to wireless zones), providing reliable, tamper-resistant detection. A hardwired panel is more labor-intensive to install than a wireless system but offers superior reliability and immunity to RF jamming.

How it works

The [[alarm-control-panel-main-processor|main processor board]] is the logical engine. It runs firmware that implements the alarm system's decision logic:

1. Zone supervision: The [[alarm-control-panel-zone-interface|zone interface module]] continuously monitors each zone's wiring for integrity. For each zone, a small supervised current (typically 200 µA at 12 VDC) is sent through the zone terminal blocks and back to the panel. If the wire is cut, shorted, or the sensor is removed, the panel detects the change and generates a trouble signal or tamper alarm.

2. System mode evaluation: The user arms or disarms the system using the [[alarm-control-panel-keypad-input|keypad]]. The panel stores the current system mode (DISARMED, ARMED STAY, ARMED AWAY) and the entry/exit delay timers for each mode.

3. Zone event detection: When a [[pir-motion-detector|PIR detector]] detects motion or a door/window contact switch opens, the zone's relay contact closes. The panel detects this contact closure and evaluates whether an alarm should be generated:

   • If system is DISARMED: No alarm response. The panel may log the zone event for review.
   • If system is ARMED: Evaluate the zone configuration.
     • If zone is PERIMETER (entry point): Start the entry delay timer (30–120 seconds, typically 60). This allows the user to enter their code on the keypad to disarm before the siren sounds. If the user does NOT disarm within the delay, trigger alarm.
     • If zone is INTERIOR (motion, interior glass): Trigger alarm immediately (no delay). Interior zones protect against intruders already inside.

4. Alarm response sequence: When an alarm is triggered:

   • Energize the [[alarm-control-panel-siren-driver|siren relays]] to sound the internal and external sirens at maximum volume.
   • Activate status LEDs on the keypad (typically a flashing red "ALARM" light).
   • Start the [[alarm-control-panel-communicator-module|communicator module]] to dial the 24-hour monitoring center.
   • Log the alarm event with timestamp, zone number, and response time.

5. Monitoring station notification: The [[alarm-control-panel-communicator-module|communicator]] dials the monitoring station's phone number using either a traditional [[alarm-control-panel-communicator-module|analog modem (V92)]] (slower, 30–90 seconds) or [[alarm-control-panel-communicator-module|IP communicator (faster, 5–10 seconds)]]. The panel transmits alarm data in SIA (Silent Insurer Association) or Contact-ID format (a standardized format allowing automated dispatch).

6. User disarm: If the user arrives during the alarm and enters their 4–6 digit code on the [[alarm-control-panel-keypad-input|keypad]], the panel disarms and silences the siren. The monitoring center is notified that the alarm was a false alarm (user disarmed) or legitimate (user did not disarm, dispatch proceeded).

Zone configuration and entry/exit delays

The panel's security model relies on correct zone configuration. Zones are classified as:

Perimeter entry points (doors, windows):

• Door contact at main entrance (typically entry point for legitimate users)
• Window contacts on ground floor (entry point for intruders)
• Garage door opener contact (entry point via garage)

All perimeter zones are configured with an entry delay of 60 seconds. When the armed system detects an open contact on a perimeter zone, it sounds a buzzer (warning tone) and starts the entry delay timer. The user has 60 seconds to enter their code and disarm the system. If they disarm in time, no alarm is generated. If the timer expires, a full alarm is triggered.

Interior zones (motion detectors, interior glass-break sensors):

• PIR detectors in hallways, bedrooms, offices
• Glass-break detectors on interior partitions
• Pressure-mat switches in secure rooms

Interior zones are configured with no delay (immediate alarm). If the system is armed and a PIR detects motion, the siren sounds immediately. This prevents an intruder already inside the building from disarming the system.

Exit delay (applicable when arming the system): When the user presses "ARM" on the keypad, the panel enters an exit delay phase (typically 60–120 seconds). This allows the user to leave the building before all zones become active. The panel arms all perimeter and interior zones but does not trigger an alarm if they are opened during the exit delay. Once the exit delay expires, all zones are fully armed and any opening triggers an alarm immediately (interior zones) or with entry delay (perimeter zones).

Supervised zone wiring and tamper detection

Each zone is wired as a loop: power comes from the [[alarm-control-panel-zone-interface|zone interface module]], through the zone wiring, to one or more sensors (contacts, detectors) in series, and back to the panel. A small supervised current is continuously sent through this loop.

If an intruder cuts the zone wiring (to disable a detector), the circuit opens and the supervised current stops. The [[alarm-control-panel-zone-interface|zone interface module]] detects the open circuit and signals a zone trouble or tamper condition. This prevents the classic "cut the alarm wire" attack.

Similarly, if an intruder shorts the zone wiring, the resistance changes and the supervised current increases. The panel detects this abnormal current and generates a tamper alarm.

End-of-line (EOL) resistors are critical components in zone wiring. Each sensor is equipped with a parallel resistor (typically 2.2 kΩ). When the sensor is open (contact open, detector inactive), the resistor remains in parallel with the wiring, allowing the panel to measure the expected EOL resistance. If the sensor is shorted (intentional bypass), the resistance changes and the panel detects the fault.

Backup power and emergency operation

The [[alarm-control-panel-backup-battery|backup battery]] ensures the alarm system remains operational during a mains power outage. A typical 12 Ah battery at 0.5 A load provides 24+ hours of standby operation (panel powered but not in active alarm). If the siren sounds (10 A load), the battery provides only 1 hour of operation, sufficient for emergency dispatch response.

The [[alarm-control-panel-power-supply|power supply module]] includes an intelligent charger that maintains the battery at full capacity whenever mains power is available. The charger uses a multi-stage algorithm: constant-current charging at low capacity, then constant-voltage (float) charging when the battery is full, preventing overcharging and extending battery life.

The panel includes automatic self-test functions:

• Quarterly battery capacity test: The panel measures the battery's discharge rate under a known load and estimates remaining capacity. If capacity drops below 50%, a low battery alarm is generated.
• AC power loss alarm: If mains power is lost, the panel immediately switches to backup power and can generate a "power loss" notification to the monitoring center if configured.
• Zone loop test: The panel can periodically short each zone wiring to verify the loop is intact and has the expected resistance.

Communication and monitoring station protocol

The [[alarm-control-panel-communicator-module|communicator module]] provides dual-path redundancy: if the phone line is unavailable, the panel falls back to cellular (LTE CAT-M). This ensures that even if an intruder cuts the building's phone line, the alarm can still reach the monitoring station via cellular.

The alarm data is transmitted in standardized format:

SIA (Silent Insurer Association) Protocol:

• Account number (4–8 digits, unique to the subscriber)
• Event code (e.g., ALM for alarm, XPD for expedited dispatch)
• Zone number (1–999)
• Sequence number for tracking
• Encrypted and digitally signed to prevent spoofing

Contact-ID (obsolete but still used):

• 4-digit report: account code + event type + zone
• Sent as a series of DTMF (touch-tone) signals

Modern systems use SIA over IP (encrypted HTTP) or dedicated VPN links to the monitoring station. The monitoring center receives the alarm data, automatically displays the subscriber's information (name, address, emergency contacts), and dispatches police or security accordingly.

Arm modes and user interface

The [[alarm-control-panel-keypad-input|keypad]] provides user control:

DISARM: System is off. No zone monitoring. No siren response.

ARMED AWAY: All zones (perimeter and interior) are monitored. Entering a perimeter zone triggers entry delay. Entering an interior zone triggers immediate alarm. Used when occupants leave the building.

ARMED STAY: Perimeter zones are monitored, interior zones are bypassed. Entering a perimeter zone triggers entry delay. Interior zones (like bedroom PIRs) are inactive, allowing occupants to move freely indoors. Used when occupants are home.

NIGHT (variant of ARMED STAY): Only first-floor perimeter and critical interior zones (glass-break, entry points) are monitored. Upstairs bedroom PIRs are fully bypassed. Used when occupants are sleeping upstairs.

The keypad displays the current mode and any zone troubles or recent events. An LCD screen shows zone names (if programmed), alarm status, and system time.

Maintenance and system testing

Alarm systems require periodic testing to verify functionality:

• Monthly: User tests the system by opening a contact (door, window) during the entry delay and verifying the siren sounds and the monitoring center receives the alarm event.
• Quarterly: Professional alarm technician performs full system test: checks all zone wiring, battery capacity, communicator functionality, and siren sound level.
• Annually: Professional alarm company uploads latest firmware, replaces worn contacts or failed detectors, and recalibrates motion sensors.

Common failure modes include:

• Stuck relay contact: A zone contact may remain closed (falsely alarming) or remain open (failing to detect intrusion). Replacement is straightforward.
• Communicator failure: The phone line may be disconnected, or the cellular modem may lose signal. Technician verifies connectivity and replaces failed components.
• Battery degradation: Old batteries (>3 years) fail to hold a charge. Routine replacement prevents power-loss alarm events.
• PIR detector sensitivity drift: Motion detectors may accumulate dust on the lens or degrade electronically over time. Cleaning or replacement restores detection.

Challenges and limitations

Hardwired alarm systems have inherent limitations:

• Installation labor: Running wiring to each zone is labor-intensive and requires wall drilling, fishing, or surface-mounted conduit.
• Expansion difficulty: Adding new zones requires running new wiring, which is expensive in finished buildings.
• False alarm regulations: Many jurisdictions impose false alarm fees or dispatch delays (e.g., police respond only after a second confirmed alarm). Homeowners should prioritize system reliability and proper testing.
• User disarmament: If a user disarms the system (due to panic, duress, or confusion), the system provides no protection. Some systems include a "duress code" that silently disarms the system but sends a hidden alarm to the monitoring center.

Modern systems supplement hardwired zones with wireless zones (battery-powered sensors using RF) for cost-effective expansion, though wireless zones are less tamper-resistant and subject to RF interference or jamming.
