Arbitrary Waveform Generator Product

Overview

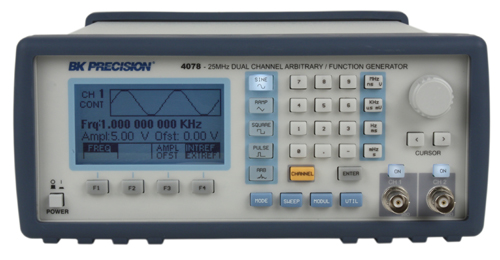

An arbitrary waveform generator (AWG) is a laboratory instrument that synthesizes user-defined analog signals with high precision and speed. Rather than producing fixed sinusoids or square waves like a basic function generator, an AWG reads samples from memory and converts them to analog waveforms at a programmable rate, enabling test engineers to create nearly any signal shape. Typical applications include transducer stimulus (pulse shaping), power converter circuit testing, modulation signal generation, and real-world signal playback for equipment characterization.

The instrument's core is a pair of 16-bit digital-to-analog converters (DACs) clocked at up to 250 megasamples per second (MSa/s), with 16 million samples of storage per channel. This combination supports waveforms up to 100 MHz with sufficient resolution to capture Nyquist detail. Dual output amplifiers deliver ±10V into standard 50 Ω laboratory loads. The color LCD interface and rotary encoder allow engineers to edit waveforms graphically, define modulation envelopes, and trigger sequences without connecting an external computer after setup.

Modern AWGs are essential in design validation, conformance testing, and fault simulation across telecommunications, power electronics, and RF applications where pre-recorded or parametric waveforms must exercise devices under controlled, repeatable conditions.

Signal Generation Architecture

The [[arbitrary-waveform-generator-dac-engine|DAC engine]] reads waveform samples stored in the [[arbitrary-waveform-generator-memory|memory subsystem]] at a rate controlled by the [[arbitrary-waveform-generator-clock|master clock distribution]]. Each DAC output feeds a [[arbitrary-waveform-generator-dac-filter|low-pass reconstruction filter]] that removes images and quantization noise introduced by the discrete sampling process. The filtered analog signals then pass to the [[arbitrary-waveform-generator-output-stage|output amplifiers]], which boost DAC outputs (typically ±1V) to the full ±10V range required to drive test loads.

The [[arbitrary-waveform-generator-sequencer|FPGA sequencer]] manages the memory read address pointer, enabling loop patterns, nested sequences, and modulation envelopes. Operators can link waveform segments to play arbitrary-length patterns: for example, a 10-period sine burst followed by a 100 µs silence, repeated 1000 times. Jump conditions allow triggered or counted looping.

Phase synchronization between the two output channels is maintained through the [[arbitrary-waveform-generator-pll-ic|phase-locked loop]], which locks the master clock to an external 10 MHz reference or an internal temperature-compensated oscillator. This enables precise time alignment needed for stimulus-response measurements, vector network analyzer sweeps, and dual-input measurement systems.

Memory and Bandwidth Considerations

The 16 million sample buffer per channel translates to 64 seconds of storage at the maximum 250 MSa/s rate. For 1 MHz signals (250 samples per cycle), engineers can store 16,000 waveform periods before exhausting memory. Real-time waveform editing requires balancing resolution and time: lower sample rates (e.g., 1 MSa/s) preserve sufficient frequency content for signals below 500 kHz and free memory for longer sequences.

The [[arbitrary-waveform-generator-sdram-controller|memory controller]] manages SDRAM refresh and address multiplexing to sustain continuous read throughput during waveform playback without stalling the DAC clock. This is critical—any timing hiccup in sample delivery causes DAC clock jitter, manifesting as phase noise and spurious components in the output spectrum.

Output Impedance and Load Matching

The [[arbitrary-waveform-generator-output-stage|output amplifier]] presents 50 Ω source impedance matched to standard RF coaxial test cables and 50 Ω laboratory loads. When driving mismatched loads (e.g., high-impedance oscilloscope inputs at 1 MΩ), reflections do not significantly corrupt the signal, but impedance discontinuities in the cable introduce ringing. For precise waveforms, operators should terminate unterminated cables in 50 Ω loads (displayed voltage will be halved) or use high-impedance probes with minimal loading.

The [[arbitrary-waveform-generator-attenuator|output attenuator]] (0–60 dB in 1 dB steps) allows reducing amplitude without re-computing stored waveforms; this is essential for threshold testing and dynamic range measurements that require step-wise signal scaling.

Modulation and Burst Modes

The [[arbitrary-waveform-generator-sequencer|sequencer]] supports envelope-modulated waveforms: a carrier waveform is read from one memory bank while an amplitude envelope is read from another bank, multiplied together in real time. This enables amplitude modulation (AM), frequency chirps, and shaped pulse sequences without pre-computing the full modulated waveform in memory. Frequency modulation (FM) requires external control of the clock frequency (via the PLL) and is typically achieved by sweeping the VCO control voltage across the test.

Burst mode allows the generator to play a finite number of waveform cycles and then halt, useful for trigger-synchronized testing of devices with startup transient responses or auto-gain control (AGC) circuits. Repeat mode cycles the stored pattern indefinitely, essential for long-term device reliability stress testing.

Calibration and Waveform Download

Most laboratory AWGs interface via USB or Ethernet to a host computer running waveform design software (e.g., MATLAB, Python with NumPy, or proprietary applications). Engineers create or import signals, compute FFT spectra to verify frequency content, and upload the binary sample file to the instrument's SDRAM. The front-panel [[arbitrary-waveform-generator-controls|user interface]] then recalls stored waveforms by name and triggers playback without the host computer.

Periodic calibration involves running known-amplitude sinusoids (loaded from memory) into an external precision DC voltmeter or oscilloscope to verify the output amplitude accuracy is within ±2% across the frequency range. Temperature-induced offset drift is typically <10 mV over the 0–50°C operating range, acceptable for most test applications.
