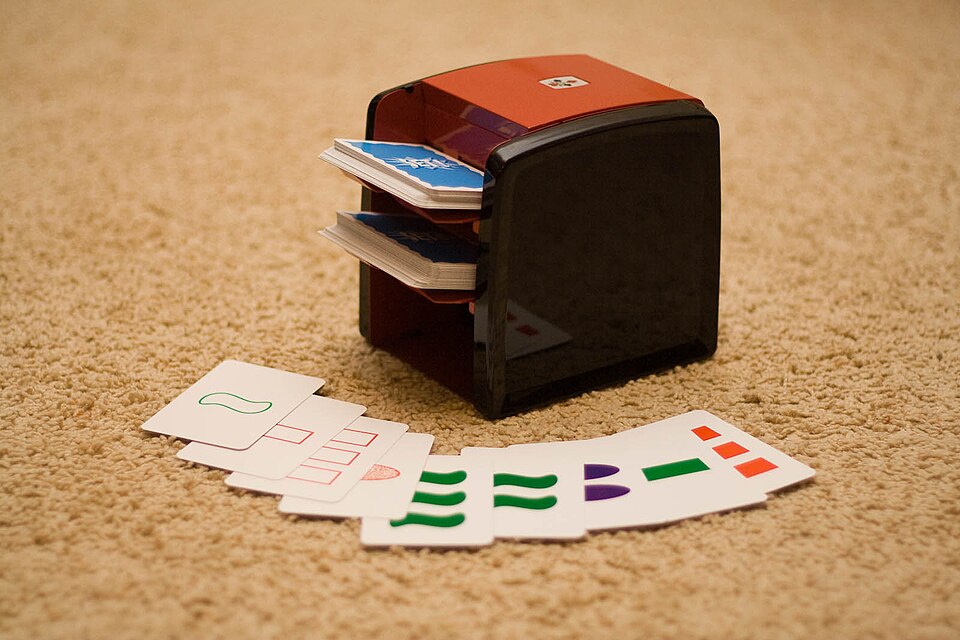

Automatic Card Shuffler Product

Overview

An automatic card shuffler is a precision gambling device that randomizes playing card decks while preventing dealer bias and collusion. Unlike manual shuffling, which casino observers can monitor for manipulation, an automatic shuffler applies deterministic yet randomized gripper and elevator movements to mix cards, making pattern analysis statistically impossible. The device also optically validates each card, detecting marked cards, foreign objects, or worn cards before they enter the shuffle queue. Modern casino-grade models maintain an encrypted audit log of every shuffle, feeding gaming commission oversight systems.

Operating Cycle

A croupier places one or more unshuffled decks into the Input Hopper. The vibrating Vibrating Separator feeds cards one at a time into the Card Feed System, where motorized rubber [[automatic-card-shuffler-feed-roller|rollers]] transport them past the Card Recognition System stage. The line-scan CMOS Image Sensor inspects each card in real-time, comparing edge profiles and surface markings against a known-good template stored in the control MCU. Any card failing validation—worn corners, creased, stained, or duplicated—triggers a reject chute diverting it to a removal slot.

Validated cards accumulate in the Shuffler Deck Mechanism, where dual pneumatic Gripper Jaws grip the stack. The [[automatic-card-shuffler-electronics|logic board]] then executes a pseudo-random gripper pattern, raising and lowering the stack at random intervals while the Card Elevator executes lift strokes. This mixing motion interleaves the cards without exposing them. After 30–60 seconds of shuffling, the stack lands in the Output Dispenser.

The Output Tray dispenses cards one at a time via a solenoid-controlled gate, allowing the dealer to draw one deck for play while the next deck shuffles simultaneously in the chamber below. Some high-volume casinos employ two shufflers in parallel.

Anti-Collusion and Audit Trails

The Control Electronics logs every shuffle action—gripper timing, card validation results, lift cycle count—with cryptographic timestamps. This tamper-evident log is stored in an encrypted onboard database accessible only by authorized gaming auditors via USB or network connection. Casinos can prove to regulators that cards were mechanically randomized without human interference, closing a major vulnerability in dealer-management systems.

Card Recognition Limitations

The optical system detects some classes of cheating (card duplication, edge marking, overt wear) but not subtle attacks like shaving one edge 0.05mm thinner or applying nearly-invisible infrared ink. The CMOS Image Sensor operates at 2000+ pixels of line-scan resolution, sufficient to flag gross alterations but not micrometer-level counterfeiting. Casinos therefore still conduct periodic physical inspections by hand, comparing cards against manufacturer samples.

Pneumatic Architecture

The shuffler draws air from the casino's compressed air backbone, typically a centralized compressor feeding all gaming tables. A regulator onboard the shuffler maintains 80–100 PSI, which powers the Gripper Jaws and isolation solenoids. A safety relief valve prevents overpressure damage to the gripper cylinders. Air dryers upstream of the shuffler remove moisture, preventing corrosion inside the pneumatic cylinders and valves.

Regulatory Certification

Gaming labs certify shuffler randomness via statistical testing: running 10,000+ consecutive shuffles, then computing card-position entropy and checking for bias in which cards end up in the final deck. A shuffler passing GLI-19 testing has a documented entropy coefficient meeting or exceeding casino-grade random-number generators. Casinos must display the certification seal and make logs available for spot audits.

Maintenance

The [[automatic-card-shuffler-feed-roller|feed rollers]] gradually glaze from card oils over 6–12 months of use, reducing friction and causing occasional misfeeds. Service technicians replace the rubber bonded sleeves every 2 years. The pneumatic cylinders require periodic seal replacement. The CMOS Image Sensor lens must be cleaned weekly to maintain accurate card validation. Any shuffler requiring motherboard-level repair is sent to a certified casino equipment shop, not serviced on-site.
