Automotive Radiator Product

Overview

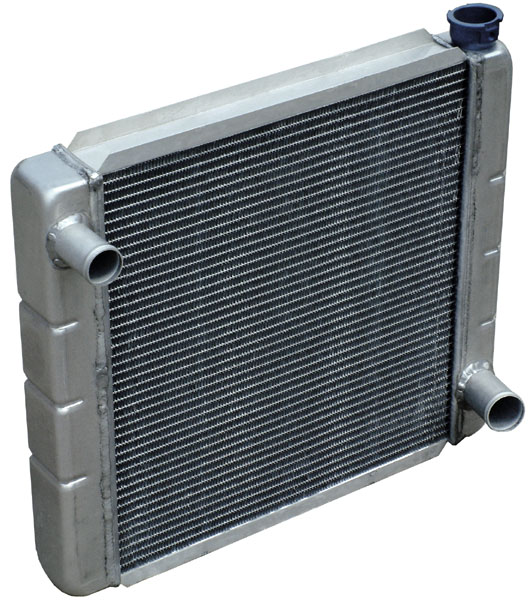

An automotive radiator is a heat exchanger that dissipates excess thermal energy from the engine coolant to the surrounding air. Internal combustion engines convert about 70–75% of fuel energy into waste heat; 30% becomes mechanical work at the crankshaft. This waste heat, plus friction losses, elevates coolant temperature to 95–110°C. The radiator rejects this heat to ambient air via a combination of conduction, convection, and radiation, maintaining safe engine operating temperature (80–95°C) critical for efficiency, emissions, and component longevity.

Modern radiators are lightweight aluminum constructions with thousands of thin fins pressed onto parallel coolant tubes, creating enormous surface area (100–250 m² effective) in a space smaller than a shoe box. The core is supplemented by internal transmission cooler loops (in vehicles with automatic transmissions) that cool ATF without a separate external cooler.

How It Works

Hot coolant (95–110°C) from the engine's thermostat housing enters the Upper Inlet Tank via the Upper Inlet Spigot. A baffle inside the tank distributes this flow evenly across the [[automotive-radiator-tubes|parallel tubes]] running the width of the core.

The Tube-Fin Core Assembly is the heart: six to twelve aluminum Coolant Tubes (6–12 mm diameter, 0.5–0.8 mm wall) run horizontally in parallel. Each tube carries coolant from top to bottom. The Heat Transfer Fins (0.1–0.15 mm thick aluminum) are bonded to the tubes at high density—typically 8–14 fins per inch (FPI). These fins are NOT mechanical fasteners; they are brazed onto the tubes during manufacture (1000°C furnace), creating a permanent bond.

Air flows through the fin array (either passively by vehicle motion or actively by the engine-driven radiator fan). The finned surface dramatically increases the heat-transfer area from tubes to air. At a given flow rate, more surface area equals more heat rejected.

As coolant flows through the tubes, heat transfers through the tube walls and into the surrounding fins. The aluminum fins conduct this heat outward, presenting it to air. Once air absorbs the heat (temperature rises 10–20°C crossing the radiator), it exits the bottom.

Cooled coolant (75–90°C) collects in the Lower Outlet Tank, where it is delivered back to the water pump inlet via the Lower Outlet Spigot. The pump circulates this cooler fluid back into the engine block, where the cycle repeats.

Transmission Cooler Integration

Automatic transmissions generate significant heat (400–1500W depending on driving cycle). The Transmission Cooler Loop is a secondary tube bundle (typically 6–8 small tubes, 3–4 mm diameter) running through the main coolant flow path inside the radiator. Hot transmission fluid (ATF, typically 60–80°C from the transmission pump) enters this bundle via the Cooler Inlet Port, passes through the cooler tubes, absorbs the radiator's coolant heat, and exits via the Cooler Outlet Port approximately 20–30°C cooler.

This integrated approach eliminates the need for a separate transmission cooler mounted in front of the air conditioning condenser. It does require careful thermal engineering: the main engine coolant must be cool enough (75–90°C) to cool ATF adequately without the ATF adversely heating the coolant (heat rejection is one-way: engine → coolant → air).

A Cooler Check Valve blocks backflow when transmission pump pressure drops (during idle or coast), preventing hot coolant from entering the transmission circuit.

Thermal Design

Heat-transfer rate is governed by:

Q = h × A × ΔT

where Q is heat flow (W), h is convective heat-transfer coefficient (W/m²·K), A is surface area (m²), and ΔT is temperature difference between coolant and air.

Increasing any of these boosts heat rejection. Automotive radiators optimize all three:

• Surface area (A): Fins multiply tube area by 15–30x. A 500 mm × 400 mm × 40 mm core has 100–150 m² effective area.
• Temperature difference (ΔT): Keeping inlet coolant hot (110°C) and outlet air warm (ambient + 10°C rise) maximizes ΔT. Thermostat control maintains a minimum coolant temperature by partially bypassing the radiator.
• Heat-transfer coefficient (h): Air velocity and viscosity determine h. Forced-air cooling (radiator fan at high speed) increases h significantly; passive cooling (vehicle motion) is lower but sufficient at highway speeds.

Materials and Manufacturing

The Coolant Tubes are aluminum (alloy 3003 or 3005), drawn or extruded into flat-oval shapes for space efficiency. Walls are 0.5–0.8 mm thick—thin enough for efficient heat transfer but thick enough to withstand 1.5 bar system pressure and vibration fatigue.

The Heat Transfer Fins are aluminum fins (0.1–0.15 mm thick, 0.5–1 mm spacing between fins). Early radiators used copper tubes and brass fins, but aluminum replaced them in the 1980s due to weight, cost, and corrosion advantages. Brazed aluminum cores are lighter (8–12 kg vs. 15–20 kg) and conduct heat better than solder-sealed assemblies.

The Upper Inlet Tank and Lower Outlet Tank are typically polypropylene (plastic) or aluminum. Plastic tanks are cheaper, lighter, and corrosion-resistant but less durable at high temperature; aluminum tanks are more robust, better for heavy-duty applications.

Gaskets sealing the tank-to-core junction are EPDM (ethylene propylene diene monomer) elastomer, 0.5–1 mm thick, rated to 120–150°C continuous. These gaskets must withstand coolant pressure (1.5 bar), thermal cycling (engine hot/cold starts), and coolant chemistry (additives, pH).

Maintenance and Failure Modes

Corrosion is the primary failure mode. Modern coolants contain silicate or phosphate inhibitors preventing aluminum oxidation, but inadequate coolant maintenance (overdue changes, contamination) allows oxidation. White or green crusty deposits inside the radiator reduce heat transfer and can block tubes entirely.

Tube rupture from fatigue or corrosion causes coolant loss and engine overheating. The rupture often occurs at the tube-to-header solder joint, the weakest point under thermal cycling stress.

Fin blockage from road debris (mud, leaves) or accumulated dust reduces airflow and cooling capacity. Cleaning the radiator fins with compressed air or gentle flushing restores performance.

Scale (mineral deposits from hard water) accumulates on the inner tube walls, insulating the coolant from the aluminum and reducing heat-transfer coefficient. Periodic coolant flushes (every 30,000–50,000 miles) prevent this.

Loose mounting (isolator bushings failing) allows excessive vibration, stressing radiator connections and accelerating fatigue failure.

Modern Variants

Electric radiator fans (replacing mechanical clutch fans) spin only when needed, reducing engine parasitic load and improving fuel economy. Variable-speed fans modulate speed based on coolant temperature, optimizing cooling versus fuel consumption.

Larger radiators for turbocharged or supercharged engines accommodate higher heat loads. Dual-radiator systems (main core + secondary auxiliary core) are used on extreme-performance or heavy-duty applications.

Aluminum-plastic hybrid radiators use aluminum tubes but plastic tanks, balancing cost and durability.

Advanced coolants (extended-life, OAT—Organic Acid Technology) enable intervals of 150,000+ miles between changes, further reducing maintenance burden.
