Auto Rickshaw Product

Overview

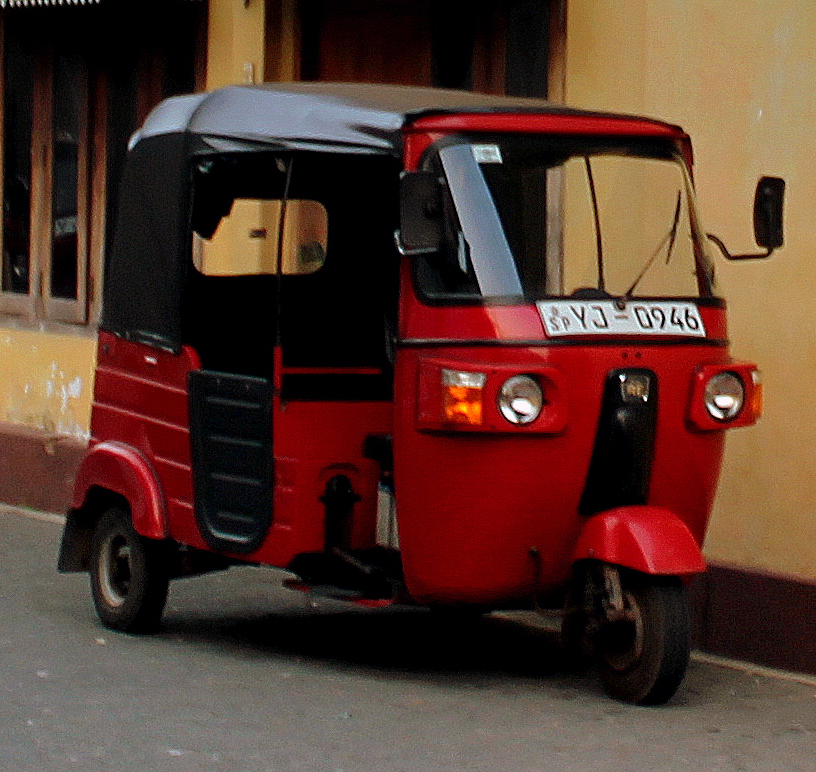

The auto-rickshaw is an urban transit workhorse in South and Southeast Asia, a three-wheeled cab that trades safety equipment and comfort for affordability, maneuverability, and low operating cost. A single [[autorickshaw-engine-drive|150–200 cc engine]] produces just 8–12 kW but meets city-speed expectations; the [[autorickshaw-chassis-frame|tubular steel frame]] and [[autorickshaw-cabin-body|open-sided canvas or corrugated-metal canopy]] can carry 6–8 passengers through gridlocked streets. The design emerged from the motorcycle/scooter market where cost pressure and space constraints demanded three wheels rather than four.

Chassis and frame

The Chassis Frame is a welded hollow-section steel tube structure, similar in principle to a motorcycle frame but scaled for passenger load. Longitudinal tubes run from front to rear axle; cross members tie the suspension mounts and engine supports. The design is inherently torsion-prone compared to a car frame, which is why many models cross-brace the cabin area and limit cornering speed. Most are designed for pavement-only operation: potholes and rough unpaved roads shake the structure and fatigue the welds at acceleration joints.

Engine and drivetrain

Most modern auto-rickshaws use a [[autorickshaw-engine-drive|single-cylinder four-stroke CNG engine]] in the 150–200 cc range, mounted near the rear axle. CNG (compressed natural gas) dominates in India and parts of Southeast Asia due to fuel cost and emission regulations; older models and some markets favor petrol equivalents. The [[autorickshaw-manual-gearbox|four-speed manual gearbox]] has no synchromesh, requiring a pause between shifts to let engine speed drop. The [[autorickshaw-final-drive|rear-wheel chain drive]] is a 5:1 to 6:1 reduction, delivering high torque at low speed for city starts but limiting highway cruising.

Load-shedding is typical: at full capacity, acceleration is sluggish and the engine labours. Payload per passenger is nominal; six adults at 70 kg each plus the driver exceed design weight but happen anyway.

Steering and handling

The [[autorickshaw-steering-system|handlebar steering]] is derived from motorcycle design. The rider turns the handlebar left or right; a Steering Column column runs down to [[autorickshaw-tie-rod|tie rods]] that angle the front wheel. Advantages over rack-and-pinion: simpler, cheaper, easier to repair, and naturally self-centering due to caster. The drawback is poor damping on rough roads: a Steering Damper hydraulic cylinder is needed to resist shimmy. Turning radius is tight (~3.5 m) because of the single front wheel and short wheelbase, making parking and U-turns easy.

Cabin and comfort

The Cabin and Body is minimal: a [[autorickshaw-bench-seat|bench seat]] in front for the driver and one or two paying passengers, a rear bench, and a [[autorickshaw-canopy-roof|corrugated-metal or canvas canopy]] overhead. Sides are open for airflow and to keep weight down; in rain, passengers sit under the roof but water runs down the sides. Some deluxe models have vinyl side curtains that roll down. The driver sits to the left to steer and access the manual shift lever, which is usually on the floor.

Suspension and brakes

Suspension and Brakes are basic. The front uses a Shock Absorber telescopic absorber and Coil Spring to handle bumps; the rear is a [[autorickshaw-rear-axle-suspension|semi-elliptic leaf spring]] carrying the axle without individual shock absorbers, so the ride is bouncy. Brakes are [[autorickshaw-front-brake|hydraulic or mechanical drums]] on all wheels, often paired: a [[autorickshaw-brake-cables|hand lever]] stops the front, and a [[autorickshaw-rear-brake|foot pedal]] operates the rear through cable linkage. Emergency braking requires both hands and feet; panic stops can lock wheels on wet pavement.

Stopping distances are long: from 40 km/h to standstill is typically 15–18 m on dry asphalt. Three wheels and light weight make the rickshaw vulnerable to tipover in hard cornering or sudden lane changes.

Electrical and fuel systems

The Electrical System is a 12 V lead-acid battery starter system. A small Alternator keeps the battery charged; the engine starts with a hand-crank (oldest models) or a [[autorickshaw-starter-motor|electric starter]]. Headlights are halogen and run direct from the battery, so at idle (no charging) they dim noticeably. No air-conditioning; ventilation is passive (open sides) or a small roof fan in deluxe versions.

The Fuel System in CNG models holds fuel in a [[autorickshaw-cng-cylinder|seamless steel or composite cylinder]] at 200 bar. A Fuel Regulator steps pressure down to carburettor inlet pressure. Older units use a simple two-stage regulator; newer models add a vaporizer and vacuum-assist. Fuel consumption is 4–6 L/100 km equivalent (CNG is metered in kg, typically 2–3 kg per 100 km). Range is 200–300 km on a full tank.

Failure modes and service

Rickshaws endure high utilization: many run 12–16 hours daily carrying continuous passenger traffic. Wear points are the [[autorickshaw-final-drive|chain and sprockets]] (typically 30,000–50,000 km life), the [[autorickshaw-manual-gearbox|gearbox]] synchronizers (which don't exist, so delayed shifts are normal), and the [[autorickshaw-suspension-brackets|frame welds]] which fatigue in congested city use. Brake cables stretch and need regular adjustment; hydraulic cylinders leak. The frame can crack at corners if bumped hard enough. Engine overhaul intervals are 60,000–80,000 km, after which rings and valves are shot.

Most repairs are roadside welds, cable adjustment, and engine re-rings. Spare parts are cheap and widely available as bolt-on assemblies. A well-maintained rickshaw will run 150,000–250,000 km before the frame gives up.
