Avalanche Transceiver Product

Overview

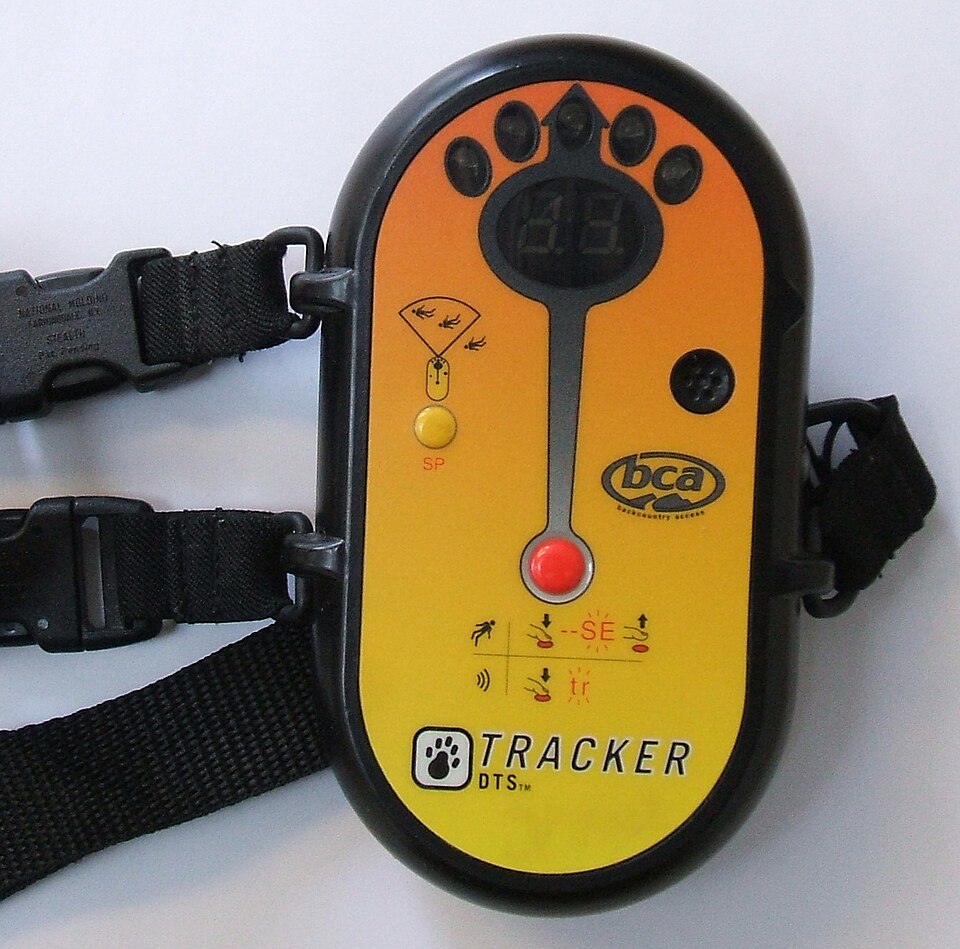

An avalanche transceiver is a radio beacon worn by everyone traveling in avalanche terrain. It does one of two things: in SEND mode it transmits a short magnetic-field pulse on 457 kHz about once per second, all day, for the entire tour; switched to SEARCH after an avalanche, it receives those pulses from a buried companion and guides the rescuer to them. The frequency, pulse timing, and tolerances are fixed by EN 300718, so a 2026 device finds a 1990s device and every brand finds every other — the standard is the entire reason companion rescue works.

The statistics that shape the design are brutal: survival probability is above 90% if the victim is dug out within 15 minutes and falls steeply afterward. Everything about the device — the interface, the audio, the mode switch, even the battery chemistry rules — is engineered around a panicking, gloved, hypoxic-adjacent user performing a search they have practiced at most a few times.

Why 457 kHz

At 457 kHz the wavelength is 656 m, so at rescue distances the device is not receiving a propagating radio wave but sampling the transmitter's near-field — a quasi-static magnetic dipole field, the same shape as a bar magnet's. This choice is deliberate: the magnetic near-field passes through dense snow, ice, and bodies essentially unattenuated, and it has no multipath reflections to create false signals in terrain. The cost is that field lines are curved, so a searcher following the signal walks a flux-line arc rather than a straight line, and field strength falls with the cube of distance, which makes range modest (~60 m) and the final approach extremely sharp.

Three antennas

The transmit side is simple: the Transmit Driver pulses the X Antenna, a ferrite rod whose winding turns the small coil current into a usable dipole moment, with the Frequency Crystal holding frequency within the ±80 Hz the standard allows and the Tuning Network keeping the rod resonant — capacitor drift here is what pre-season checks at trailhead testers catch.

Receiving is the hard problem a single antenna cannot solve: a ferrite rod only measures the field component along its own axis, so signal strength would depend on how the rescuer happens to hold the device. The Y Antenna and Z Antenna complete an orthogonal triad; the Receive Front-End digitizes all three channels and the Microcontroller computes the full field vector. The ratio of X to Y gives the direction arrow, total magnitude gives distance, and the Z rod resolves the field's vertical component in the final metres — without it, a deep burial produces two false signal maxima on the surface either side of the victim, a classic two-antenna failure mode that cost real rescue time.

The search sequence

The device leads the rescuer through three phases. In signal search the searcher crosses the debris in 50–70 m strips until the Speaker first chirps. In coarse search the arrow and distance count down along the flux line. Inside ~3 m the display drops the arrow entirely — near-field geometry makes arrows meaningless there — and the rescuer fine-searches on the snow surface with the device held low, boxing the minimum distance reading, then confirms with a probe strike before digging. A rising audio pitch carries most of the information; rescuers are taught to search with their eyes on the snow, not the LCD Panel.

Multiple burials are handled by separating the senders' slightly different pulse periods; pressing the Flag Button masks a located victim so the next signal can be followed. Some devices add a W-Link Radio side channel to coordinate marking between searching devices.

Designed for the worst day

The Mode Switch needs a deliberate two-action movement to leave SEND, because a tumbling burial must not be able to silence the victim. The Motion Sensor arms auto-revert: a searcher caught by a secondary avalanche and motionless for about a minute is switched back to transmit automatically. Power is three AAA alkalines in the Battery Holder — alkaline specifically, because the Power Monitor estimates remaining capacity from voltage sag, and lithium primaries hold flat voltage until they die without warning. The spec point is exact: 200 hours of transmit followed by one hour of search at −10 °C.

The device lives in the Harness Pouch against the sternum under the shell layer, tethered by the Device Leash; packs and jackets get torn off in avalanches, chest harnesses do not. The IP67 shells, the gloved-finger Button Membrane, and the always-on Display Backlight all encode the same assumption: the one time this product must work perfectly is in a storm, in the dark, in the worst moment of its owner's life.
