Bale Wrapper Product

Overview

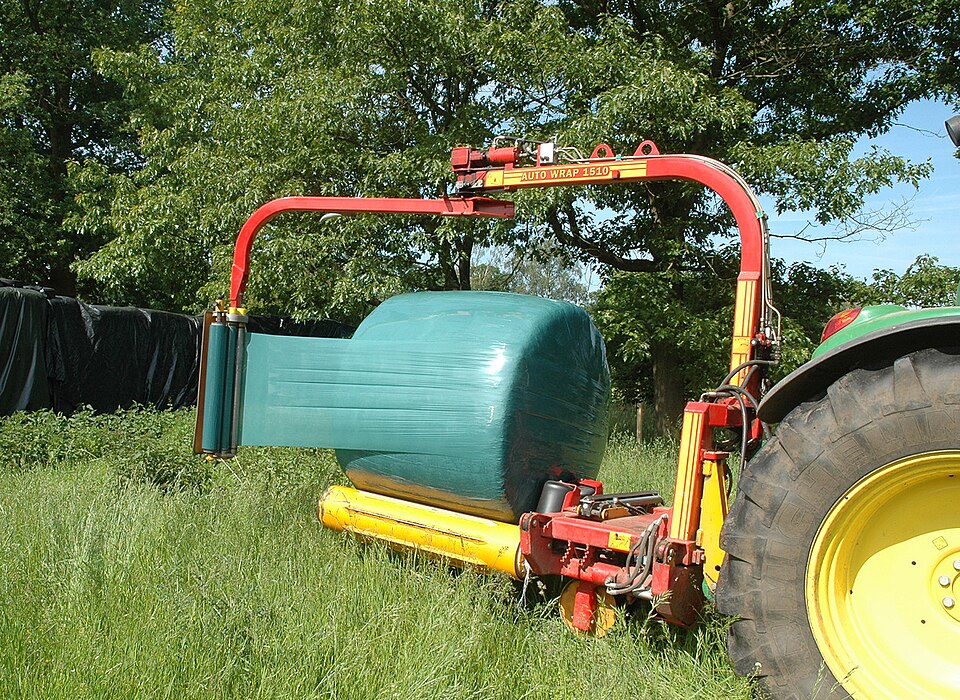

A bale wrapper is a tractor-mounted accessory that automatically wraps hay or silage bales in plastic film for long-term storage. The Bale Rotation Table clamps and spins the bale while the Satellite Arm Assembly orbits around it, dispensing stretched plastic film. The film is pre-stretched to 50–80% elongation by dual Stretch Rollers, increasing its cling strength and reducing material consumption. Typically 6–8 layers (20–30 m of film) are applied per bale, creating an oxygen barrier that preserves silage fermentation or prevents hay weathering.

Bale wrapping is standard practice on modern forage farms in temperate zones. Hay stored bare in the field loses quality from rain, UV exposure, and mold. Wrapped hay maintains nutritional value and dry matter, worth 20–30% premium over uncovered hay. Silage bales, wrapped immediately after baling, ferment into a stable product that can be stored outdoors for 6–12 months without quality loss.

Bale handling and clamps

The Bale Rotation Table is a 1.5 m diameter steel deck with a rubber friction surface. When a bale is driven or rolled into place, the operator engages the Bale Clamps (two double-acting hydraulic cylinders with gripper jaws). The clamps compress the bale from opposite sides, gripping it firmly. The Table Motor, a 3–7 kW hydraulic motor, then spins the table at 5–20 rpm, rotating the bale.

As the bale rotates, the Satellite Arm Assembly remains stationary in space while the bale turns underneath, allowing film to wrap uniformly around the circumference. After one full rotation of the bale, the Arm Drive Motor advances the arm radially inward (via the Arm Position Cylinder), repositioning the film carriage higher on the bale. The arm then makes another orbit as the bale continues to rotate.

Film supply and pre-stretch

The Film Spool Holder is a large spool holder mounted beside the machine, supporting a Plastic Film Roll (500–1000 m length, 750 mm width). As the wrap sequence starts, film is pulled from the spool through the Film Pre-Stretch Carriage, a dual-roller pre-stretch unit.

The Stretch Rollers work via differential speed. Both rollers are powered by the Stretch Motor, but one rotates slightly faster than the other, stretching the film between them to 50–80% elongation. This stretching increases the film's elastic recoil, making it cling tighter to the bale. It also reduces material consumption: a 16–18 micron film at 70% stretch behaves like 25–30 micron film at zero stretch. Farms typically apply 6–8 layers of stretched film, balancing material cost against oxygen barrier performance.

The stretched film passes through Film Guides that center it on the rotating bale. As the film contacts the bale surface, friction between the rotating bale and the stretching film pulls more film from the spool, creating a continuous spiral wrap.

Wrap sequencing and control

The Control & Sequencing Logic, powered by a Programmable Logic Controller, orchestrates the entire cycle:

1. Clamp: Operator positions bale on table and presses start. Cylinders close, gripping the bale.
2. Spin and feed: Table motor engages (5–20 rpm). Simultaneously, the Stretch Motor activates, pulling film from spool at a rate matched to bale rotation and arm position.
3. Arm advance: After each full bale rotation, proportional Solenoid Valve commands shift the Arm Position Cylinder to move the satellite arm radially inward by 50–100 mm.
4. Repeat: Table spins another revolution, depositing another layer of film higher on the bale.
5. Cut and release: After 6–8 layers, the Cutting Knife (motorized blade) cuts the film. The Film Release Clamp releases, and the wrapped bale can be unloaded.

Total wrap time is 2–4 minutes depending on settings. A farmer operating a 8–15 kW tractor can wrap 40–60 bales per 8-hour day, compared to 10–15 bales per day if hand-wrapping.

The HMI Panel (touchscreen) allows the operator to adjust:

• Number of layers (6–10, typically 6–8)
• Pre-stretch level (40–90%)
• Table spin speed (affects uniformity)
• Film overlap (affects material use)
• Wrap time (automatically calculated)

Hydraulic actuation

The Hydraulic Power & Control is powered by a Hydraulic Pump (10–30 L/min) driven by the tractor's 540 rpm PTO. Flow is routed through a Valve Manifold containing proportional Solenoid Valve spools. Each spool directs flow to:

• Table Motor: table rotation
• Arm Drive Motor: arm orbit
• Arm Position Cylinder: arm radial position
• Clamp cylinders: grip/release

The proportional valves allow independent control of motor speeds and cylinder position. Modern systems use load feedback from a Pressure Sensor to monitor bale clamping force and prevent crushing (which damages the bale shape and film adhesion).

An optional Accumulator (2–5 L bladder) buffers pressure spikes during motor direction changes, smoothing operation and protecting hoses from shock.

Film consumption and economics

A single bale requires 20–30 m of 750 mm wide film, depending on bale diameter and wrap layers. Stretch film costs USD 0.5–1.0 per meter, so material cost is USD 10–30 per bale. The tractor-wrapper combination costs USD 20,000–35,000; amortized over 5 years of 5000 bales/year, wrapping cost is USD 1–2 per bale. Hand-wrapping (netting or manual film application) costs USD 2–5 per bale in labor, so mechanization has clear economic benefit.

Film waste is 5–10% (film on spool arbor, start/stop edges). Using a film roll efficiently requires good spool brake tuning and minimal start-stop cycles. Operators typically estimate 25–30 m per bale to order supplies.

Maintenance and reliability

The Stretch Rollers wear from continuous friction with film; they are replaced every 500–1000 hours. The Table Bearing (slew ring) can develop play after 2000+ hours; replacement is a 3–4 hour job. Hydraulic hoses (high-pressure lines under 210 bar) should be inspected annually and replaced if cracks appear.

The Cutting Knife blade dulls over time; sharpening or replacement is routine maintenance. The Film Tension Brake requires periodic adjustment to maintain proper film tension; too loose and the film feeds erratically, too tight and the motor stalls.

Plastic film quality has improved over decades; modern stretch film clings reliably in sun and cold. Older machines using rigid plastic or netting required more manual finishing. Farms storing wrapped bales outdoors (common in temperate climates) find that film lasts 6–12 months before UV degradation; bales should be used within that window.

Integration with forage production

Most hay and silage farms now use a fully mechanized workflow: baler produces bales → wrapper applies film immediately → wrapped bales are transported and stacked in field or on-farm storage. This workflow minimizes labor and maximizes product quality. Large operations run 3–4 balers and 2–3 wrappers in parallel during peak season, achieving a bale every 3–5 minutes.

For silage, wrapping within hours of baling is critical; anaerobic fermentation begins immediately, and any oxygen trapped inside the bale reduces silage value. Most silage wrappers are mounted on the same tractor as the baler, operating simultaneously.
