Barcode Scanner Product

Overview

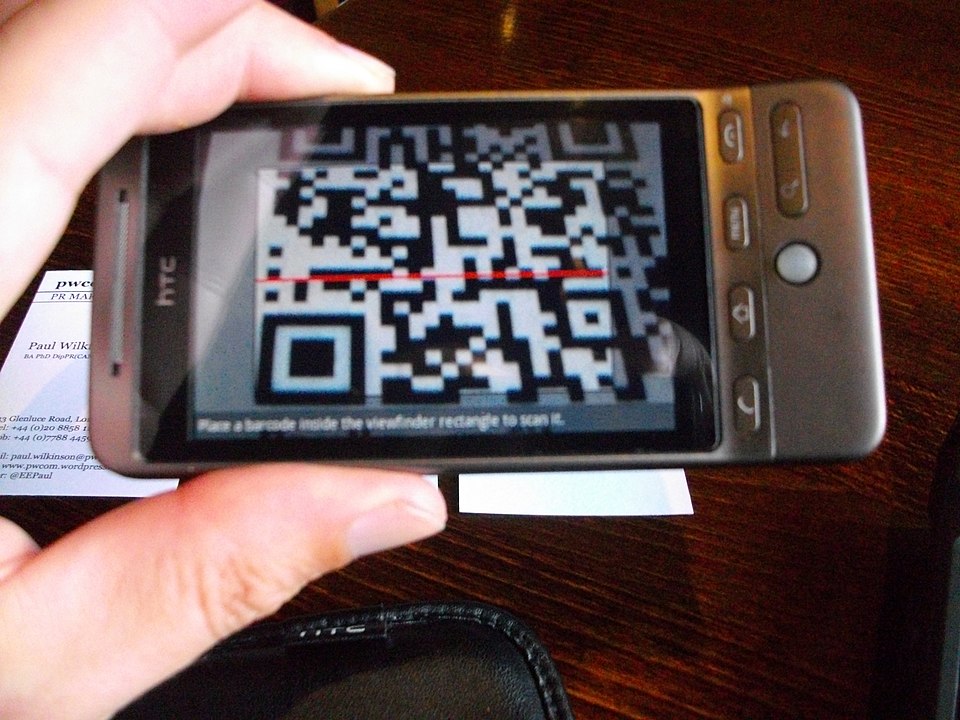

A handheld barcode scanner reads the printed codes on products, packages, and labels and sends the decoded characters to a host as if they were typed on a keyboard. This is a 2D imaging scanner: instead of sweeping a laser line, it takes a picture of the code with a small camera and decodes it in software, which lets it read stacked and matrix codes (QR, Data Matrix, PDF417) as well as ordinary 1D barcodes, and read them at any orientation.

The optics live in the 2D Imaging Engine, where an image sensor sits behind a fixed-focus lens. Because contrast matters more than ambient light, the engine carries its own illumination that floods the target. A separate Aiming Module projects a dot or line so the operator knows exactly where the scanner is pointed before pulling the Trigger Assembly.

Captured frames go to the Decode Board, whose processor runs the image-processing and symbology algorithms. The decoded string travels to the host over the Host Cable, and the Speaker beeps to confirm a good read. All of it is packaged in a pistol-grip Housing & Handle sized to the operator's hand.

How it works

Pulling the trigger closes the microswitch in the Trigger Assembly, which tells the Decode Board to start a scan. The board fires the illumination LEDs and the Aiming Module, then commands the 2D Imaging Engine to grab frames. Each frame is a grayscale image of whatever is in front of the window.

The decode processor hunts each frame for the finder patterns and quiet zones that mark a barcode, locates and rectifies the symbol, reads its modules, and applies the error-correction built into the symbology to recover the data even if part of the code is smudged or torn. The moment a frame decodes cleanly, the engine stops scanning, sounds the Speaker, lights the good-read LED, and pushes the characters out through the Host Cable in the host's chosen format — keyboard wedge, virtual COM port, or serial. The whole cycle typically takes well under a tenth of a second.
