Overview

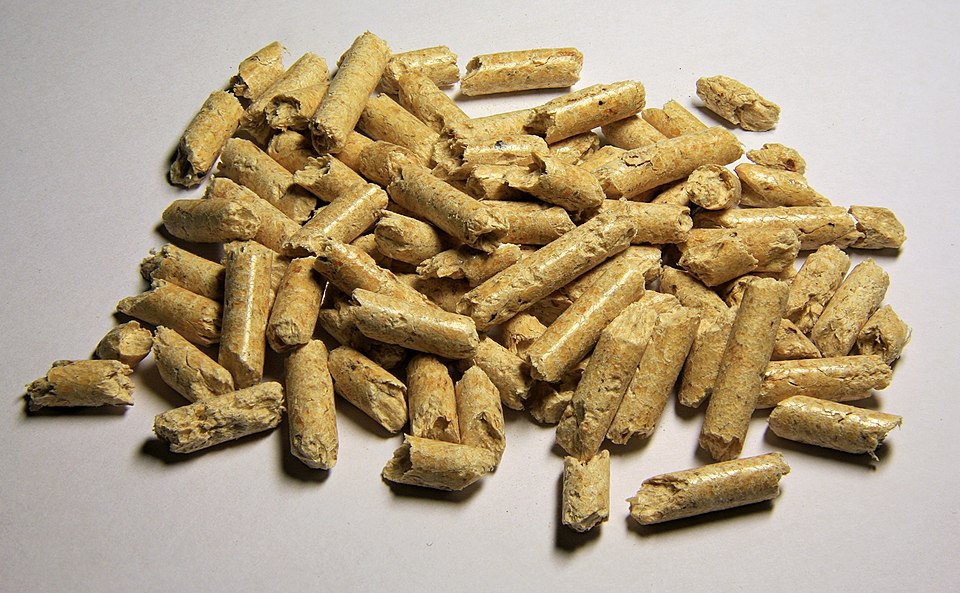

A biomass pellet boiler burns compressed wood pellets to heat water for radiators, underfloor circuits, and domestic hot water, with the same hands-off operation as an oil or gas boiler. Pellets are standardized fuel: ENplus A1 grade is 6 mm diameter, under 10% moisture, with an energy density near 4.8 kWh/kg, which is what makes fully automatic feeding, ignition, and combustion control possible. A modern unit reaches 90-95% efficiency and modulates between 30% and 100% of rated output, refueling itself from a hopper or bulk store for weeks at a time.

The machine is organized around a fuel path and a heat path. Pellets travel from the Integrated Hopper through the Pellet Feed System system into the Combustion Assembly chamber; hot flue gas then passes through the Heat Exchanger into the Flue and Draft System, while the Ash Removal System system carries the solid residue away. The Combustion Controller coordinate everything using oxygen and temperature feedback.

Fuel feed and burn-back protection

The Feed Auger meters fuel by pulsed rotation: the controller varies pulse length and interval to set pellet mass flow, which directly sets boiler output. Because a continuous column of pellets is a fire path back to the hopper, every certified boiler interrupts it. The Rotary Star Valve passes pellets through a cellular wheel while staying airtight, and the Drop Chute adds a gravity air gap before the pellets land in the Burn Pot. EN 303-5 requires at least two independent burn-back barriers, commonly the valve, the chute, and a thermostatically triggered water quench on the feed tube.

Combustion

Ignition is electric: the Automatic Ignition assembly blows air over a Heating Element cartridge, delivering a 500-600 °C jet through the Ignition Tube onto the fresh pellet charge. The Flame Photocell photocell confirms light-off within two to eight minutes, after which the element switches off.

Combustion is staged. The Primary Air Fan pushes air up through the Burner Grate, gasifying the glowing pellet bed; the Secondary Air Ring injects air above the bed to burn out carbon monoxide and volatile hydrocarbons in the 800-1,000 °C zone held by the Refractory Lining lining. The Induced-Draft Fan on the flue outlet pulls the whole gas path along, keeping the firebox at -10 to -30 Pa so combustion gas can never leak into the boiler room; the Draft Pressure Switch stops fuel feed if that vacuum is lost.

The control loop closes through the Lambda Probe, a zirconia oxygen sensor in the flue. By trimming fan speed and auger pulses to hold 6-10% residual O2, the controller keeps efficiency high and CO emissions low across the full modulation range and across pellet quality variation. Class 5 boilers achieve dust emissions below 20 mg/m³ and CO below 200 mg/m³ referenced to 10% O2.

Heat exchange and self-cleaning

Flue gas at around 1,000 °C leaves the chamber and passes down two dozen vertical Fire Tube passes surrounded by the water in the Water Jacket. Each tube contains a Spring Turbulator spiral that breaks up the laminar boundary layer for better heat transfer. Fly ash deposits on tube walls would otherwise cost roughly 1% efficiency per week, so the Turbulator Drive reciprocates all spirals several times a day, scraping the tubes clean automatically. Exhaust leaves through the Flue Collar at 120-160 °C, monitored by the Flue Temperature Probe.

Wood ash is about 0.5% of pellet mass. The Grate Tipping Mechanism periodically tilts the grate to break clinker, and the Ash Auger screws convey ash from grate and exchanger into the sealed Ash Bin, which a 20 kW boiler in continuous winter service fills in two to eight weeks.

Control and safety

The Combustion Controller sequence ignition, modulation, cleaning, and shutdown, and typically also manage mixing valves, buffer tank charging, and weather-compensated heating circuits. Boiler water is measured by Water Temperature Probe sensors; the return must usually be held above 55-60 °C by a mixing loop to prevent acidic flue-gas condensation on the exchanger. Independent of all software, the Safety Temperature Limiter is a manually-reset mechanical limiter that cuts fuel and power if water exceeds 95-100 °C, a mandatory EN 303-5 device. Compared with a log gasification boiler, the pellet unit gives up a little fuel cost for full automation; compared with fossil boilers it is carbon-neutral at point of use, emitting only the CO2 the wood absorbed during growth.
