Bookmobile Product

Overview

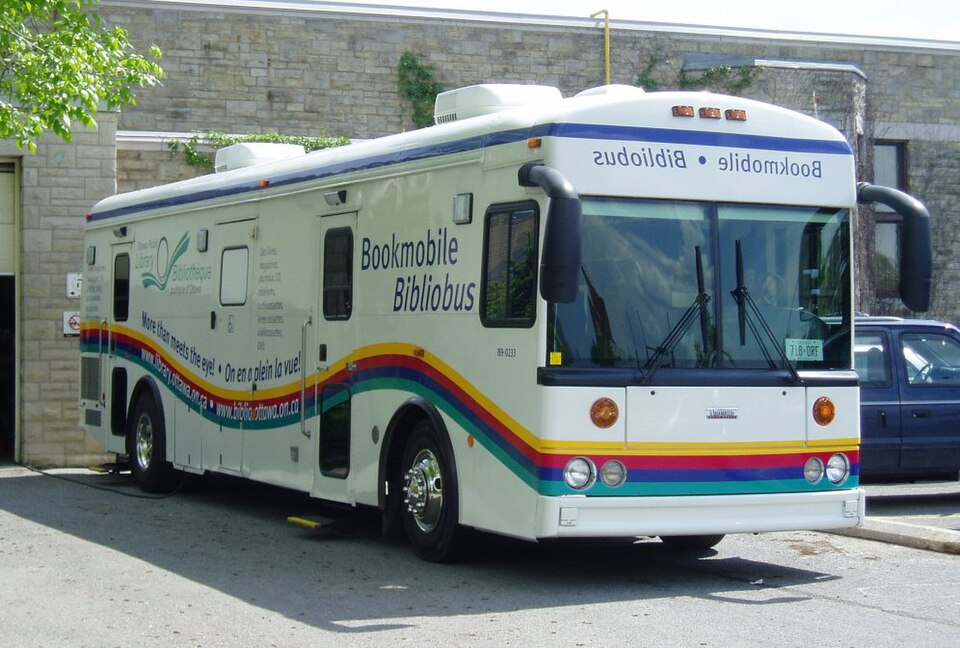

A bookmobile is a mobile library delivering books, periodicals, digital resources, and library services directly to underserved neighborhoods, rural areas, and community centers. Mounted on a heavy-duty diesel bus or large van chassis, the bookmobile combines shelving systems, climate control, and library circulation infrastructure into a self-contained traveling branch.

The foundation is a commercial bus chassis: a turbocharged 5.0–7.0 L diesel engine producing 200–250 hp, paired with an eight-speed automatic transmission with integral retarder for smooth deceleration on hills. The chassis uses air-spring suspension with automatic level control, allowing the body to remain level when parked on uneven ground—critical for preventing book damage due to shelf loading asymmetry. The 10 m long × 2.5 m wide steel-and-aluminum body is custom-built atop the chassis, reinforced with welded joists to support 5000–6000 books distributed across shelves (representing ~2.5 kg per running meter).

Interior climate control is essential for book preservation: a roof-mounted AC unit (25,000 BTU/h) maintains 20–24°C and a diesel furnace (40,000 BTU/h) heats during winter. A hygrometer with electronic controller triggers a dehumidifier when relative humidity exceeds 60%, protecting against mold and paper brittleness. The HVAC system uses return-air vents and distributed supply ducts, maintaining even temperature throughout the 25 m³ interior.

Shelving is organized by the Dewey Decimal system: juvenile fiction on accessible lower shelves (1.2 m tall unit), adult fiction in mid-height shelves, and reference/non-fiction in upper tiers. Adjustable steel shelving allows the library staff to rotate collections and respond to community demand. Two rolling book carts facilitate rapid restocking between stops.

The checkout counter features a librarian workstation with touchscreen library management software (Koha or Evergreen), wireless barcode scanner, and RFID security gate. The computer connects to the central library network via 4G LTE modem, allowing real-time patron lookup, checkout, and return management across all library branches.

A hydraulic scissor lift platform (0.8 m extension below the entry door) provides wheelchair and stroller access, rated for 200 kg capacity. The lift is powered by a 2 hp hydraulic pump driven from the engine's power-take-off (PTO) shaft, with proportioning valve allowing smooth, controlled raising and lowering.

A 15 kVA diesel generator supplies power to climate control, lighting, and circulation systems while parked. A 200 Ah lithium battery pack with pure-sine inverter provides uninterruptible power for the library management computer and RFID gate, preventing data loss if the generator fails or fuel is depleted mid-shift.

How it works

The bookmobile parks at a scheduled stop: a school, community center, or public plaza. The operator extends the hydraulic access lift platform by engaging the engine's PTO, driving the 2 hp hydraulic pump. Proportioning valves meter flow to double-acting cylinders (40 mm bore, 600 mm stroke) extending the lift over 8–10 seconds. Once lowered, the platform bridges the 0.8 m gap between ground and entry door, allowing wheelchair users and caregivers with strollers to access the interior.

Patrons enter and are greeted by library staff at the checkout counter. The librarian uses the barcode scanner to search the networked catalog for available titles, checks them against the shelving system, or suggests new acquisitions that will arrive next week. Patrons browse the Dewey Decimal sections: children's books at eye level, adult fiction in the middle, and reference materials above. The climate-controlled interior (20–24°C, 40–60% RH) is comfortable for extended browsing, preventing the moisture and temperature stress that would damage paper and binding.

At checkout, the librarian scans the patron's library card and each book's barcode, linking the circulation record to the patron account in the networked database. The RFID Security Gate at the exit detects RFID tags embedded in each book's spine, alerting the staff if an unscanned item passes through—a security measure preventing accidental loss.

The Climate Control System system operates continuously while patrons are onboard: the Thermostat maintains 22°C setpoint by controlling the Air Conditioning Unit and Furnace. A Hygrometer and Controller monitors ambient moisture; on hot, humid days, the Dehumidifier Unit operates to prevent mold growth on paper and bindings. Return-air vents near the ceiling pull moisture-laden air through a desiccant wheel or refrigerated coil, re-circulating dry air downward.

Interior lighting provides 500 lux on shelves and 1000 lux at the checkout counter, sufficient for comfortable reading and scanning operations. Six LED Panel Light (LED panels at 4000 K color temperature) distribute light evenly, reducing shadows that would discourage patrons from exploring upper shelves. Four LED Spotlight fixtures allow librarians to adjust illumination on display tables and current-events sections.

The generator idles at 1500 rpm while the bookmobile is parked, supplying 15 kVA three-phase AC to power the AC/furnace, lighting (approximately 3 kW combined), and circulation systems. The Lithium Battery Bank charges continuously from the generator, maintaining a 4-hour reserve for the computer and RFID gate if the generator must be shut down for fuel conservation. The LTE Modem operates on 4G LTE, uploading patron transactions and downloading updated catalog records nightly, keeping the bookmobile's system synchronized with the central library system.

Staff manages shelving throughout the day: returning books to Dewey sections, rotating high-demand titles to eye-level displays, and logging withdrawn items (damaged books, deselections) into the management system for removal. Rolling book carts hold up to 150 books per tier, allowing restocking to occur rapidly between stops.

At day's end, the Diesel Generator is shut down and the Chassis Auxiliary Battery (200 Ah 12 V) maintains the door locks and security lights. The Lithium Battery Bank retains a 4-hour charge, allowing staff to secure the circulation system and lock the entry before departure.

Operational constraints

Fuel consumption is significant: the diesel chassis engine burns 25–35 L/100 km at highway speeds, and the generator consumes 3–5 L/hour while parked under full load. A bookmobile with 50 L fuel tank supports an 8-hour operational day and 200 km round-trip travel between stops. Route planning is critical: fuel depots, generator service centers, and central library hubs must be within range to avoid stranding the vehicle.

Book organization requires disciplined curation: the Dewey system is non-negotiable for patron navigation, but adjustable shelving allows staff to allocate shelf space dynamically. High-demand sections (fiction, children's) occupy 60% of capacity; reference and non-fiction vary with community need. A bookmobile visiting a retirement community might emphasize large-print fiction and health/wellness titles; a school stop emphasizes STEM and age-appropriate juvenile fiction.

Climate control is non-negotiable: paper books swell and shrink with humidity change, causing spine stress and mold. A bookmobile that fails to maintain 40–60% RH will accumulate damaged books within months. Similarly, temperature fluctuations above 25°C degrade binding glues; a bookmobile left in direct sunlight without AC running will damage the entire collection.

Hydraulic lift maintenance is critical: the PTO-driven pump and proportioning valve must be serviced every 500 operating hours (approximately 6 months for a 3-day-per-week operation). A failed lift prevents wheelchair access, effectively barring disabled patrons from the vehicle—a legal liability and operational failure.

Market and variants

Urban bookmobiles operate on fixed routes and schedules, serving neighborhoods underserved by fixed branch libraries. Rural bookmobiles travel 50–100 km routes, stopping at small towns and remote settlements on a rotating calendar (e.g., first Tuesday, second Thursday). School district bookmobiles serve multiple schools within a district, focusing on curriculum-aligned collections and digital literacy tools.

Modern bookmobiles increasingly include digital resources: checkout stations for e-books, audiobooks, and digital databases. Some systems integrate tablet libraries and laptop lending to address digital divides in rural and low-income communities. A few experimental bookmobiles include makerspaces: craft tools, sewing machines, and 3D printers enabling hands-on STEAM learning.

International variants range from open-air carts (Kenya, India) with minimal climate control to sophisticated European models equipped with workshop facilities and community meeting spaces. The American Library Association maintains standards for bookmobile collection size (5000+ books), climate conditions (50–70°F, 40–60% RH), and accessibility (ADA-compliant lift, accessible checkout).
