Pressure Brake Bleeder Product
Overview
The pressure brake bleeder is a shop staple for brake system maintenance, enabling quick and complete removal of air from hydraulic brake lines. Air in the brake system reduces pedal firmness and stopping power; a single air bubble in the master cylinder can cause soft or spongy brake feel or brake failure. Traditional gravity bleeding (loosening a bleeder screw and waiting for fluid to drip out) is slow and often leaves residual air pockets. Pressure bleeding forces fresh brake fluid through the system at 15–30 psi, completely purging air and water-contaminated fluid in a fraction of the time.
The Pressure Storage Tank is filled with fresh brake fluid matching the vehicle specification (DOT 3, DOT 4, DOT 5, or DOT 5.1). A Pressurization Pump (electric compressor or manual hand pump) pressurizes the tank to 15–30 psi. Fresh fluid is routed through Master Cylinder Hose Adapter Set into the brake system's master cylinder reservoir. As new fluid enters, old fluid and air exit through wheel cylinder and caliper bleeder screws, flowing into a Waste Fluid Collection Bottle for monitoring and disposal.
How it Works
The technician first inspects the vehicle's brake fluid level and top condition. If the fluid is dark or contains sediment, a full system flush is appropriate; if fluid is relatively fresh but air is present (soft pedal), a partial bleed is sufficient. The Pressure Storage Tank is filled with fresh brake fluid (same specification as the vehicle requires) to about ¾ capacity.
The tank is then sealed and pressurized via the Pressurization Pump. The technician adjusts the Pressure Regulator Valve pressure setpoint to 20–25 psi (a typical midpoint; light pressure for ABS systems, higher pressure for non-ABS). The Pressure Gauge shows the rising tank pressure.
Once pressurized, the technician connects the Master Cylinder Hose Adapter Set to the brake system's master cylinder reservoir filler cap (or removes the cap and submerges the dip tube into the reservoir). Fresh fluid, now under pressure, begins flowing into the master cylinder. The technician then bleeds the wheel cylinders and brake calipers in a specific sequence (typically rear-right, rear-left, front-right, front-left, or per the vehicle's service manual).
At each wheel, the technician:

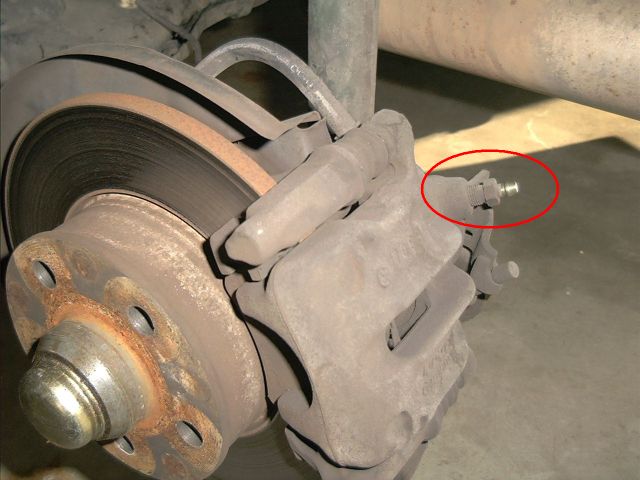

- Locates the bleeder screw (a small bolt on the caliper or wheel cylinder)
- Fits the appropriate Bleeder Valve Adapter Set adapter onto the screw
- Attaches the Bleeder Hose to the adapter
- Opens the bleeder screw 1–1.5 turns
Pressurized fluid from the tank flows through the brake lines into the wheel cylinder or caliper, pushing out old fluid and air into the catch bottle. The technician watches the fluid exiting: initially it may be dark brown or black (old, degraded fluid), then gradually becomes translucent and red/amber (fresh fluid). When clear fluid flows without air bubbles for 10–15 seconds, that wheel is bled. The technician closes the bleeder screw, removes the adapter, and moves to the next wheel.
This process repeats for all wheels. Total time is typically 20–30 minutes for a 4-wheel brake system, far faster than gravity bleeding, which can take 2+ hours and often leave air pockets.
Pressure Selection and System Type
Different brake systems require different pressure settings:
- Non-ABS drum/disc brake systems: 20–25 psi (standard, forgiving)
- ABS-equipped vehicles: 15–20 psi (ABS pump can be sensitive to excess pressure, preventing full evacuation)
- High-performance systems (racing, heavy-duty trucks): 25–30 psi (better evacuation of stubborn air)
The Pressure Regulator Valve allows adjustment for these scenarios. Many technicians start at 20 psi and increase if air remains after a full bleed cycle.
Fluid Analysis and Condition Assessment
The Waste Fluid Collection Bottle fluid provides visual feedback on system condition:
- Dark brown or black fluid: Aged or overheated brake fluid, common in vehicles with high brake usage (towing, mountain driving); full system flush is justified
- Clear red/amber fluid: Fresh or relatively recent fluid; a bleed-only service may suffice
- Cloudy or milky fluid: Water contamination (hygroscopic brake fluid absorbs moisture from air); full flush and fluid replacement recommended
- Metallic flakes or particles: Wear debris from pistons, seals, or brake pad material; indicates caliper or wheel cylinder degradation
The technician can compare the initial and final fluid colors to assess contamination severity and recommend service intervals.
Manual vs. Electric Pump Models
Electric pump models (Pump Motor/Handle) connect to 120V AC shop power and automatically maintain tank pressure, requiring minimal technician effort. Manual hand-pump models are fully portable and work anywhere, but require periodic lever operation to maintain pressure as fluid is expelled. Hand-pump models are popular for mobile service and roadside emergency use; electric models are preferred in high-volume shops where consistent, hands-free operation is valued.
Safety and Brake Fluid Hazards
Brake fluid (especially DOT 3/4 glycol-based fluids) is hygroscopic, absorbing water from air. Water lowers the fluid's boiling point, risking vapor lock and brake failure under severe conditions (mountain descents, towing). The Air Filter-Dryer desiccant cartridge removes moisture and oil vapor from the pressurizing air, but does not remove water already dissolved in the brake fluid itself. Periodic fluid replacement (every 2 years or per OEM interval) is necessary.
Brake fluid is also chemically aggressive, damaging paint and plastic. The Waste Fluid Collection Bottle and hoses should be inspected regularly for leaks. Old fluid should be disposed of as hazardous waste, not poured down drains.
Maintenance and Service Life
The Air Filter-Dryer is a consumable, requiring replacement every 100–200 operating hours or annually, whichever comes first. The Air Inlet Check Valve check valve can stick or crack over years; replacement is straightforward (unscrew the old valve, screw in a new one). The Master Cylinder Hose Adapter Set rubber cups degrade from extended brake fluid contact; replacement is inexpensive and recommended when cups become hard or cracked.
The Pressure Storage Tank ASME code tank is durable but should be inspected annually for rust or internal corrosion (inspect interior via the filler opening). If corrosion is evident, tank replacement is indicated to prevent contamination of fresh brake fluid.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
7 top-level lines · 25 rows shown · 26 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Pressure Storage Tank 3 parts | brake-bleeder-pressure-tank | 1× | 1 | 3 | assembly |
| 1.1 | Tank Shell | brake-bleeder-tank-shell | 1× | 1 | — | part |
| 1.2 | Air Inlet Check Valve | brake-bleeder-tank-air-valve | 1× | 1 | — | part |
| 1.3 | Fluid Outlet Assembly | brake-bleeder-tank-fluid-outlet | 1× | 1 | — | part |
| 2 | Pressurization Pump 3 parts | brake-bleeder-pump | 1× | 1 | 3 | assembly |
| 2.1 | Pump Motor/Handle | brake-bleeder-pump-motor | 1× | 1 | — | part |
| 2.2 | Pump Displacement Head | brake-bleeder-pump-head | 1× | 1 | — | part |
| 2.3 | Air Filter-Dryer | brake-bleeder-pump-filter | 1× | 1 | — | part |
| 3 | Pressure Regulator Valve 3 parts | brake-bleeder-regulator | 1× | 1 | 3 | assembly |
| 3.1 | Regulator Valve Body | brake-bleeder-regulator-valve | 1× | 1 | — | part |
| 3.2 | Regulator Adjustment Screw | brake-bleeder-regulator-adjustment | 1× | 1 | — | part |
| 3.3 | Gauge Port | brake-bleeder-regulator-gauge-port | 1× | 1 | — | part |
| 4 | Master Cylinder Hose Adapter Set 2 parts | brake-bleeder-hose-adapters | 1× | 1 | 3 | assembly |
| 4.1 | Universal Adapter Cup | brake-bleeder-adapter-universal | 2× | 2 | — | part |
| 4.2 | Supply Hose | brake-bleeder-adapter-hose | 1× | 1 | — | part |
| 5 | Waste Fluid Collection Bottle 3 parts | brake-bleeder-catch-bottle | 1× | 1 | 3 | assembly |
| 5.1 | Collection Container | brake-bleeder-catch-bottle-container | 1× | 1 | — | part |
| 5.2 | Bleeder Hose | brake-bleeder-catch-bottle-hose | 1× | 1 | — | part |
| 5.3 | Bottle Drain Valve | brake-bleeder-catch-bottle-drain | 1× | 1 | — | part |
| 6 | Bleeder Valve Adapter Set 2 parts | brake-bleeder-bleed-kit | 1× | 1 | 9 | assembly |
| 6.1 | Bleeder Valve Adapter | brake-bleeder-valve-adapter | 8× | 8 | — | part |
| 6.2 | Bleeder Screw Dust Cap | brake-bleeder-valve-plug | 1× | 1 | — | part |
| 7 | Pressure Gauge 2 parts | brake-bleeder-pressure-gauge | 1× | 1 | 2 | assembly |
| 7.1 | Pressure Gauge Face | brake-bleeder-gauge-dial | 1× | 1 | — | part |
| 7.2 | Gauge Port Adapter | brake-bleeder-gauge-mount | 1× | 1 | — | part |
