Angle Grinder Product

Sourcing — likely vendors

Real suppliers (🇮🇳 🇸🇬 🇨🇳); price, MOQ & lead time are estimates
VendorHQSpecialtyEst. unit priceMOQLead time
🇨🇳Foxconn
foxconn.com ↗ 		Shenzhen, CN Electronics contract mfg $76 1,000 pcs 6–10 wks
🇸🇬Flex (Singapore)
flex.com ↗ 		Singapore Electronics contract mfg $85 1,000 pcs 6–10 wks
🇮🇳Dixon Technologies
dixoninfo.com ↗ 		Noida, IN Electronics contract mfg $91 1,000 pcs 6–10 wks
🇨🇳BYD Electronics
bydelectronic.com ↗ 		Shenzhen, CN Electronics contract mfg $83 1,000 pcs 6–10 wks
🇸🇬Venture Corp
venture.com.sg ↗ 		Singapore Electronics contract mfg $86 1,000 pcs 6–10 wks

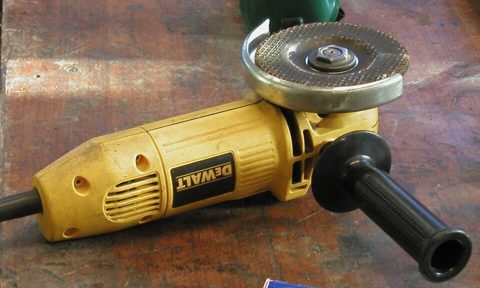

A corded brushless angle grinder with a spiral-bevel head and adjustable guard. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.

Build & assembly graph

expand / collapse · shared sub-assemblies converge · links to related products · est. labour
product / assembly shared across products atomic part related product

Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.

Bill of materials

10 top-level lines · 48 rows shown · 65 parts total · indented to 3 levels
# Item / sub-assembly Part no. Qty/assy Ext. qty Parts Type
1 Housing Assembly 5 parts angle-grinder-housing 1× 1 5 assembly
1.1 Motor Housing motor-housing 1× 1 — part
1.2 Gear Case angle-grinder-gear-case 1× 1 — part
1.3 Rear Grip angle-grinder-rear-grip 1× 1 — part
1.4 Air Vent Ports angle-grinder-air-vents 1× 1 — part
1.5 Fastener Set fastener-set 1× 1 — part
2 Brushless Motor 6 parts angle-grinder-motor 1× 1 29 assembly
2.1 Stator Assembly 3 parts stator-assembly 1× 1 3 assembly
2.1.1 Stator Core (laminations) stator-core 1× 1 — part
2.1.2 Copper Winding copper-winding 1× 1 — part
2.1.3 Slot Insulation stator-insulation 1× 1 — part
2.2 Copper Winding copper-winding 3× 3 — part
2.3 Rotor Assembly 4 parts rotor-assembly 1× 1 19 assembly
2.3.1 Rotor Shaft rotor-shaft 1× 1 — part
2.3.2 Rotor Core rotor-core 1× 1 — part
2.3.3 Neodymium Magnet neodymium-magnet 16× 16 — part
2.3.4 Ball Bearing ball-bearing 1× 1 — part
2.4 Ball Bearing ball-bearing 2× 2 — part
2.5 Cooling Fan angle-grinder-cooling-fan 1× 1 — part
2.6 Hall Sensor Board angle-grinder-hall-sensor 1× 1 — part
3 Gear Head Assembly 5 parts angle-grinder-gear-head 1× 1 6 assembly
3.1 Helical Gear Pair gear-pair 1× 1 — part
3.2 Output Spindle angle-grinder-spindle 1× 1 — part
3.3 Spindle Lock angle-grinder-spindle-lock 1× 1 — part
3.4 Ball Bearing ball-bearing 2× 2 — part
3.5 Gear Grease angle-grinder-gear-grease 1× 1 — part
4 Spindle Output Interface 2 parts angle-grinder-spindle-output 1× 1 2 assembly
4.1 Inner Backing Flange angle-grinder-inner-flange 1× 1 — part
4.2 Outer Flange Nut angle-grinder-outer-flange-nut 1× 1 — part
5 Wheel Guard 2 parts angle-grinder-wheel-guard 1× 1 2 assembly
5.1 Guard Shell angle-grinder-guard-shell 1× 1 — part
5.2 Guard Clamp Collar angle-grinder-guard-clamp 1× 1 — part
6 Grinding Wheel angle-grinder-grinding-wheel 1× 1 — part
7 Side Handle angle-grinder-side-handle 1× 1 — part
8 On/Off Slide Switch 2 parts angle-grinder-switch 1× 1 2 assembly
8.1 Switch Body angle-grinder-switch-body 1× 1 — part
8.2 Switch Contact Set angle-grinder-switch-contacts 1× 1 — part
9 Control Electronics 7 parts angle-grinder-electronics 1× 1 15 assembly
9.1 Bare PCB pcb-bare 1× 1 — part
9.2 Microcontroller mcu 1× 1 — part
9.3 Power MOSFET mosfet 6× 6 — part
9.4 Current Shunt angle-grinder-shunt-resistor 1× 1 — part
9.5 Soft-Start Module angle-grinder-soft-start 1× 1 — part
9.6 Connector connector 4× 4 — part
9.7 Wire Bundle wire-bundle 1× 1 — part
10 Power Cord Assembly 2 parts angle-grinder-power-cord 1× 1 2 assembly
10.1 Mains Cord angle-grinder-cord 1× 1 — part
10.2 Strain Relief Grommet angle-grinder-strain-relief 1× 1 — part
