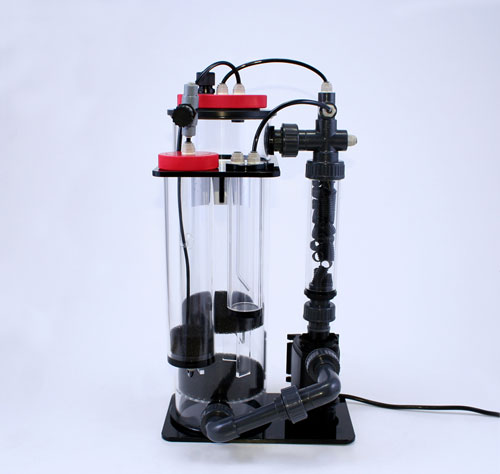

Calcium Reactor Product

Overview

A Calcium Reactor is a specialized chemical dosing system that dissolves solid calcium carbonate media (aragonite or limestone chips) in seawater via CO₂ injection, producing a calcium and alkalinity-rich solution that is dosed into the aquarium. The reactor addresses two critical needs in reef aquariums: maintaining bioavailable calcium (Ca²⁺) for coral skeleton growth, and replenishing alkalinity (dKH) consumed by calcification and respiration.

Unlike liquid calcium supplements (which increase total dissolved solids without proportional alkalinity) or calcium hydroxide (which is pH-sensitive and labor-intensive), the Calcium Reactor produces a balanced 1:1 calcium-to-alkalinity addition that mimics natural seawater chemistry. Modern reef tanks with high coral density demand 50–200 mg/L daily calcium input; a properly tuned Calcium Reactor delivers this automatically with minimal daily adjustment.

The core innovation is the use of CO₂ Injection Assembly: pressurized CO₂ gas is dissolved into the water within the Media Chamber, forming carbonic acid (H₂CO₃). This weak acid lowers pH within the reactor chamber to 6.2–7.0, dissolving the solid calcium carbonate media (CaCO₃) into bicarbonate (HCO₃⁻) and calcium (Ca²⁺) ions. The pH Probe Monitoring Interface enables automated Solenoid Valve (Optional) control, maintaining a target pH by varying CO₂ bubble rate.

Calcium Carbonate Dissolution Mechanism

The chemistry of calcium carbonate dissolution is straightforward. In neutral or alkaline water, CaCO₃ is poorly soluble (Ksp ≈ 3.4 × 10⁻⁹). However, in acidic conditions produced by dissolved CO₂:

CaCO₃ + H₂CO₃ → Ca²⁺ + 2 HCO₃⁻

The carbonic acid provides H⁺ ions that convert solid carbonate into soluble bicarbonate and calcium. The Media Chamber maintains a low pH (6.2–7.0) where dissolution is rapid; when the calcium-rich effluent exits the reactor and enters the main tank (pH 8.0–8.4), the bicarbonate re-equilibrates and contributes both alkalinity and carbonate ion (CO₃²⁻), which combines with calcium to form new CaCO₃ on coral skeletons.

The reaction rate depends on:

1. CO₂ bubble rate (0.5–5 bubbles/second): More CO₂ lowers pH faster, increasing dissolution rate
2. Media residence time (30–120 minutes as water circulates through Media Recirculation Pump): Longer residence allows more complete dissolution
3. Media particle size (2–10 mm chips): Smaller particles dissolve faster but clog more easily; larger chips are stable but dissolution is slower
4. Effluent flow rate (0.5–5 L/day): Faster flow through the reactor prevents pH from dropping too low and avoids excessive CO₂ waste

System Operation

Water enters the Media Chamber via gravity or from the sump pump at the chamber base. The Media Recirculation Pump circulates water through the media bed at 100–500 LPH, maintaining intimate contact between water and aragon chips. Simultaneously, CO₂ gas (from a pressurized CO₂ Bottle) is injected via a CO₂ Diffuser at the chamber bottom, where it dissolves, forming carbonic acid and lowering pH.

As pH drops, aragonite dissolves. The pH Probe Electrode (optional, for automated systems) continuously measures chamber pH. When pH falls below a target threshold (e.g., 6.5), the pH Monitor Board triggers the Solenoid Valve (Optional), cutting off CO₂ flow. As pH rises due to water circulation and bicarbonate accumulation, the solenoid opens again, resuming CO₂ injection. This feedback loop maintains stable pH in the 6.2–7.0 range.

Calcium-rich effluent exits the Media Chamber through an Inlet Screen Filter, which prevents aragonite particles and sediment from exiting with the product water. The Effluent Flow Control Valve (a fine Needle Valve) meters output at a slow, steady rate (0.5–5 L/day for typical reef tanks) into the main aquarium or sump. This low flow prevents sudden pH or calcium spikes.

Manual vs. Automated Control

Simple manual systems rely on the Bubble Counter: the operator adjusts CO₂ flow to 1–3 bubbles/second by observing bubble rise rate. At a target chamber pH of 6.5–6.8 (measured via a portable handheld meter), dissolution equilibrates; the operator then increases the Effluent Flow Control Valve opening until daily calcium supplementation matches bioload demand.

Automated systems add the pH Probe Monitoring Interface, allowing the pH Monitor Board to maintain constant pH without operator intervention. The Solenoid Valve (Optional) solenoid-switches CO₂ on/off every 5–30 seconds, maintaining chamber pH within ±0.2 °C of setpoint. This is the preferred setup for heavily planted or high-bioload systems where consistent supplementation is critical.

Media and Maintenance

The Media Chamber is filled with aragonite chips (crushed skeletons of dead corals or marine snails) or limestone (geological CaCO₃). Both dissolve identically; aragonite is preferred because it's more bioavailable to corals (more structurally similar to their existing skeletons).

Media gradually depletes as it dissolves. Operators monitor Bottom Drain Valve sediment accumulation (fine CaCO₃ dust) and drain sediment every 2–4 weeks. When reactor output drops despite correct pH and flow adjustment, media is exhausted and must be replaced (6–12 month intervals depending on bioload and effluent rate).

During media changes, the chamber is drained, old media is discarded, and new aragonite chips are rinsed and refilled. Startup typically requires 4–8 hours to re-equilibrate and begin producing stable effluent.

Calcium Chemistry in the Tank

The Calcium Reactor produces effluent with approximately 1500–2000 ppm calcium and 8–12 dKH alkalinity. When dosed into a reef tank, this replenishes calcium consumed by coral skeleton growth (roughly 100–150 mg Ca per 1 kg coral growth annually) and alkalinity consumed by calcification (1 dKH per 50 ppm Ca added).

Reef tanks without calcium supplementation develop a calcium depletion spiral: low calcium slows skeleton growth, alkalinity drops as organisms continue respiring and producing CO₂, pH drifts downward, and the system eventually crashes. The Calcium Reactor, by continuously delivering bioavailable calcium and alkalinity, prevents this decline and maintains stable long-term reef health.

Troubleshooting

Common issues include:

• Low or no effluent output: Check Media Chamber is not clogged with sediment; drain via Bottom Drain Valve. Verify Media Recirculation Pump is running and chamber is receiving inlet water.
• pH inside reactor not dropping below 7.0: CO₂ bottle may be empty or regulator pressure too low. Check CO₂ Regulator reading (should be 10–30 psi); refill CO₂ bottle if gauge shows zero.
• Excessive sediment and turbidity in effluent: Media particles too fine; upgrade to larger 5–10 mm chips. Check Inlet Screen Filter is not clogged.
• Solenoid valve sticking: Manual Needle Valve on effluent line can isolate reactor for cleaning. Mineral deposits build up on solenoid plunger in hard-water systems; soak and rinse in distilled water.
• Rapid media depletion: Confirm pH Probe Electrode is calibrated correctly; over-acidification (pH <6.0) causes runaway dissolution. Test probe against pH buffers.
