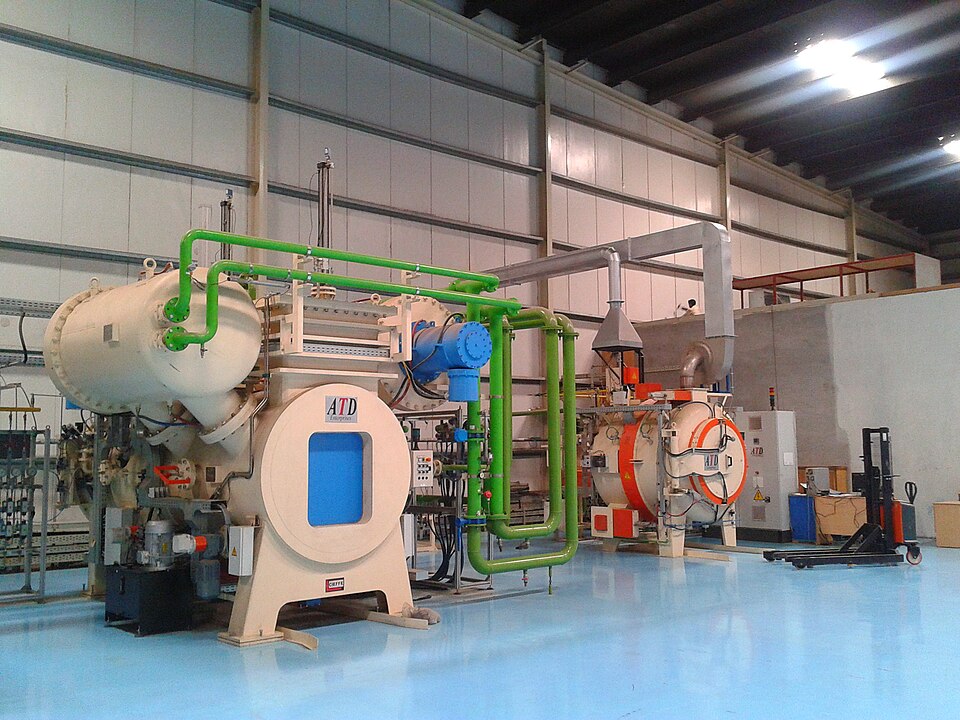

Carburizing Furnace Product
Overview
A carburizing furnace is a specialized heat-treatment vessel designed to enrich the carbon content of low-carbon or medium-carbon steel surfaces through controlled atmosphere heating. The process—carburizing—allows manufacturers to produce components with hard, wear-resistant surfaces (50–65 HRC) while maintaining tough, ductile cores (30–45 HRC), ideal for gears, bearings, and high-stress parts.
Carburizing works by maintaining a furnace atmosphere rich in carbon monoxide (CO) at 850–950 °C. Carbon atoms from CO dissociate at the hot steel surface and diffuse into the metal lattice. The deeper and longer the part soaks, the greater the carbon penetration (case depth). By controlling the atmosphere composition (via an oxygen probe measuring carbon potential), the operator achieves precise, repeatable case depths.
Unlike hardening (which only locks in existing carbon), carburizing adds carbon to the surface layer, enabling even mild steels to achieve high surface hardness. This makes carburizing particularly valuable for large, complex forgings or castings where the core must remain tough to avoid brittle failure.
How it works
Low-carbon steel parts (typically 0.15–0.25 % carbon) are cleaned of scale and oil, then loaded into the sealed furnace chamber on stainless steel trays. The furnace door is sealed with a graphite gasket and clamped tight, ensuring an airtight chamber.
Heating begins. Electric resistance elements or a gas burner inside a ceramic muffle gradually raise the chamber temperature to the setpoint (typically 900–930 °C for automotive gears). A thermocouple in the chamber provides feedback to the PID temperature controller, which adjusts heating power to maintain the setpoint, typically within ±5 °C.
Simultaneously, carburizing gas is introduced into the chamber. This gas is generated by an external endothermic generator (a burner that converts natural gas and air to a CO/N₂ mixture) or supplied from a bottled or stored supply. The gas flows through the furnace at a controlled rate (3–8 m³/h typical), filling the chamber and creating an oxygen-depleted, carbon-rich atmosphere.
An oxygen probe in the furnace measures the oxygen partial pressure of the atmosphere. The probe signal is converted to carbon potential (Pc)—a quantitative measure of the carbon activity available to the steel surface. By Sieverts' law and established phase diagrams, a specific carbon potential at a given temperature corresponds to an equilibrium carbon content at the steel surface. For most gear carburizing, the target carbon potential is 0.8–1.1 % carbon.
The furnace operator or control system adjusts the gas supply rate to maintain the target carbon potential. If the actual carbon potential drifts low (not enough CO), the endothermic generator fuel rate increases. If it drifts high (excess CO), the fuel rate decreases. This closed-loop feedback maintains carbon potential ±0.05 % across the soak.
As the part surface reaches 900–930 °C and is exposed to the carburizing atmosphere, carbon diffuses inward. The diffusion rate follows a parabolic law: case depth is proportional to the square root of time. For example, to achieve 0.5 mm case depth might take 2–3 hours; 1.5 mm might take 6–8 hours.
Once the desired case depth is achieved (confirmed by time calculation or by a witness coupon—a sample part of identical chemistry removed partway through carburizing for hardness checks), the atmosphere is switched to a non-carburizing neutral gas (nitrogen or endothermic gas with no CO). This stops further carbon pickup. The parts are then transferred to a quenching vestibule (an adjacent sealed chamber) where they are rapidly quenched in oil or polymer.
The quench cools the case below 300 °C within seconds, transforming austenite (the high-temperature phase containing dissolved carbon) to martensite (a hard phase). The hardness depends on case carbon content and cooling rate; typical case hardness is 55–65 HRC.
After quenching, parts are transferred to a cooldown area where they air-cool to ambient or are tempered (reheated to 150–200 °C) to relieve quenching stresses. Final hardness is typically 50–60 HRC at the surface, falling to 35–45 HRC at the core-case boundary and core.
Carburizing Methods
Pack carburizing (traditional, now rare): Parts are buried in a carbon-rich powder (charcoal + catalyst) in sealed boxes. Slow and uneven, but requires no equipment beyond a furnace.
Liquid carburizing (salt bath): Parts are immersed in molten salts containing cyanide compounds. Rapid and uniform, but toxic and hazardous.
Gas carburizing (modern standard): Parts are exposed to CO-rich gas atmosphere. Clean, repeatable, and fully automatable. Nearly all industrial carburizing today is gas carburizing.
Endothermic Gas Generation
The endothermic generator is a small burner outside the furnace, where natural gas and compressed air (in a 1:2 ratio) are partially burned. The exothermic combustion is controlled so that the products (CO, H₂, N₂) emerge at 700 °C, ideally with no CO₂ or excess O₂. This endothermic reaction (cooling dominates) is why it is called endothermic—energy is absorbed to create the mixture.
The gas then flows through a heated pipe to the furnace, preventing moisture condensation. Inside the furnace, at 900 °C, the CO oxidizes the steel surface in preference to oxygen from air, creating the carbon-rich environment.
Some shops use bottled carburizing gas (methane or other hydrocarbons) instead of endothermic generators, eliminating the external generator equipment but increasing gas costs.
Carbon Potential and Microstructure
The relationship between carbon potential, temperature, and equilibrium carbon content at the steel surface is governed by thermodynamics. A carbon potential of 1.0 % at 900 °C means the surface carbon will equilibrate to 1.0 %. If the base steel is 0.15 % carbon, a steep carbon gradient forms: high at the surface, falling gradually to 0.15 % at the core.
After quenching, this carbon gradient translates to a hardness gradient. Surface hardness is a function of carbon content (and cooling rate): a 1.0 % carbon surface quenches to 60–65 HRC. At a depth of 0.5 mm (perhaps 0.5 % carbon), hardness drops to 50–55 HRC. At the core (0.15 % carbon), hardness is 30–40 HRC.
This gradient is desirable: it provides a hard, wear-resistant surface backed by a ductile, shock-resistant core, maximizing fatigue strength and impact resistance.
Case Depth Control
Case depth is controlled by carburizing time and surface carbon potential. Using diffusion equations (e.g., the Jominy calculation), the furnace operator pre-calculates the required soak time for a target case depth.
For precision, a witness coupon (small sample of identical steel) is carburized alongside the batch. At intervals (2 hours, 4 hours, 6 hours), a coupon is withdrawn, quenched, cross-sectioned, and microstructurally examined or hardness-measured. Once the desired case depth is confirmed in the coupon, the main load is quenched.
Modern furnaces with oxygen probes and programmable controllers can achieve case depth repeatability of ±0.05 mm, enabling downstream finishing (e.g., grinding) with minimal material loss.
Quenching Integration
Early carburizing furnaces cooled parts in external quench tanks, losing heat during transfer (1–2 minutes). Modern furnaces integrate a quench vestibule—a small sealed chamber connected by a quick-opening door. At the end of the carburizing soak, the door opens briefly, parts are transferred to the vestibule, the door closes, and quench oil floods the vestibule, quenching all parts simultaneously at full temperature. This eliminates cooling loss and ensures uniform hardness.
Some advanced furnaces use gas quenching (pressurized helium or nitrogen) instead of oil, eliminating scale and surface contamination, though at higher cost.
Atmosphere Analysis and Control
Beyond oxygen probes, some furnaces use infrared gas analysis (IRGA) to directly measure CO, CO₂, and CH₄ percentages. This provides an additional verification layer, ensuring the atmosphere is as intended. If CO is too low or CO₂ too high (indicating oxidizing conditions), the endogenic generator is adjusted until the atmosphere meets specification.
A robust carburizing operation performs daily or weekly gas analysis to detect analyzer drift and ensure accuracy.
Environmental and Health Safety
Carbon monoxide is toxic; furnace operators and facility air must be monitored. Most facilities locate carburizing furnaces in dedicated, well-ventilated areas with roof exhaust fans pulling CO-rich exhaust away from workers. CO detectors (catalytic sensors with alarm setpoints at 100 ppm) are mandatory near carburizing areas. Proper ventilation design is critical for worker safety and legal compliance (OSHA 8-hour TWA limit is 50 ppm).
Used quench oil disposal and atmospheric emissions from furnace exhaust are subject to environmental regulations. Some facilities install regenerative thermal oxidizers (RTOs) to combust residual CO and hydrocarbons, producing harmless CO₂ and water vapor.
Process Consistency and Quality
Carburizing is one of the most repeatable heat-treatment processes when properly controlled. Case depth variance of ±0.1 mm and hardness variance of ±2 HRC are routinely achieved with feedback control systems.
Critical parts (automotive gears, bearings) are 100 % hardness-tested using portable hardness testers or automated systems. Periodic cross-sectional case depth audits (metallographic measurement) confirm that the process is delivering the designed gradient.
Traceability records (time-temperature profiles, carbon potential setpoints, quench time, hardness readings) are retained for 5–10 years per customer specifications, enabling root-cause analysis if parts fail in service.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
8 top-level lines · 39 rows shown · 36 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Furnace Chamber 5 parts | carburizing-furnace-chamber | 1× | 1 | 5 | assembly |
| 1.1 | Outer Steel Shell | carburizing-furnace-outer-shell | 1× | 1 | — | part |
| 1.2 | Muffle Tube | carburizing-furnace-muffle | 1× | 1 | — | part |
| 1.3 | Refractory Insulation | carburizing-furnace-refractory | 1× | 1 | — | part |
| 1.4 | Door Seal Assembly | carburizing-furnace-door-seal | 1× | 1 | — | part |
| 1.5 | Hearth Support Plates | carburizing-furnace-hearth-plates | 1× | 1 | — | part |
| 2 | Heating System 4 parts | carburizing-furnace-heating-system | 1× | 1 | 4 | assembly |
| 2.1 | Heating Elements | carburizing-furnace-heating-elements | 1× | 1 | — | part |
| 2.2 | Element Support | carburizing-furnace-element-holders | 1× | 1 | — | part |
| 2.3 | Thermocouple Sensor | carburizing-furnace-thermocouple | 1× | 1 | — | part |
| 2.4 | Temperature Controller | carburizing-furnace-pid-controller | 1× | 1 | — | part |
| 3 | Carburizing Gas System 4 parts | carburizing-furnace-gas-system | 1× | 1 | 4 | assembly |
| 3.1 | Endothermic Generator | carburizing-furnace-endothermic-gen | 1× | 1 | — | part |
| 3.2 | Gas Supply Piping | carburizing-furnace-gas-supply-line | 1× | 1 | — | part |
| 3.3 | Gas Flow Meter | carburizing-furnace-gas-flow-meter | 1× | 1 | — | part |
| 3.4 | Furnace Pressure Regulator | carburizing-furnace-pressure-regulator | 1× | 1 | — | part |
| 4 | Quench Vestibule 4 parts | carburizing-furnace-quench-vestibule | 1× | 1 | 5 | assembly |
| 4.1 | Vestibule Chamber | carburizing-furnace-vestibule-chamber | 1× | 1 | — | part |
| 4.2 | Transfer Door | carburizing-furnace-transfer-door | 1× | 1 | — | part |
| 4.3 | Quench Oil Pump | carburizing-furnace-quench-pump | 1× | 1 | — | part |
| 4.4 | Vestibule Quench Nozzles | carburizing-furnace-quench-nozzles | 2× | 2 | — | part |
| 5 | Multi-Zone Temperature Control 3 parts | carburizing-furnace-temperature-control | 1× | 1 | 7 | assembly |
| 5.1 | Zone Thermocouples | carburizing-furnace-thermocouples | 4× | 4 | — | part |
| 5.2 | Zone Controllers | carburizing-furnace-zone-controllers | 2× | 2 | — | part |
| 5.3 | Multi-Zone Display | carburizing-furnace-temperature-display | 1× | 1 | — | part |
| 6 | Carbon Potential Control 3 parts | carburizing-furnace-carbon-potential | 1× | 1 | 3 | assembly |
| 6.1 | Oxygen Probe | carburizing-furnace-oxygen-probe | 1× | 1 | — | part |
| 6.2 | Probe Analysis Unit | carburizing-furnace-probe-controller | 1× | 1 | — | part |
| 6.3 | Gas Sample Pump | carburizing-furnace-gas-sample-pump | 1× | 1 | — | part |
| 7 | Furnace Cooling System 4 parts | carburizing-furnace-cooling-system | 1× | 1 | 4 | assembly |
| 7.1 | Cooling Water Jacket | carburizing-furnace-water-jacket | 1× | 1 | — | part |
| 7.2 | Jacket Circulation Pump | carburizing-furnace-circulating-pump | 1× | 1 | — | part |
| 7.3 | Jacket Cooler | carburizing-furnace-cooler | 1× | 1 | — | part |
| 7.4 | Jacket Thermostatic Valve | carburizing-furnace-temperature-valve | 1× | 1 | — | part |
| 8 | Safety and Interlocks 4 parts | carburizing-furnace-safety-system | 1× | 1 | 4 | assembly |
| 8.1 | Carbon Monoxide Detector | carburizing-furnace-co-detector | 1× | 1 | — | part |
| 8.2 | Pressure Relief Valve | carburizing-furnace-pressure-relief | 1× | 1 | — | part |
| 8.3 | E-Stop Button | carburizing-furnace-estop-button | 1× | 1 | — | part |
| 8.4 | Safety Relay Module | carburizing-furnace-safety-relay | 1× | 1 | — | part |
