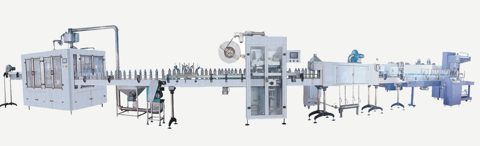

An inline rotary bottle filling and end-of-line packaging line. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
12 top-level lines · 110 rows shown · 1,443 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Infeed Conveyor 5 parts | packaging-filling-line-infeed-conveyor | 1× | 1 | 34 | assembly |
| 1.1 | Conveyor Frame | packaging-filling-line-conveyor-frame | 1× | 1 | — | part |
| 1.2 | Tabletop Chain | packaging-filling-line-tabletop-chain | 1× | 1 | — | part |
| 1.3 | Gearmotor 4 parts | packaging-filling-line-gearmotor | 1× | 1 | 28 | assembly |
| 1.3.1 | Servo Motor 4 parts + deeper › | servo-motor | 1× | 1 | 24 | assembly |
| 1.3.2 | Helical Gear Pair | gear-pair | 1× | 1 | — | part |
| 1.3.3 | Gearbox Housing | gearbox-housing | 1× | 1 | — | part |
| 1.3.4 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 1.4 | Bottle Guide Rail | packaging-filling-line-guide-rail | 2× | 2 | — | part |
| 1.5 | Limit Switch | limit-switch | 2× | 2 | — | part |
| 2 | Unscrambler & Rinser 5 parts | packaging-filling-line-unscrambler | 1× | 1 | 50 | assembly |
| 2.1 | Rotary Sorter Bowl | packaging-filling-line-rotary-sorter-bowl | 1× | 1 | — | part |
| 2.2 | Rinse Manifold | packaging-filling-line-rinse-manifold | 1× | 1 | — | part |
| 2.3 | Rinse Nozzle | packaging-filling-line-rinse-nozzle | 12× | 12 | — | part |
| 2.4 | Servo Motor 4 parts | servo-motor | 1× | 1 | 24 | assembly |
| 2.4.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 2.4.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 2.4.3 | Encoder | encoder | 1× | 1 | — | part |
| 2.4.4 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 2.5 | Bottle Gripper | packaging-filling-line-gripper | 12× | 12 | — | part |
| 3 | Filler Station 6 parts | packaging-filling-line-filler | 1× | 1 | 123 | assembly |
| 3.1 | Filling Valve 3 parts | packaging-filling-line-filling-valve | 16× | 16 | 4 | assembly |
| 3.1.1 | Anti-Drip Fill Nozzle | packaging-filling-line-fill-nozzle | 1× | 16 | — | part |
| 3.1.2 | Pneumatic Cylinder | pneumatic-cylinder | 1× | 16 | — | part |
| 3.1.3 | O-Ring Set | oring-set | 2× | 32 | — | part |
| 3.2 | Piston Doser | packaging-filling-line-piston-doser | 16× | 16 | — | part |
| 3.3 | Fill Manifold | packaging-filling-line-fill-manifold | 1× | 1 | — | part |
| 3.4 | Fill Level Sensor | packaging-filling-line-level-sensor | 16× | 16 | — | part |
| 3.5 | Servo Motor 4 parts | servo-motor | 1× | 1 | 24 | assembly |
| 3.5.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 3.5.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 3.5.3 | Encoder | encoder | 1× | 1 | — | part |
| 3.5.4 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 3.6 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 4 | Capper Station 4 parts | packaging-filling-line-capper | 1× | 1 | 10 | assembly |
| 4.1 | Cap Sorter Bowl | packaging-filling-line-cap-sorter-bowl | 1× | 1 | — | part |
| 4.2 | Cap Chute | packaging-filling-line-cap-chute | 1× | 1 | — | part |
| 4.3 | Capping Head | packaging-filling-line-capping-head | 4× | 4 | — | part |
| 4.4 | Torque Motor | packaging-filling-line-torque-motor | 4× | 4 | — | part |
| 5 | Labeler Station 5 parts | packaging-filling-line-labeler | 1× | 1 | 28 | assembly |
| 5.1 | Label Reel Holder | packaging-filling-line-label-reel-holder | 1× | 1 | — | part |
| 5.2 | Label Applicator | packaging-filling-line-label-applicator | 1× | 1 | — | part |
| 5.3 | Thermal Print Head | packaging-filling-line-print-head | 1× | 1 | — | part |
| 5.4 | Label Gap Sensor | packaging-filling-line-label-sensor | 1× | 1 | — | part |
| 5.5 | Servo Motor 4 parts | servo-motor | 1× | 1 | 24 | assembly |
| 5.5.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 1 | 3 | assembly |
| 5.5.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 1 | 19 | assembly |
| 5.5.3 | Encoder | encoder | 1× | 1 | — | part |
| 5.5.4 | Motor Housing | motor-housing | 1× | 1 | — | part |
| 6 | Case Packer 4 parts | packaging-filling-line-case-packer | 1× | 1 | 358 | assembly |
| 6.1 | Pick & Place Robot 4 parts | packaging-filling-line-pick-place-robot | 1× | 1 | 354 | assembly |
| 6.1.1 | Robot Arm Link | packaging-filling-line-robot-arm | 3× | 3 | — | part |
| 6.1.2 | Servo Motor 4 parts + deeper › | servo-motor | 3× | 3 | 24 | assembly |
| 6.1.3 | Servo Drive 4 parts + deeper › | servo-drive | 3× | 3 | 91 | assembly |
| 6.1.4 | Ball Bearing | ball-bearing | 6× | 6 | — | part |
| 6.2 | Carton Magazine | packaging-filling-line-carton-magazine | 1× | 1 | — | part |
| 6.3 | Vacuum Gripper | packaging-filling-line-vacuum-gripper | 1× | 1 | — | part |
| 6.4 | Pneumatic Cylinder | pneumatic-cylinder | 2× | 2 | — | part |
| 7 | Shrink Wrapper 3 parts | packaging-filling-line-shrink-wrapper | 1× | 1 | 20 | assembly |
| 7.1 | Film Reel Holder | packaging-filling-line-film-reel-holder | 1× | 1 | — | part |
| 7.2 | Sealing Bar 2 parts | packaging-filling-line-sealing-bar | 1× | 1 | 2 | assembly |
| 7.2.1 | Heating Element | heating-element | 1× | 1 | — | part |
| 7.2.2 | Pneumatic Cylinder | pneumatic-cylinder | 1× | 1 | — | part |
| 7.3 | Shrink Heat Tunnel 4 parts | packaging-filling-line-heat-tunnel | 1× | 1 | 17 | assembly |
| 7.3.1 | Heating Element | heating-element | 6× | 6 | — | part |
| 7.3.2 | Circulation Fan | packaging-filling-line-circulation-fan | 2× | 2 | — | part |
| 7.3.3 | Tabletop Chain | packaging-filling-line-tabletop-chain | 1× | 1 | — | part |
| 7.3.4 | Sheet Metal Panel | sheet-panel | 8× | 8 | — | part |
| 8 | Transfer Conveyor 4 parts | packaging-filling-line-transfer-conveyor | 4× | 4 | 32 | assembly |
| 8.1 | Conveyor Frame | packaging-filling-line-conveyor-frame | 1× | 4 | — | part |
| 8.2 | Tabletop Chain | packaging-filling-line-tabletop-chain | 1× | 4 | — | part |
| 8.3 | Gearmotor 4 parts | packaging-filling-line-gearmotor | 1× | 4 | 28 | assembly |
| 8.3.1 | Servo Motor 4 parts + deeper › | servo-motor | 1× | 4 | 24 | assembly |
| 8.3.2 | Helical Gear Pair | gear-pair | 1× | 4 | — | part |
| 8.3.3 | Gearbox Housing | gearbox-housing | 1× | 4 | — | part |
| 8.3.4 | Ball Bearing | ball-bearing | 2× | 8 | — | part |
| 8.4 | Bottle Guide Rail | packaging-filling-line-guide-rail | 2× | 8 | — | part |
| 9 | Reject Station 4 parts | packaging-filling-line-reject-station | 1× | 1 | 5 | assembly |
| 9.1 | Inspection Sensor | packaging-filling-line-inspection-sensor | 2× | 2 | — | part |
| 9.2 | Pneumatic Cylinder | pneumatic-cylinder | 1× | 1 | — | part |
| 9.3 | Reject Bin | packaging-filling-line-reject-bin | 1× | 1 | — | part |
| 9.4 | Limit Switch | limit-switch | 1× | 1 | — | part |
| 10 | Control Cabinet 8 parts | packaging-filling-line-control-cabinet | 1× | 1 | 635 | assembly |
| 10.1 | PLC Controller 3 parts | packaging-filling-line-plc-controller | 1× | 1 | 3 | assembly |
| 10.1.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 10.1.2 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 10.1.3 | I/O Board | io-board | 1× | 1 | — | part |
| 10.2 | I/O Board | io-board | 4× | 4 | — | part |
| 10.3 | HMI Panel | hmi-panel | 1× | 1 | — | part |
| 10.4 | Servo Drive 4 parts | servo-drive | 6× | 6 | 91 | assembly |
| 10.4.1 | Bare PCB | pcb-bare | 1× | 6 | — | part |
| 10.4.2 | IGBT Power Module | igbt-module | 1× | 6 | — | part |
| 10.4.3 | Gate Driver Board 3 parts + deeper › | gate-driver-board | 1× | 6 | 87 | assembly |
| 10.4.4 | DC-Link Capacitor | dc-link-cap | 2× | 12 | — | part |
| 10.5 | Relay | relay | 16× | 16 | — | part |
| 10.6 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 10.7 | Connector | connector | 60× | 60 | — | part |
| 10.8 | Sheet Metal Panel | sheet-panel | 4× | 4 | — | part |
| 11 | Pneumatic System 3 parts | packaging-filling-line-pneumatic-system | 1× | 1 | 29 | assembly |
| 11.1 | FRL Air-Prep Unit | packaging-filling-line-frl-unit | 1× | 1 | — | part |
| 11.2 | Pneumatic Valve Manifold 2 parts | packaging-filling-line-valve-manifold | 1× | 1 | 24 | assembly |
| 11.2.1 | Solenoid Valve | packaging-filling-line-solenoid-valve | 12× | 12 | — | part |
| 11.2.2 | Connector | connector | 12× | 12 | — | part |
| 11.3 | Pneumatic Cylinder | pneumatic-cylinder | 4× | 4 | — | part |
| 12 | Safety Guarding 5 parts | packaging-filling-line-safety-guarding | 1× | 1 | 23 | assembly |
| 12.1 | Sheet Metal Panel | sheet-panel | 12× | 12 | — | part |
| 12.2 | Safety Light Curtain | packaging-filling-line-light-curtain | 2× | 2 | — | part |
| 12.3 | Safety Door Interlock | packaging-filling-line-safety-interlock | 4× | 4 | — | part |
| 12.4 | E-Stop Button | packaging-filling-line-estop-button | 4× | 4 | — | part |
| 12.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
