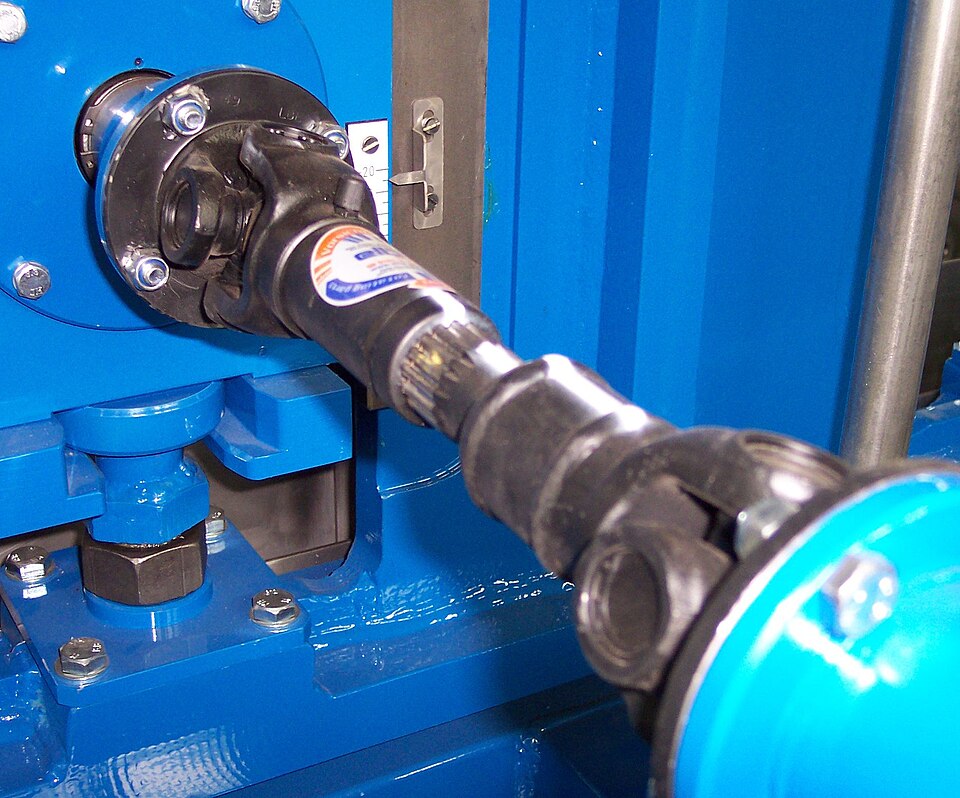

Industrial Cardan Shaft

Product

Overview

Cardan shafts (also called flexible or universal driveshafts) transmit torque between misaligned rotating shafts using universal joints and a flexible tube' They excel in applications where rigid shaft coupling is impractical: vehicle propeller shafts, machine tool table drives, shipboard propulsion, and industrial conveyors with suspended or floating equipment.

The universal joint (Cardan or Hooke joint) enables torque transmission across a 40–45° angle per joint. Adding a second joint in series permits up to 80–90° total deflection. The tube provides torsional stiffness while accommodating axial displacement through a splined slip joint. This combination creates a flexible, shock-absorbing transmission that reduces stress on bearings and gearboxes.

Universal joint mechanics

The universal joint consists of two yokes (input and output) connected by a hardened steel cross with four radial pins. Needle bearings support the cross in each yoke ear, allowing the joint to articulate in both planes.

Torque input to one yoke is transmitted through the cross to the output yoke. The key advantage is angle flexibility: the yokes can be misaligned by up to 45° without losing torque transmission. Unlike rigid couplings, the joint accommodates both angular and parallel (offset) misalignment.

However, universal joints have a critical limitation: angle-induced speed fluctuation. When the joint operates at an angle (not parallel), the output speed is not constant; it oscillates sinusoidally around the average input speed. At 30° misalignment and 1000 RPM input, output speed varies ±200 RPM. This oscillation creates vibration that excites bearing frequencies and can cause resonance.

Addressing angle-induced vibration

The standard solution is to use two universal joints with a center bearing support (pillow block) mid-shaft. If both joints are at the same angle in the same plane, the speed oscillations cancel and the output speed is constant. This configuration is universal in automotive drivelines and industrial power transmission.

The central tube provides torsional rigidity (typically 100–500 N·m/°) and structural support. Steel tubes (1020–1045 steel, 2–4 mm wall) are standard for general industrial use; aluminum tubes are lighter and used in aerospace applications.

Slip joint function and adjustment

The slip joint (also called a spline coupling or telescoping joint) accommodates axial length variation due to mounting flexibility, thermal expansion, or dynamic deflection. Typical range is 20–100 mm of axial compression and extension.

Slip is achieved through straight-sided splines: the inner shaft has female (internal) splines, and the outer sleeve has male (external) splines. As one rotates, they remain locked torque-wise but can slide axially. Grease nipples enable periodic lubrication; spline wear appears as increased backlash and eventual rattle. Typical spline life is 5000–10,000 operating hours under normal duty.

Bearing support and critical speeds

Bearing cartridges (pillow blocks or flange-mount units) support the tube at mid-span and ends. They carry the tube's weight and the radial load from misalignment. Deep-groove ball bearings (6204–6210 series) are typical.

Critical speed (whirling resonance) is a key design consideration. Long, slender tubes have lower critical speeds; a 500 mm tube with 60 mm OD might whirl (resonate) at 2500 RPM. Operating above the first critical speed excites bending vibration that amplifies stress. Bearing preload, tube stiffness, and midspan bearing support all increase critical speed.

Industrial designs typically operate well below the first critical speed or at least 20% above it to avoid sustained resonance. High-speed shafts (>5000 RPM) require rigid supports and careful balancing.

Damping and shock absorption

Elastomer damping pads bonded to the yokes or tube provide torsional damping, reducing excitation of transient shock loads. These pads have a natural frequency of 5–50 Hz depending on stiffness and mass; they attenuate motor pulsation and load shock transients by 30–50%.

This damping is critical in punch press and impact tool applications, where the load delivers sudden torque spikes. Without damping, bearing and joint wear accelerate; with damping, life extends by 50–100%.

Load and fatigue

Cardan shafts are rated at nominal input power and speed, with service factors applied for duty class (continuous vs. intermittent). Design life typically assumes 10,000–20,000 operating hours before bearing fatigue or spline wear requires maintenance.

Failure modes:

  • Needle bearing spalling: Misalignment or shock load causes bearing fluting; symptoms include noise at the joint.
  • Spline backlash: Wear of male splines causes axial rattle and torque spike amplification; remedy is replacement.
  • Tube fatigue: Fatigue cracks form at weld seams (on welded tubes) after 5000+ hours under cyclic load; typical life is adequate if design stress is <50% yield.
  • Joint seal leakage: Dust seal wear allows water ingress and corrosion of needle bearing races; preventive seal replacement every 2000 hours is recommended.

Installation and alignment

Cardan shafts tolerate 3–5 mm parallel (offset) misalignment and 30° angular misalignment without excessive speed fluctuation (dual-joint configuration). However, minimizing misalignment improves bearing and spline life; field alignment should aim for <1 mm offset and <5° angle per joint.

Installation involves:

  1. Mount input and output flanges to motor and load.
  2. Support tube at mid-span with pillow block (if dual joints).
  3. Tighten flange bolts in a cross pattern (M8–M14 typically).
  4. Lubricate slip joint and needle bearing cavities.
  5. Rotate slowly by hand to confirm smooth rotation and check for interference.

Typical installation time is 2–4 hours depending on shaft length and support complexity.

Maintenance and monitoring

Sealed pillow blocks and needle bearing cups require no periodic greasing if factory-sealed. The slip joint requires quarterly lubrication: apply a few pumps of NLGI Grade 2 lithium grease via the nipple. Every 1000 operating hours, rotate the shaft by hand and listen for grinding or clicking noise at the joints (sign of bearing wear).

Annual inspection:

  • Check flange bolts for looseness (vibration can loosen them).
  • Inspect dust seals at joints (cracks indicate wear).
  • Measure slip joint axial play (should be <2 mm; excessive play indicates spline wear).

Modern cardan shafts with sealed cartridge bearings and precision splines offer exceptional reliability, with field life exceeding 20,000 operating hours in well-maintained installations.

Industrial Cardan Shaft parts and their functions

7 top-level parts · 37 parts in total · full bill of materials below
Industrial Cardan Shaft parts diagram: 1 input flange, 2 universal joint assembly, 3 drive tube assembly, 4 slip joint assembly, 5 output flange, 6 bearing cartridge assembly, 7 damping and balancing system. 37 parts in 7 top-level items.
Industrial Cardan Shaft parts diagram. Numbers match the table below; each box is one top-level part or assembly with what it contains.
#PartQtyWhat it does
1 Input Flange 2 parts 1× Coupling interface to motor or input shaft
2 Universal Joint Assembly 3 parts 2× Universal joint pairs enabling angle transmission
3 Drive Tube Assembly 2 parts 1× Central transmission tube with bearing supports
4 Slip Joint Assembly 3 parts 1× Splined section accommodating axial length change
5 Output Flange 2 parts 1× Load coupling interface
6 Bearing Cartridge Assembly 2 parts 3× Center and end bearing supports
7 Damping and Balancing System 2 parts 1× Elastomer or friction pads absorbing shock

3D model

No 3D model yet. Have a CAD file of this? Add a 3D model. STL renders right on this page; STEP, FreeCAD, and OpenSCAD sources are welcome too (openly licensed, like all 3D models on BOMwiki).

Build & assembly graph

expand / collapse · shared sub-assemblies converge · links to related products · est. labour
product / assembly shared across products atomic part related product

Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.

Bill of materials for Industrial Cardan Shaft

7 top-level lines · 23 rows shown · 37 parts total · indented to 3 levels
# Item / sub-assembly Part no. Qty/assy Ext. qty Parts Type
1 Input Flange 2 parts cardan-shaft-input-flange 1× 1 2 assembly
1.1 Flange Disc cardan-shaft-flange-disc 1× 1 · part
1.2 Flange Fastener Set cardan-shaft-flange-fasteners 1× 1 · part
2 Universal Joint Assembly 3 parts cardan-shaft-joint-assembly 2× 2 7 assembly
2.1 Joint Yoke cardan-shaft-joint-yoke 2× 4 · part
2.2 Cross Pin Assembly cardan-shaft-cross-pin 1× 2 · part
2.3 Needle Bearing Cup cardan-shaft-needle-bearing 4× 8 · part
3 Drive Tube Assembly 2 parts cardan-shaft-tube 1× 1 3 assembly
3.1 Tube Element cardan-shaft-tube-element 1× 1 · part
3.2 Bearing Boss cardan-shaft-tube-bearing-boss 2× 2 · part
4 Slip Joint Assembly 3 parts cardan-shaft-slip-joint 1× 1 3 assembly
4.1 Slip Inner Shaft cardan-shaft-slip-inner-shaft 1× 1 · part
4.2 Slip Outer Sleeve cardan-shaft-slip-outer-sleeve 1× 1 · part
4.3 Spline Lube Fitting cardan-shaft-slip-spline-lubrication 1× 1 · part
5 Output Flange 2 parts cardan-shaft-output-flange 1× 1 2 assembly
5.1 Flange Disc cardan-shaft-flange-disc 1× 1 · part
5.2 Flange Fastener Set cardan-shaft-flange-fasteners 1× 1 · part
6 Bearing Cartridge Assembly 2 parts cardan-shaft-bearing-cartridge 3× 3 3 assembly
6.1 Ball Bearing ball-bearing 2× 6 · part
6.2 Bearing Housing cardan-shaft-bearing-housng 1× 3 · part
7 Damping and Balancing System 2 parts cardan-shaft-damping-elements 1× 1 4 assembly
7.1 Damper Pad cardan-shaft-damper-pad 2× 2 · part
7.2 Damper Clamp cardan-shaft-damper-clamp 2× 2 · part
